Standard Rigid STRIPs

SKU: Gama Estandar

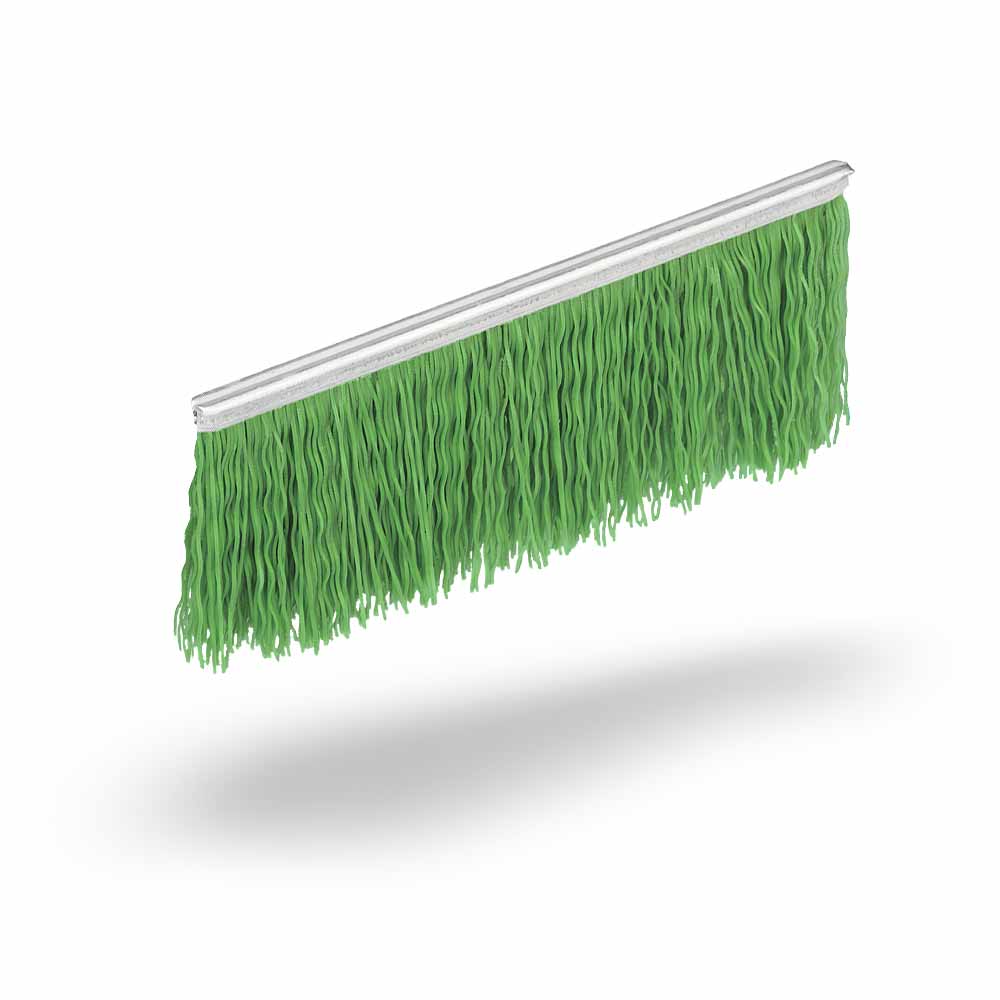

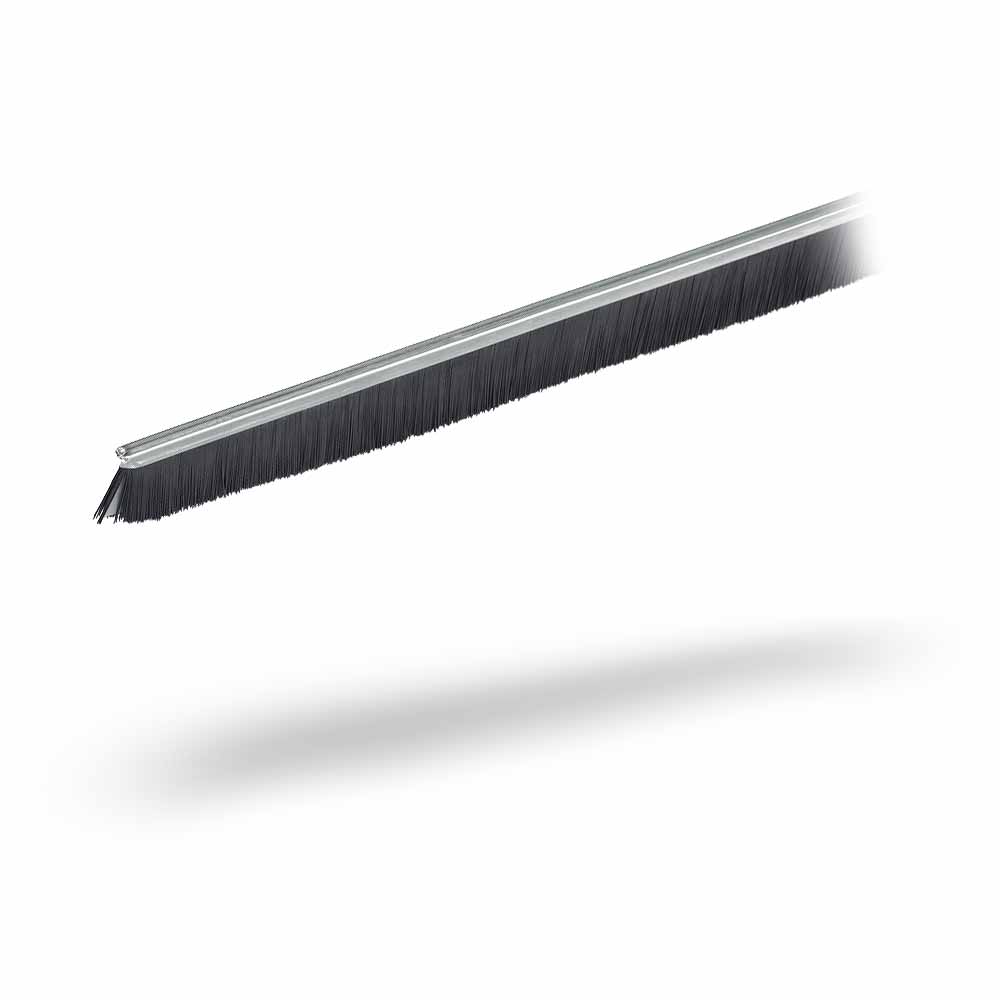

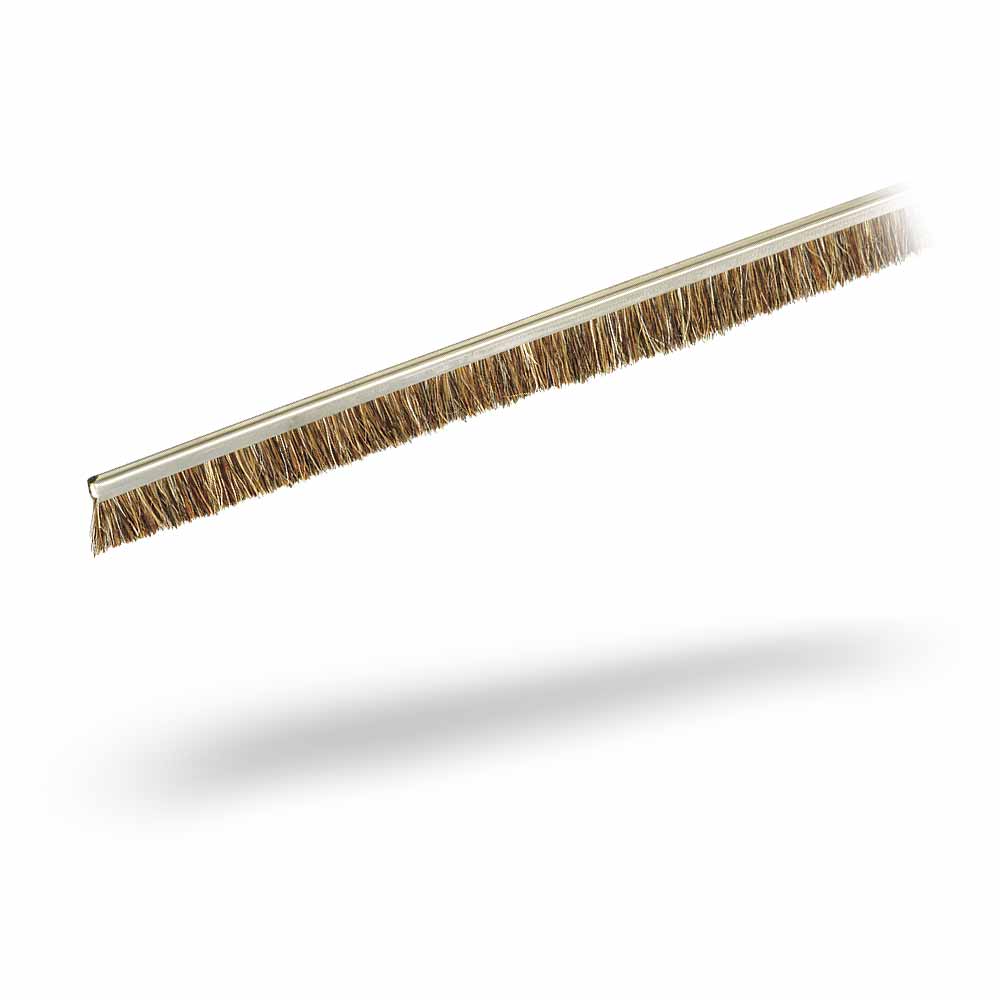

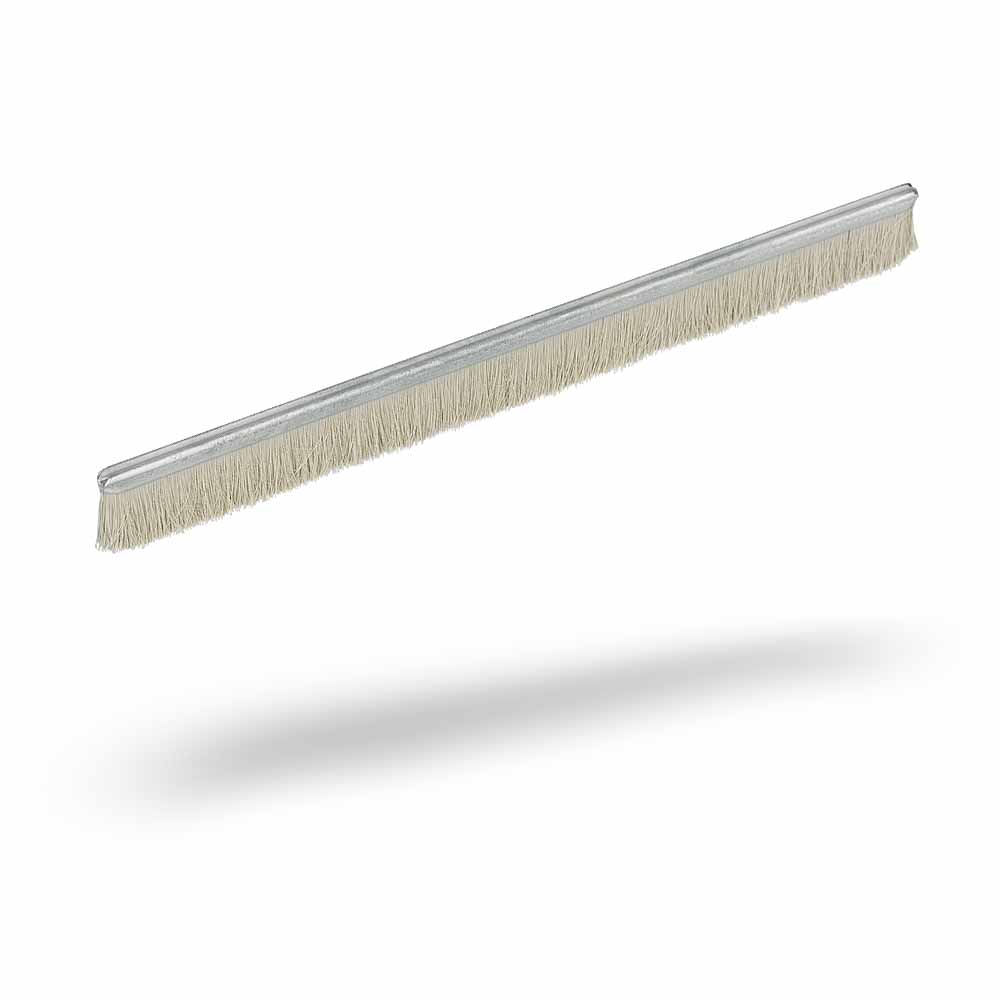

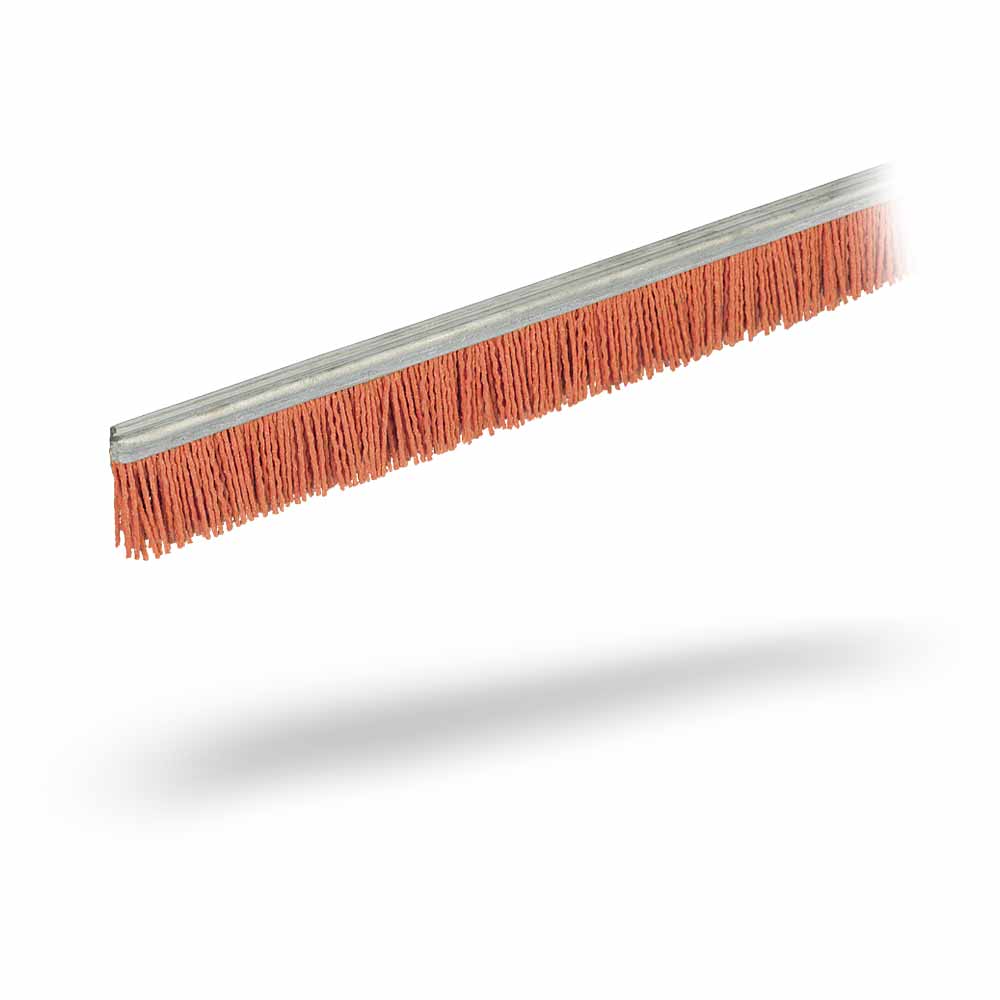

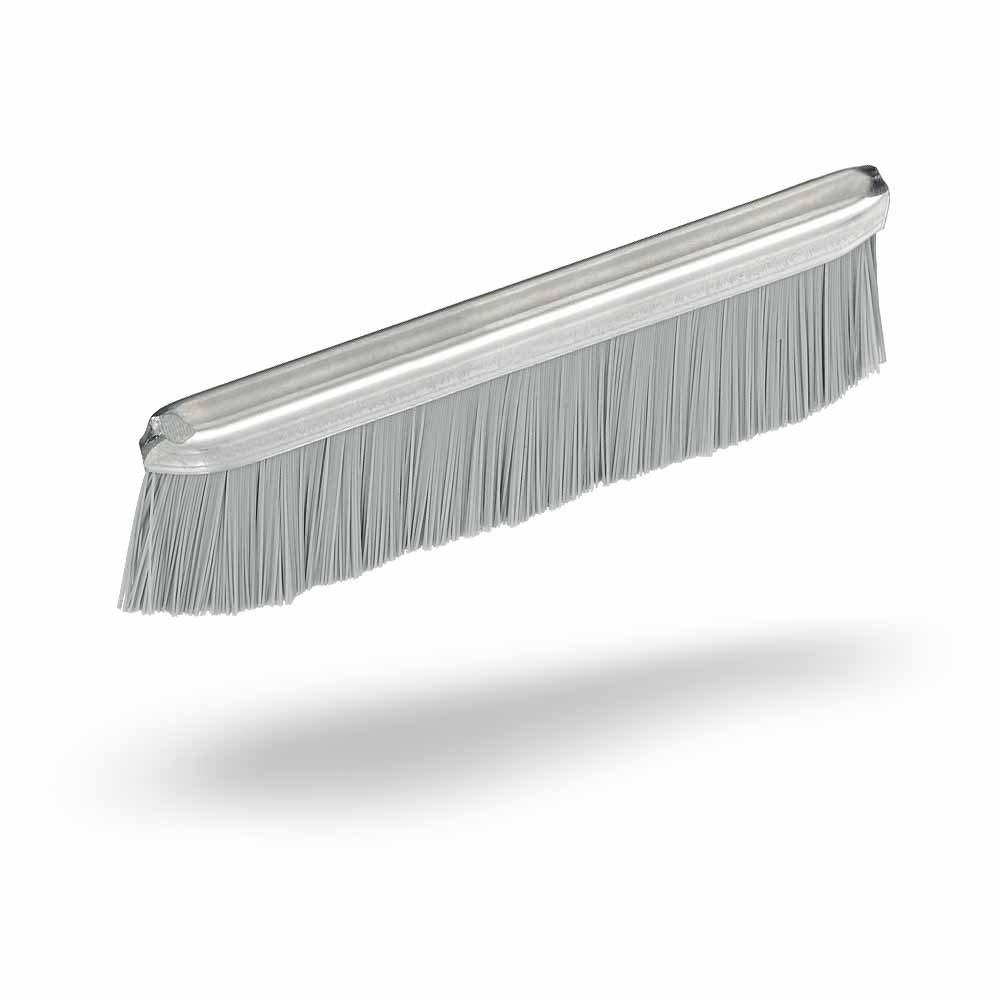

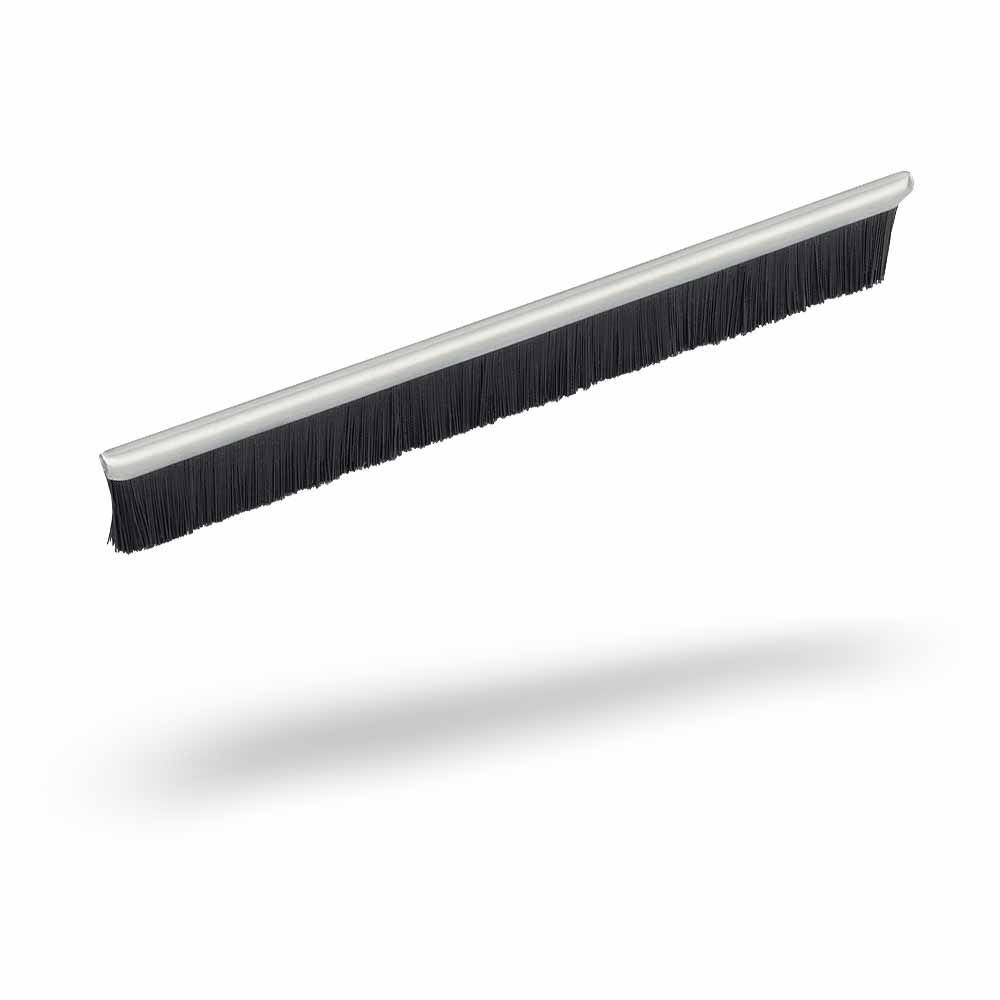

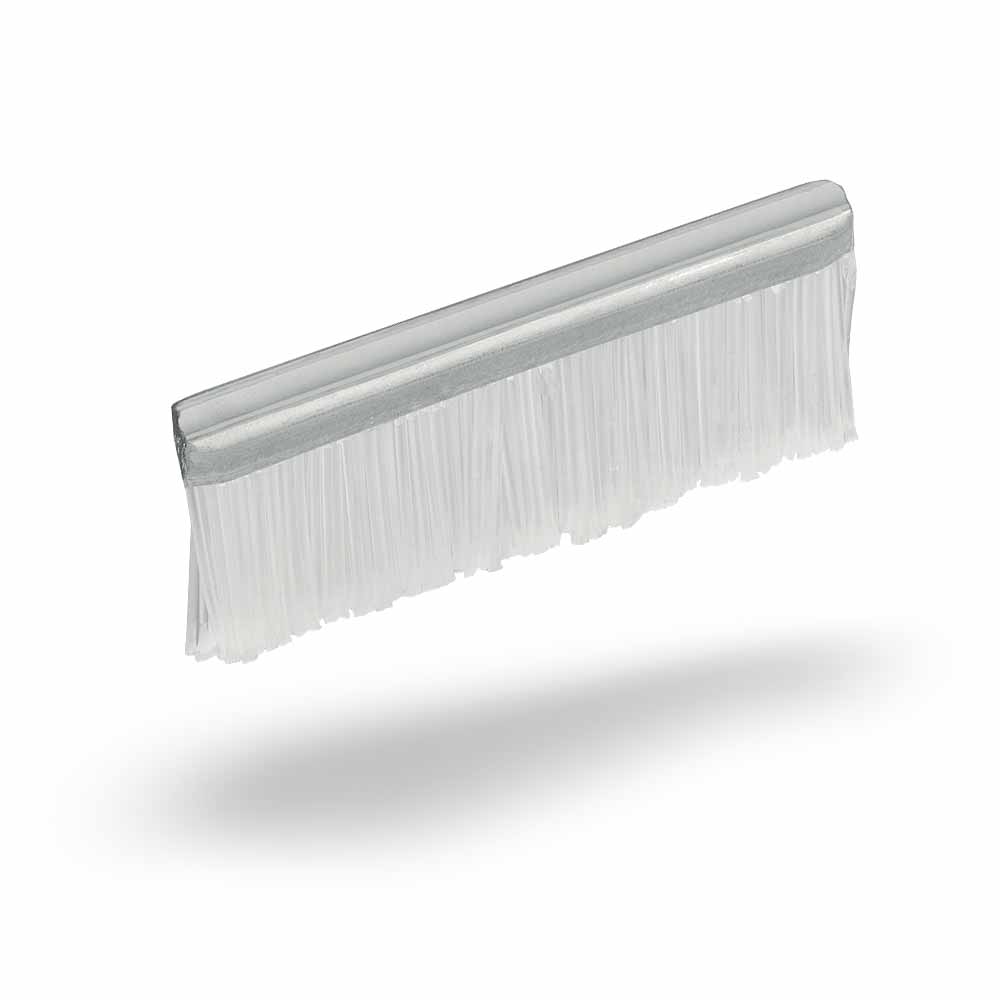

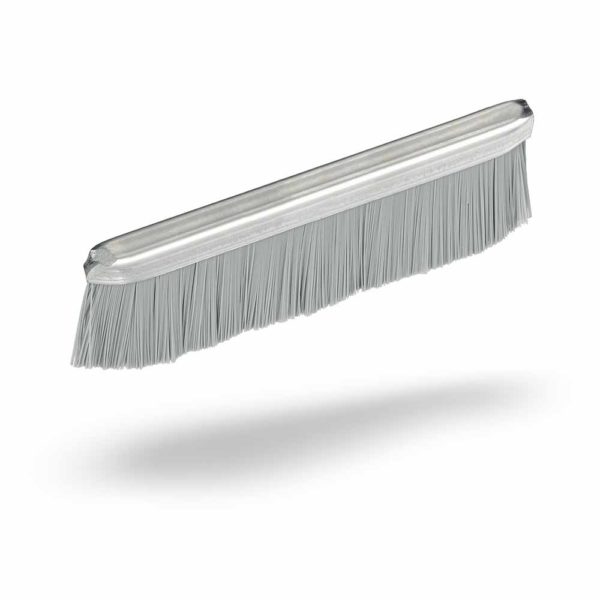

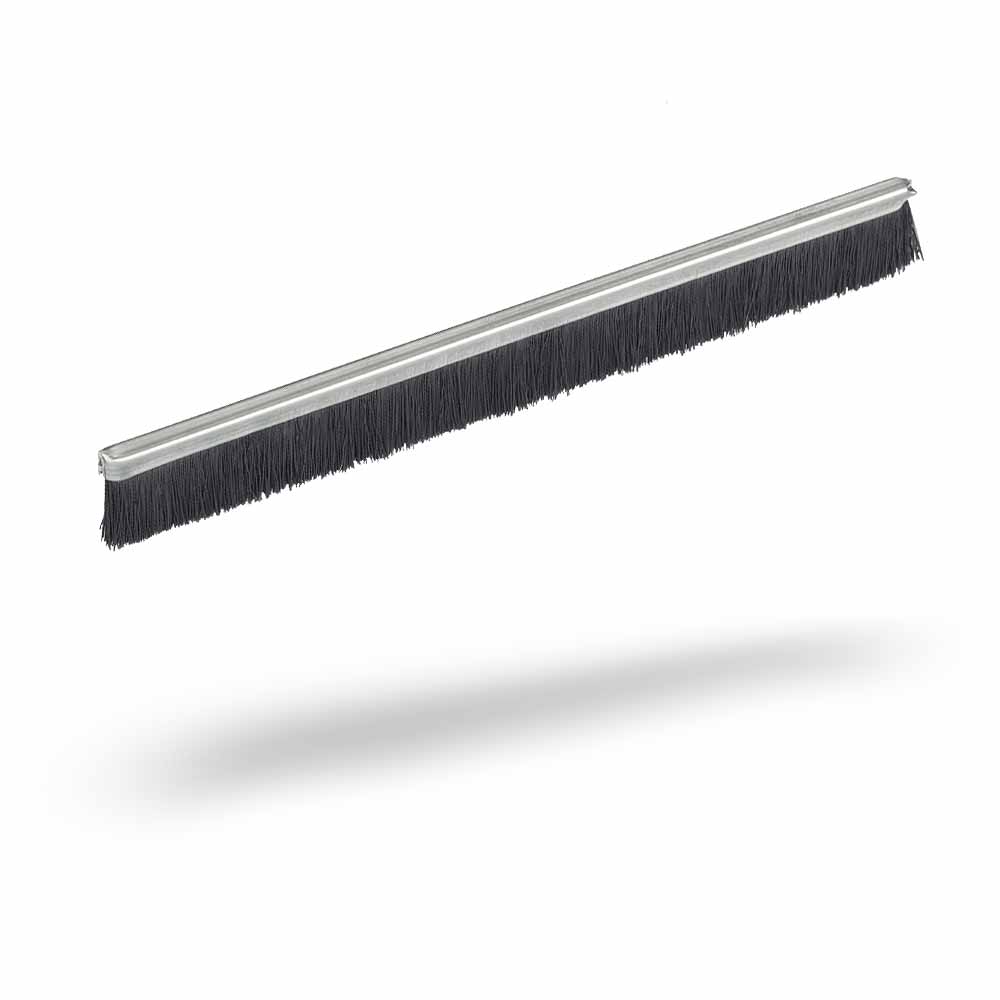

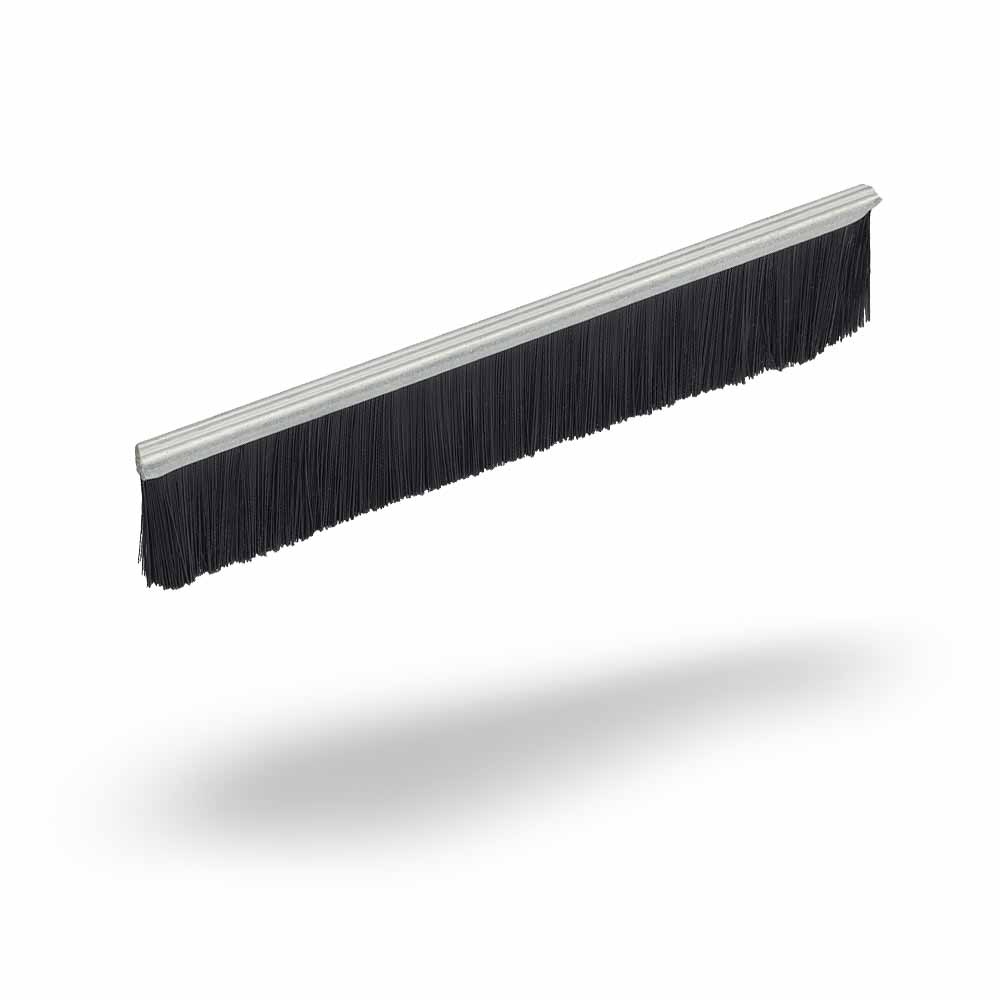

STRIP brushes allow the user a fast adaptation, since the profiles can be cut, drilled, machined etc.

  • Strip Brush made with “U” in electro-galvanized steel and fiber in PP (Polypropylene).
  • Within the standard measures other fibers can be chosen, such as: Polyamide (PA), Rilsan (RSS), Polyester (PBT), Polyethylene (PE) etc.
  • Supplied in 3 meter bars.

Inquire with us about this product

I have read and agree the privacy policy

Measures

Model Reference A B
mm " mm "
STRIP
Nº3
H3-14 14 0,55" 30 1,18" STRIP Nº3

Profile width: 3mm

F3-14 21 0,83"
Y3-14 30 1,18"
H3-24 24 0,94" 40 1,57"
F3-24 31 1,22"
Y3-24 40 1,57"
H3-34 34 1,34" 50 1,97"
F3-34 41 1,61"
Y3-34 50 1,97"
H3-44 44 1,73" 60 2,36"
F3-44 51 2"
Y3-44 60 2,36"
STRIP
Nº5
H5-15 15 0,59" 40 1,57" STRIP Nº5

Profile width: 5mm

F5-15 24 0,94"
Y5-15 40 1,57"
H5-25 25 0,98" 50 1,97"
F5-25 34 1,34"
Y5-25 50 1,97"
H5-35 35 1,38" 60 2,36"
F5-35 44 1,73"
Y5-35 60 2,36"
H5-45 45 1,77" 70 2,76"
F5-45 54 2,13"
Y5-45 70 2,76"
H5-50 50 1,97" 75 2,95"
F5-50 59 2,32"
Y5-50 75 2,95"
H5-60 60 2,36" 85 3,35"
F5-60 69 2,72"
Y5-60 85 3,35"
H5-80 80 3,15" 105 4,13"
F5-80 89 3,50"
Y5-80 105 4,13"
H5-90 90 3,54" 115 4,53"
F5-90 99 3,90"
Y5-90 115 4,53"
STRIP
Nº8
H8-20 20 0,78" 66 2,59" STRIP Nº8

Profile width: 8mm

F8-20 33 1,29"
Y8-20 70 2,75"
H8-40 40 1,57" 66 2,59"
F8-40 2,09" 2,09"
Y8-40 3,39" 3,39"
H8-50 50 1,97" 100 3,94"
F8-50 63 2,48"
Y8-50 96 3,78"
H8-60 60 2,36" 110 4,33"
F8-60 73 2,87"
Y8-60 106 4,17"
H8-70 70 2,76" 120 4,72"
F8-70 83 3,27"
Y8-70 116 4,57"
H8-80 80 3,15" 130 5,12"
F8-80 93 3,66"
Y8-80 126 4,96"
H8-100 100 3,94" 150 5,91"
F8-100 113 4,45"
Y8-100 146 5,75"
H8-120 120 4,72" 170 6,69"
F8-120 133 5,24"
Y8-120 166 6,54"
H8-150 150 5,91" 200 7,87"
F8-150 163 6,42"
Y8-150 196 7,72"
H8-160 160 6,29" 206 8,11"
F8-160 173 6,81"
Y8-160 210 8,26"
H8-180 180 7,09" 230 9,06"
F8-180 193 7,60"
Y8-180 226 8,90"
H8-200 200 7,87" 250 9,84"
F8-200 213 8,39"
Y8-200 246 9,69"
H8-220 220 8,66" 270 10,63"
F8-220 233 9,17"
Y8-220 266 10,47"

Longitud máxima 3 metros.
Note: The STRIP brushes can be supplied without support.

Technical Specifications

Finishing grade

Ø Wire Finishing Grade
0,8-0,6-0,5 Coarse W1
0,4-0,37-0,35-0,30 Medium W2
0,20-0,15-0,12-0,10 Fine W3
0,08-0,06 S. Fine W4
Non-Abrasive Fibers Neutral SW5

Removal rate

Ø Wire
0,8-0,6-0,5
0,4-0,37-0,35-0,30
0,20-0,15-0,12-0,10
0,08-0,06

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers
  • Action: Sweeping
  • Tool: By hand
  • Surface: Non-sparking, Stainless, Steel, Wood

Applications

  • Door Locks.
  • Cleaning of conveyor belts.
  • Applications in machines.
  • Soundproofing.
  • Avoid the passage of dust.

Additional information

We offer any kind of STRIP brushes.

We offer a wide range of standard measures of STRIP brushes, including different profiles (aluminum), widths and fiber trim lengths.

This wide range of brushes are simple, efficient and cost effective.

It is the easiest solution in Technical Brushes.

STRIP brushes allow the user a fast adaptation, since the profiles can be cut, drilled, machined etc

For special measures contact us directly.
Polypropylene and Nylon material with projections of fibers according to tables.
