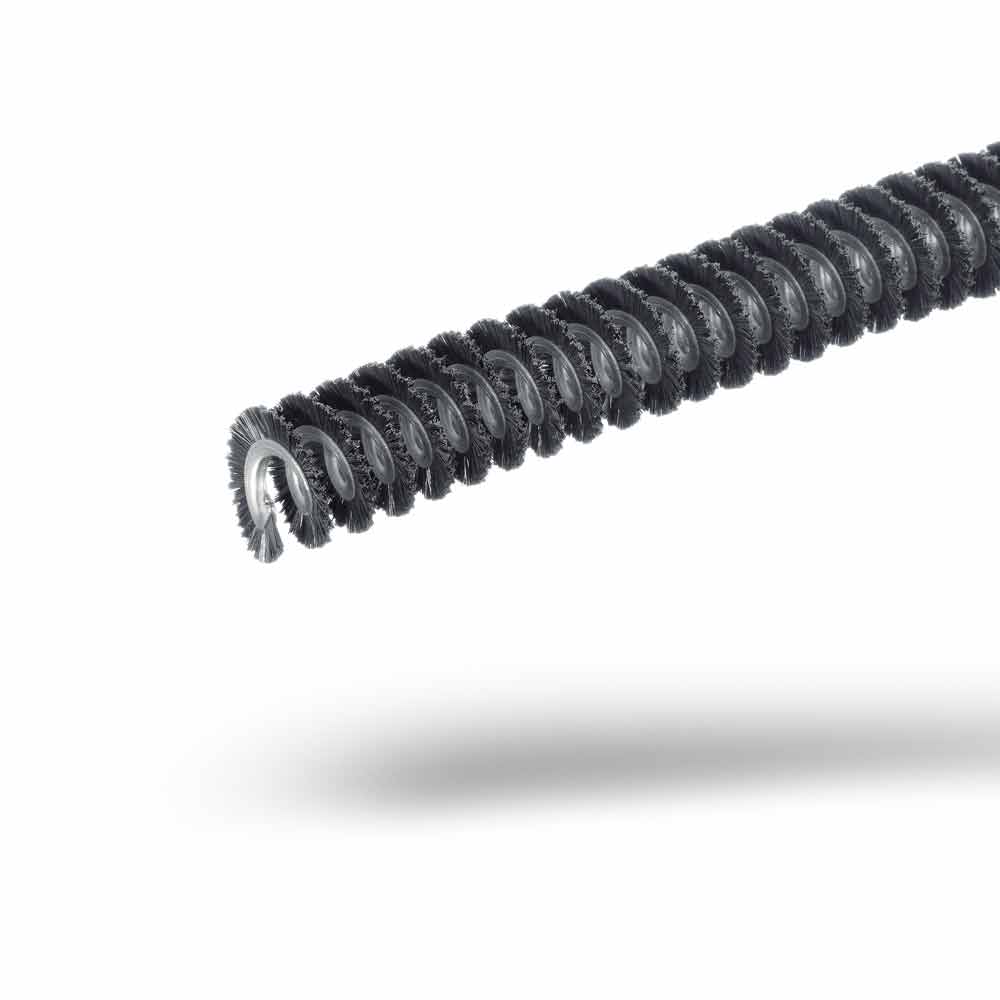

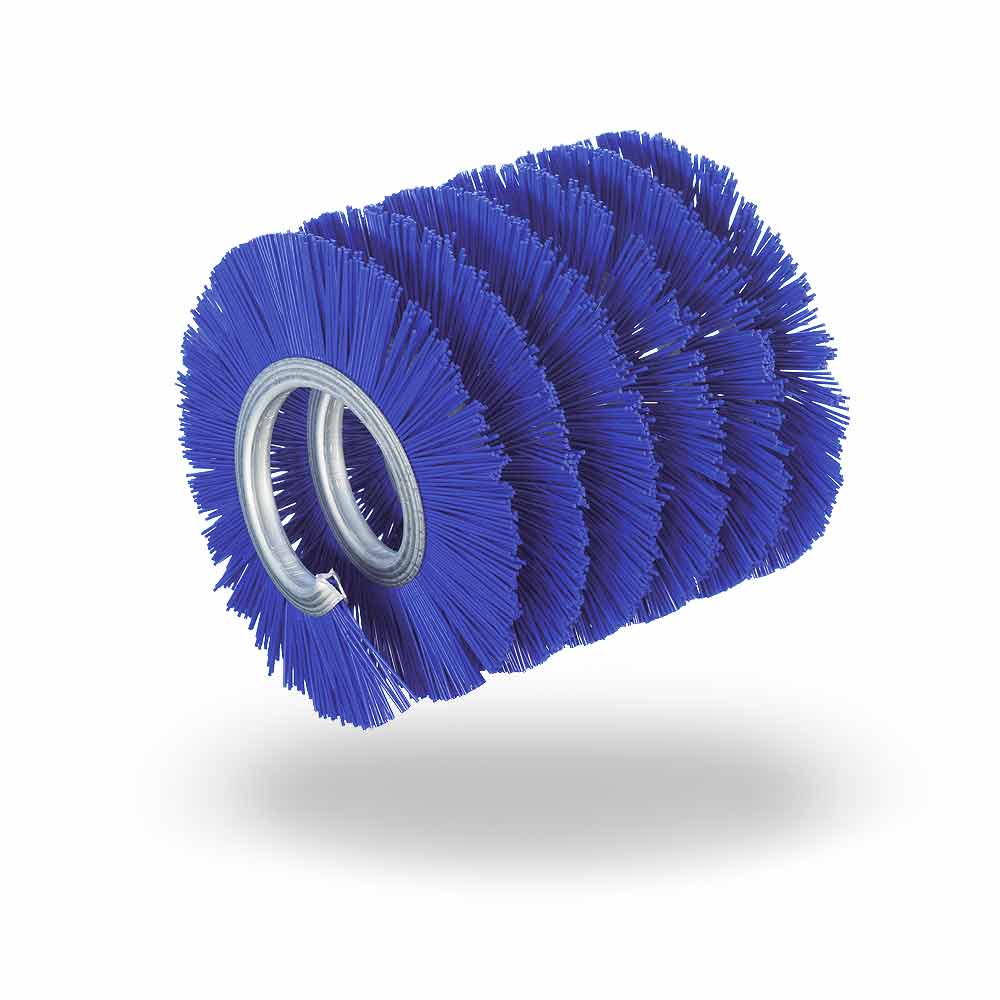

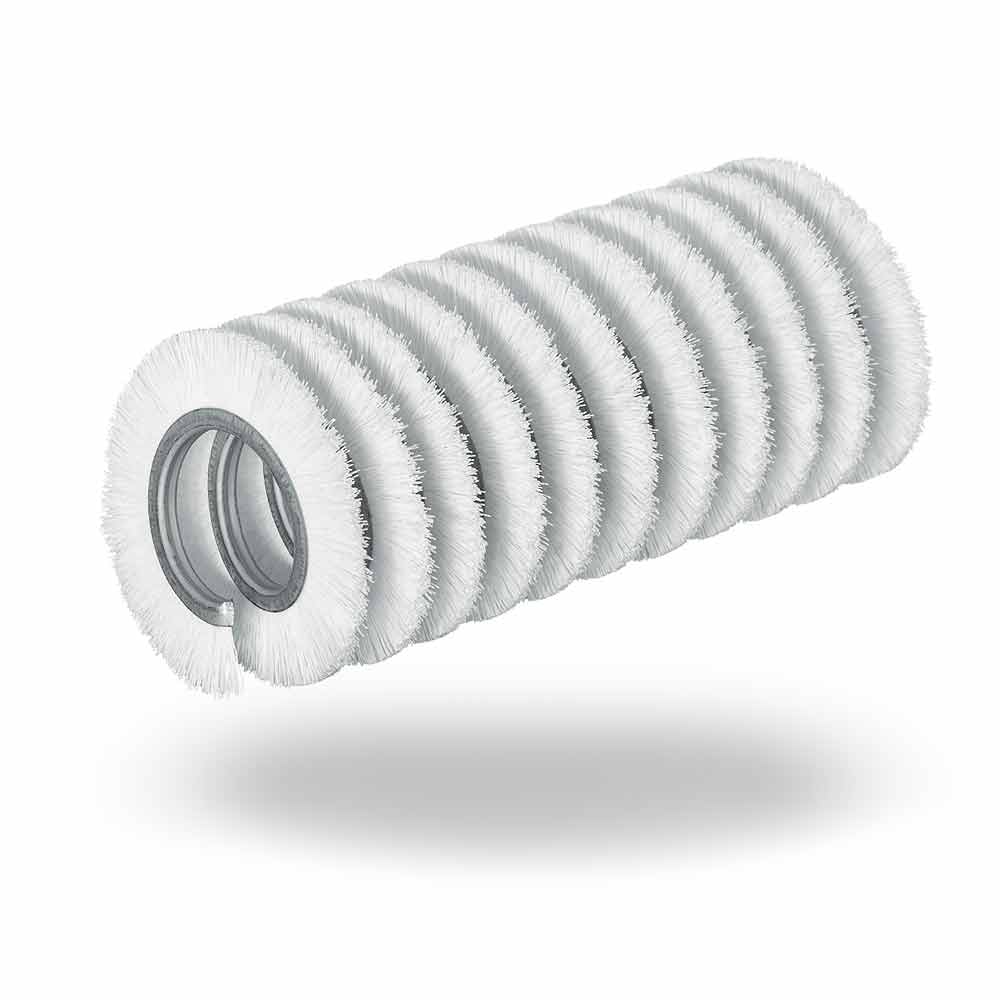

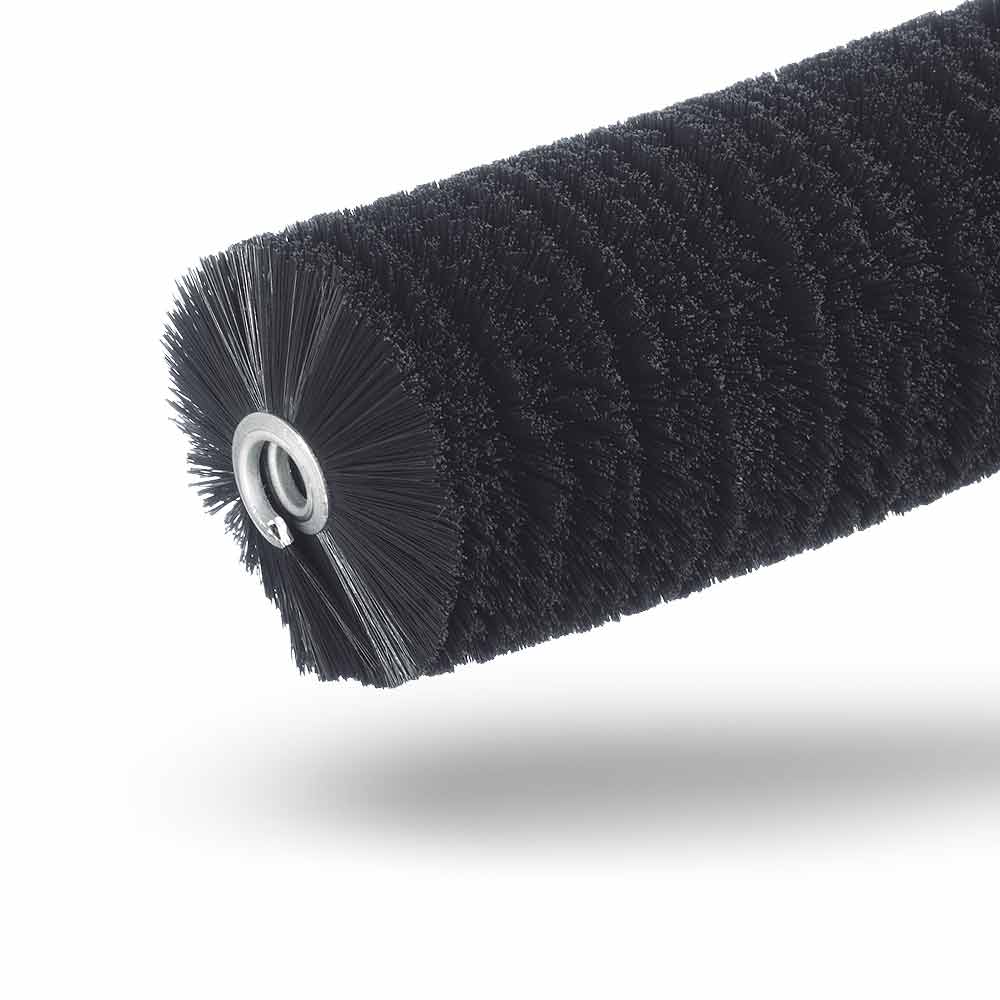

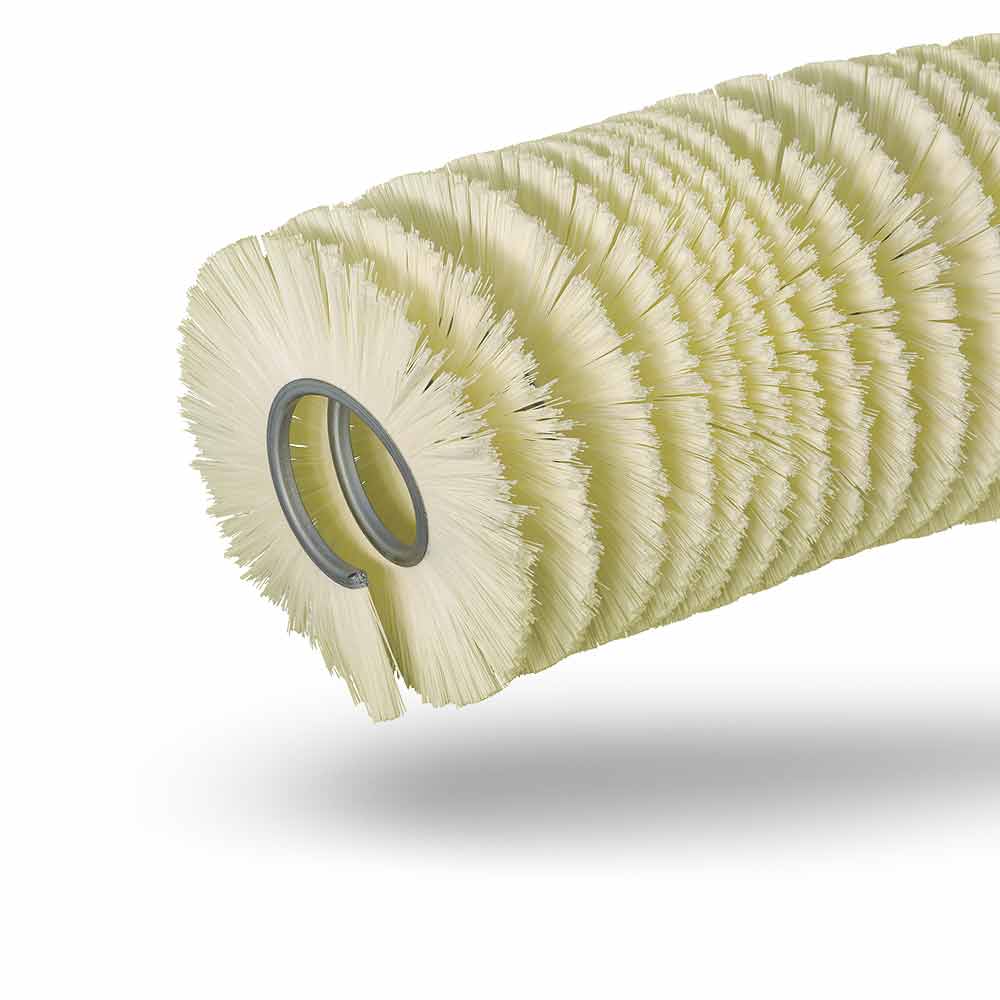

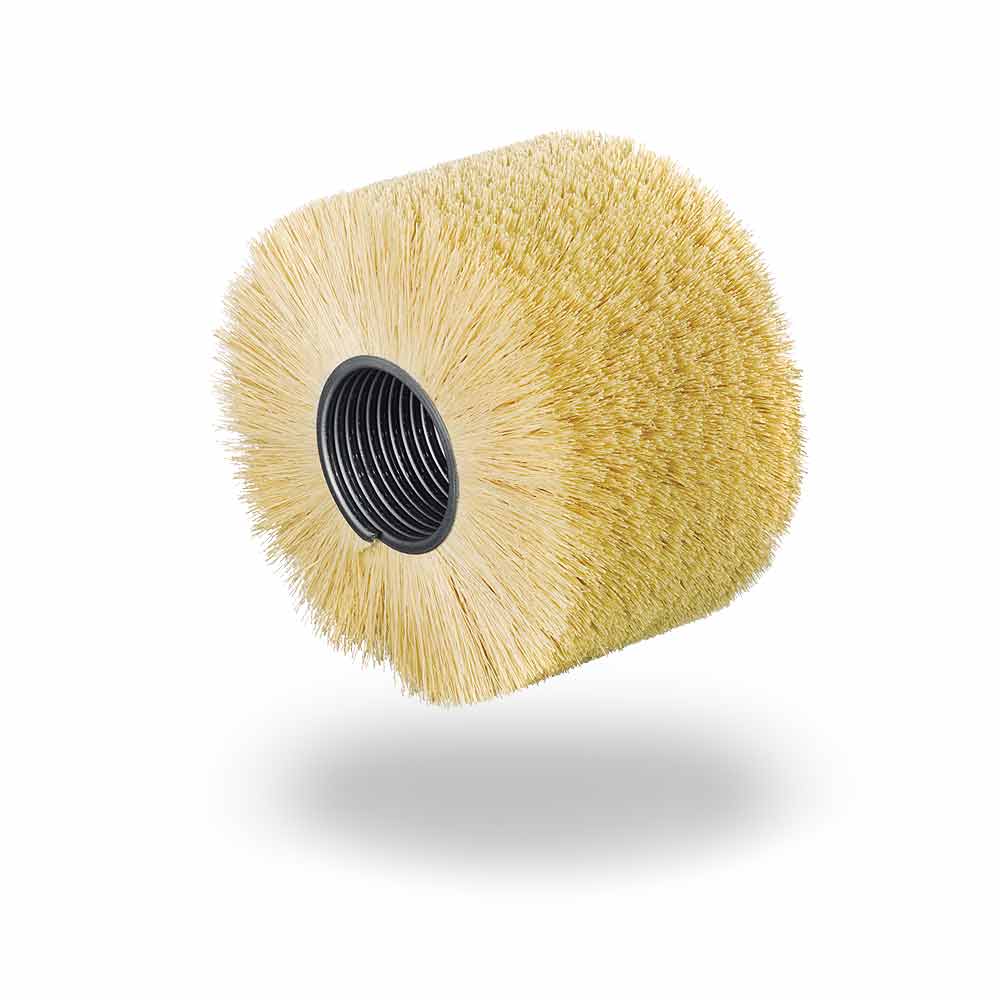

External Cylinder STRIPs

Allow winding on an axis, on straight or curved tubes. Perfect solution to make customized brushes.

  • External cylinder strip, perfect solution to make customized brushes.
  • The circular strip allows winding on an axis, on straight or curved tubes.
  • Depending on the passage of the spiral, we will get a brush more or less dense.
  • Consult the wide range of fibers and steels to design your own brush.

Inquire with us about this product

I have read and agree the privacy policy

Technical Specifications

Finishing grade

Ø Wire Finishing Grade
0,8-0,6-0,5 Coarse W1
0,4-0,37-0,35-0,30 Medium W2
0,20-0,15-0,12-0,10 Fine W3
0,08-0,06 S. Fine W4
Non-Abrasive Fibers Neutral SW5

Removal rate

Ø Wire
0,8-0,6-0,5
0,4-0,37-0,35-0,30
0,20-0,15-0,12-0,10
0,08-0,06

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers
  • Action: Sweeping
  • Tool: By hand
  • Surface: Non-sparking, Stainless, Steel, Wood

Applications

  • Door Locks.
  • Cleaning of conveyor belts.
  • Applications in machines.
  • Soundproofing.
  • Avoid the passage of dust.

Additional information

We offer any kind of STRIP brushes.

We offer a wide range of standard measures of STRIP brushes, including different profiles (aluminum), widths and fiber trim lengths.

This wide range of brushes are simple, efficient and cost effective.

It is the easiest solution in Technical Brushes.

STRIP brushes allow the user a fast adaptation, since the profiles can be cut, drilled, machined etc.

Materials: Polypropylene and Nylon material with projections of fibers according to tables.

For special measures contact us directly.
