Abrasive Nylon DIY Line

SKU: Mod. CNA Abrasive Nylon 6

Los Cepillos Bricolaje Nylon Abrasivo no rayan y por tanto son adecuados para superficies de Madera, Azulejos, Materiales Plasticos, Acero Inoxidable., etc…

Inquire with us about this product

I have read and agree the privacy policy

Measures

Type Ø Diameter Filament Packing R.P.M.
Max.
P.C.S. per
Box
mm " Color Grit Bulk Display
Wheel 75 3" Rojo 80 7500 9475 4.500 12
Azul 150 7501 9575 4.500 12
100 4" Rojo 80 1000 9410 4.500 12
Azul 150 1001 9510 4.500 12
Cup 50 2" Rojo 80 5000 9450 4.500 12
Azul 150 5001 9550 4.500 12
75 3" Rojo 80 7000 9470 4.500 12
Azul 150 7001 9570 4.500 12
End Brush 25 1" Rojo 80 2200 9422 4.500 12
Azul 150 2201 9522 4.500 12
Flap 100 4" Rojo 80 1600 9416 4.500 12
Azul 150 1601 9516 4.500 12

Technical Specifications

Finishing grade

Nylon Abrasivo Finishing Grade
Grit 20|40|60 Coarse NA1
Grit 80|100|120 Medium NA2
Grit 180|200|300 Fine NA3
Grit 400|800|2000 S. Fine NA4
Non-Abrasive Fibers Neutral SW5

Removal rate

Nylon & Flap brushes
Grit 20|40|60
Grit 80|100|120
Grit 180|200|300
Grit 400|800|2000
Non-abrasive Nylon

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers
  • Action: Deburring, Finishing
  • Tool: Drill
  • Surface: Stainless, Steel

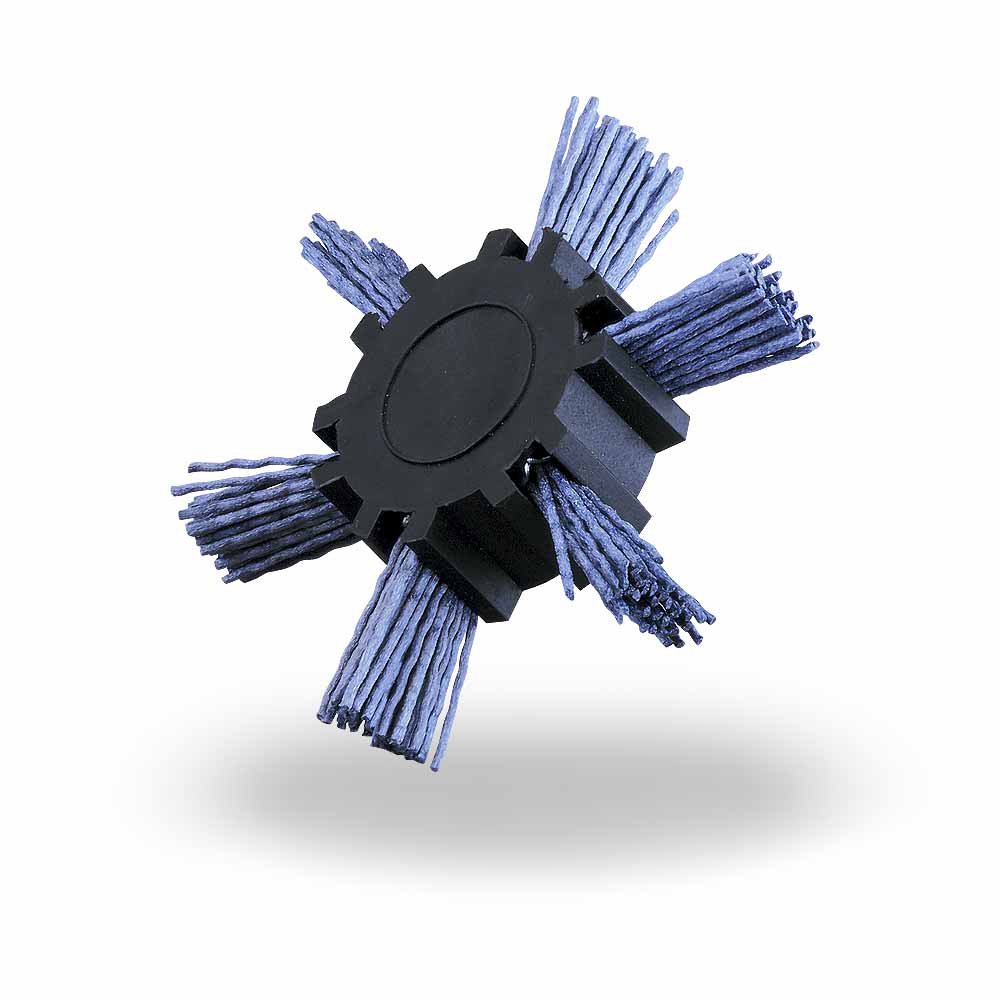

  • Brushes made of nylon filaments impregnated with Aluminium Oxide abrasive particles.
  • High flexibility without danger of breaking, providing long working life and increased safety.
  • Suitable for dry applications only.
  • To be used in power drills.
  • Red colour nylon brushes (grit 80) produce a coarse finishing; the blue colour ones (grit 150) provide a fine polishing.

Applications

Nylon brushes do not scratch and therefore they are appropriate for cleaning and polishing of:

  • Any kind of wood (fine or rustic).
  • Metallic surfaces such as automobile bodies.
  • Tile, stone and concrete
  • Plastic materials.
  • Stainless Steel and Aluminium.

Order Example

Order example:

CNA 1000

  • Model: CNA
  • Article code: 1000

Additional information

Operating Recommended Speed

Optimum performance is obtained at the recommended working speed 2.500 R.P.M.
Speeds above the recommended ones may smear the workpiece due to heat build-up.
