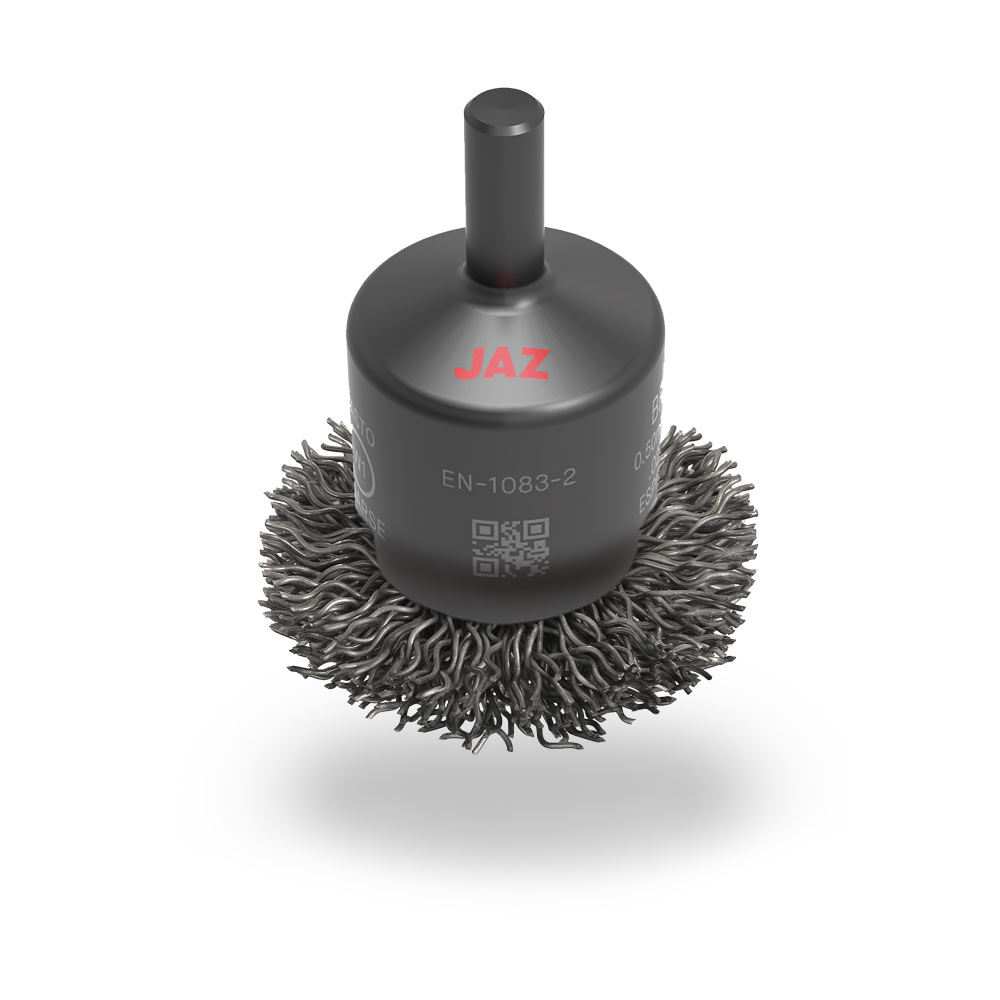

Special cut end brushes

SKU: Mod. BCP

End Brushes of Special Cut are used in difficult places to access, holes, corners. Used on portable or fixed drills with chuck.

Inquire with us about this product

I have read and agree the privacy policy

Measures

Model Overall Diam. (d) Grey Steel Stainless R.P.M.
mm " 0,50 mm / .020" 0,50 mm / .020" Max.
BCP 40 1.5/8" 4000K 4000Q 15.000

Technical Specifications

Finishing grade

Ø Wire Finishing Grade
0,8-0,6-0,5 Coarse W1
0,4-0,37-0,35-0,30 Medium W2
0,20-0,15-0,12-0,10 Fine W3
0,08-0,06 S. Fine W4
Non-Abrasive Fibers Neutral SW5

Removal rate

Ø Wire
0,8-0,6-0,5
0,4-0,37-0,35-0,30
0,20-0,15-0,12-0,10
0,08-0,06

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers
  • Action: Cleaning, Deburring
  • Tool: Die-grinder
  • Surface: Stainless, Steel

  • Shape and dimensions for use in difficult places to access, holes, corners, etc.
  • Used on portable or fixed drills with chuck.

Applications

  • Removal of edges, scale, paint, rust, rubber-metal pieces etc.
  • Dies, tubes, engines, pistons, etc.

Order Example

JAZ ZUBIAURRE: Gráfica

Order Example

BCP4000K

  • Model: BCP
  • Code: 4000K
