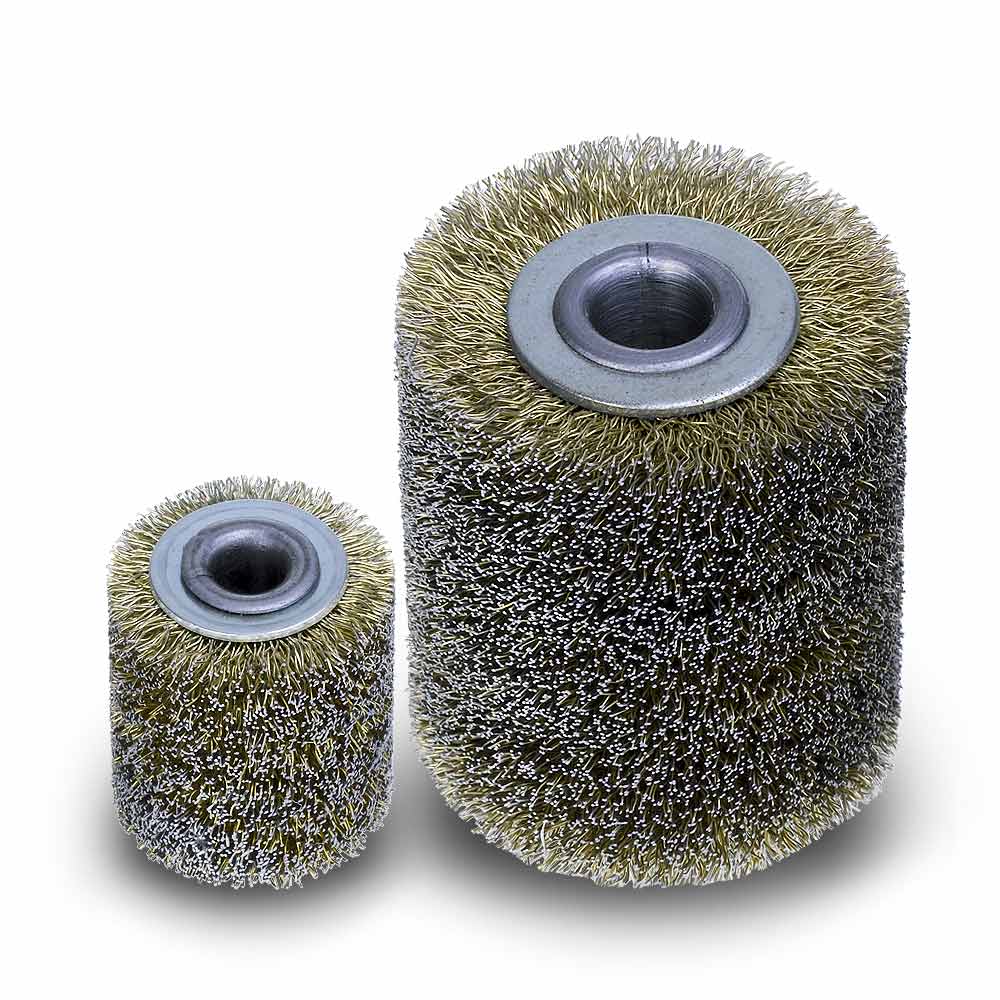

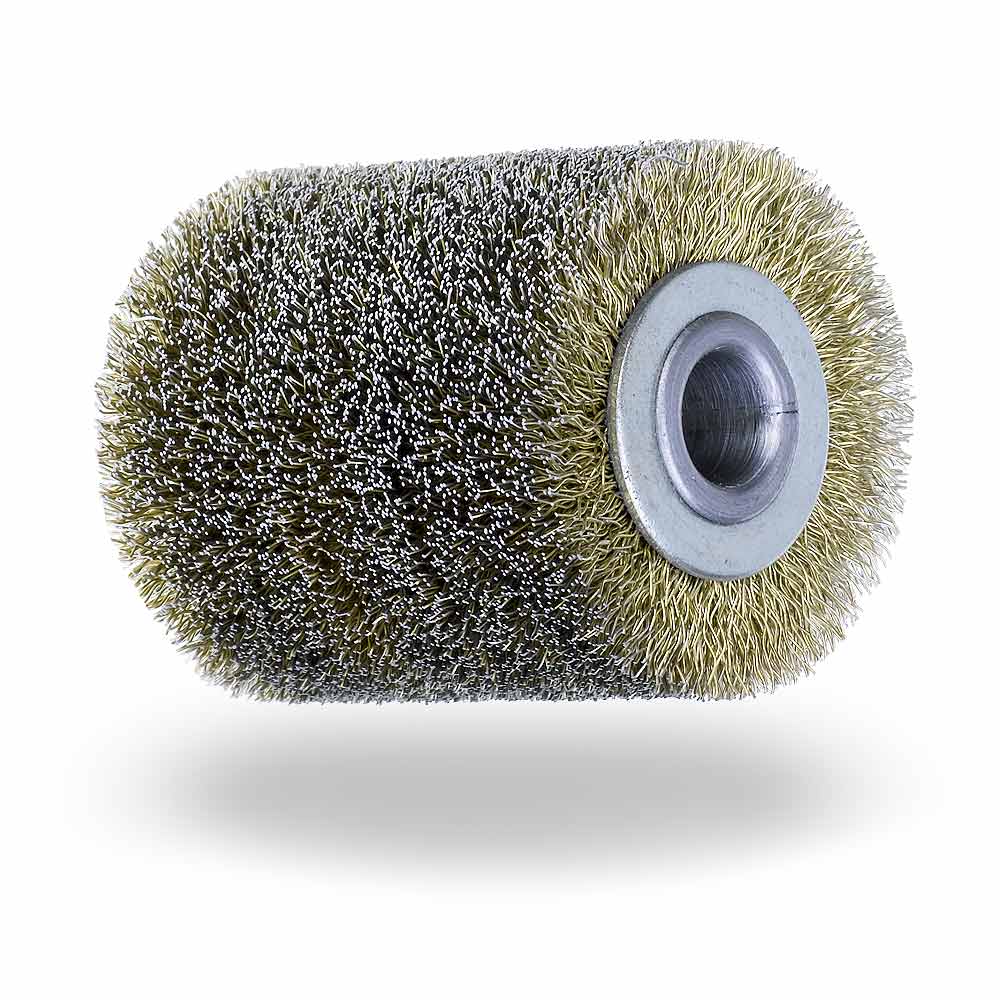

Industrial Wheels mainly used for wire stripping, key duplicating, continuous saws.
Measures
| Diameter (d) | Width (a) | Arbor Hole (e) | Coated Steel | |||
|---|---|---|---|---|---|---|
| mm | " | mm | " | 0,20mm / .008” | 0,30mm / .012” | |
| 30 | 1.3/16" | 10 | 6 | 1/4" | 3000C | |
| 50 | 2" | 10 | 6 | 1/4" | 5000C | |
| 75 | 3" | 15 | 6 | 1/4" | 7500E | |
Technical Specifications
Finishing grade
| Ø Wire | Finishing | Grade |
|---|---|---|
| 0,8-0,6-0,5 | Coarse | W1 |
| 0,4-0,37-0,35-0,30 | Medium | W2 |
| 0,20-0,15-0,12-0,10 | Fine | W3 |
| 0,08-0,06 | S. Fine | W4 |
| Non-Abrasive Fibers | Neutral | SW5 |
Removal rate
| Ø Wire | |
|---|---|
| 0,8-0,6-0,5 |
|
| 0,4-0,37-0,35-0,30 |
|
| 0,20-0,15-0,12-0,10 |
|
| 0,08-0,06 |
|
Flexibility
| DLZ, FLAP, Encapsulated brushes |
|
| Twist knots, Control brushes |
|
| Crimped wire .020 to .012 |
|
| Crimped wire .010 to .004 |
|
| Crimpe wire .003 to .002 Nylon & synthetic fibers |
|
Applications
- The CDO brush range are mainly used for wire stripping, key duplicating, continuous saws, etc.

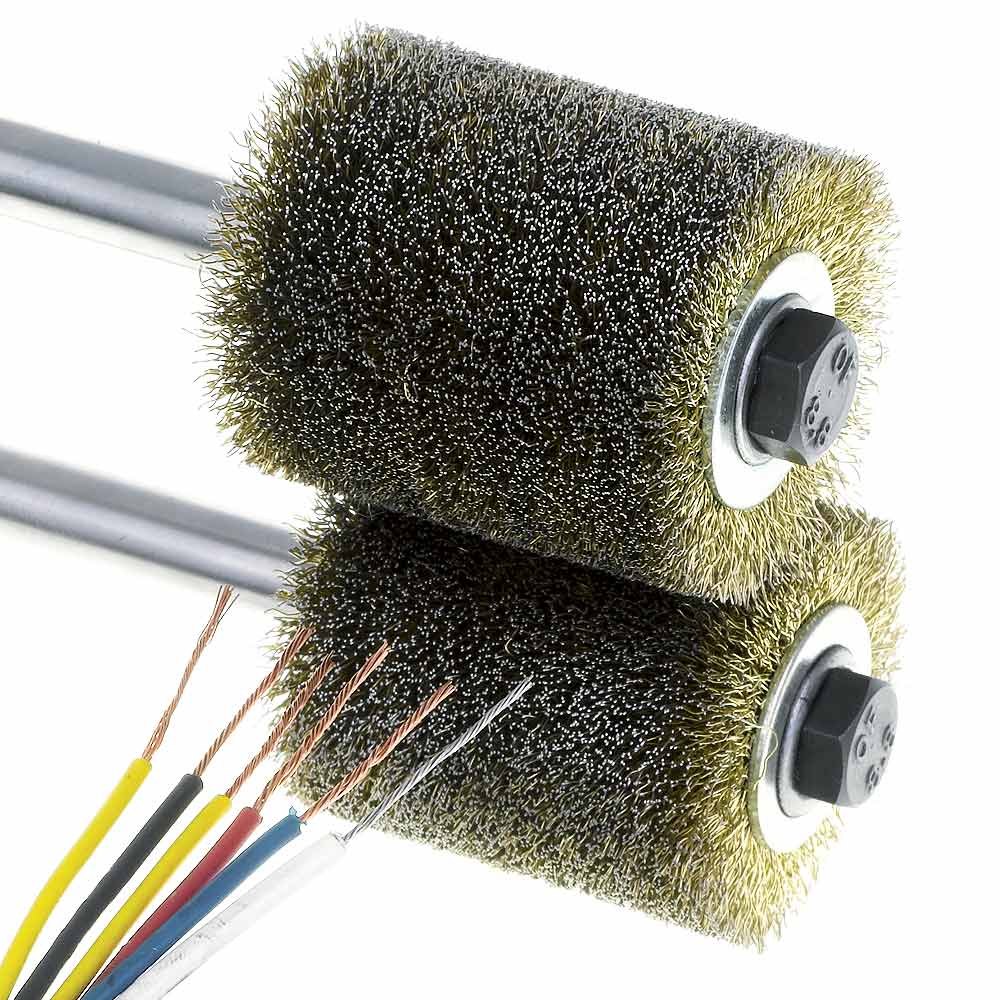

- The brush separates the plastic from copper.
- CDOs are made depending on the specifications of each.
- It is necessary to define:
- Outside Diameter.
- Width.
- Bore.
- Wire diameter.
- Grit size of the abrasive nylon.
