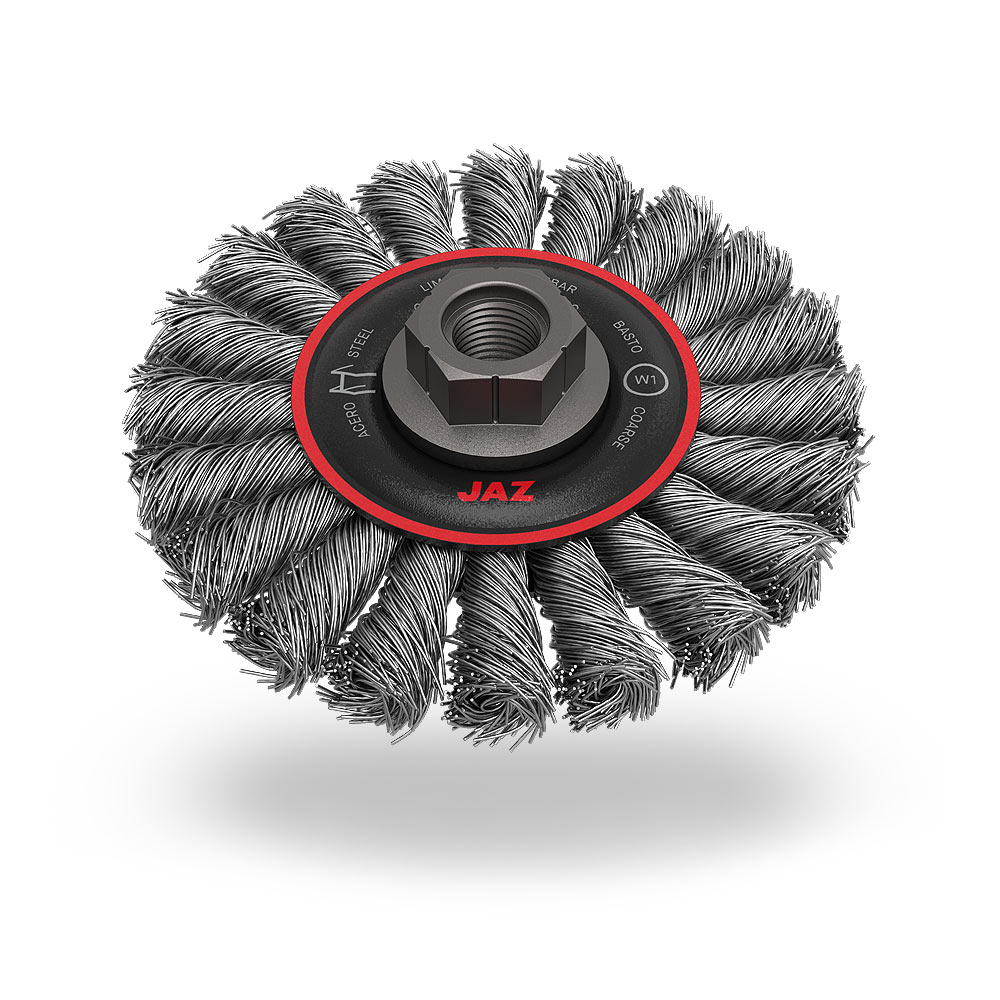

High speed knotted brushes

High Speed Twisted Brushes of knotted wire have been specially designed for low weight and high speed mini-grinders (11,000 rpm). Comfortable use.

Inquire with us about this product

I have read and agree the privacy policy

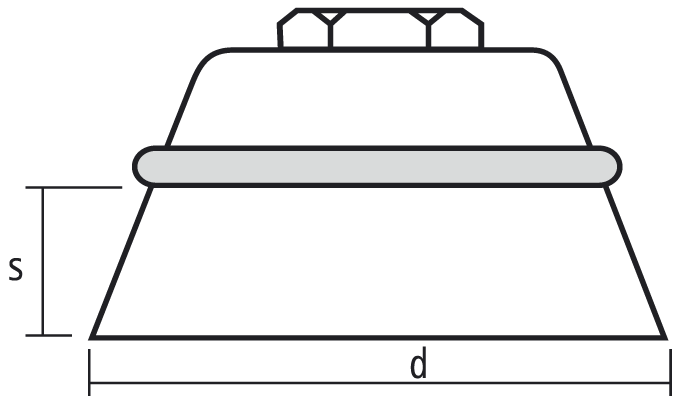

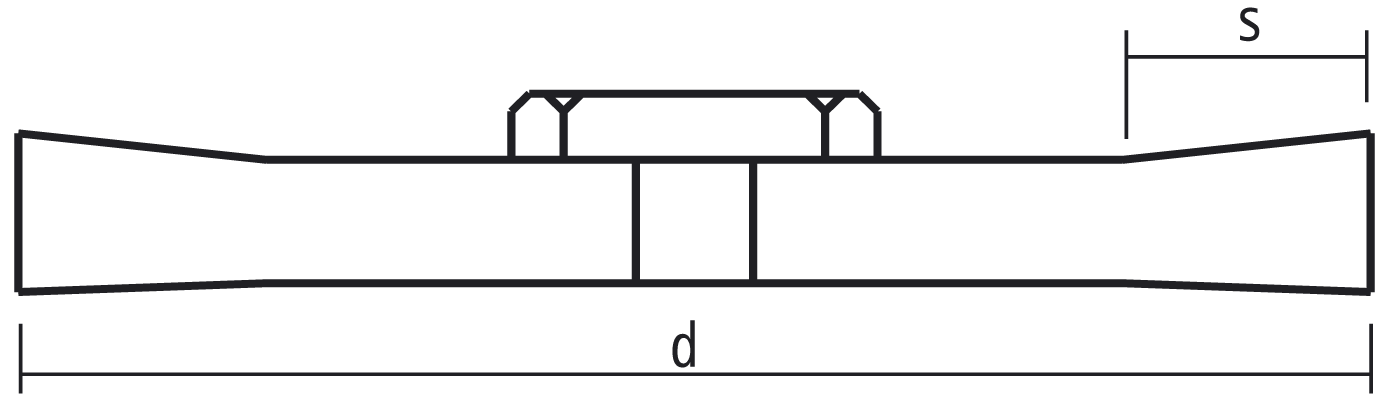

Measures

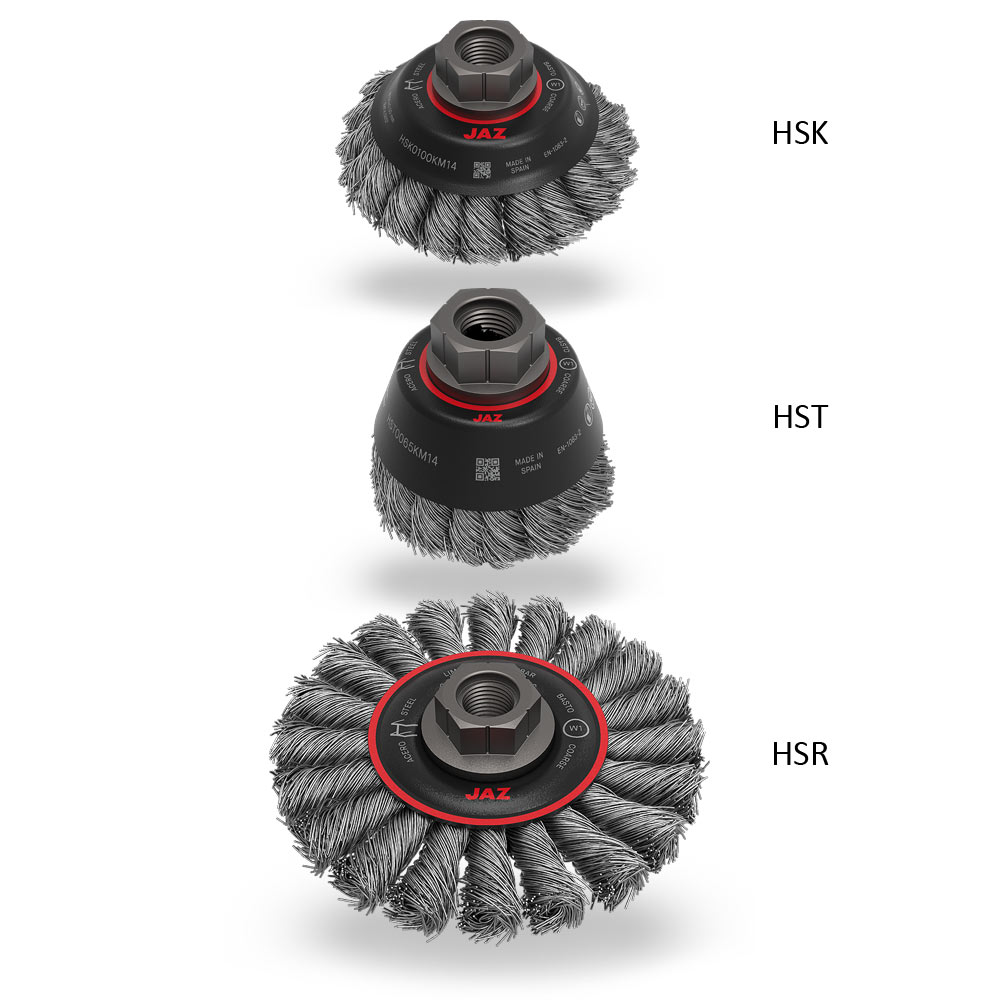

Model Diameter (d) Trim Length (s) Arbor Hole (e) Steel Stainless Steel R.P.M.
.015" .020" .015" .020" Max.

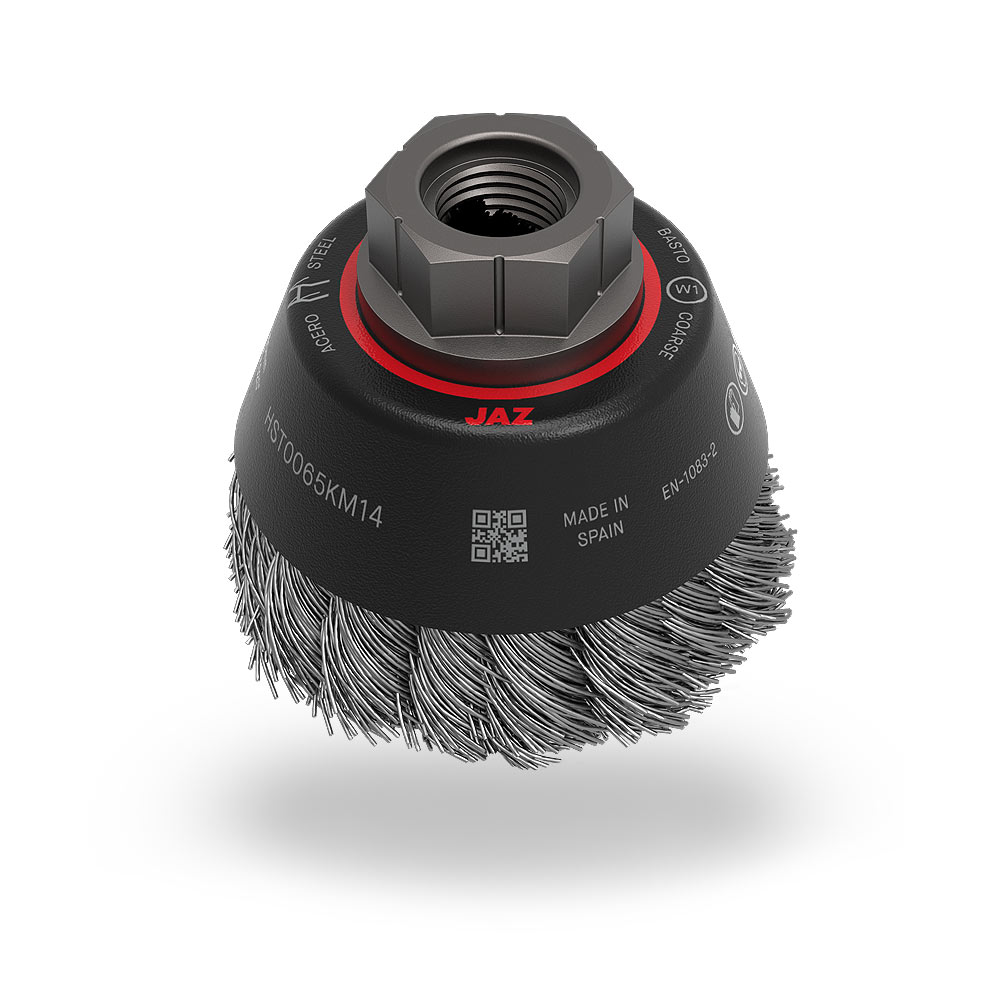

HST 2-3/4" 3/4" 5/8" -11 & M14x2.0 72060 72050 72090 72080 15,000
5/8"-11 72062 72052* 72082*
M10x1.25 & M10x1.50 72061* 72051* 72081*
3/8"-24 72069 72059* 72089
TT 3-1/2" 7/8" 5/8"-11 53062 53052* 53082 15,000

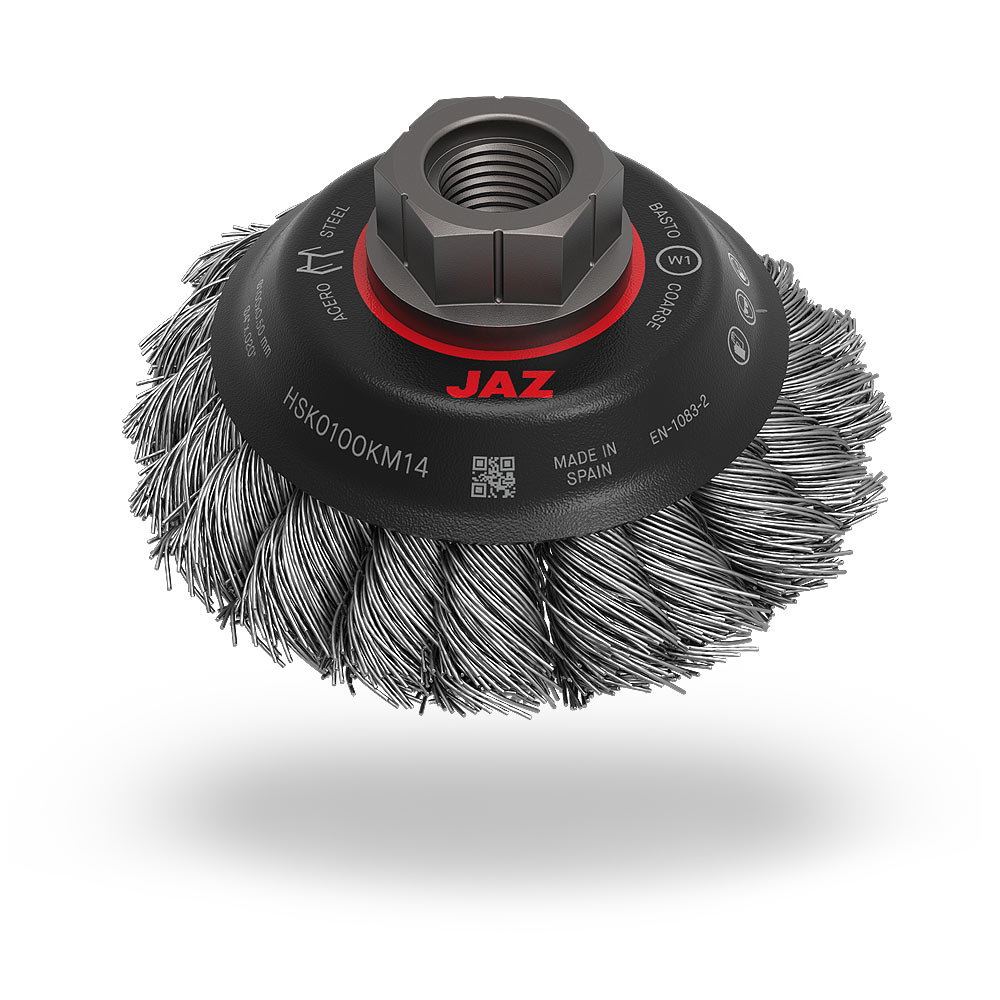

HSK 4" 7/8" 5/8"-11 74050 74080 15,000
4-1/2" 1-1/8" 76052 74182 12,000
HSR 4-1/2" 1" 5/8"-11 78062* 78052* 78082* 20,000
4-1/2" 1" 5/8" -11 & M14x2.0 78050 78080

* Available in Bulk Packaging. Add “B” to end of Part No. when placing order.

Technical Specifications

Finishing grade

Ø Wire Finishing Grade
0,8-0,6-0,5 Coarse W1
0,4-0,37-0,35-0,30 Medium W2
0,20-0,15-0,12-0,10 Fine W3
0,08-0,06 S. Fine W4
Non-Abrasive Fibers Neutral SW5

Removal rate

Ø Wire
0,8-0,6-0,5
0,4-0,37-0,35-0,30
0,20-0,15-0,12-0,10
0,08-0,06

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers

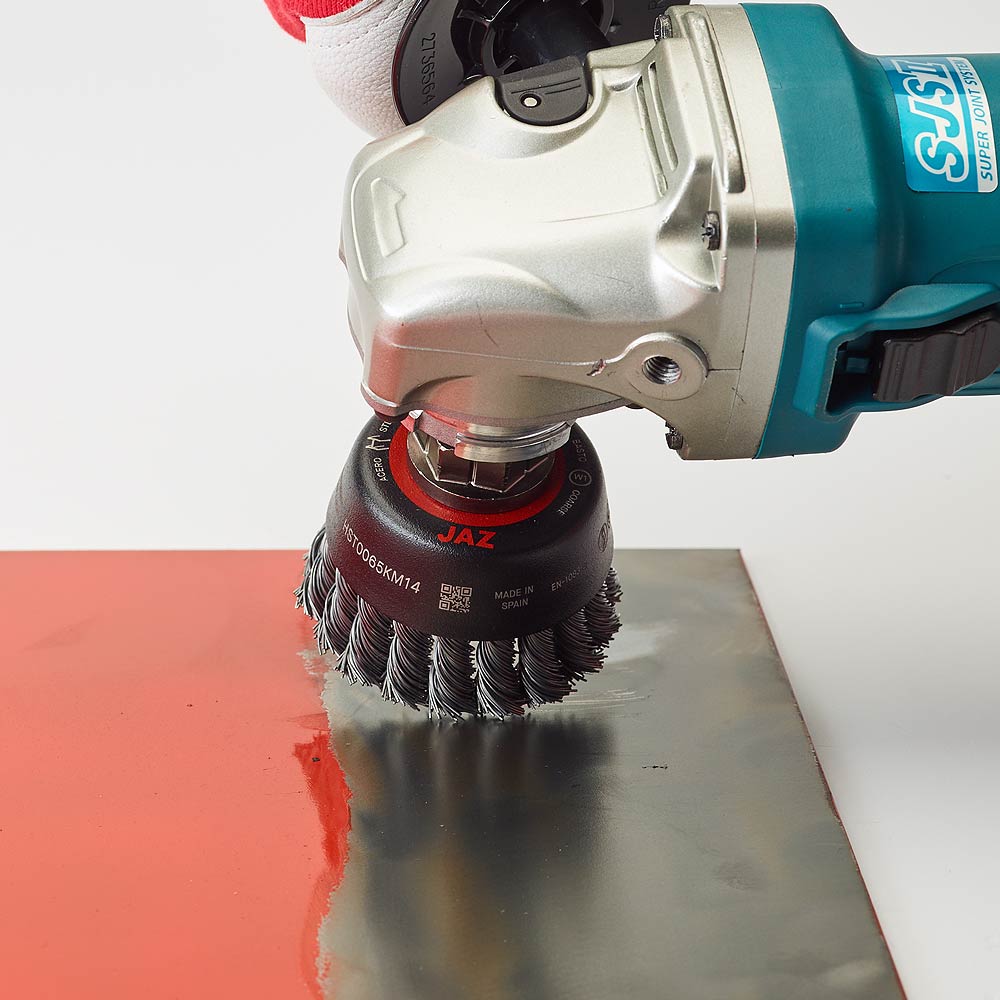

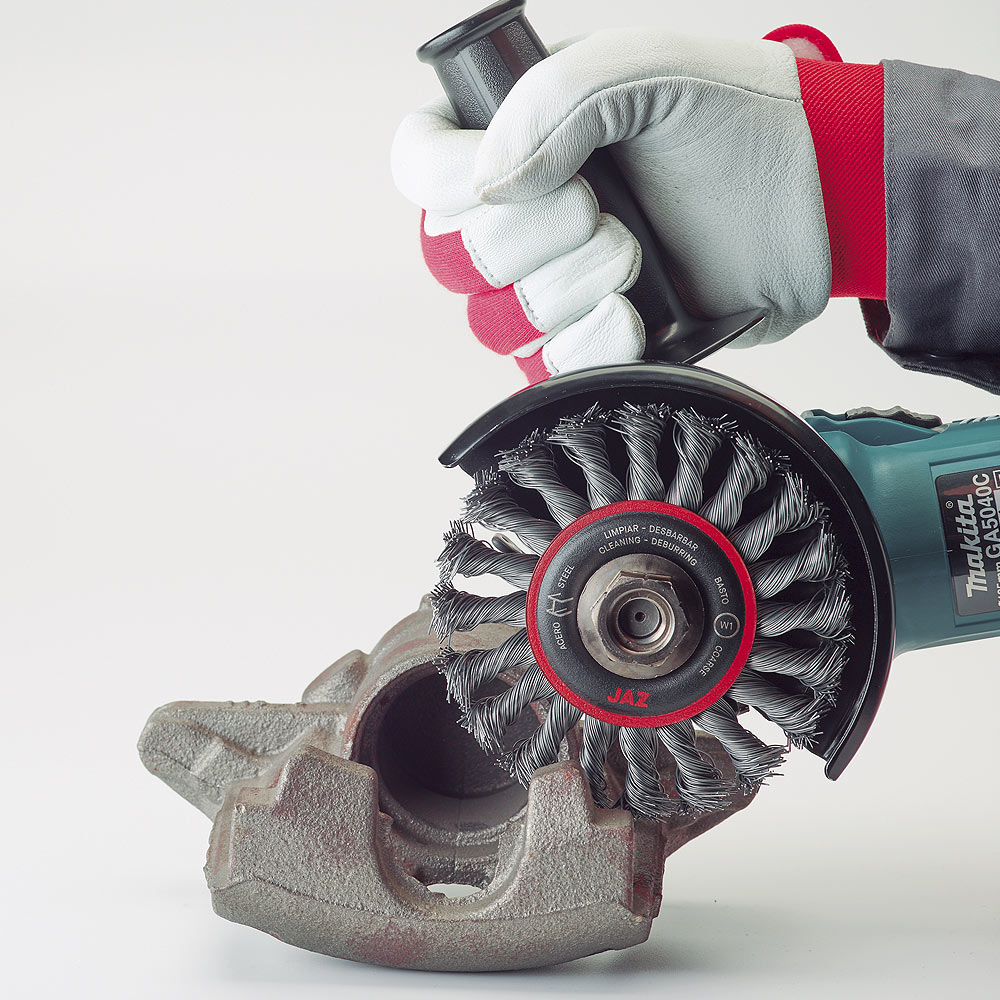

  • Action: Cleaning, Deburring
  • Tool: Grinder
  • Surface: Stainless, Steel

  • JAZ High Speed Brushes have been specially designed for low weight and high speed mini-grinders (11,000 R.P.M.).
  • High removal capacity and efficiency at high speed performance.
  • Comfortable use and elimination of human fatigue.
  • Special design allowing access to angles and flexible performance on any surface.

Applications

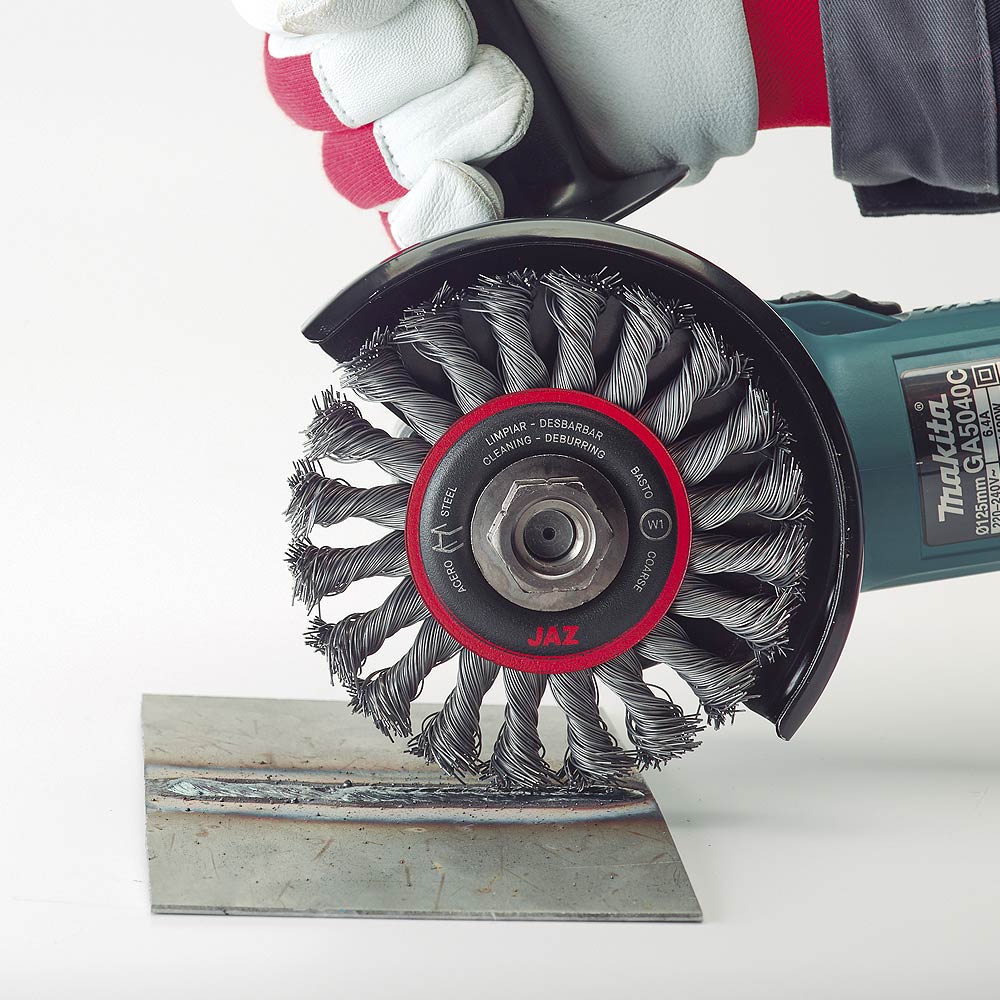

  • For continuous and frequent brushing processes (ship building, metallic structures, welding, maintenance, etc.).
  • Exclusive design and patented multifitting thread in two different versions; one is valid for M14 and 5/8- 11 attachments (Code R88); the other is valid for M10 x 1,5 and M10 x 1,25 systems (Code R77). The new design is also extended to single threads. It allows an easier attachment and increases resistance resulting in more safety for the user.

Order Example

JAZ ZUBIAURRE: Gráfica
JAZ ZUBIAURRE: Gráfica
JAZ ZUBIAURRE: Gráfica

Order Example

72050
