| Material | Ø mm | Ø " | Wire Code |
|---|---|---|---|
| Grey Steel | 0,12 | .005 | A |
| Brass Coated Steel | 0,15 | 006 | B |
| 0,20 | .008 | C | |
| 0,25 | .010 | D | |
| 0,30 | .012 | E | |
| 0,35 | .014 | F | |
| 0,40 | .016 | G | |
| 0,50 | .020 | H | |
| 12 x 0,23 (2) | 12 x .009 | # | |
| 6 x 0,353 + 3 x 0,20 | 6 x 014 + 3 x.008 | @ | |
| Stainless Steel | 0,15 | .006 | M |
| 0,20 | .008 | N | |
| 0,30 | .012 | Z | |
| 0,40 | .016 | P | |
| 0,50 | .020 | Q | |
| 7 x 0,35 | 7 x .013 | @Z | |
| Brass | 0,08 | .003 | U |
| 0,30 | .012 | V | |
| 0,40 | .016 | X | |
| Grey Steel | 0,37 | .015 | J |
| 0,50 | .020 | K | |
| 0,80 | .032 | L | |
| German Silver | 0,08 | .003 | O |
| Flat Steel | 0,90 x 0,50 | .035 x .020 | T |
| Galvanised Steel | 0,43 | .017 | S |
| Laminated Wire | 3 x 0,20 + 6 x 0,35 | 3 x .008 + 6 x .014 | W |
| 0,50 | .020 | Y |
| Conversion Table mm / " | ||||
|---|---|---|---|---|
| Ø Brush | Ø Wire | |||
| mm | " | mm | " | I.S.W.G |
| 25,4 | 1" | 0,08 | 0,003" | 44 |
| 50,8 | 2" | 0,1 | 0,004" | 42 |
| 76,2 | 3" | 0,12 | 0,005" | 40 |
| 101,6 | 4" | 0,15 | 0,006" | 38 |
| 127 | 5" | 0,2 | 0,008" | 36 |
| 152,4 | 6" | 0,25 | 0,01" | 33 |
| 177,8 | 7" | 0,3 | 0,0118" | 31 |
| 203,2 | 8" | 0,35 | 0,0138" | 29 |
| 228,6 | 9" | 0,4 | 0,016" | 27 |
| 254 | 10" | 0,5 | 0,02" | 25 |
| 279,4 | 11" | 0,8 | 0,0315" | 21 |

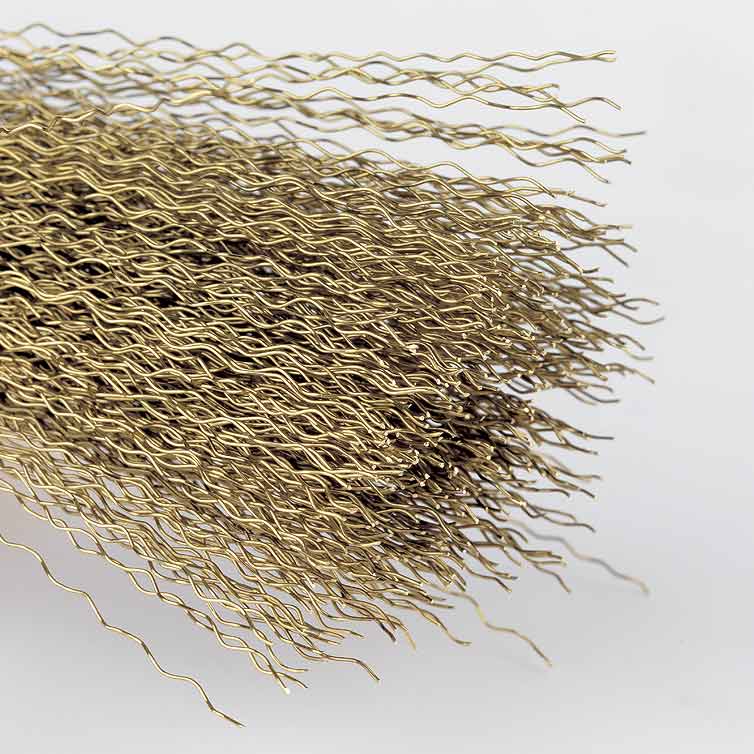

High Performance and flexibility. Anti-corrosion material. Suitable for a large range of finishing.
Available thickness (mm): 0,15 – 0,20 – 0,30 – 0,35 – 0,40 – 0,50.
We have the following cable crimped wire range: 6×0,23 – 12×0,23 – (3×0,20)+(6×0,35).
Traction resistance 230-250Kgs/mm2.
Carbon content 0,75%.

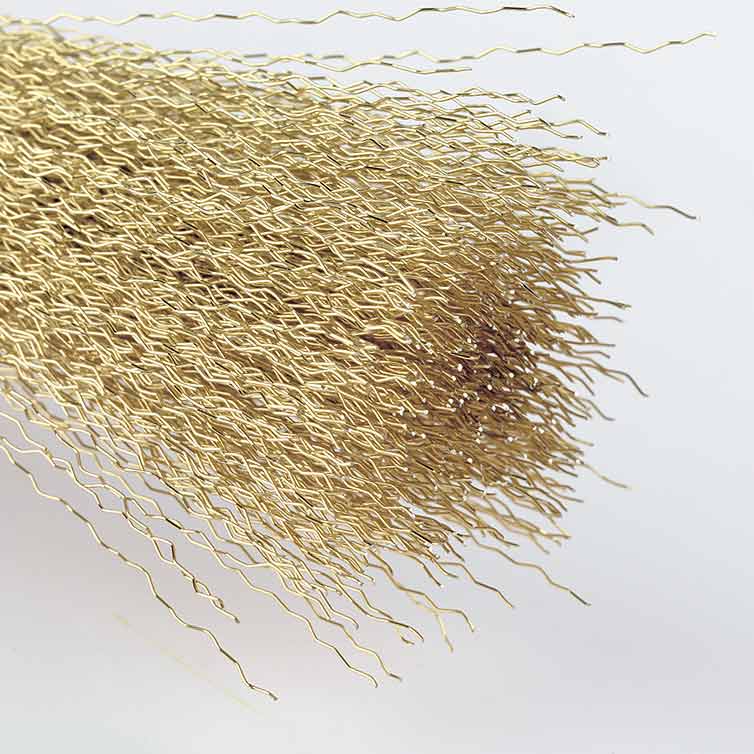

Anti- sparkling wires. Suitable for soft finishing in non-ferrous materials.
Traction resistance 80-95 Kgs/mm2.
Available thickness (mm.): 0,08 – 0,30 – 0,40.

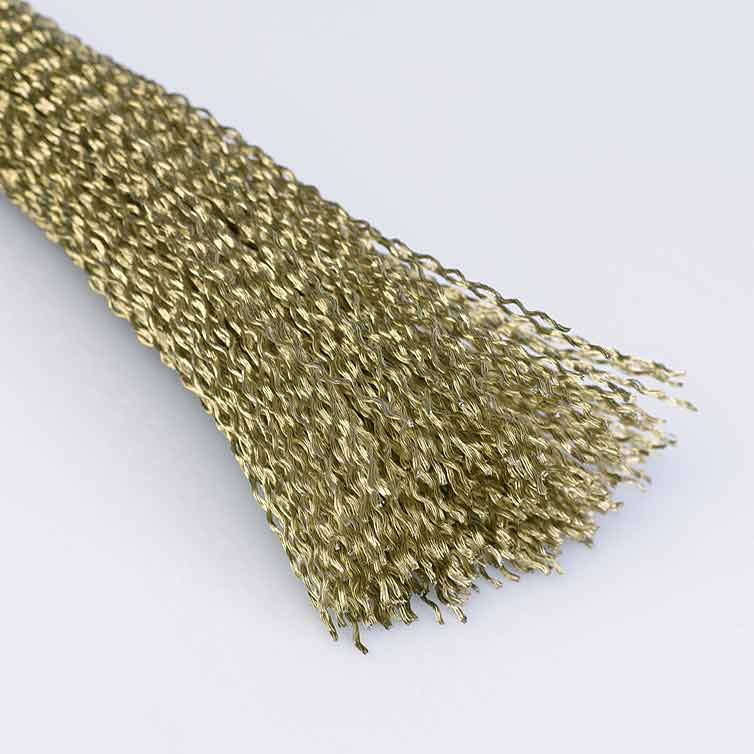

High Performance brushes are made of cable wire, made of a bunch of high strength brass coated steel wires, which form a flexible and compact unit. You get a type of finishing and extraction capacity similar to monofilament of 0.30 mm.
They provide important advantages:

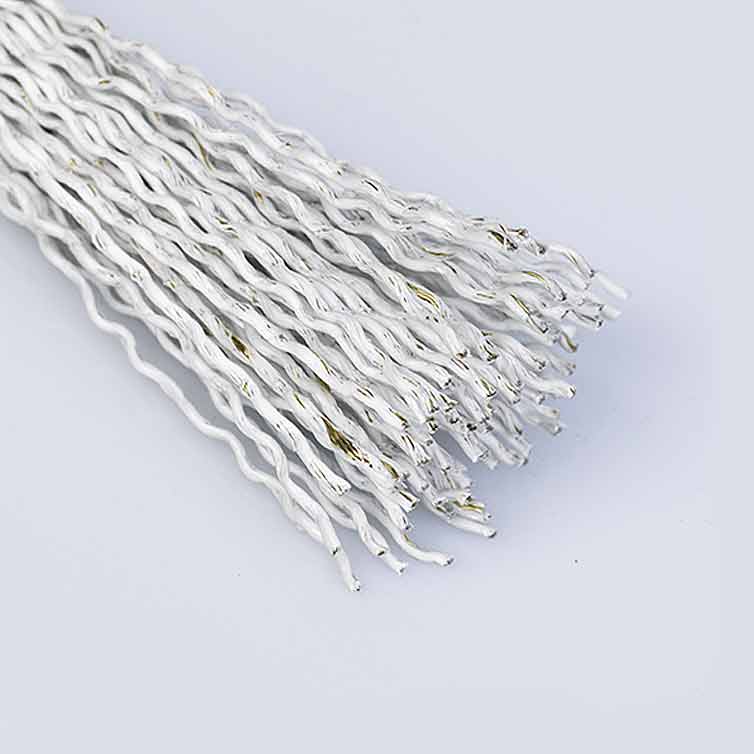

The laminated wire is a novelty in the metal brushware industry and it provides an element of comfort and security to the handling of wire brushes. The coating of the wires prevents from being wounded too.
It provides a high performance as a result of the reduced level of breakings of the laminated wires compared to an equivalent wire uncoated.

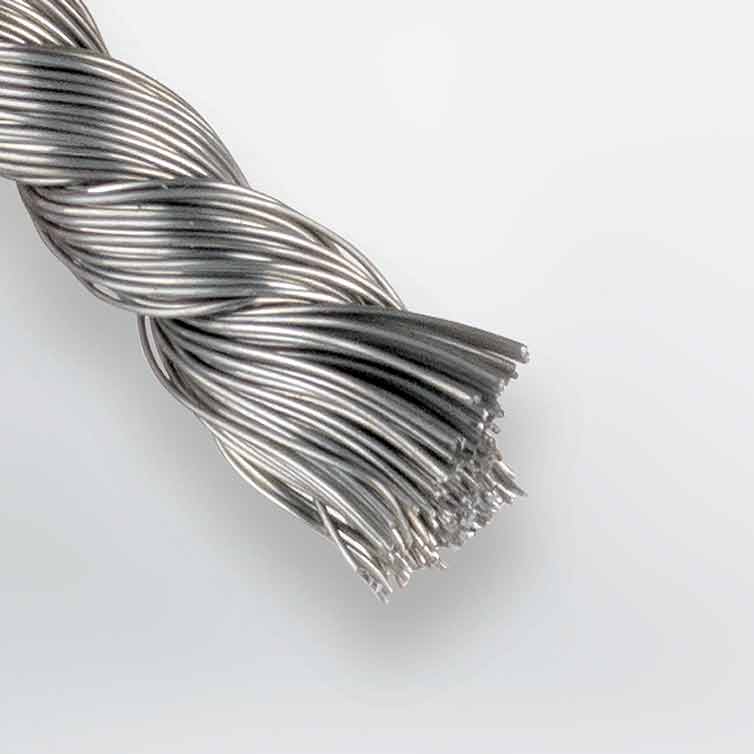

Suitable for twist-knotted brushes and a high removal capacity. Non suitable for stainless steel surfaces.
Traction resistance 200-275 Kgs/mm2.
Carbon content 0,50-0,60%.
Available thickness (mm.): 0,12 – 0,20 – 0,30 – 0,37 – 0,50 – 0,80.
We have 0,10 mm Bessemer wire.

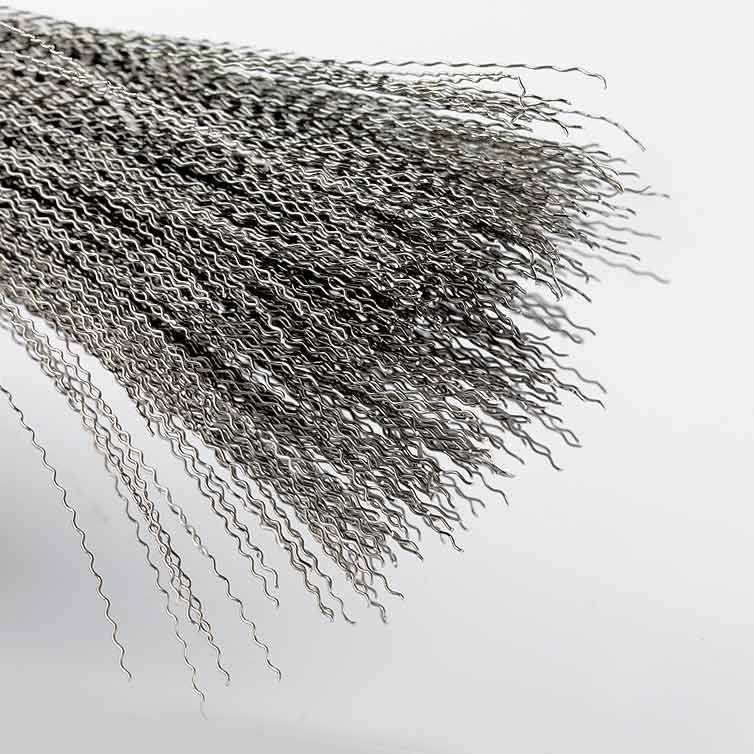

These wires are used for the brushing of stainless steel, aluminium or non ferrous metal surfaces. Stainless steel turned into wire becomes lightly magnetic.
Traction resistance 160-180 Kgs/mm2. Following AISI 304-L regulations.
Available thickness (mm.): 0,15 – 0,20 – 0,30 – 0,40 – 0,50.
We have stainless steel wire following AISI 3016-L regulations and stainless steel cable 7×0,35.

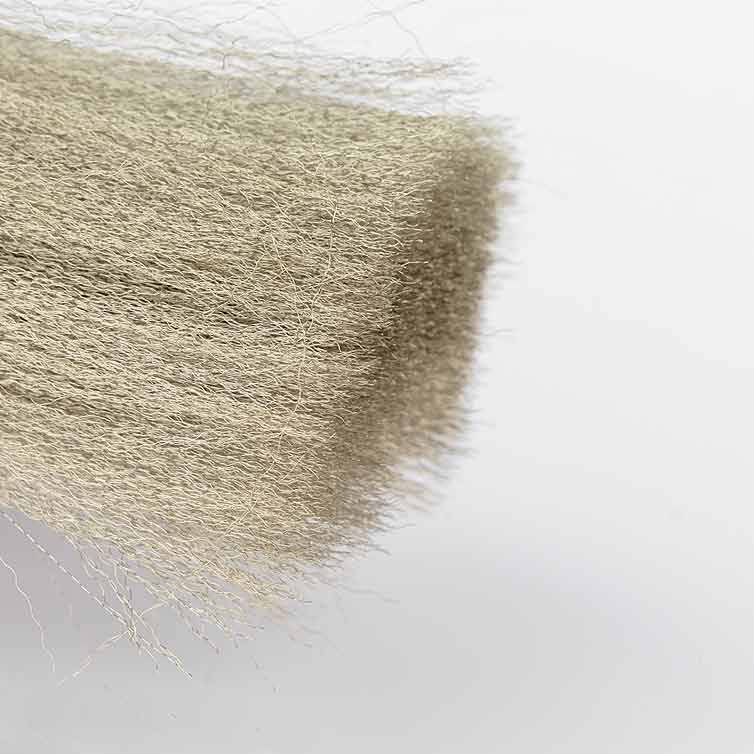

Suitable for soft polishing in silver colour surfaces.
Available thickness 0,08mm.
Copper content: 60-65%; Zinc: 22-25%; Nickel: 11-13%.

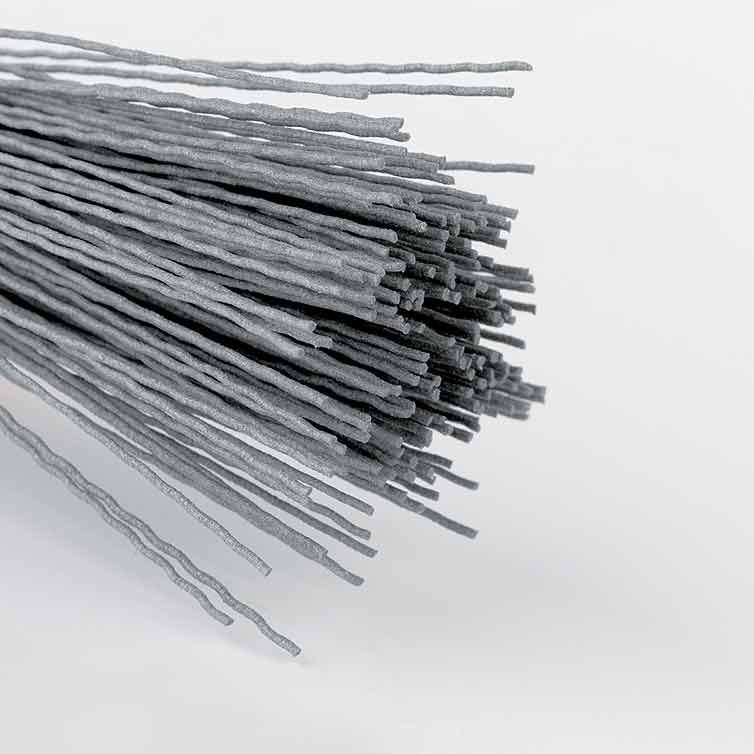

Abrasive nylon trims regenerate constantly and offer a uniform finishing during its lifetime.
We have 2 sorts of filaments:
All of them are manufactured with steel filaments, fibres or a mixture of both materials. Laminated steel permits an excellent brushing in sand and ground pavements. This filament is available in 2 width (2×0,6 and 3,30×0,6 mm) and in 2 length (540 and 600 mm).
Crimped steel of 0,70 mm offers a high performance brushing and avoids the marks and scratchs in urban pavements. We offer a large variety of plastic fiber brushes (PLP, Polyester PET, Polyester PBT and Nylon 6.6) with different sections depending on the necessities of the customer.
Consult us if you want to have more information related to our services or you want us to advise you about how they can fit to your firm´s needs.
