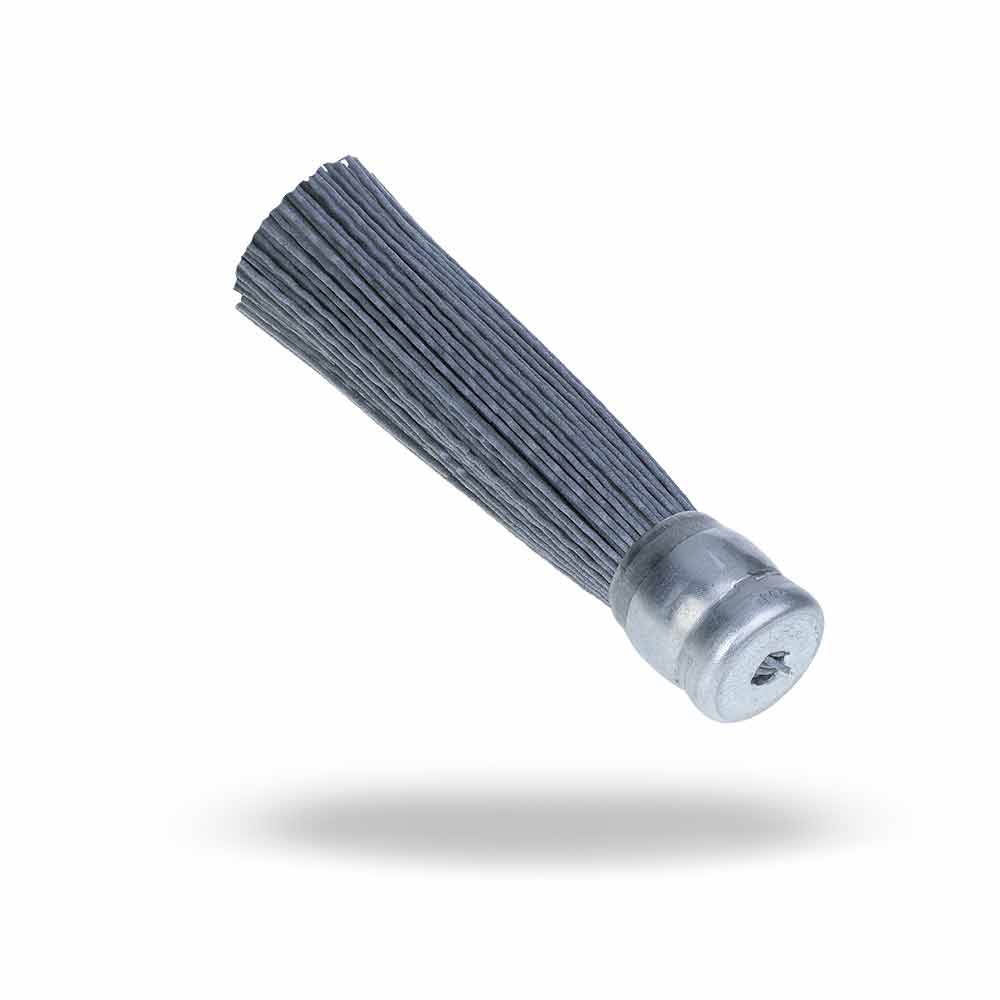

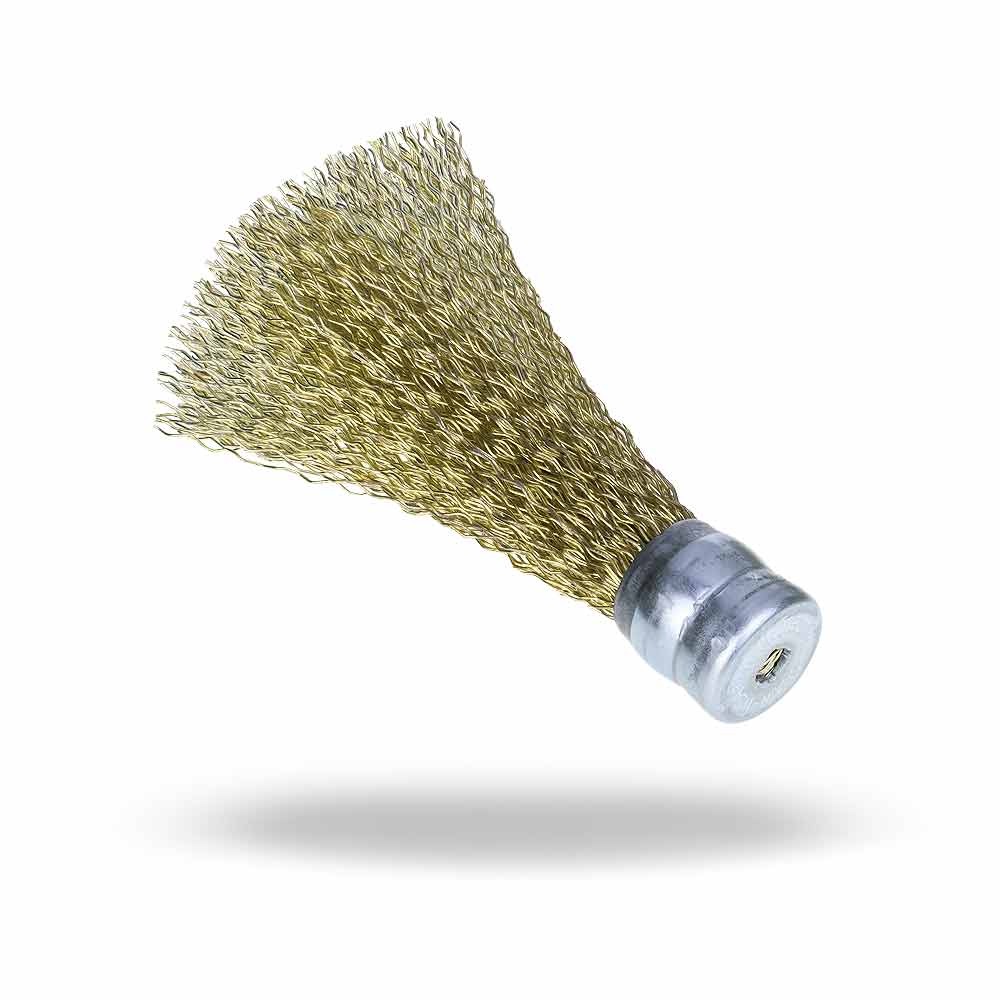

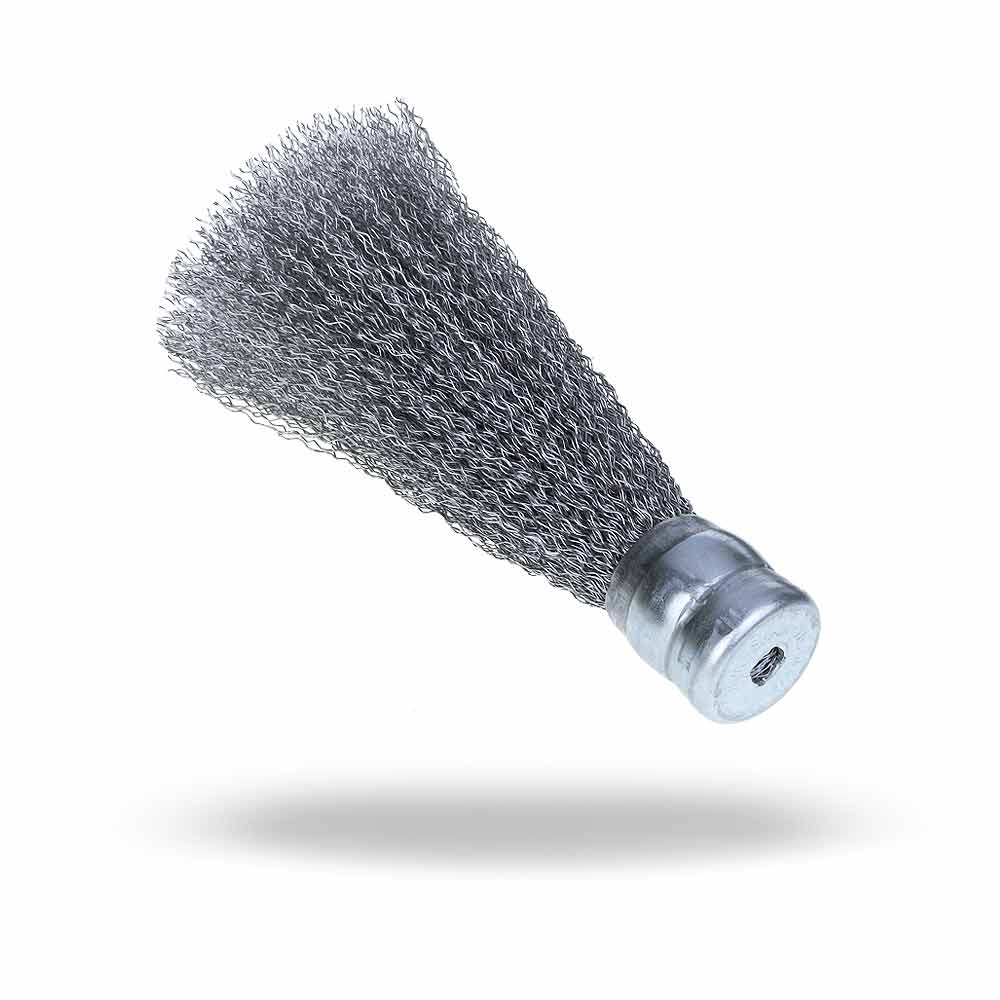

End Brushes Without Shank

End Brushes without shank are used in manual and automatic machines for deburring tubes and profiles.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Model D T L Pack Steel Stainless Abrasive Nylon Grit
    .008" .020" .008" .020" 120 180
    BC 1" 3-3/4" 1" 16 92656CSE 921696HSE 92696NSE 92696QSE 92696120SE 92696180SE

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5
    Abrasive Nylon Finishing Grade
    Grit 20|40|60 Coarse NA1
    Grit 80|100|120 Medium NA2
    Grit 180|200|300 Fine NA3
    Grit 400|800|2000 S. Fine NA4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06
    Nylon & Flap brushes
    Grit 20|40|60
    Grit 80|100|120
    Grit 180|200|300
    Grit 400|800|2000
    Non-abrasive Nylon

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Deburring
    • Tool: Bench-Grinder
    • Surface: Stainless, Steel

    • End brushes which are mounted on tools of 8, 16 and 24 units.

    Applications

    • For use in manual and automatic machines for deburring of tubes, profiles.

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order example

    92656

    JAZ ZUBIAURRE: Brochas sin Espiga
