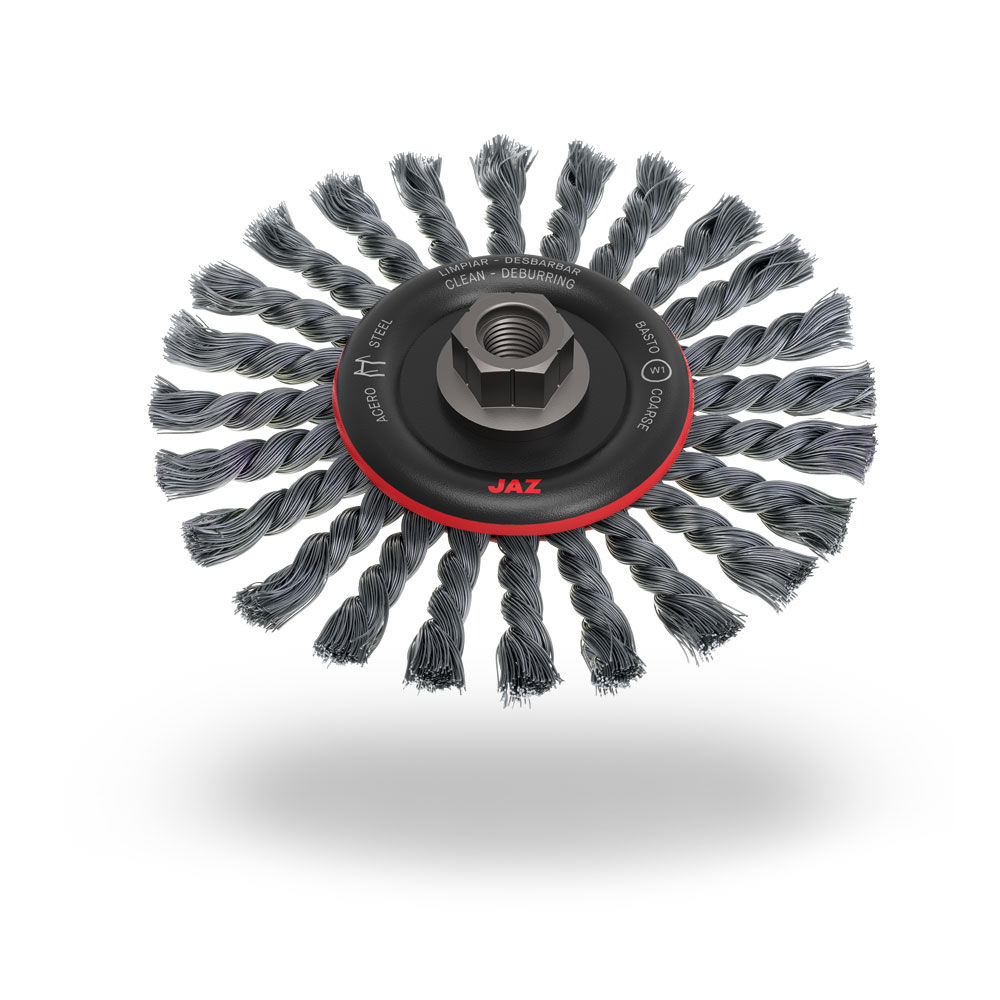

Agressive Twisted Knot Wheels

Agressive Twist Knot Wheel Brushes offer long working life, high removal capacity and the possibility of working at high speed.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Diameter
    (d)
    No. of
    Knots
    Knot Width
    (a)
    Trim Length
    (s)
    Arbor Hole
    (e)
    Steel Stainless Steel R.P.M.
    Max.
    .020" .020"
    6" 38 3/8" 1-1/8" 5/8"-11 43852B 12,500
    7" 50 3/8" 1-1/8" 5/8"-11 44852B 9,000
    9" 50 3/8" 2-1/8" 5/8"-11 46852B 46882B 6,000

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: Grinder
    • Surface: Non-sparking, Stainless, Steel

    • The twist knot wire allows:
      • Long working life.
      • High removal capacity.
      • Possibility of working at high speed.
    • Exclusive design and patented multifitting thread in two different versions; one is valid for M14 and 5/8-11 attachments (Code R88); the other is valid for M10 x 1,5 and M10 x 1,25 systems (Code R77).
    • The new design is also extended to single threads. It allows an easier attachment and increases resistance resulting in more safety for the user.

    Applications

    • Removal of welding and forge scale. Weld cleaning at the tube joints in
    • Tyre-rubber recovering and glass bottle recovering.

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order example

    43852B
