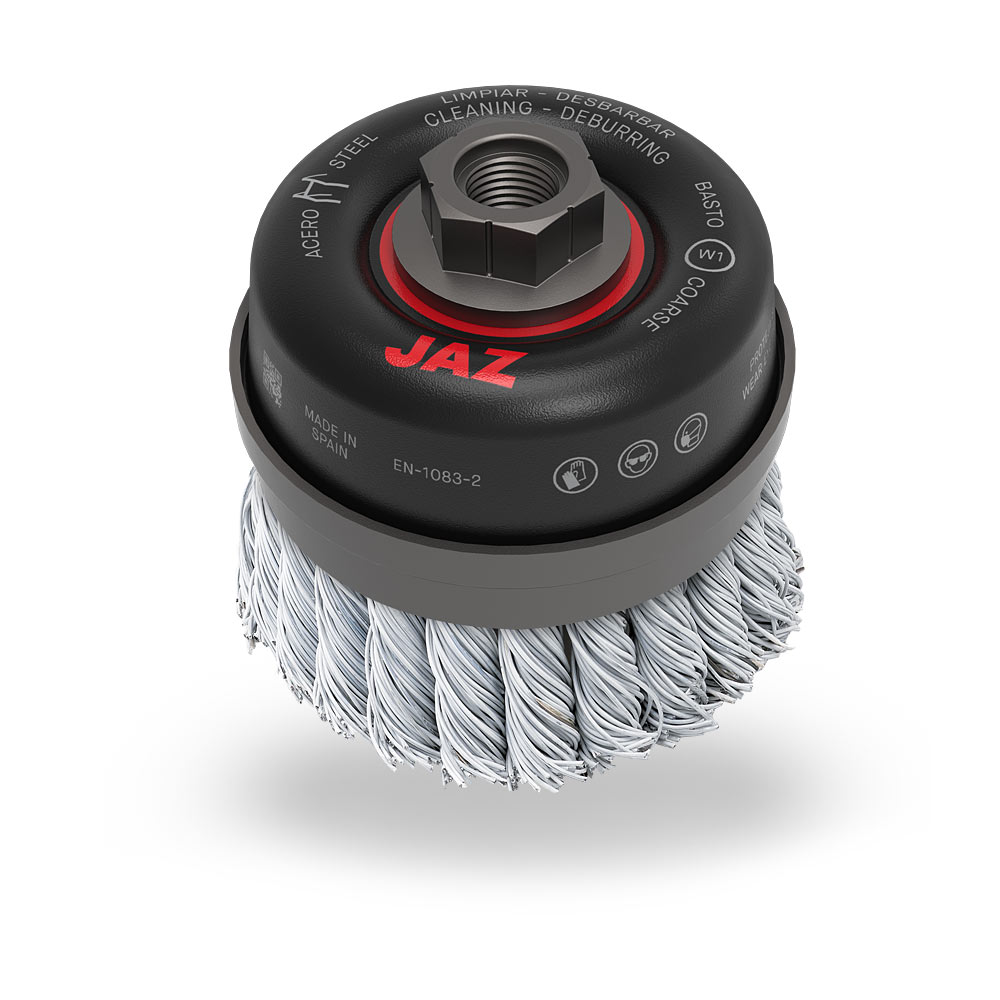

Laminated wire brushes

Laminated wire Brushes, Crimped or Knotted, have a higher performance due to less wire fractures compared to traditional wire brushes without plastic cover.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Model Type of wire Diameter (d) Trim Length (s) Arbor Hole (e) JAZ PLUS Wire R.P.M.
    (3x.008") + (6x.014") .020" Max.

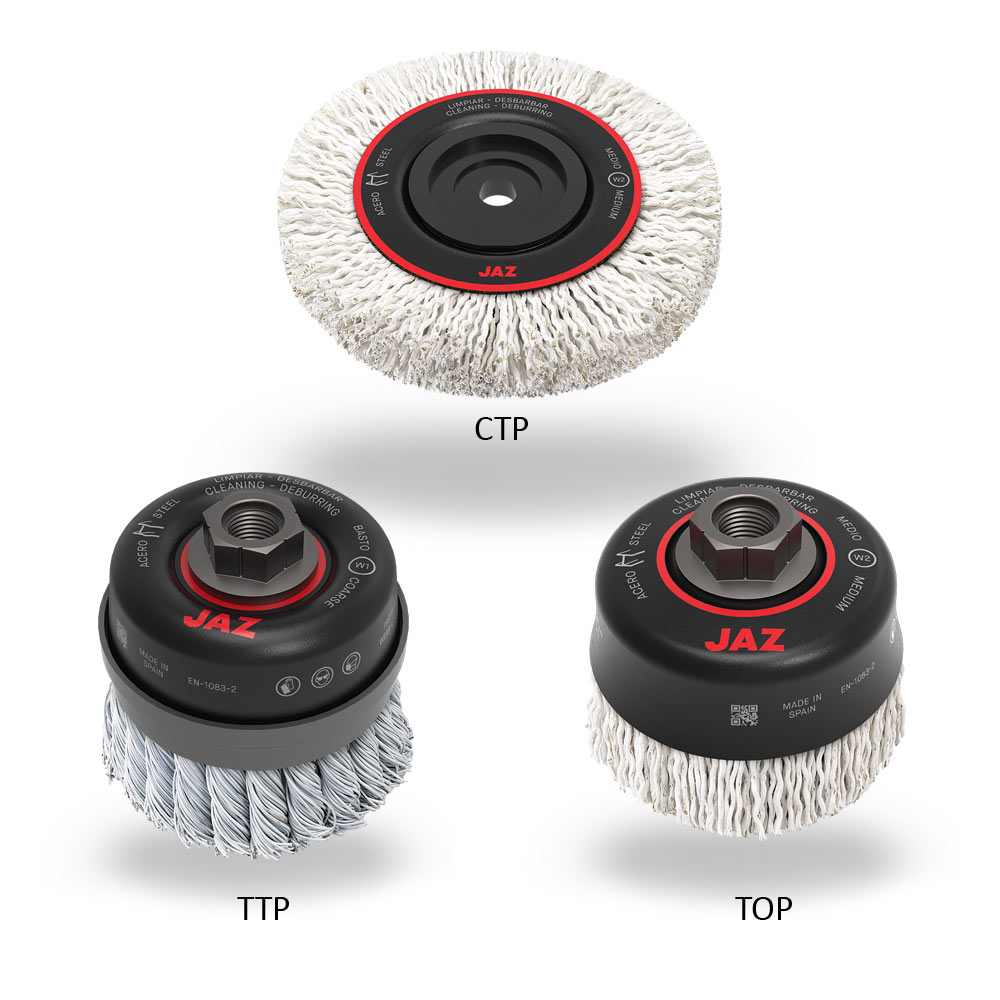

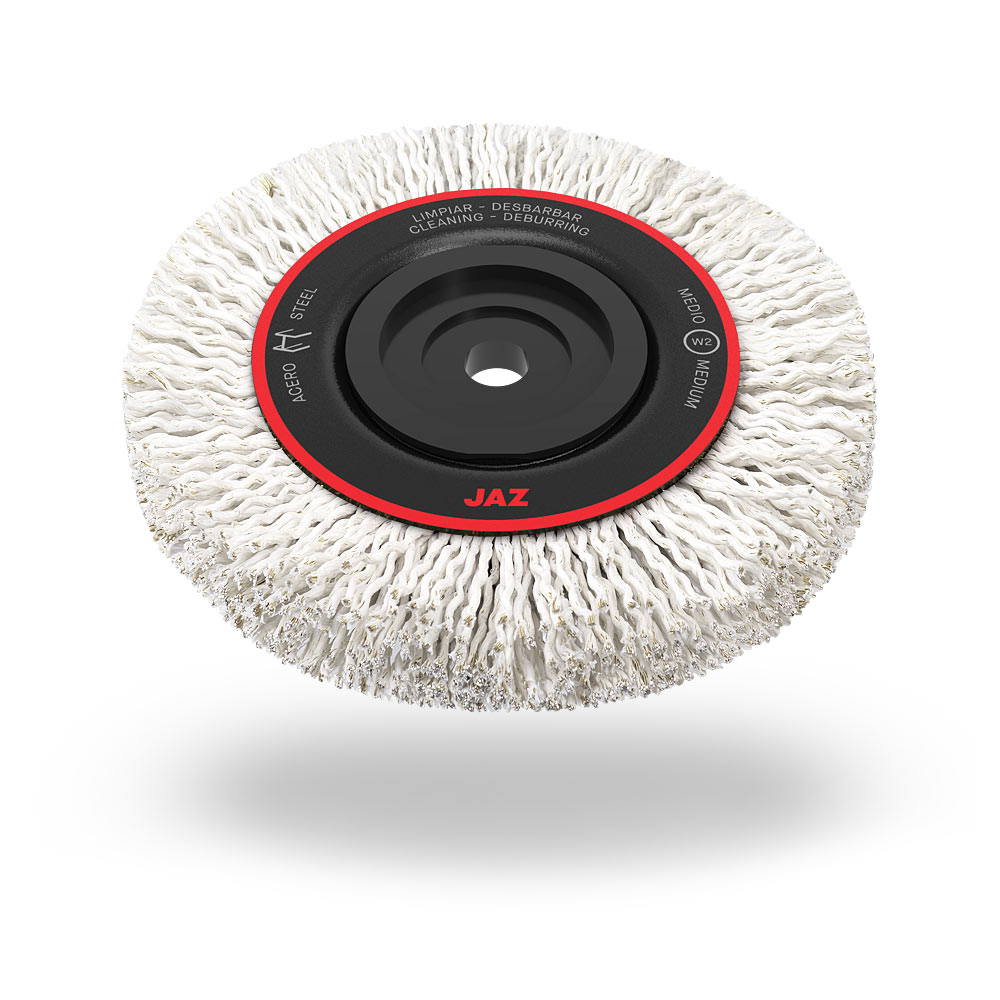

    CTP Crimped 6" 3/4" Multi-Arbor* 23520 6,500
    TOP Crimped 4" 1.3/6" 5/8"-11 64022 8,500
    TTP Knotted 4" 1.1/8" 5/8"-11 54022 8,500

    (*) Multi-Arbor Sizes: 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-3/16”, 2”

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: Bench-Grinder, Grinder
    • Surface: Steel

    Order Example

    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica

    Order Example

    64022

    Additional information

    Easy Handling

    This sort of brushes have their wires laminated. By this way they become more comfortable and safer in its handling and it avoids all kind of pricks to the user.

    High Performance

    Laminated wire brushes have a higher performance due to less wire fractures compared to traditional wire brushes without plastic cover.

    Distinctive appearance

    The plastic cover can be presented in several colours giving a customized and distinctive appearance comparing to traditional wire brushes.
