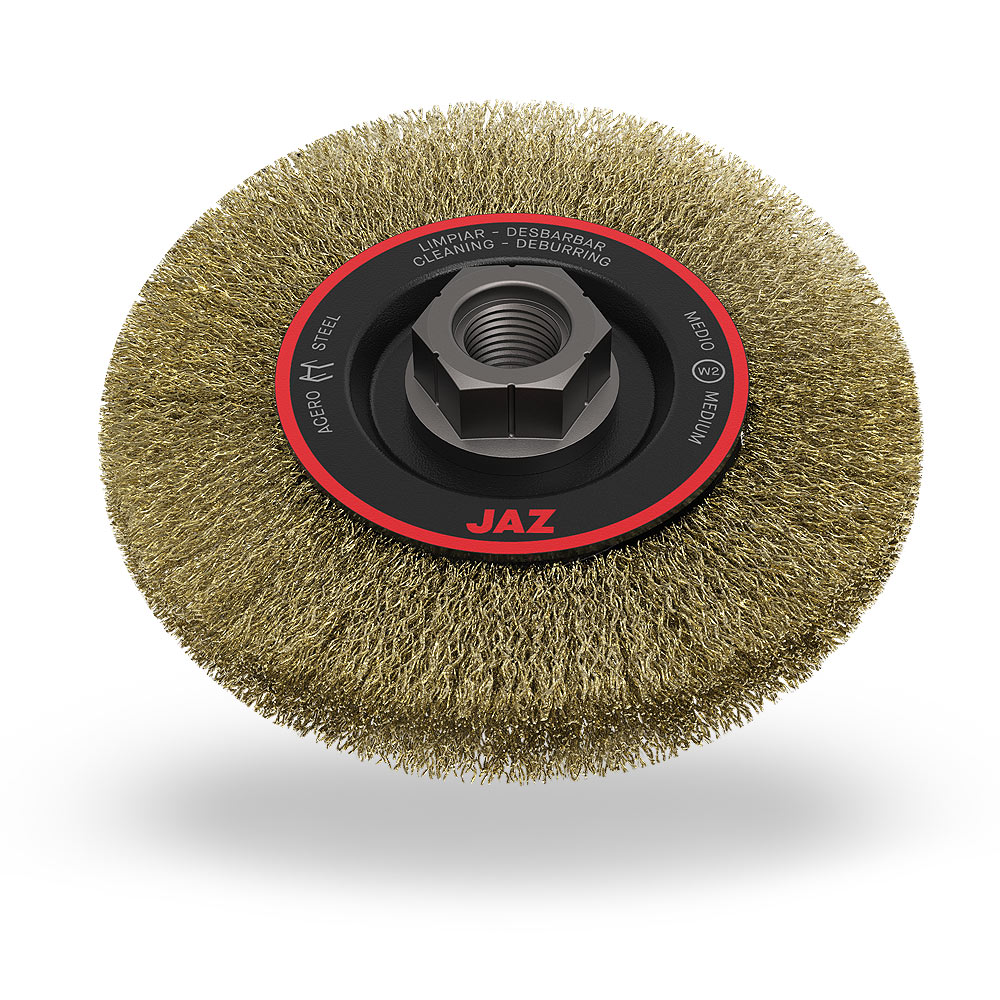

High speed crimped brushes

High Speed Crimped Brushes have been specially designed for low weight and high speed mini-grinders (11,000 rpm). Comfortable use.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Model Diameter (d) Trim Length (s) Arbor Hole (e) Steel High-Performance Cable Crimped Stainless Steel Brass R.P.M.
    .012" 12 x .009" .012" .012" Max.

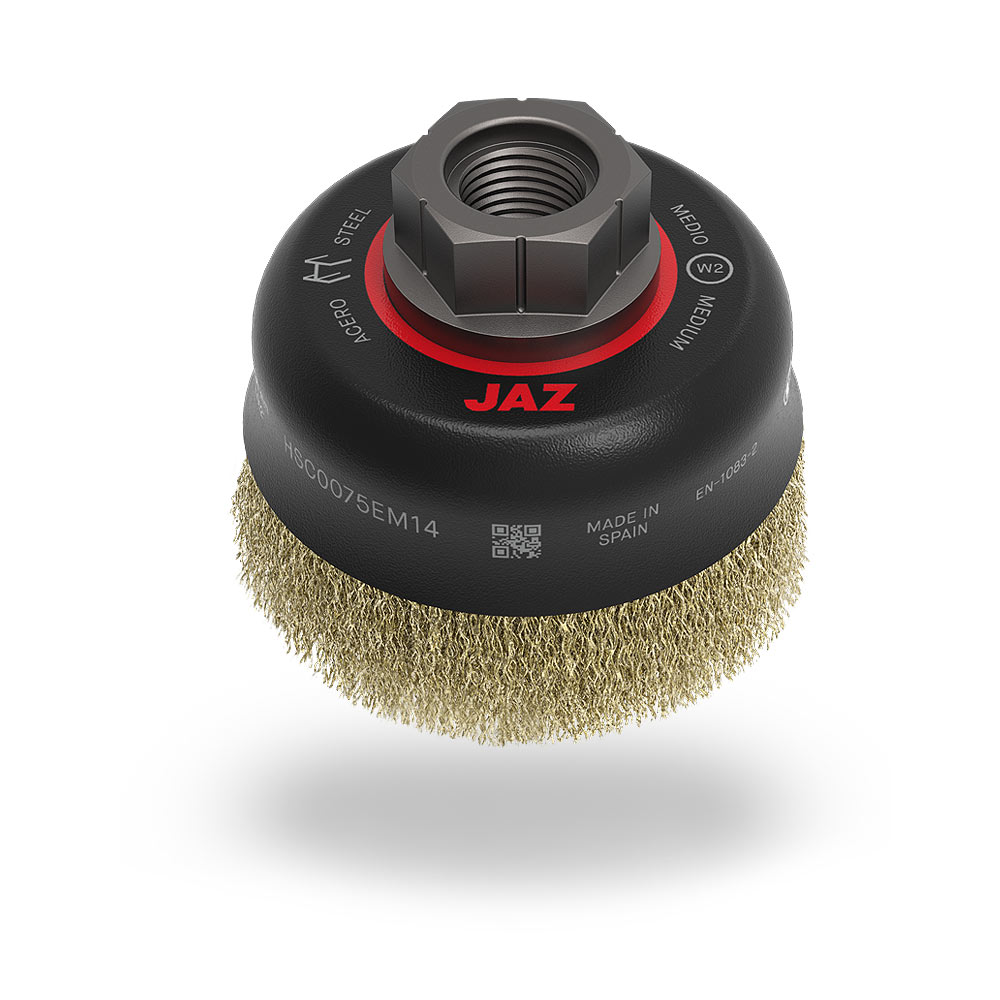

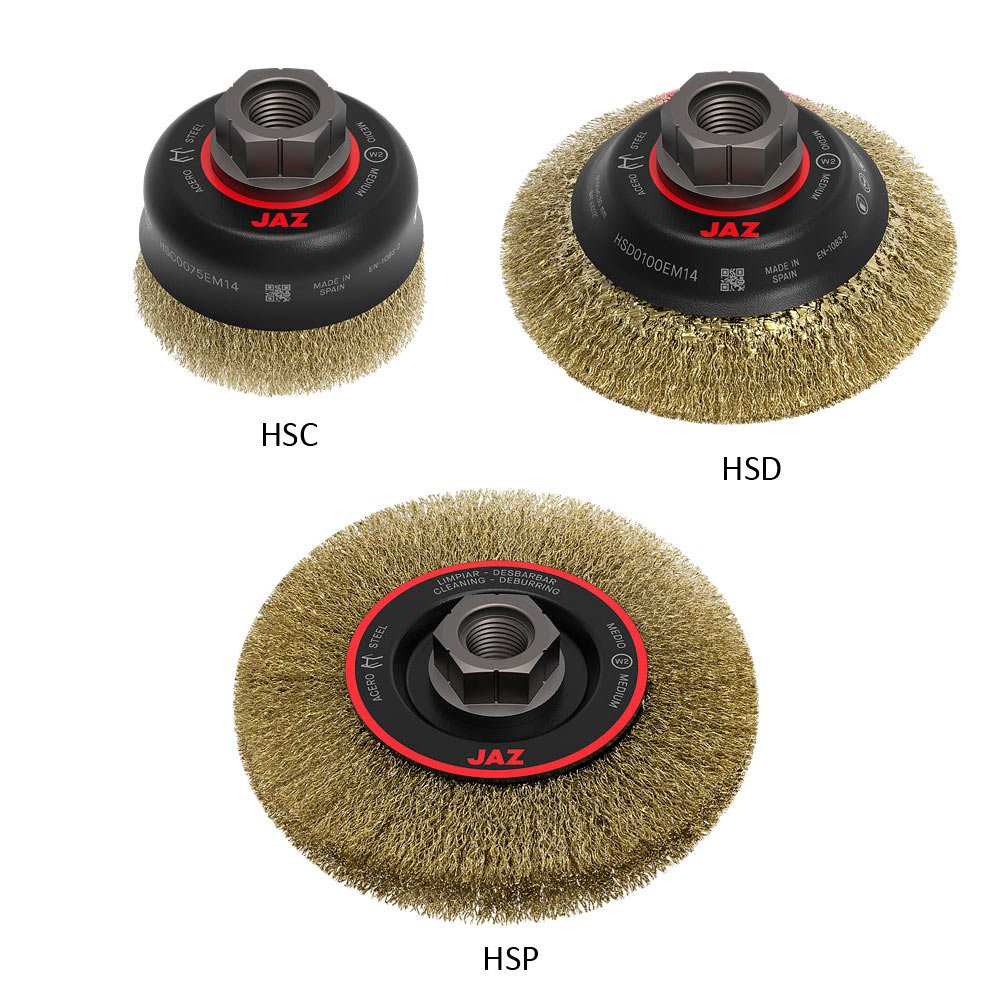

    HSC 3" 7/8" 5/8" -11 & M14x2.0 73000 73030 73090 13,000
    M10x1.25 & M10x1.50 73001
    HCA 3" 7/8" 5/8" -11 & M14x2.0 73010

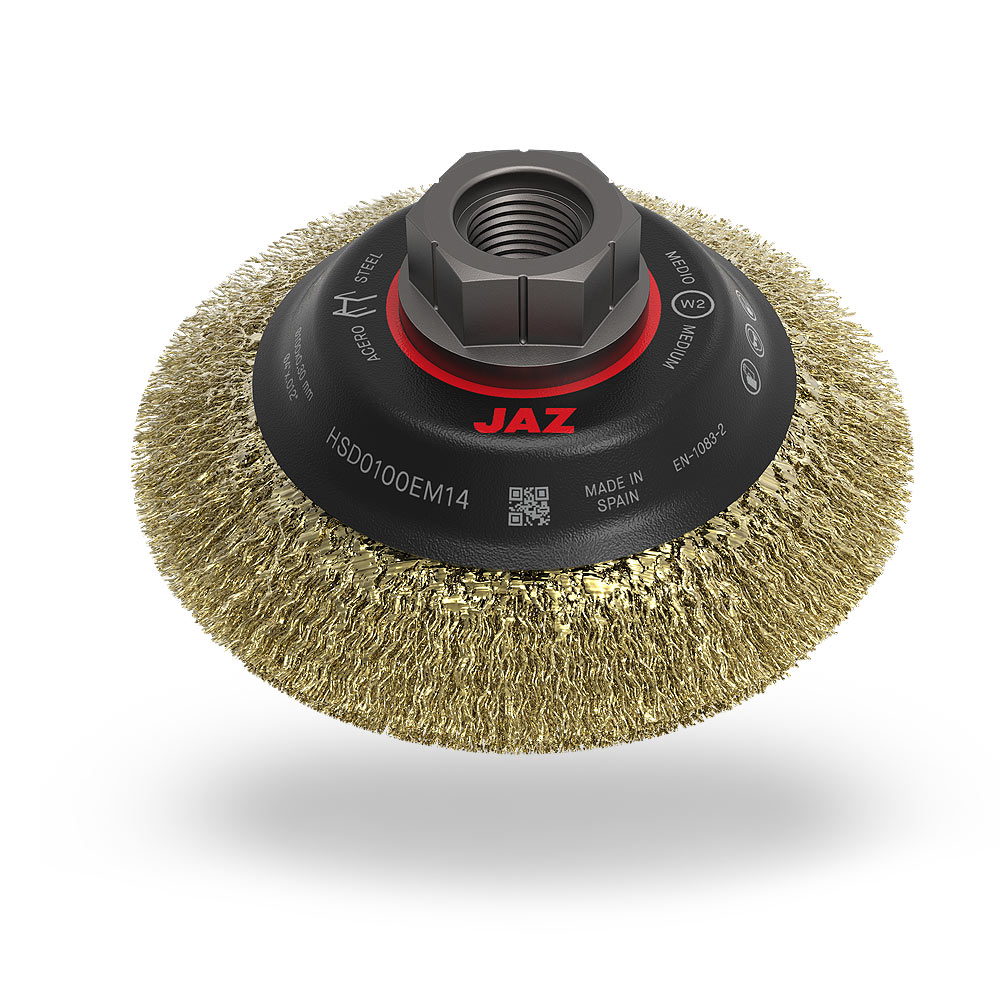

    HSD 4" 1" 5/8" -11 & M14x2.0 74000 74030
    HSP 4-1/2" 1" 5/8" -11 & M14x2.0 78000 78030

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers

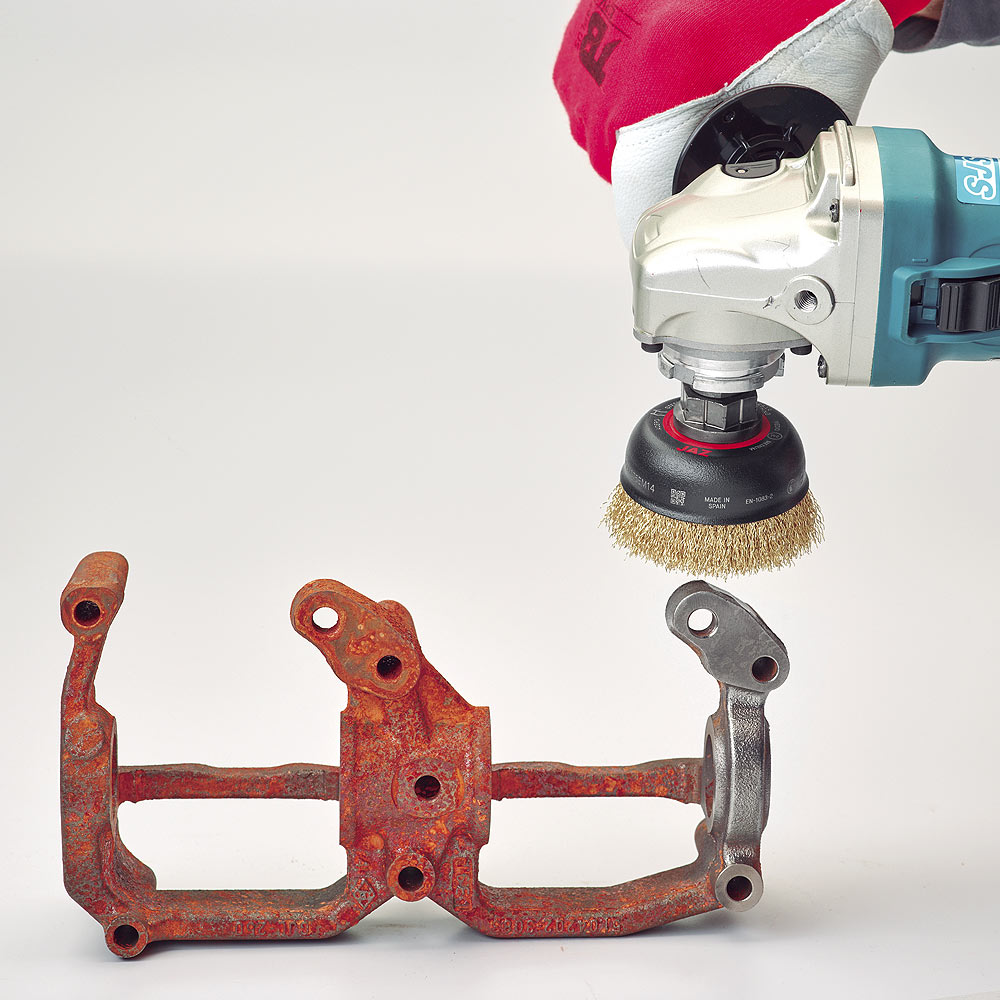

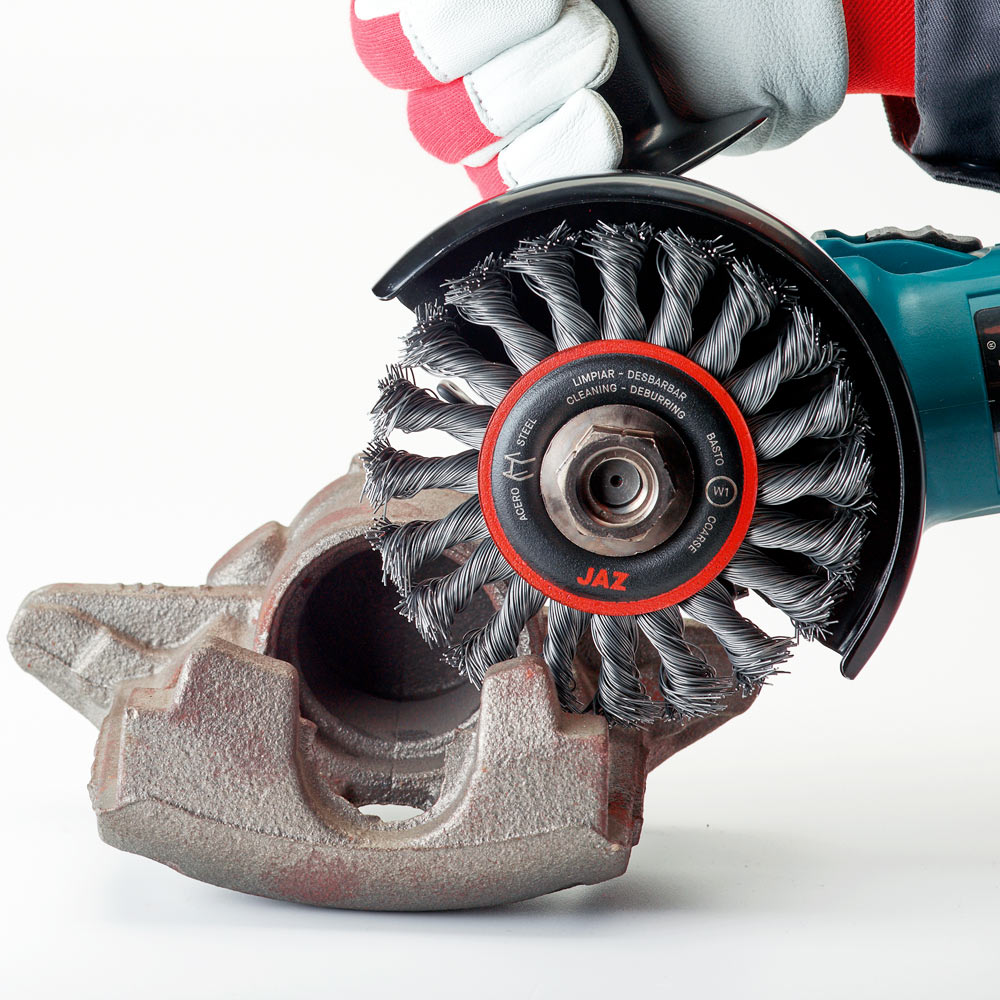

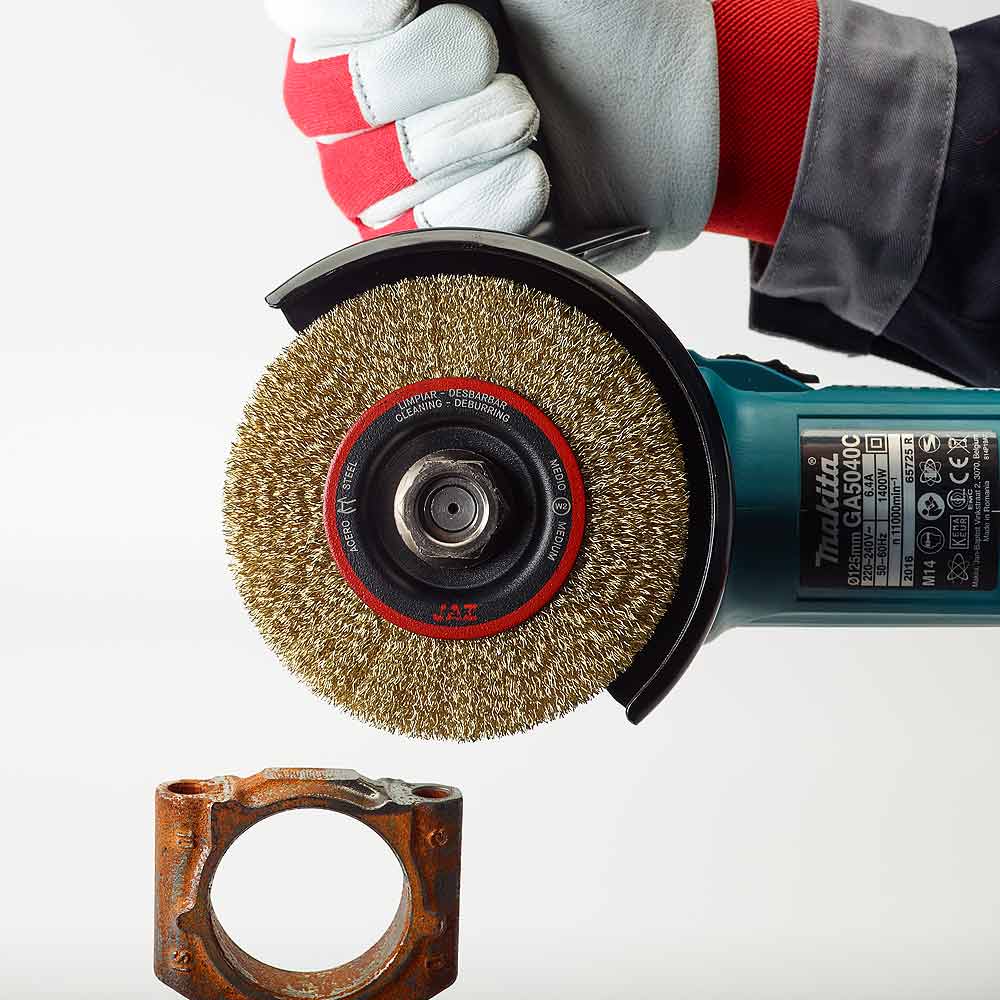

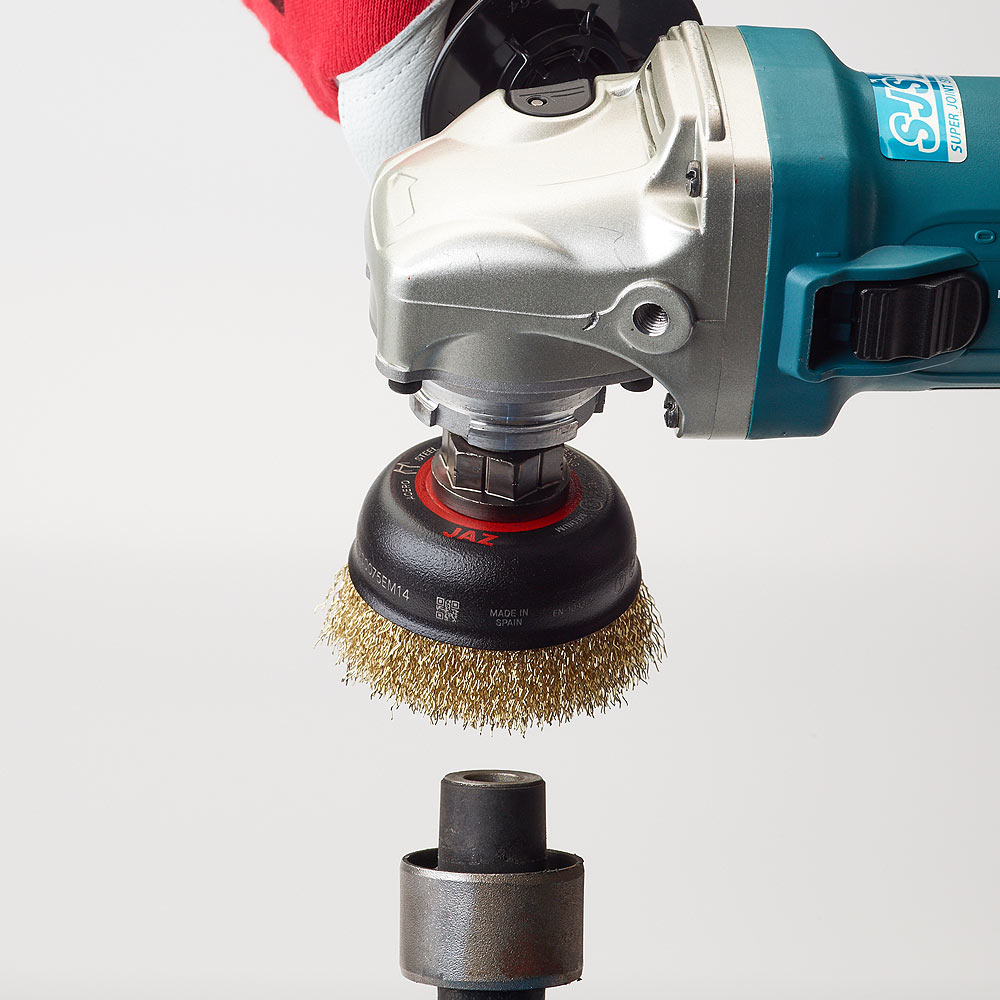

    • Action: Cleaning, Deburring
    • Tool: Grinder
    • Surface: Stainless, Steel

    • JAZ High Speed Brushes have been specially designed for low weight and high speed mini-grinders (11,000 R.P.M.).
    • High removal capacity and efficiency at high speed performance.
    • Comfortable use and elimination of human fatigue.
    • Special design allowing access to angles and flexible performance on any surface.

    Applications

    • For continuous and frequent brushing processes (ship building, metallic structures, welding, maintenance, etc.).
    • Exclusive design and patented multifitting thread in two different versions; one is valid for M14 and 5/8- 11 attachments (Code R88); the other is valid for M10 x 1,5 and M10 x 1,25 systems (Code R77). The new design is also extended to single threads. It allows an easier attachment and increases resistance resulting in more safety for the user.

    Order Example

    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica

    Order Example

    73000
