Flared end brushes

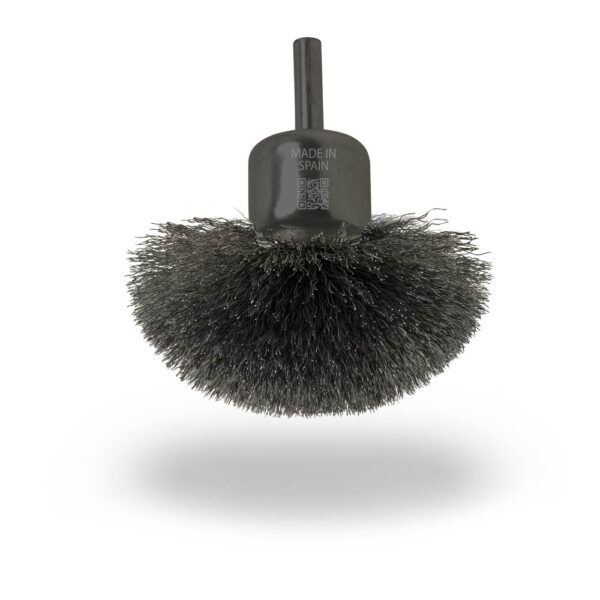

The flared End Brush JAZ Zubiaurre is used for removal of scale, paint, rust. Suitable for curved surfaces, molds.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Model Diam. Steel Stainless Steel Max RPM
    .008" .014" .020" .008" .012" .020"
    BEC 1" 11320 11300 11310 11340 11330 11380 20,000
    1-1/4" 11720 11700 11710 11740 11730 11780 20,000
    1-1/2" 11620 11600 11610 11640 11630 11680 20,000
    2" 11520 11500 11510 11540 11530 11580 20,000
    2-3/4" 11820 11800 11810 11840 11830 11880 20,000
    3" 11920 11900 11910 11940 11930 11980 20,000
    4" 11020 11000 11010 11040 11030 11080 20,000

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: Die-grinder
    • Surface: Stainless, Steel

    Shape and dimensions for use in difficult places to access, holes, corners, etc.

    Used on portable or fixed drills with chuck.

    Applications

    • Removal of edges, scale, paint, rust, rubber-metal pieces etc.
      Dies, tubes, engines, pistons, etc.

    Order Example

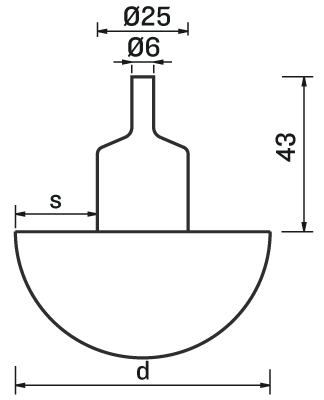

    JAZ ZUBIAURRE: Gráfica

    Order example

    11800
