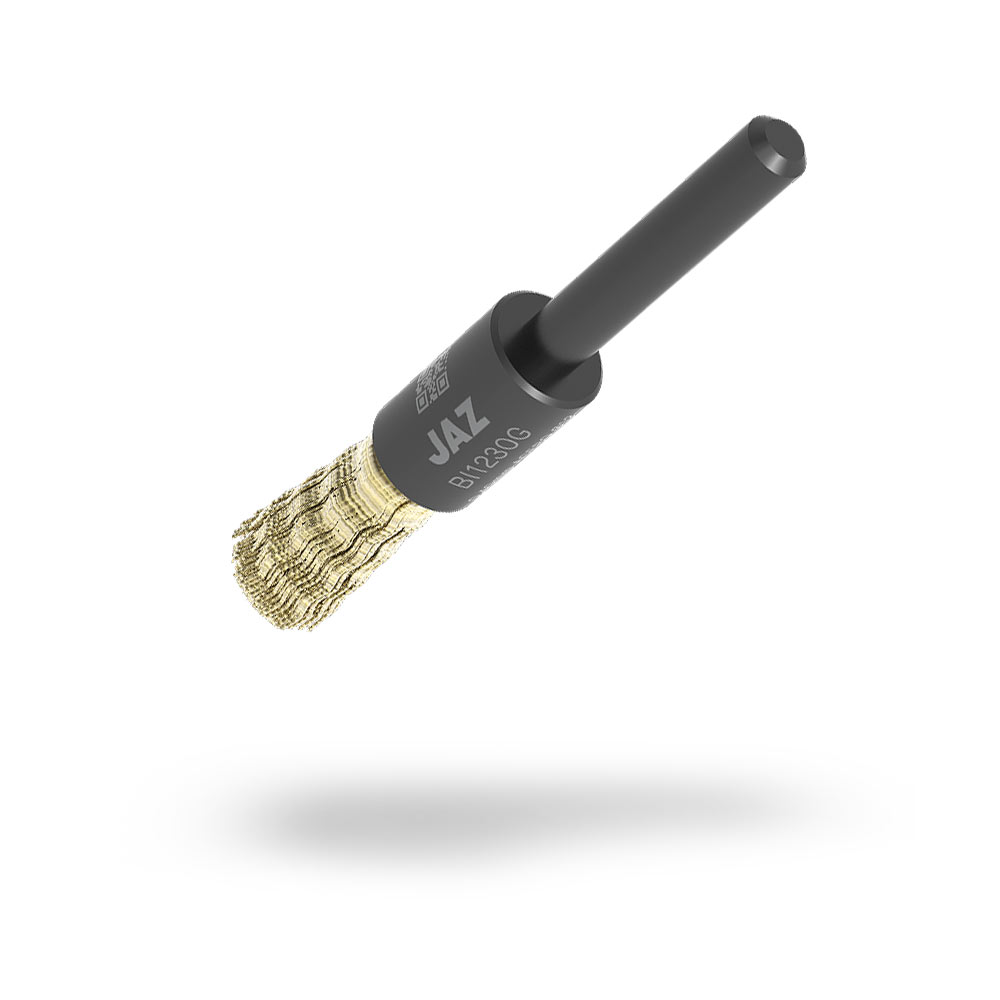

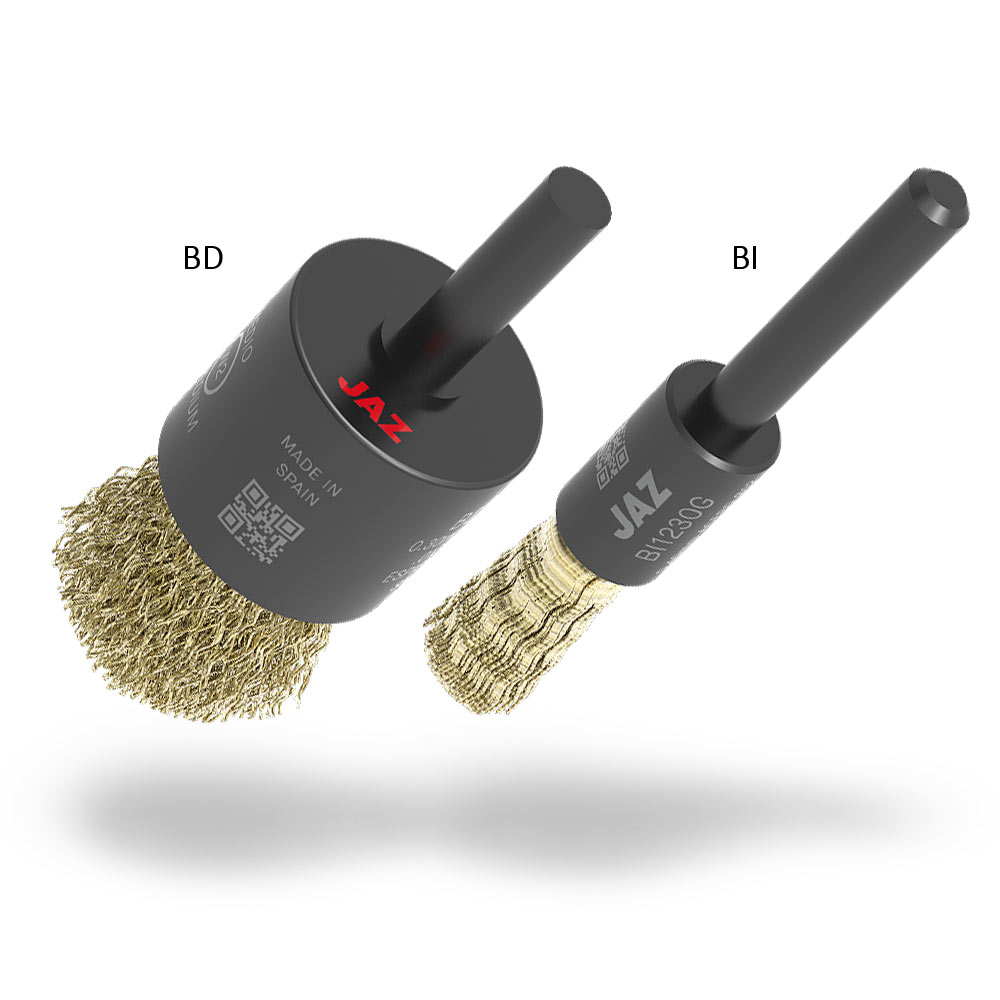

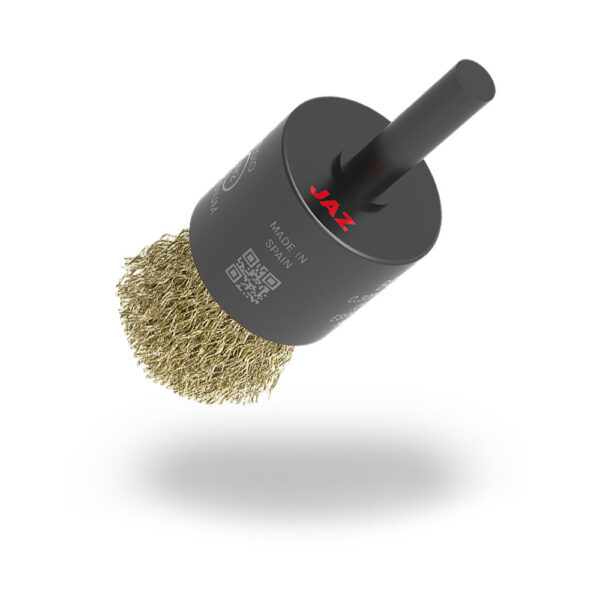

Angle cut end brushes

End Brushes of Angle Cut are used in difficult places to access, holes, corners. Used on portable or fixed drills with chuck.

Inquire with us about this product

I have read and agree the privacy policy

Measures

Model Diam. Trim Length Steel Stainless Steel Brass Max RPM
.006" .012" .020" .006" .012" .020" .012"
BD 3/4" 1-3/16" 15220 15200 15210 15240 15230 15280 15290 20,000
BD 1" 1-3/16" 15320 15300 15310 15340 15330 15380 15390 20,000
BI 1/2" 1-3/16" 10120 10100 10110 10140 10130 10180 10190 20,000

Technical Specifications

Finishing grade

Ø Wire Finishing Grade
0,8-0,6-0,5 Coarse W1
0,4-0,37-0,35-0,30 Medium W2
0,20-0,15-0,12-0,10 Fine W3
0,08-0,06 S. Fine W4
Non-Abrasive Fibers Neutral SW5

Removal rate

Ø Wire
0,8-0,6-0,5
0,4-0,37-0,35-0,30
0,20-0,15-0,12-0,10
0,08-0,06

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers
  • Action: Cleaning, Deburring
  • Tool: Die-grinder
  • Surface: Non-sparking, Stainless, Steel

  • Shape and dimensions for use in difficult places to access, holes, corners, etc.
  • Used on portable or fixed drills with chuck.

Applications

  • Removal of edges, scale, paint, rust, rubber-metal pieces etc.
    Dies, tubes, engines, pistons, etc.

Order Example

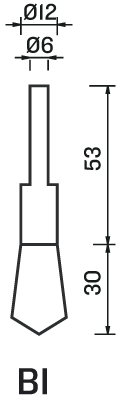

JAZ ZUBIAURRE: Gráfica

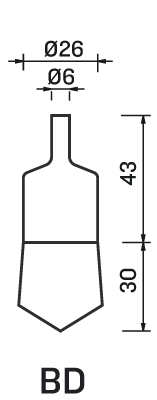

JAZ ZUBIAURRE: Gráfica

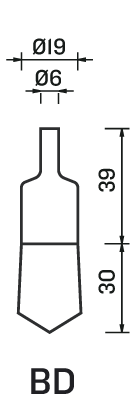

JAZ ZUBIAURRE: Gráfica

Order example

15320
