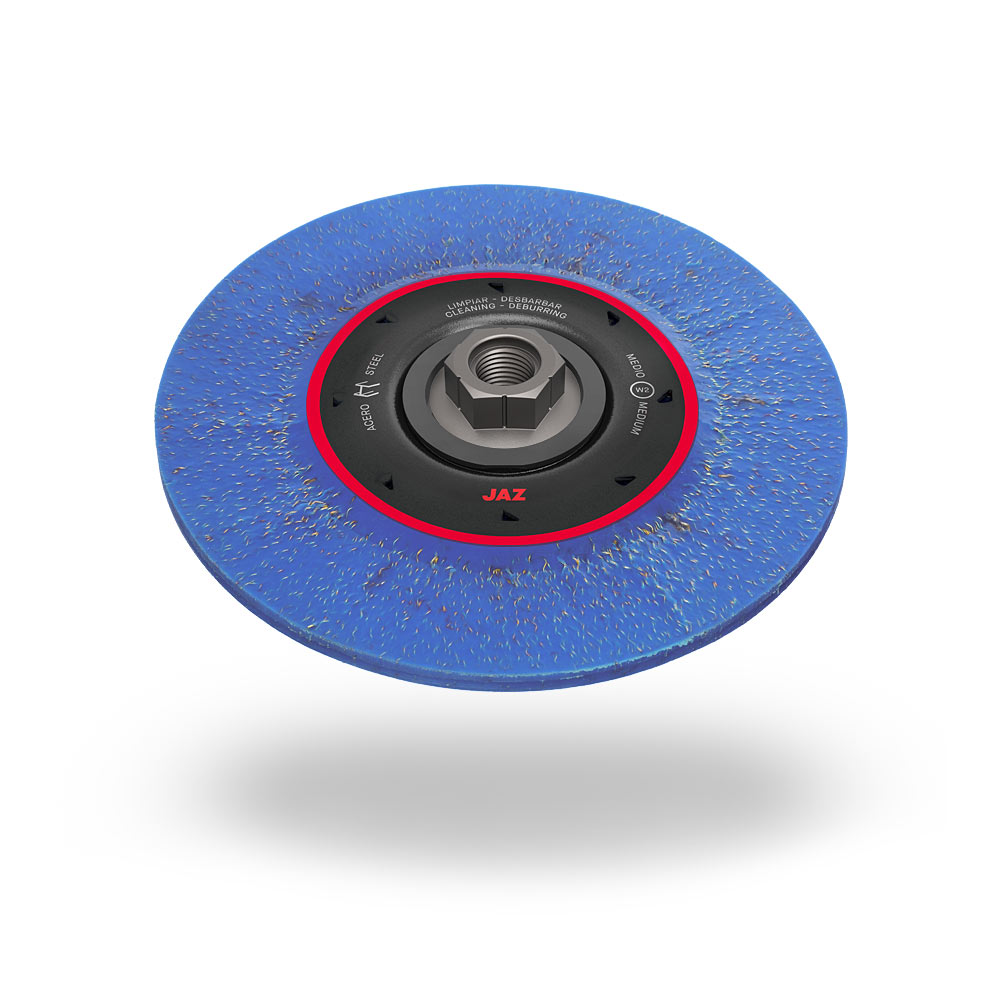

Encapsulated Wheels

Ideal to remove welding scales and for pipeline Oil&Gas Industry. Suitable for working in marine environments.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Ø Diameter (d) Width (a) Trim Lenght (s) Arbor Hole (e) Steel R.P.M.
    .014” Max.
    4-1/2" 1/4" 1" 5/8"-11 48792 15,000
    5" 1/4" 1-1/4" 5/8"-11 42792 12,500
    6" 1/4" 1-1/16" 5/8"-11 43792 12,500
    7" 1/4" 1-5/8" 5/8"-11 44792 9,000

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: Grinder
    • Surface: Steel

    • Encapsulation protects the wire from rusting.
    • Provides precision control of the brushing action on the workpiece.
    • Allows easier brushing action in in slots and complex shaped parts.
    • Encapsulation gradually wears away to expose a consistent short trim length creating the most aggressive brushing action.
    • Encapsulation shields the wires from flexing fatigue that extends the brush life compared to industry standard crimped wire brushes.
    • Ensures greater durability than a standard crimped wire wheel brush.
    • Provides a friendlier handling of the brush, protecting end users against potential pricking caused by the wire tips.

    Applications

    • Removal of welding scales.
    • Pipeline Oil & Gas Industry
    • Heavy deburring.
    • Rod cleaning.
    • Corner & edge cleaning.
    • Suitable for working in marine environment and other demanding applications.

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order example

    42792
