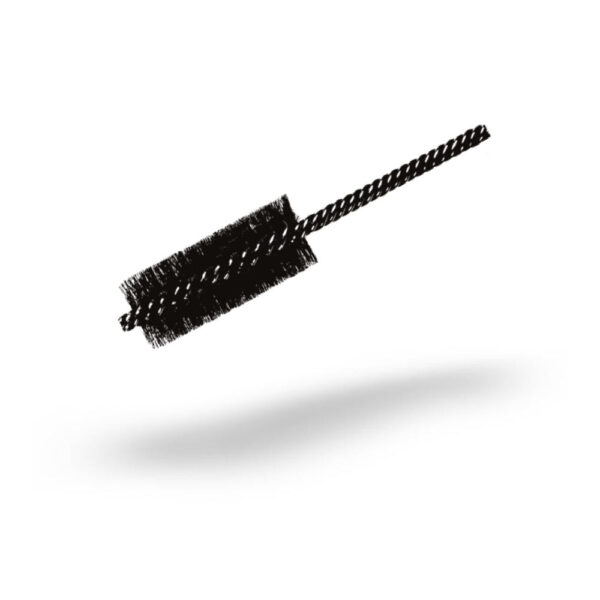

Double Stem, Double Spiral

Reinforced made double stem, double spiral brushes are made with double stranded heavy gauge wire that can be easily and safely chucked into a power tool, drill or drill press.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Diameter Brush Length Stem Diameter Overall Length Tempered Steel Stainless Steel
    .003" .004" .005" .006" .008" .010" .003" .004" .005" .006" .008" .010"
    3/8" 1-1/2" 1/8" 6" 92020
    1/2" 2" 5/32" 5" 92040 92045 92041 92046
    5/8" 2" 7/32" 5" 92060 92065 92061 92066
    3/4" 2-1/2" 1/4" 5-1/2" 92080 92085 92081 92086
    7/8" 2-1/2" 1/4" 5-1/2" 92100 92105 92101 92106
    1" 2-1/2" 1/4" 5-1/2" 92120 92125 92121 92126
    1-1/4" 2-1/2" 1/4" 5-1/2" 92145 92150 92146 92171

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: By hand, Drill
    • Surface: Stainless, Steel

    Applications

    • Made to withstand the rigors of being driven by power tools, drills, and drill presses.
    • Handles are double strand heavygauge wire, ending in a smooth stem to chuck redily in a power tool.
