Narrow Face Wheels 4 Rows

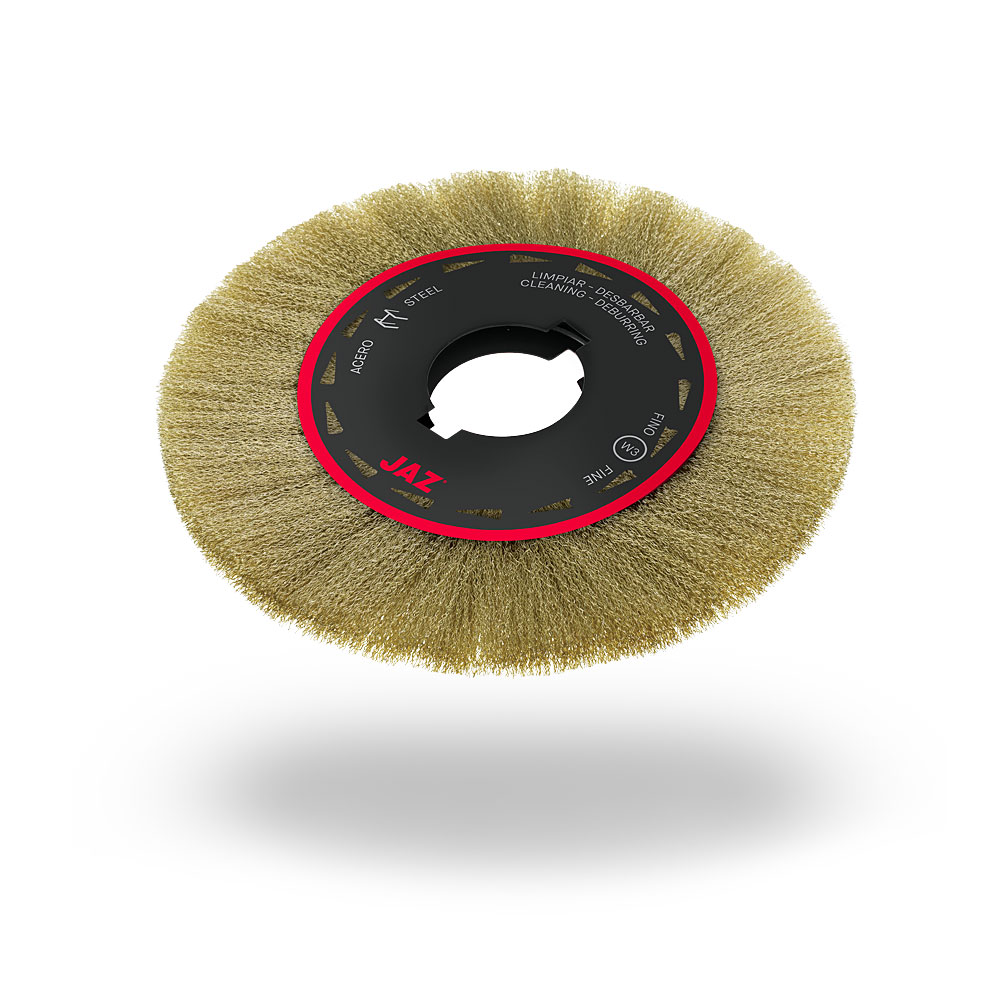

Narrow Face Wire Wheels of 4 rows are designed for making rollers by joining individual brushes.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Diameter (d) Trim Length (s) Steel Stainless Steel Brass R.P.M. Max
    .006" .008" .012" .016" 0.020" .008" .012" .012"
    10" 1" CU 92504B CU 92504C CU 92504E CU 92504G CU 92504H CU 92504N CU 92504Z CU 92504V 3,600
    11" 2" CU 92754B CU 92754C CU 92754E CU 92754G CU 92754H CU 92754N CU 92754Z CU 92754V 3,600
    12" 2-3/8" CU 93004B CU 93004C CU 93004E CU 93004G CU 93004H CU 93004N CU 93004Z CU 93004V 3,600
    13" 3" CU 93254B CU 93254C CU 93254E CU 93254G CU 93254H CU 93254N CU 93254Z CU 93254V 3,600
    14" 3-1/4" CU 93504B CU 93504C CU 93504E CU 93504G CU 93504H CU 93504N CU 93504Z CU 93504V 3,000
    16" 4-11/32" CU 94004B CU 94004C CU 94004E CU 94004G CU 94004H CU 94004N CU 94004Z CU 94004V 3,000

    Note: R.P.M. specifications vary when several brushes are put together in a roller. We have drive shafts with keyways. You can make us an enquiry.

    Axis Description

    JAZ ZUBIAURRE: Gráfica
    Brush Diameter 10"-16"
    Fixed Arbor Hole (e) 2"-3.1/8"-3.1/4"-4.11/32"
    Inside Diameter with keyways
    Diameter (B) KEYway (A) KEYway (C) Code
    " " "
    2" 1/2" 9/32" 51
    2-5/32" 1/2" 1/4" 55
    3-1/8" 7/8" 1/4" 80
    3-1/4" 7/8" 9/32" 83
    4-11/32" 110

    Technical Specifications

    Finishing grade

    Removal rate

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring, Surface preparation
    • Tool: Industrial machines
    • Surface: Non-sparking, Stainless, Steel

    • Specially designed for making rollers by joining individual brushes.
    • Special models are available for rollers of large dimension and the possibility of arbor holes with dragging keys.
    • Individually used, they are appropriate for brushing narrow places.

    Applications

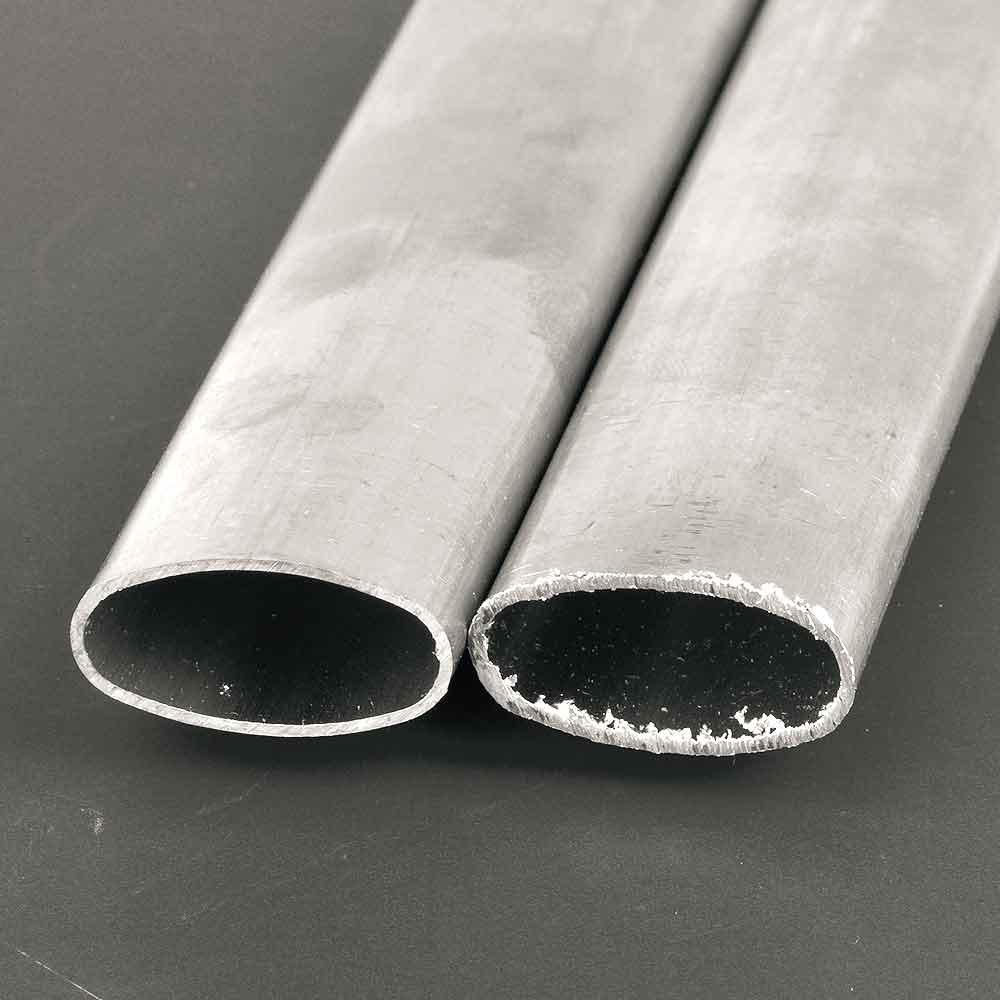

    • Removal of rust, paint and scale.
    • Edge cleaning of tubes and sections, manually or automatically (R.S.A, ADIGE, etc. machine types).

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order example

    92504E

    Additional information

    JAZ ZUBIAURRE: Cepillo Circular Uñeta 3 Hileras
    • The CU brushes are mounted as shown in the photo
    • Must be taken into account that at each end of each block must be placed side plates of the same diameter of the CU brush plates.
    • The thickness of the plate should be prepared taking into account the application, r.p.m., etc.
