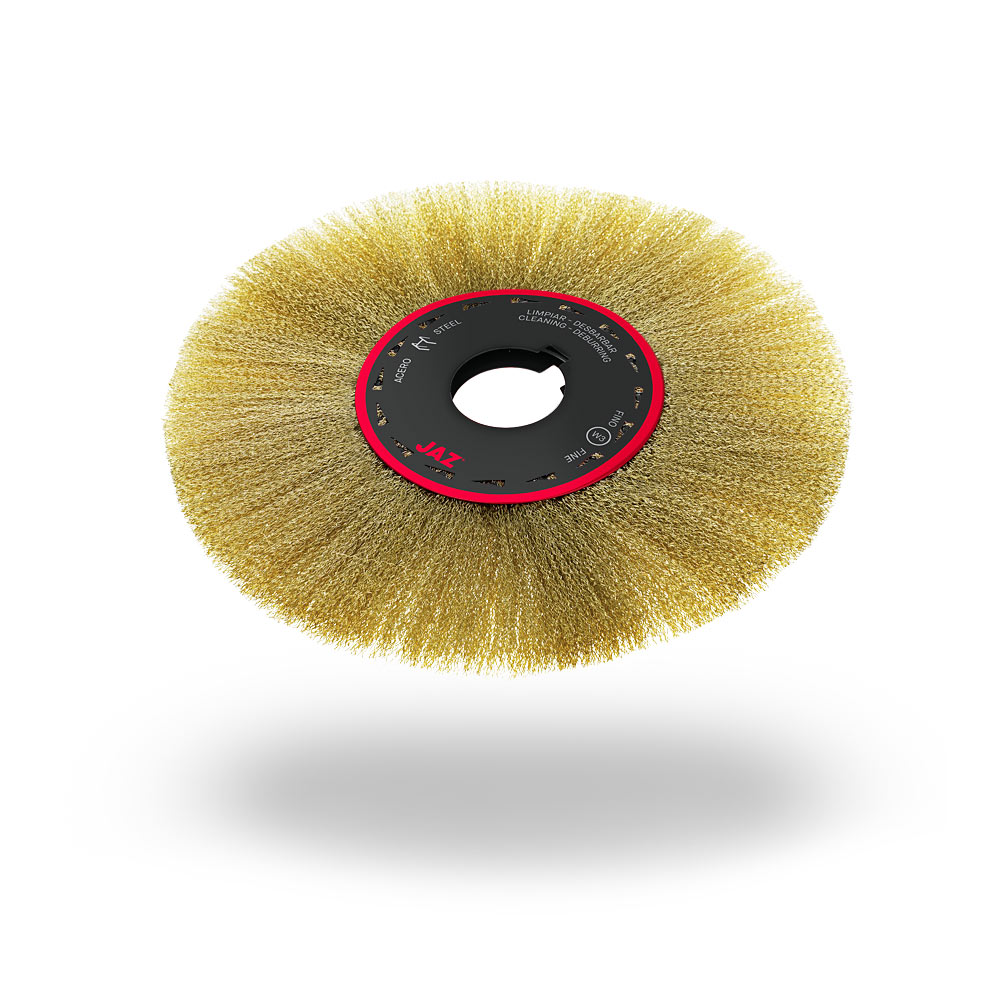

Narrow Face Wheels 3 Rows

Narrow Face Wire Wheels of 3 rows are designed for making rollers by joining individual brushes.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Diameter (d) Trim Length (s) Steel Stainless Steel Brass R.P.M. Max
    .006" .008" .012" .016" .008" .012" .012"
    4" 3/4" CU 1003B CU 1003C CU 1003E CU 1003G CU 1003N CU 1003Z CU 1003V 6,000
    5" 7/8" CU 1203B CU 1203C CU 1203E CU 1203G CU 1203N CU 1203Z CU 1203V 6,000
    6" 1-1/8" CU 1503B CU 1503C CU 1503E CU 1503G CU 1503N CU 1503Z CU 1503V 6,000
    7" 1-5/8" CU 1703B CU 1703C CU 1703E CU 1703G CU 1703N CU 1703Z CU 1703V 6,000
    8" 2-1/16" CU 2003B CU 2003C CU 2003E CU 2003G CU 2003N CU 2003Z CU 2003V 4,500
    9" 2" CU 2203B CU 2203C CU 2203E CU 2203G CU 2203N CU 2203Z CU 2203V 3,600
    10" 2-3/8" CU 2503B CU 2503C CU 2503E CU 2503G CU 2503N CU 2503Z CU 2503V 3,600
    12" 3-3/8" CU 3003B CU 3003C CU 3003E CU 3003G CU 3003N CU 3003Z CU 3003V 3,000

    Note: R.P.M. specifications vary when several brushes are put together in a roller. We have drive shafts with keyways. You can make us an enquiry.

    Axis description

    Brush Diameter 4" - 5" 6"-7"-8" 9"-10"-12"
    Fixed Arbor Hole (e) 1/2"-5/8"-3/4"-1" 1/2"-5/8"-3/4"-7/8"-1"-1.3/16"-1.3/8"-1.1/2" 5/8"-3/4"-7/8"-1"-1.3/8"-1.1/2"- 2"

    Technical Specifications

    Finishing grade

    Removal rate

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring, Surface preparation
    • Tool: Industrial machines
    • Surface: Non-sparking, Stainless, Steel

    • Specially designed for making rollers by joining individual brushes.
    • Special models are available for rollers of large dimension and the possibility of arbor holes with dragging keys.
    • Individually used, they are appropriate for brushing narrow places.

    Applications

    • Removal of rust, paint and scale.
    • Edge cleaning of tubes and sections, manually or automatically (R.S.A, ADIGE, etc. machine types).

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order example

    1503E

    Additional information

    JAZ ZUBIAURRE: Cepillo Circular Uñeta 3 Hileras
    • The CU brushes are mounted as shown in the photo.
    • Must be taken into account that at each end of each block must be placed side plates of the same diameter of the CU brush plates.
    • The thickness of the plate should be prepared taking into account the application, r.p.m., etc.
