BS Wire Brushes for rotating parts and cylindrical pieces

With BS Wire Brushes for rotating parts there is no need to remove the piece for brushing it. Unique in the industry.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Model Diameter Diameter Piece Diameter Shank Coated Steel Stainless Steel Max. RPM
    mm " mm " mm " 0.3mm/0.12" 0.3mm/0.12"
    BS 60 2.3/8" 10 3/8" 6 1/4" BS6010E BS6010Z 4,500
    12 1/2" BS6012E BS6012Z
    14 9/16" BS6014E BS6014Z
    16 5/8" BS6016E BS6016Z
    18 11/16" BS6018E BS6018Z
    20 3/4" BS6020E BS6020Z
    22 7/8" BS6022E BS6022Z
    24 15/16" BS6024E BS6024Z
    26 1" BS6026E BS6026Z
    28 1.1/8" BS6028E BS6028Z
    30 1.3/16" BS6030E BS6030Z

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: Drill
    • Surface: Stainless, Steel

    Applications

    • Removal of burrs, rust, paint, etc
    • Ideal for maintenance works.
    • Available in different diameters and wire types.

    Order Example

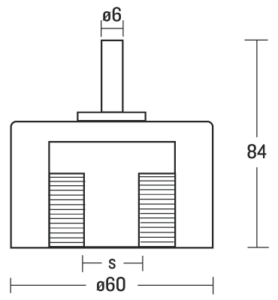

    JAZ ZUBIAURRE: Gráfica

    Order Example

    BS 6020E

    • Model: BS
    • Code: 6020E

    Additional information

    • Specially designed for Rotating Parts.
    • Unique in the industry.
    • No need to remove the pieces for brushing it.
