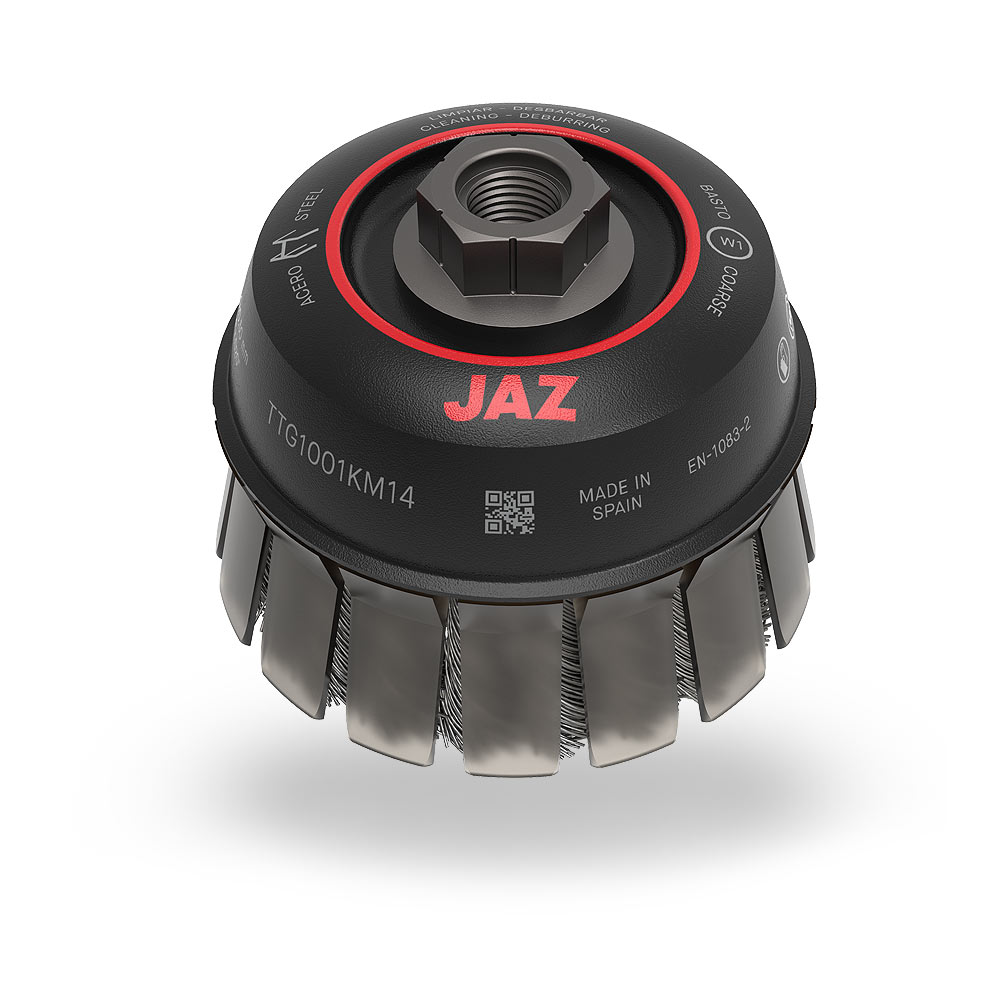

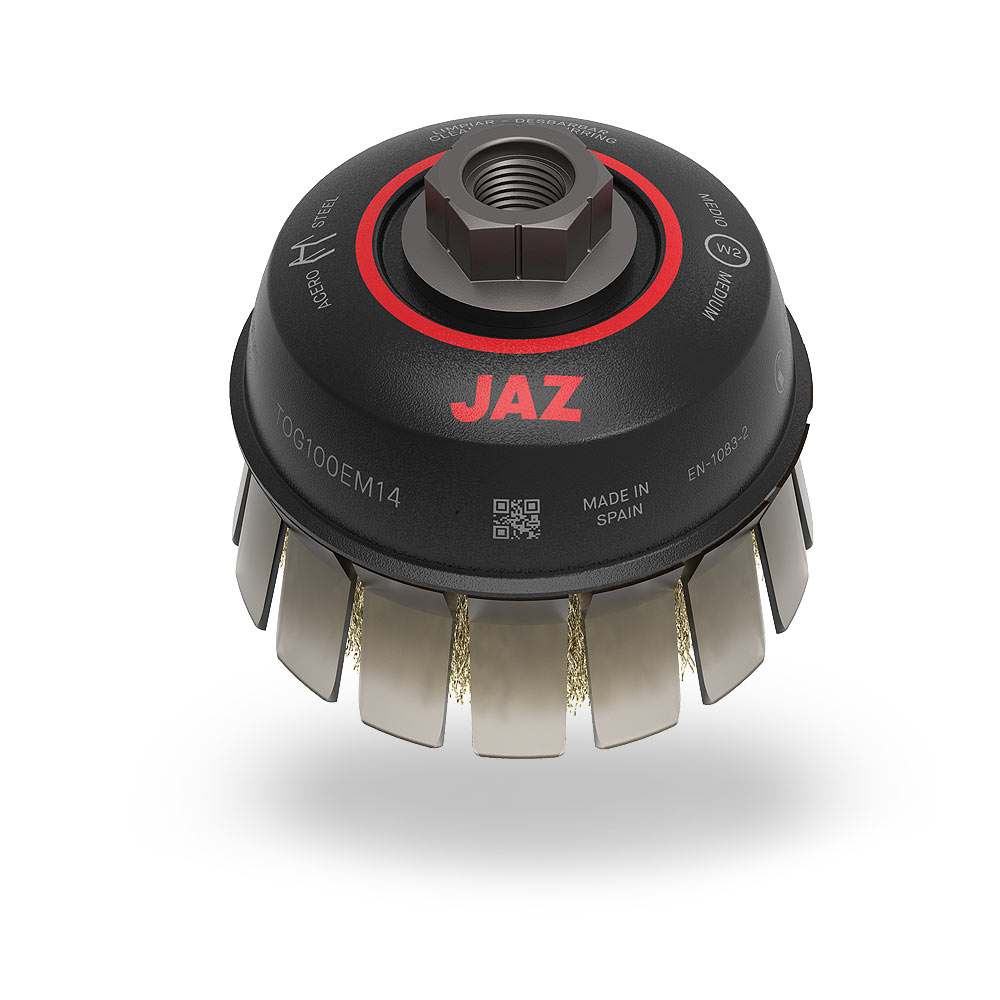

Industrial cups with protection guard

Cups with Protection Guard. The guard acts as a protection shield that prevents wire projection and protects the user against dust and particles generated at work.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Model Type of Wire Diameter (d) Trim Length (s) Thread (e) Steel Cable Crimped Stainless Steel R.P.M.
    .012" .020" 12x.009" .012" .020" Max.
    TOG Crimped 4" 1-3/16" 5/8" -11 & M14x2.0 64900 64950 64930 8,500
    TTG Twisted 1-1/8" 54950 54980
    TCAG Cable Crim. 1-3/16" 64910

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: Grinder
    • Surface: Stainless, Steel

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order Example

    64900

    Additional information

    Flexibility

    These brushes are ideal for open surfaces. However, the flexibility and adaptability of the plastic material permits the access of the brush to difficult and more hidden areas. Direct contact with other materials will result in an ever wear of the shield.

    It also provides for a more friendly handling of the brush, protecting end users against potential pricking caused by the wire.

    Protection

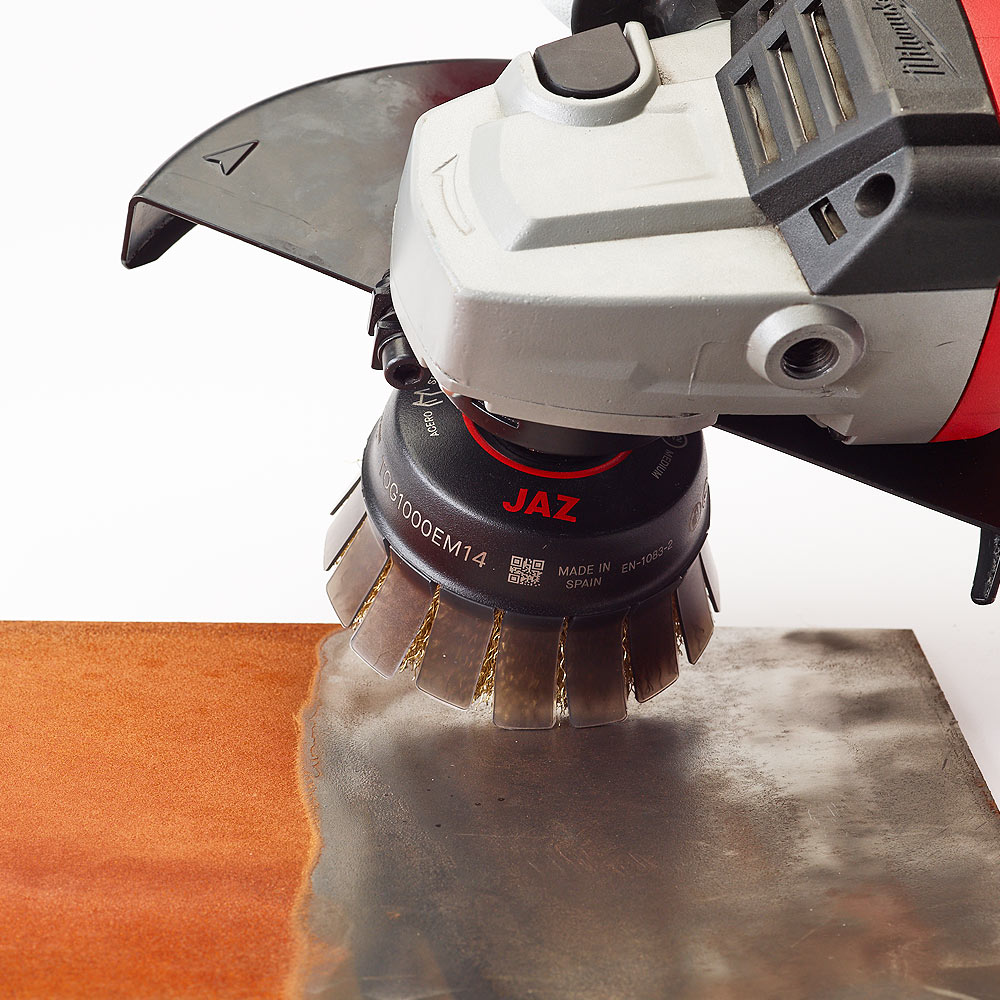

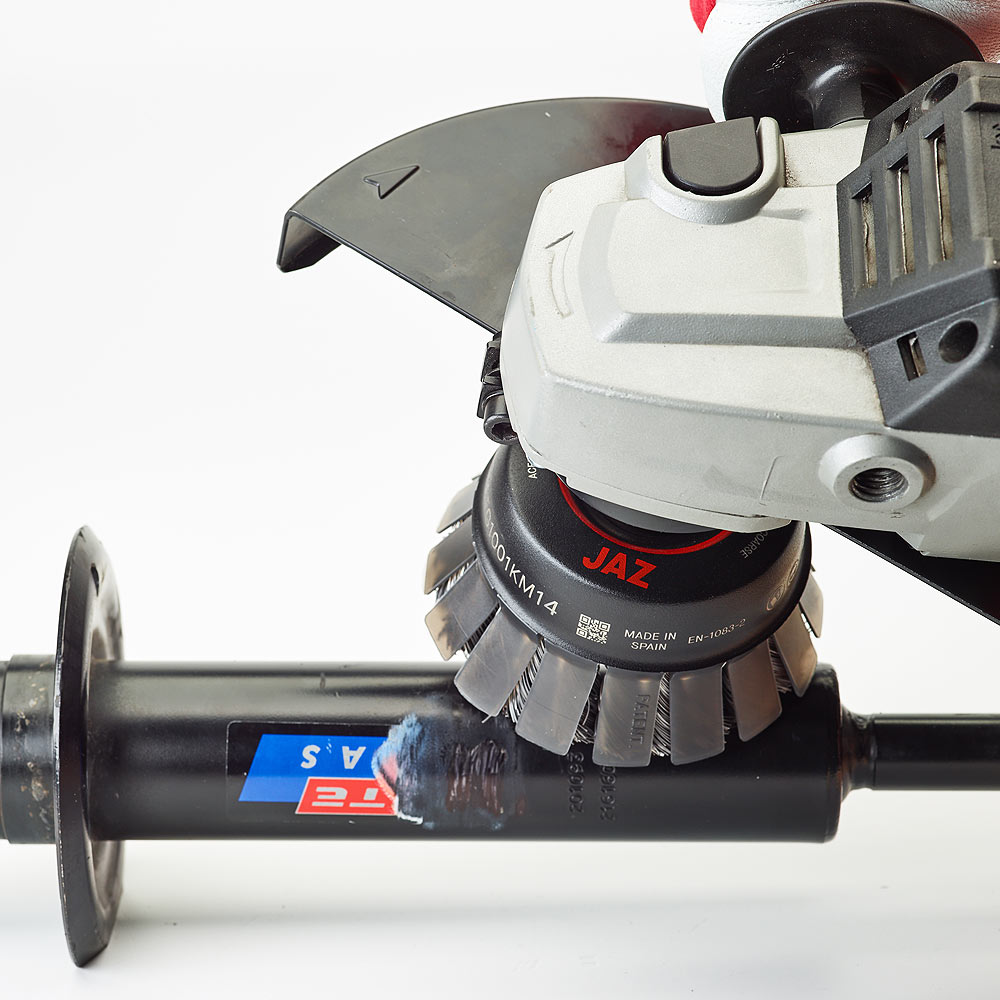

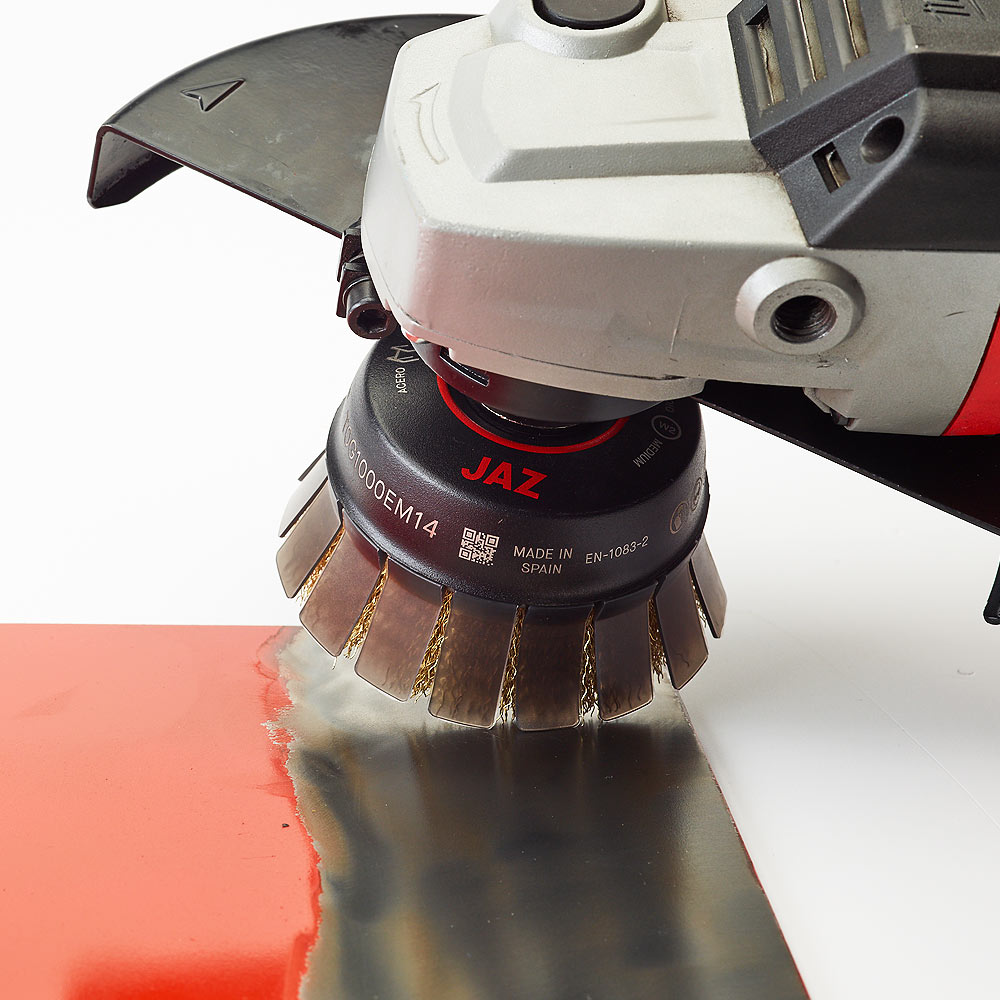

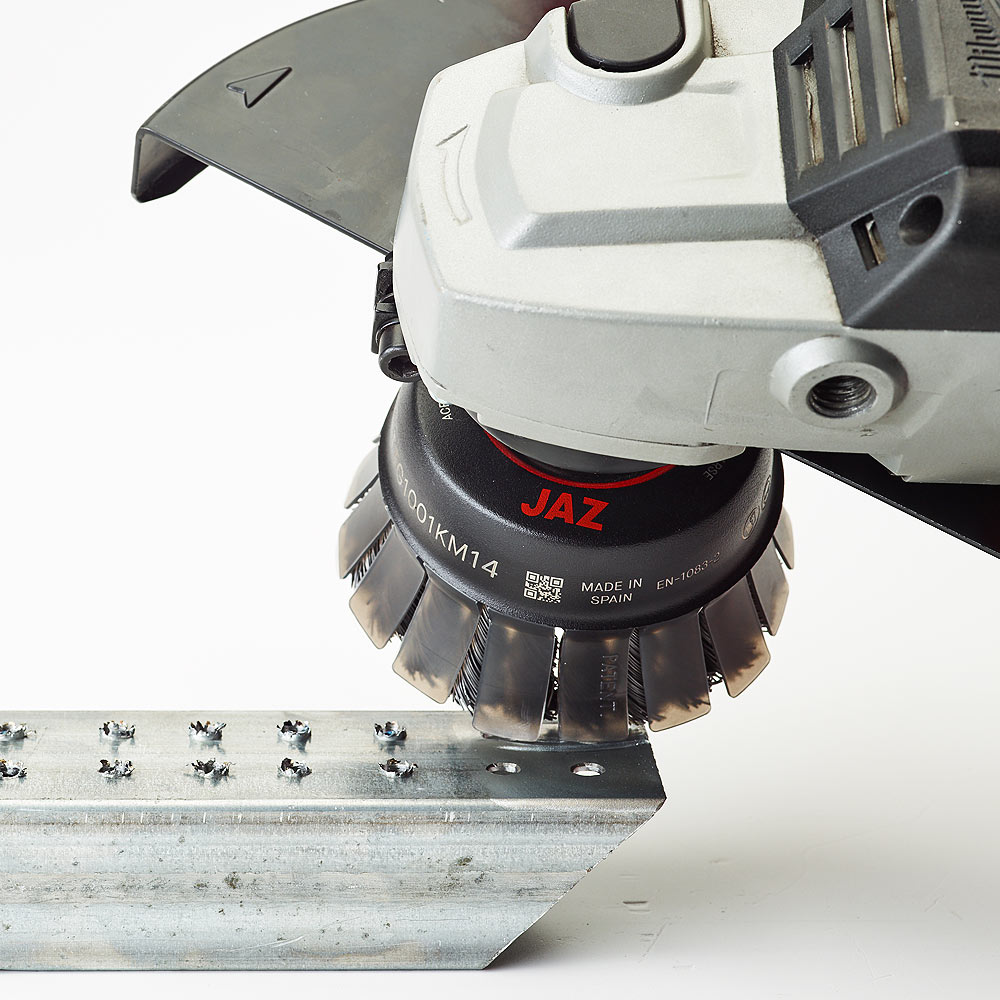

    When the brush is working the guard acts as a protection shield that prevents not only wire projection but also protects the user against dust and particles generated at work.

    Visibility

    The guard is made of a transparent material that allows the user to see the working area.
