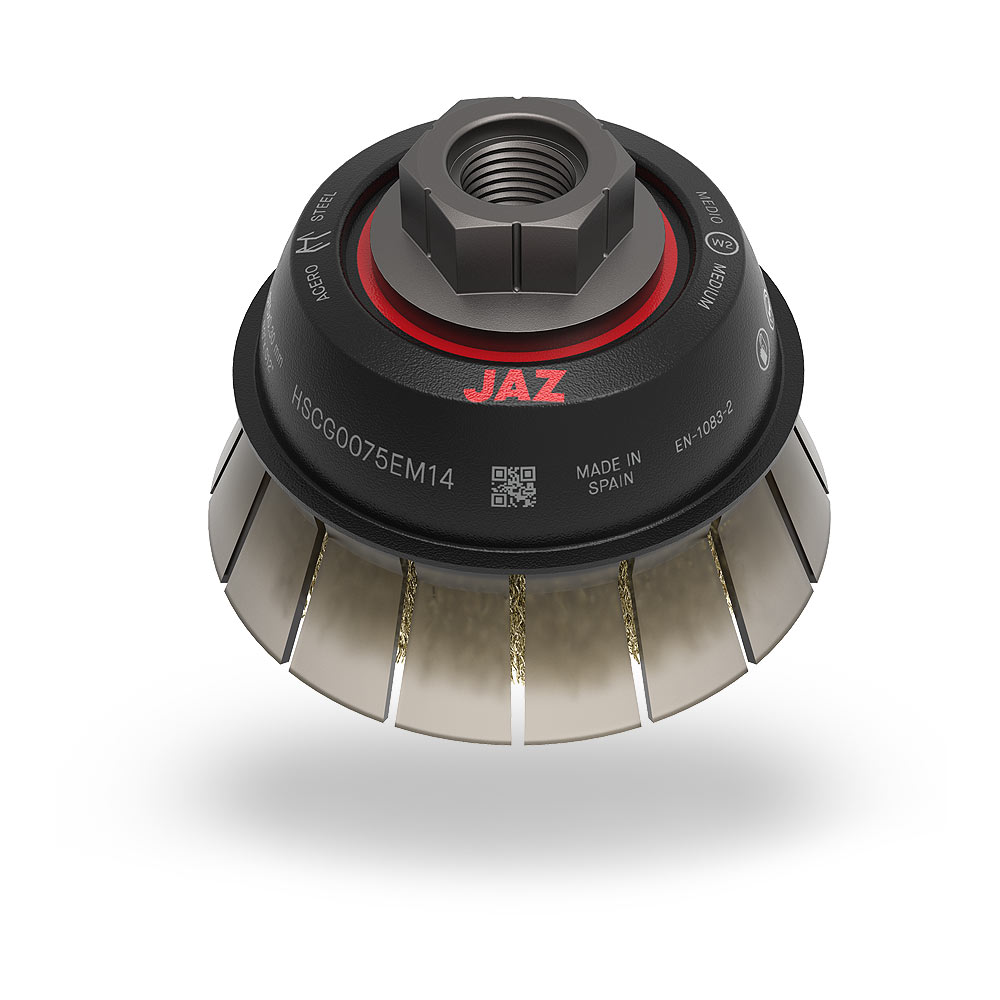

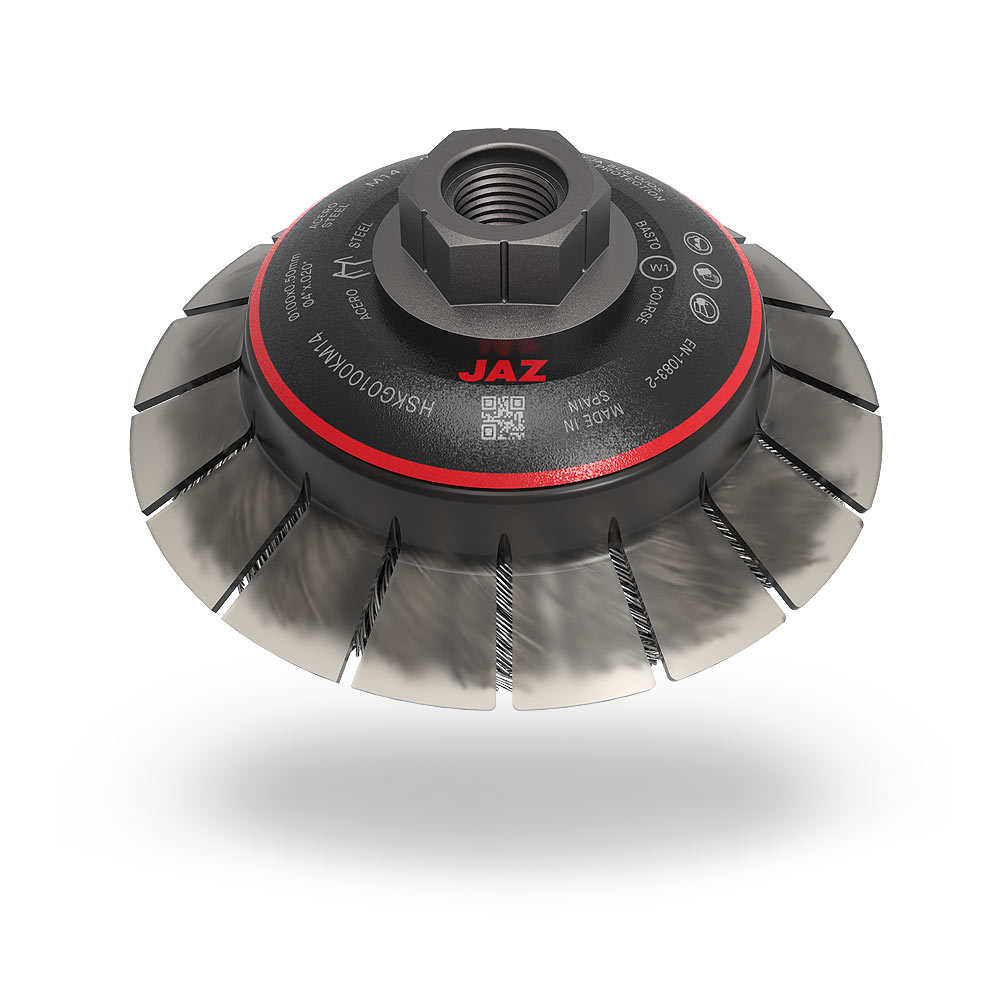

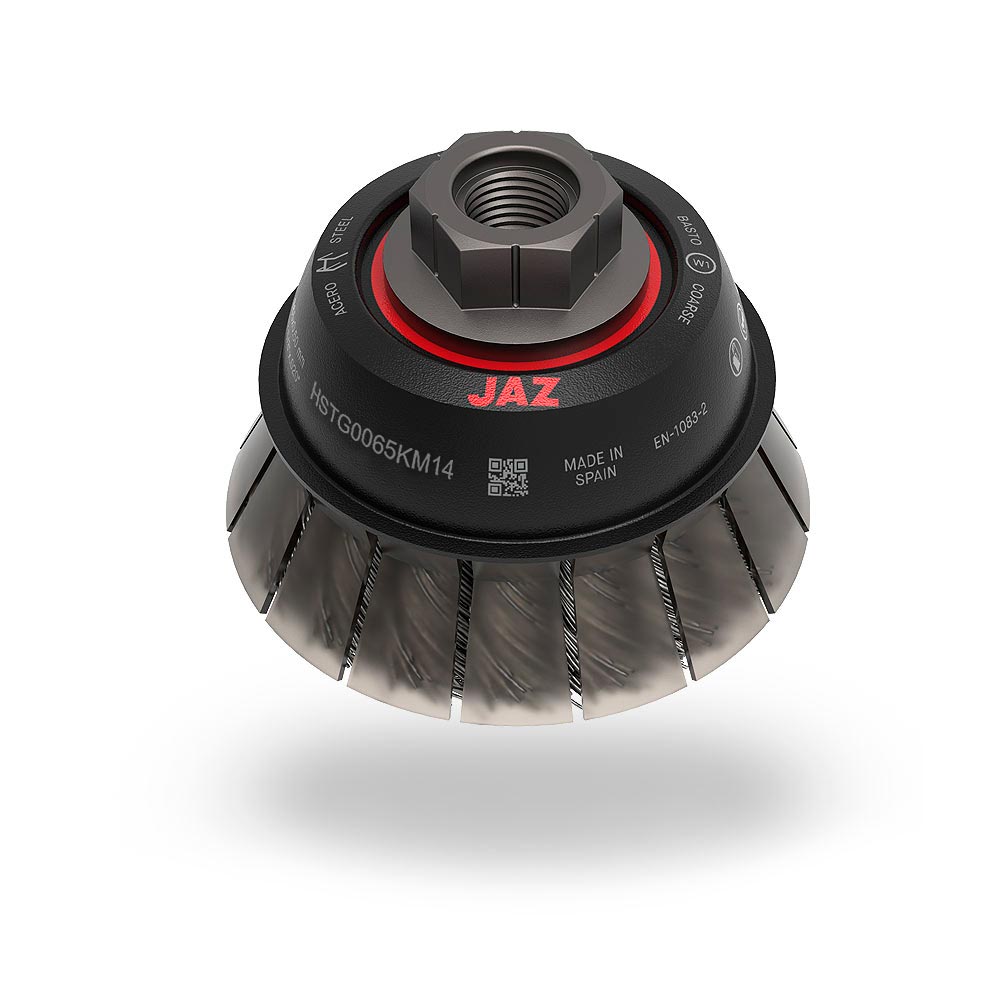

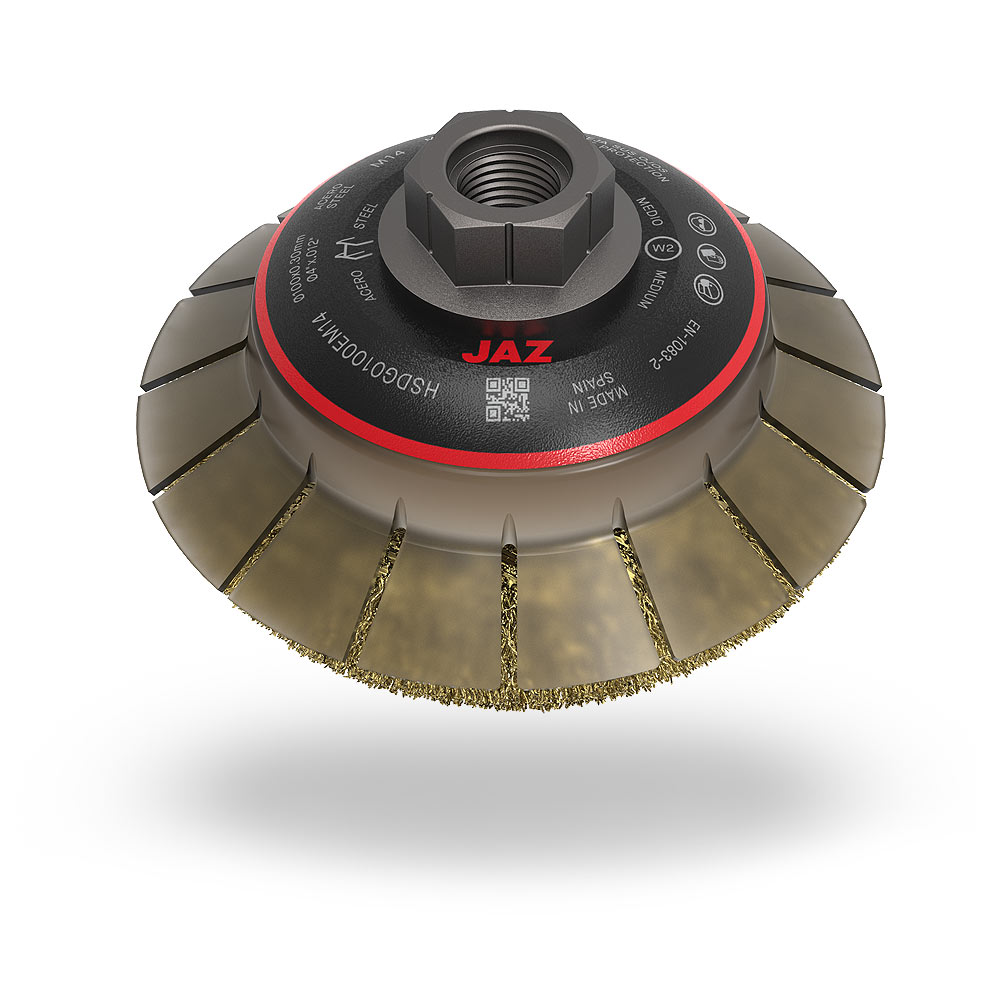

High Speed Line with Protection Guard

High Speed Brushes with Protection Guard. The guard acts as a protection shield that protects the user against dust and particles generated at work.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

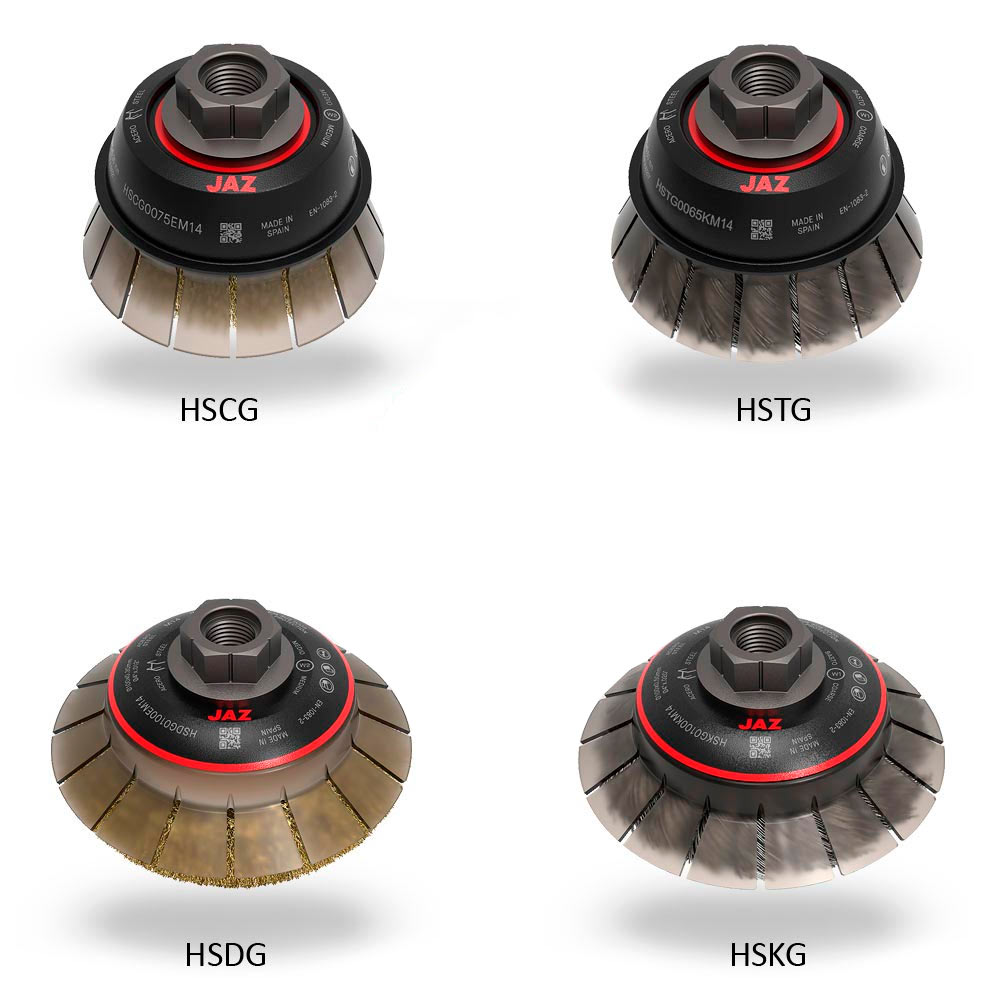

    Model Wire Type Diameter (d) Trim Length (s) Thread (e) Steel Cable Crimped Stainless Steel R.P.M.
    .012" .015" .020" 12x.009" .012" .020" Max.
    HSCG Crimped 3" 7/8" 5/8"-11/M14 73900 72950 73930 13,000
    HSTG Twisted 2-3/4" 3/4" 5/8"-11/M14 72960 72951 72980 15,000
    Twisted 2-3/4" 3/4" M10x1.25/1.50 72961 15,000
    HCAG Cable Crim. 3" 7/8" 5/8"-11/M14 79310 13,000

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers

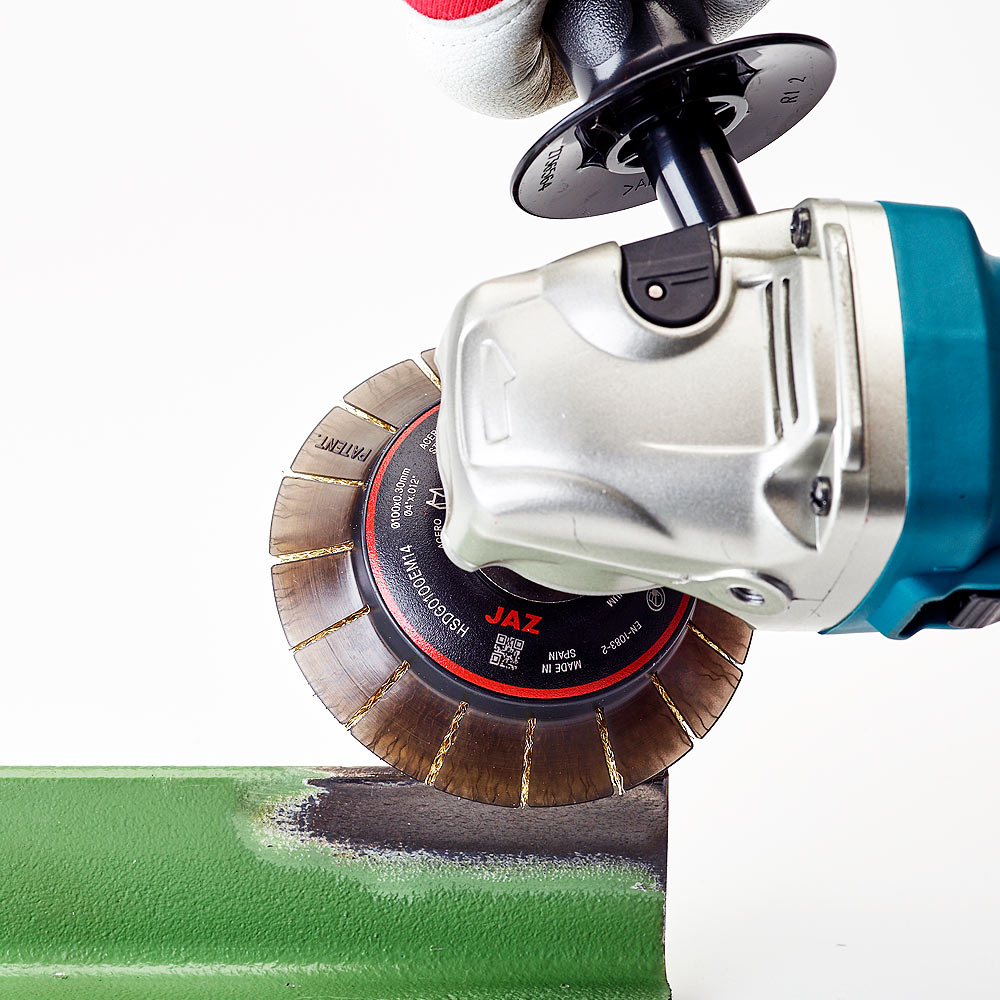

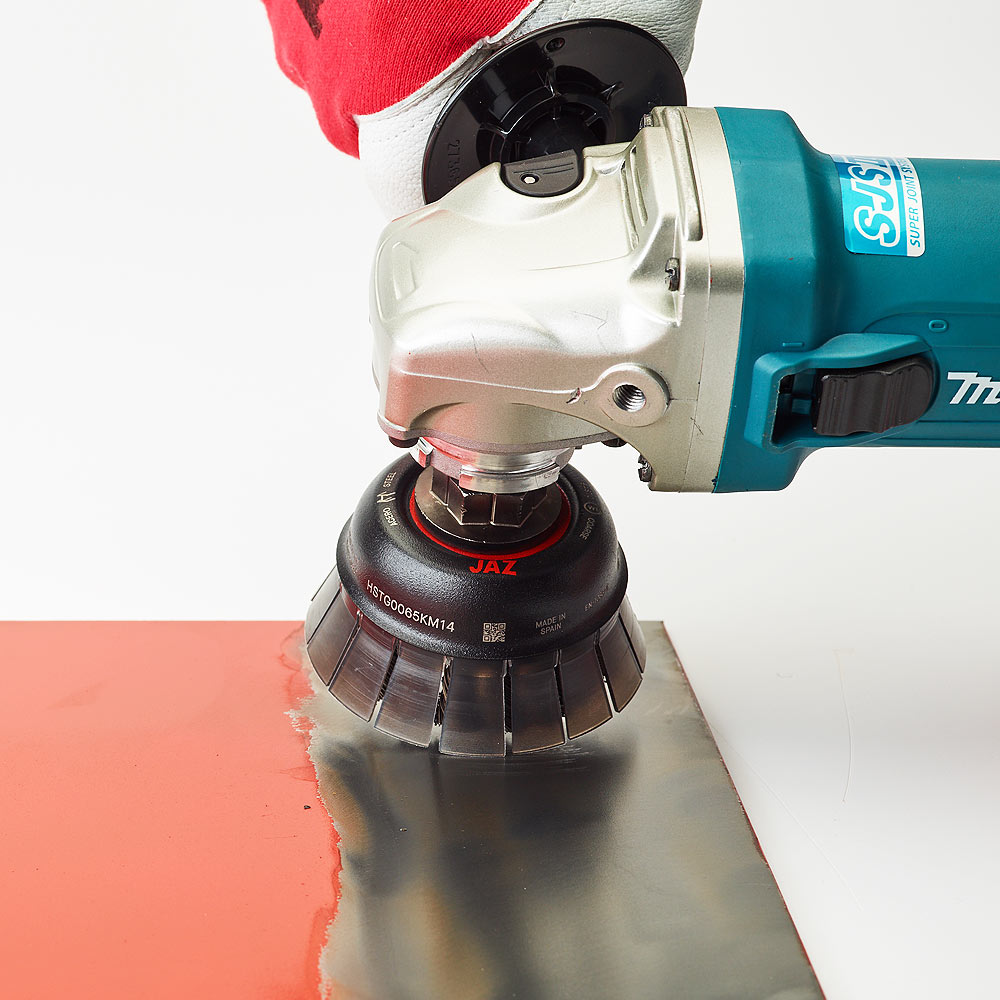

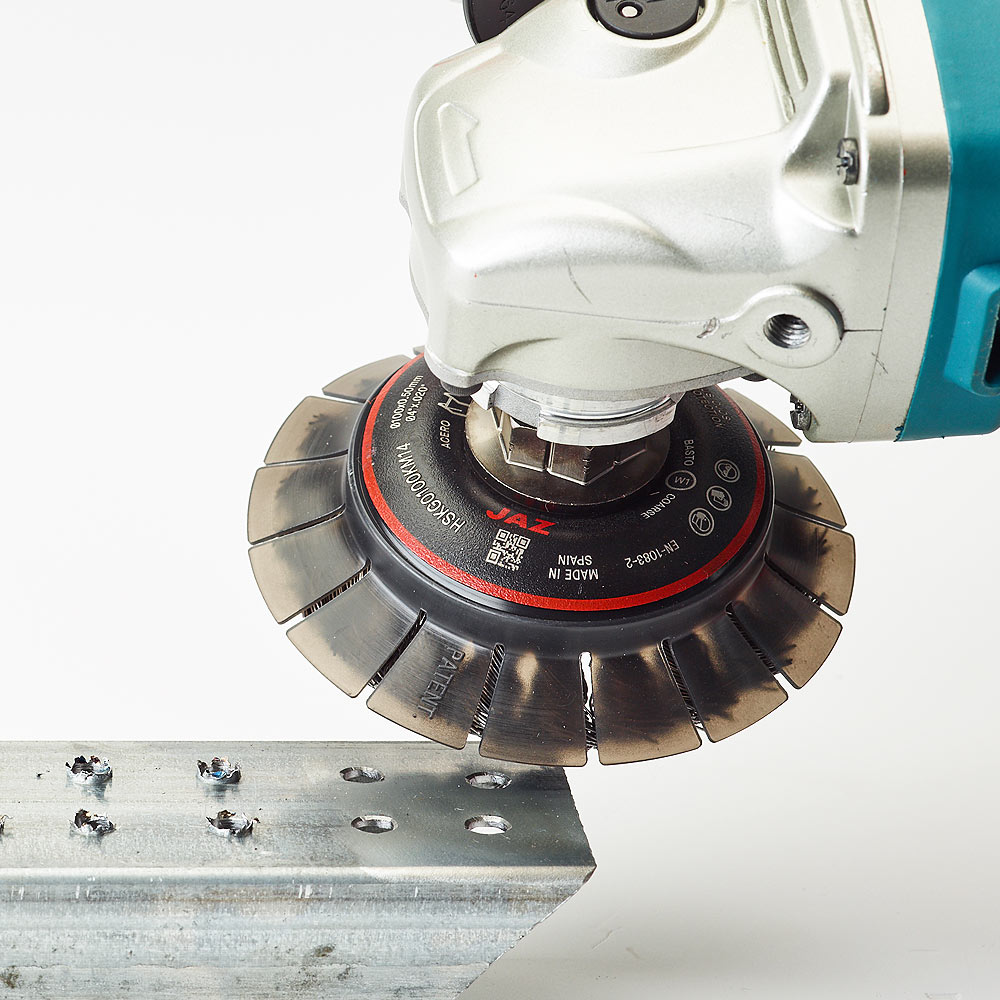

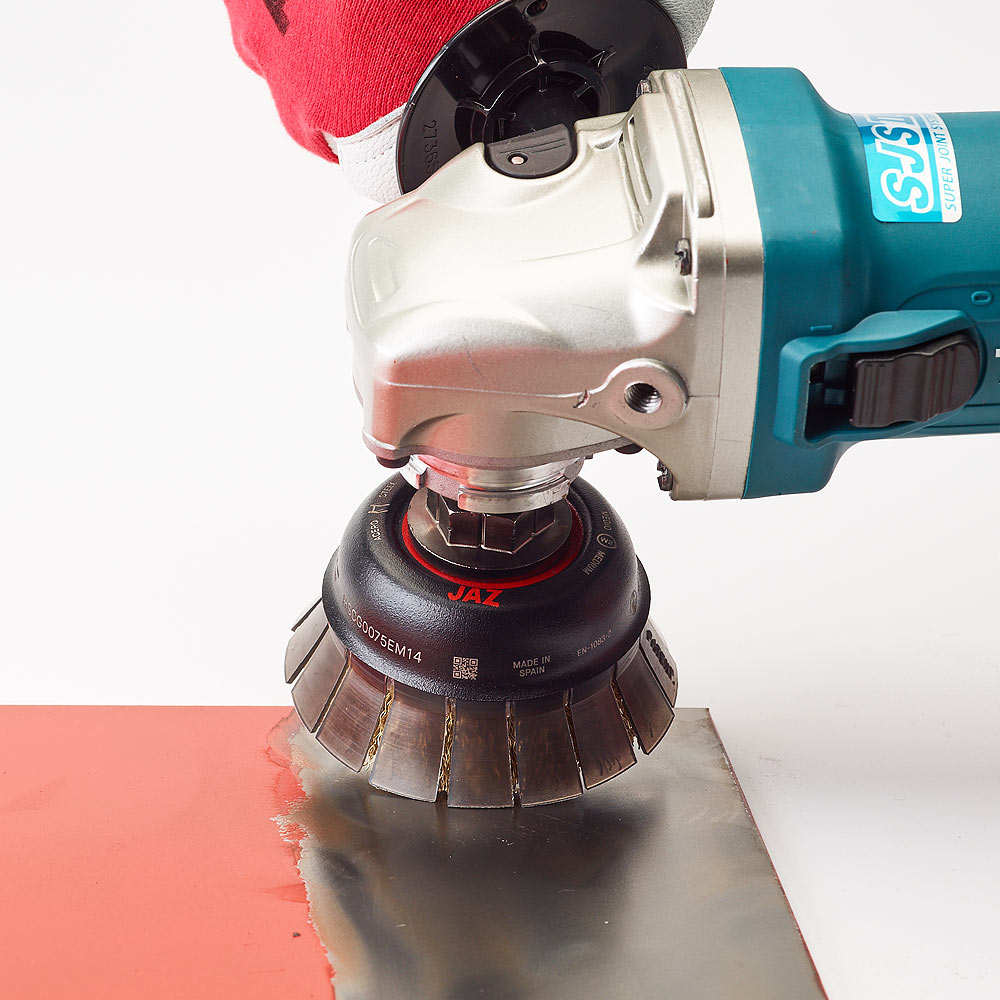

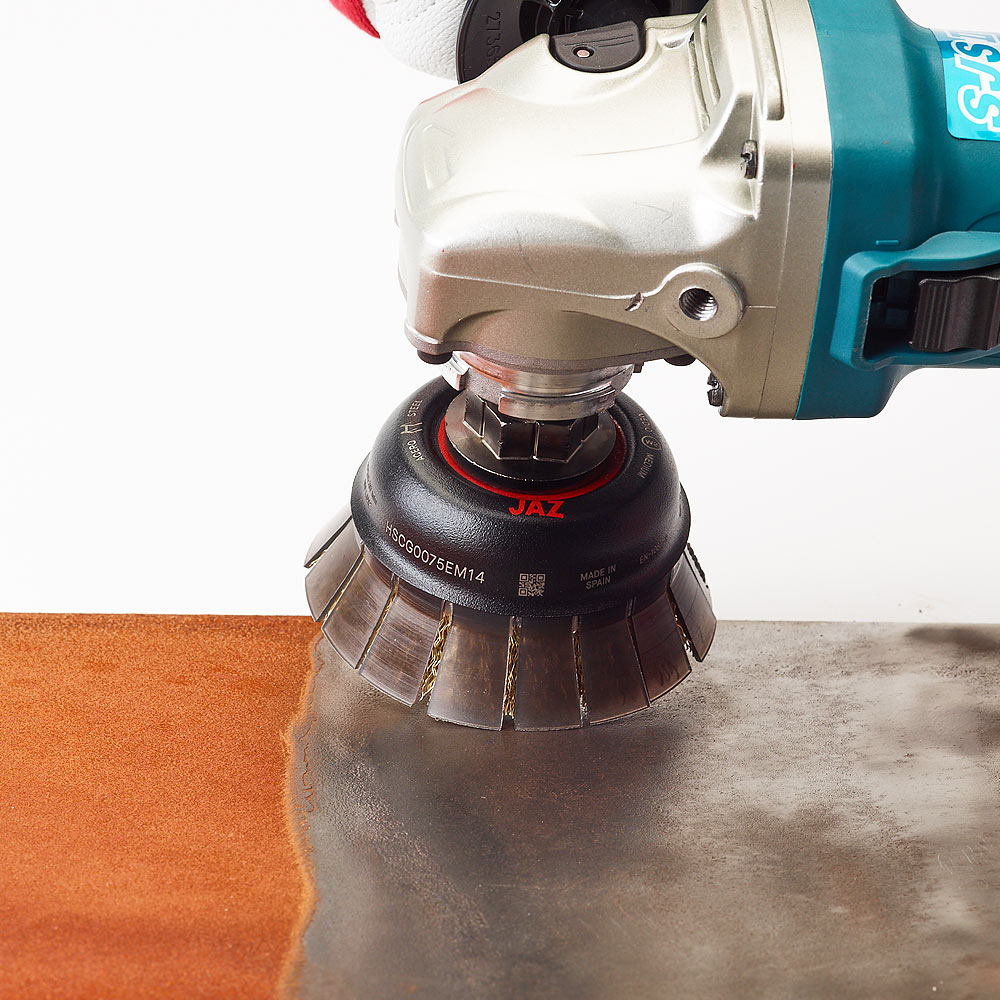

    • Action: Cleaning, Deburring

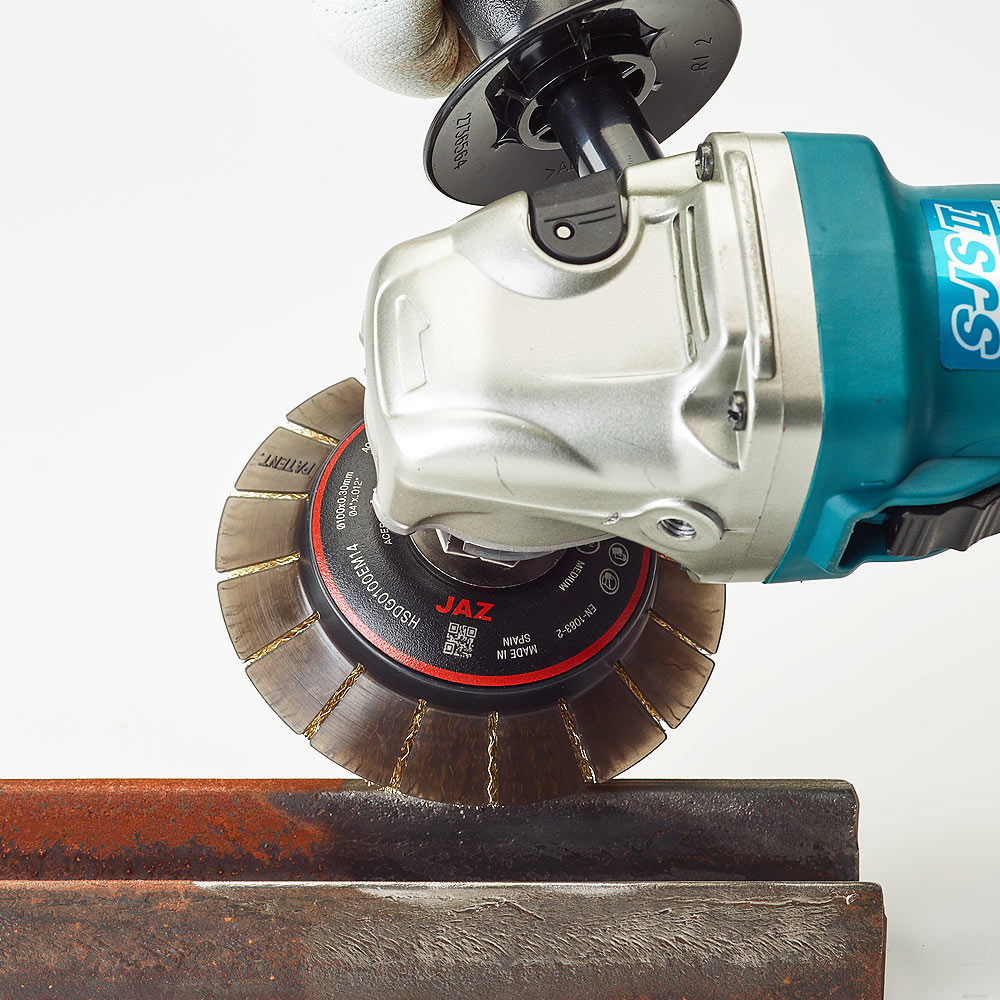

    • Tool: Grinder
    • Surface: Stainless, Steel

    Order Example

    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica

    Order Example

    73900

    Additional information

    Flexibility

    These brushes are ideal for open surfaces. However, the flexibility and adaptability of the plastic material permits the access of the brush to difficult and more hidden areas. Direct contact with other materials will result in an ever wear of the shield.

    It also provides for a more friendly handling of the brush, protecting end users against potential pricking caused by the wire.

    Protection

    When the brush is working the guard acts as a protection shield that prevents not only wire projection but also protects the user against dust and particles generated at work.

    Visibility

    The guard is made material that allows working area.
