Roller Brushes

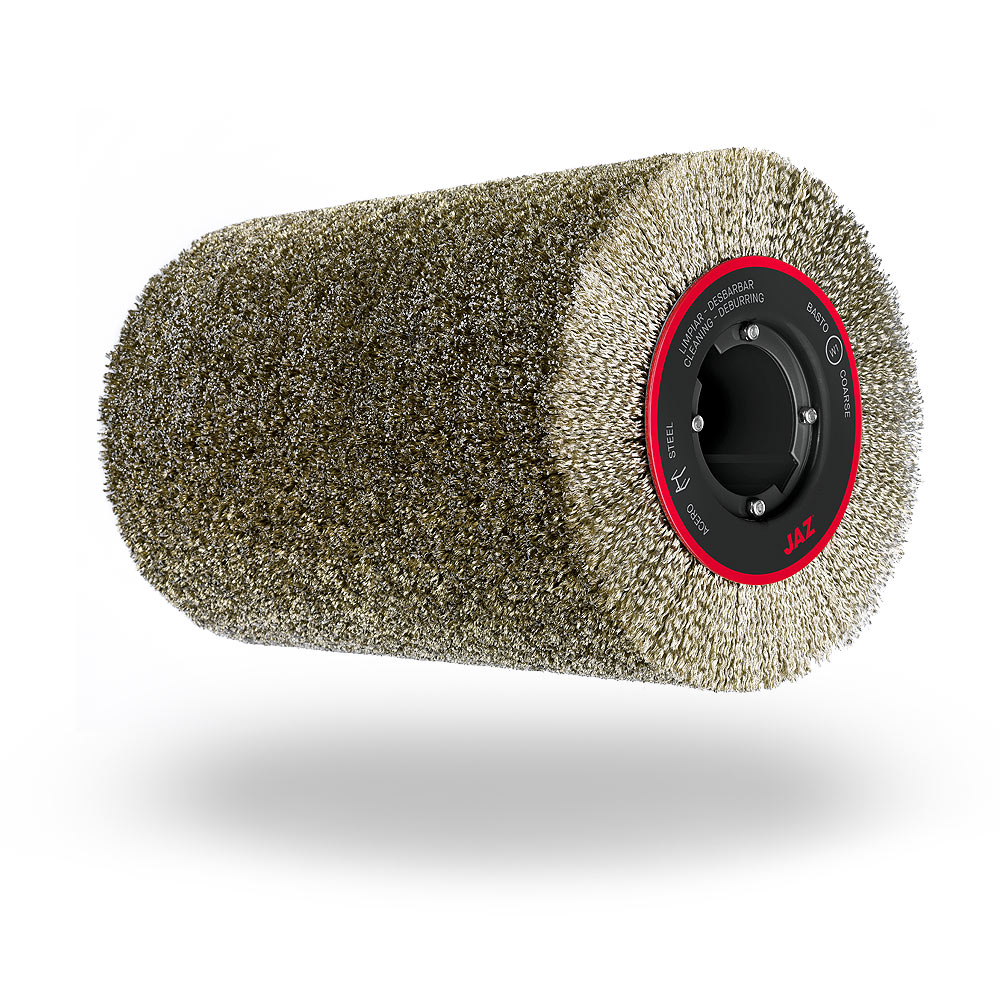

Roller Brushes are wire brushes manufactured in a block of high density and perfect balance.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Outside Diameter (d) Face Width (a) Trim Length (s) Steel Cable-Crimped
    Steel
    Stainless Steel Cable-Crimped
    Stainless Steel
    R.P.M.
    .008" .020" .008" .020" Max.
    10" 12" 1.3/8" CUCB92524C CUCB92524H CUCB92524@ CUCB92524N CUCB92524Q CUCB92524@Z 3,600
    10" 18" 1.3/8" CUCB92536C CUCB92536H CUCB92536@ CUCB92536N CUCB92536Q CUCB92536@Z
    10" 24" 1.3/8" CUCB92548C CUCB92548H CUCB92548@ CUCB92548N CUCB92548Q CUCB92548@Z
    12" 12" 2.3/8" CUCB93024C CUCB93024H CUCB93024@ CUCB93024N CUCB93024Q CUCB93024@Z
    12" 18" 2.3/8" CUCB93036C CUCB93036H CUCB93036@ CUCB93036N CUCB93036Q CUCB93036@Z
    12" 24" 2.3/8" CUCB93048C CUCB93048H CUCB93048@ CUCB93048N CUCB93048Q CUCB93048@Z
    JAZ ZUBIAURRE: Gráfica
    Inside diameter type C51 C80 C83 C110
    Keyway 2"x1/2"x1/4" 3.1/8"x7/8"x1/4" 3.1/4"x7/8"x1/4" 4.11/32"
    Plain ØxAxB ØxAxB ØxAxB Ø

    Technical Specifications

    Finishing grade

    Removal rate

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers

    • Wire brushes manufactured in a block of high density and a perfect balance.
    • The CUCB brushes suit the main deburring machines in the market.

    Applications

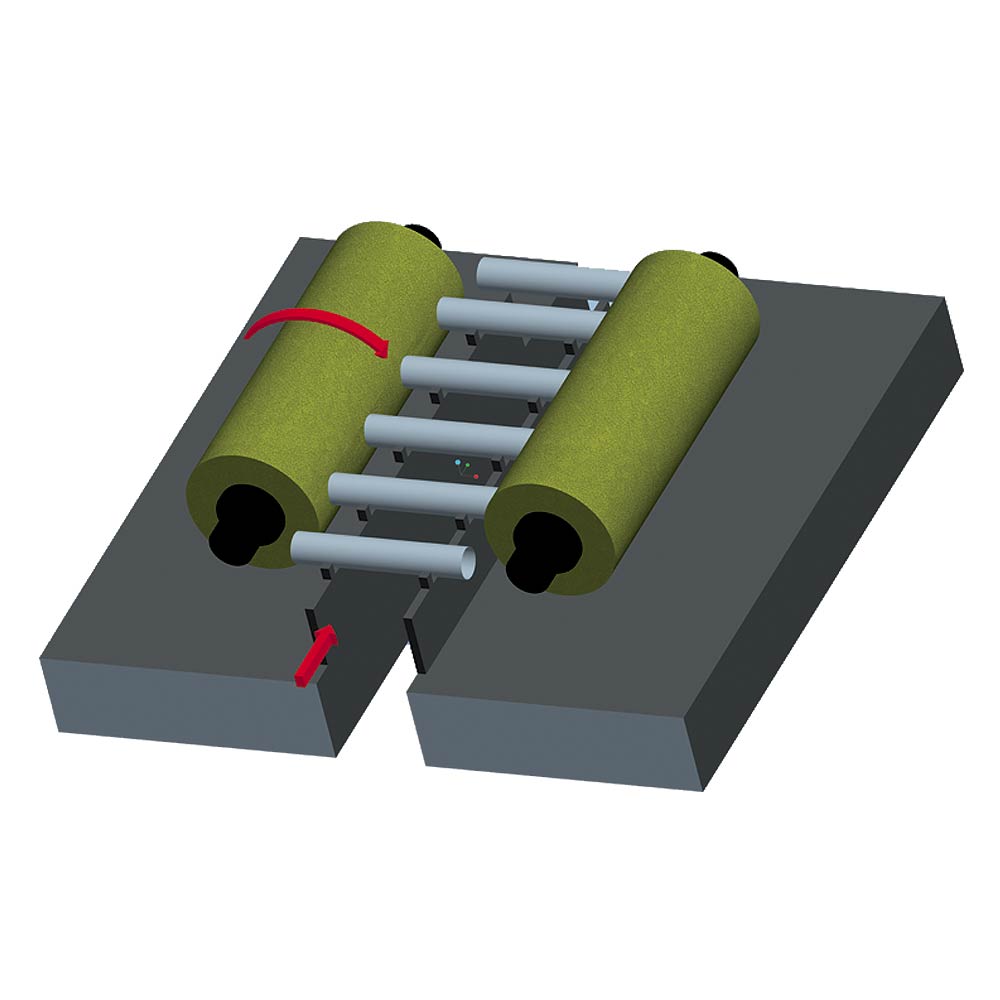

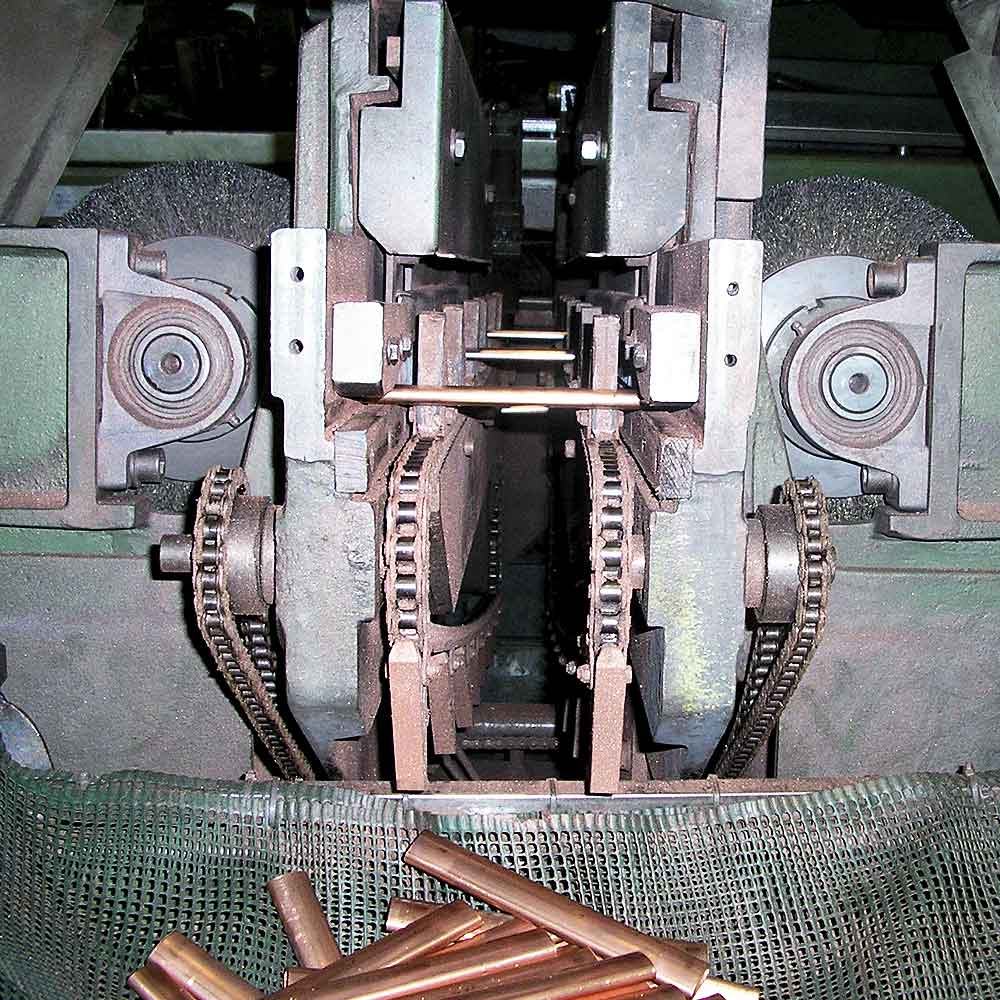

    • Mainly for automatic deburring machines ADIGE type-RSAPedrazzoli etc. Burmaster.

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order example

    93036@Z
