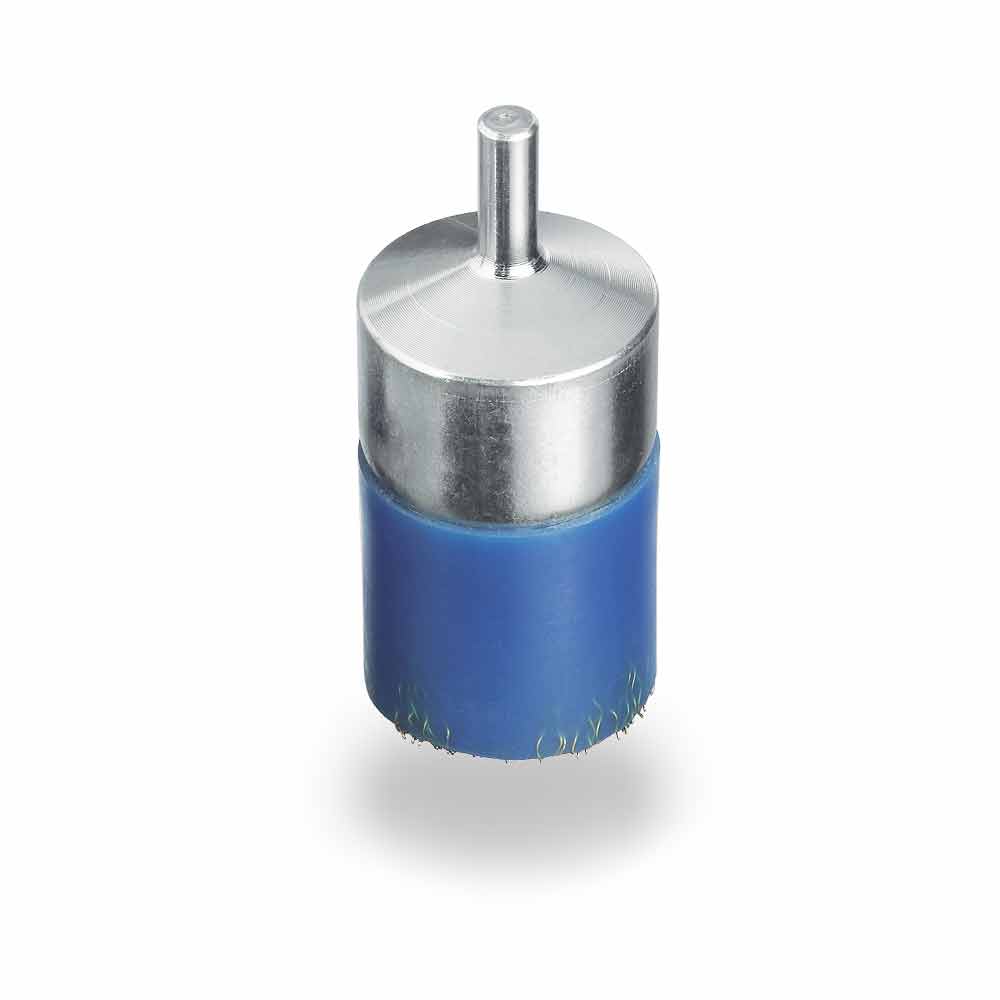

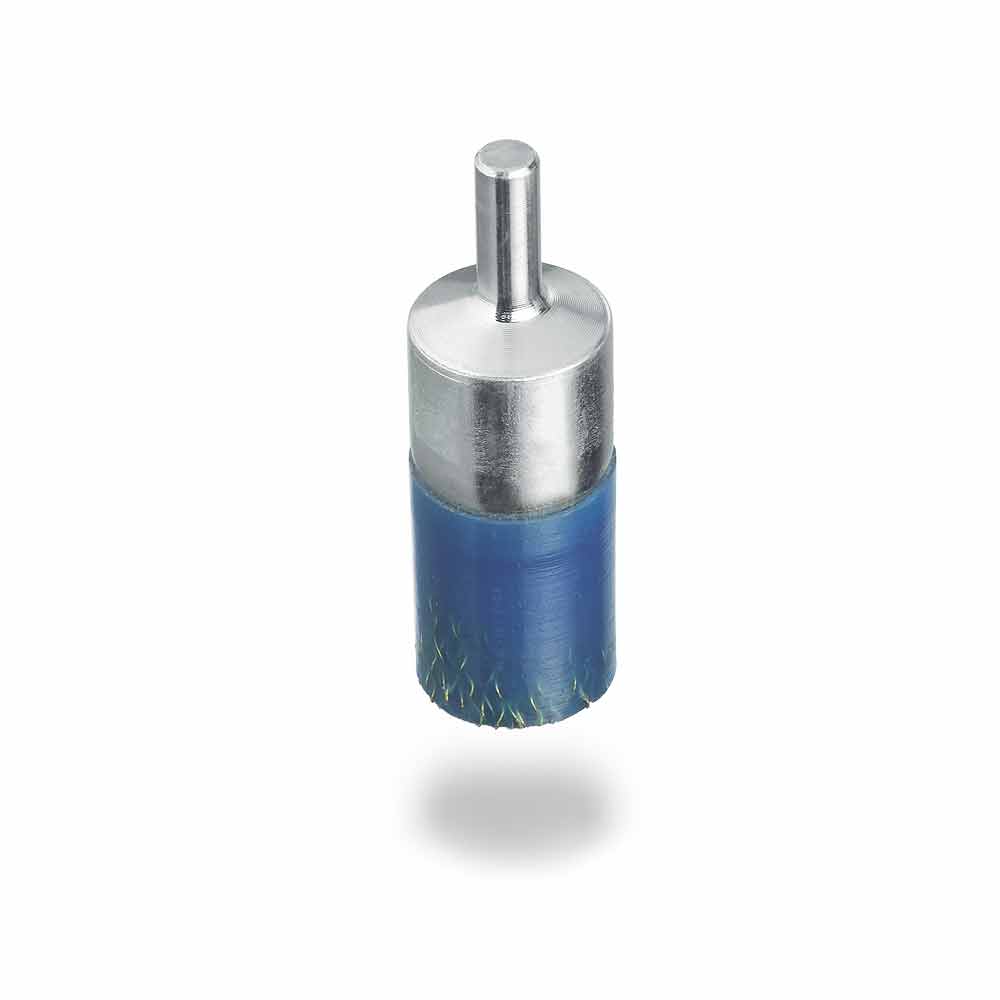

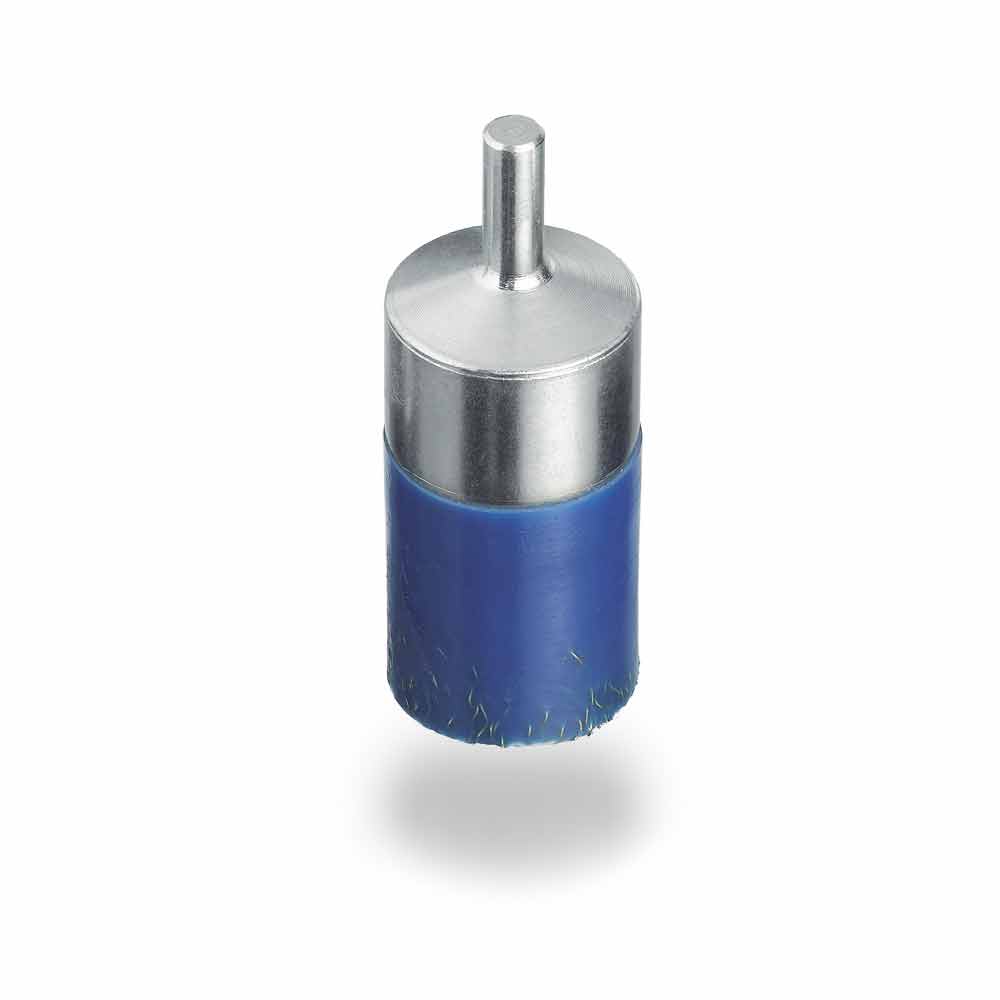

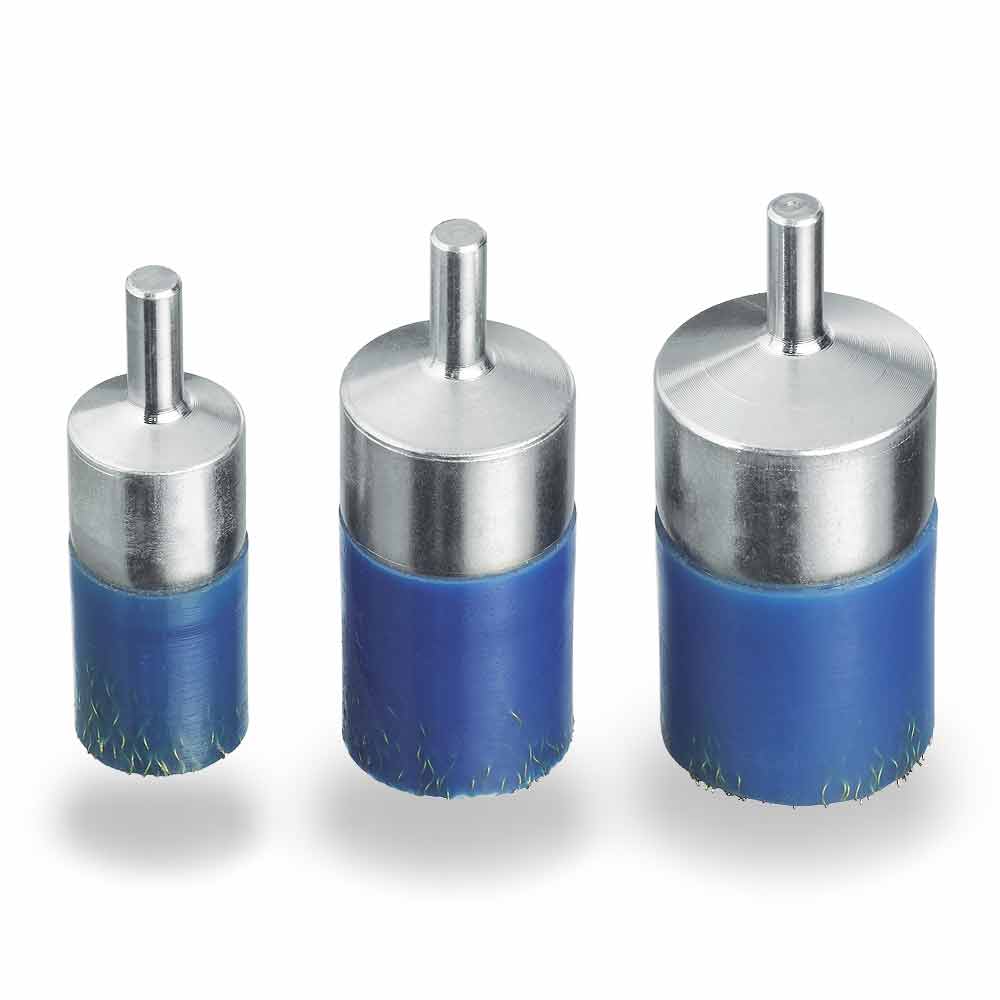

Encapsulated End Brushes

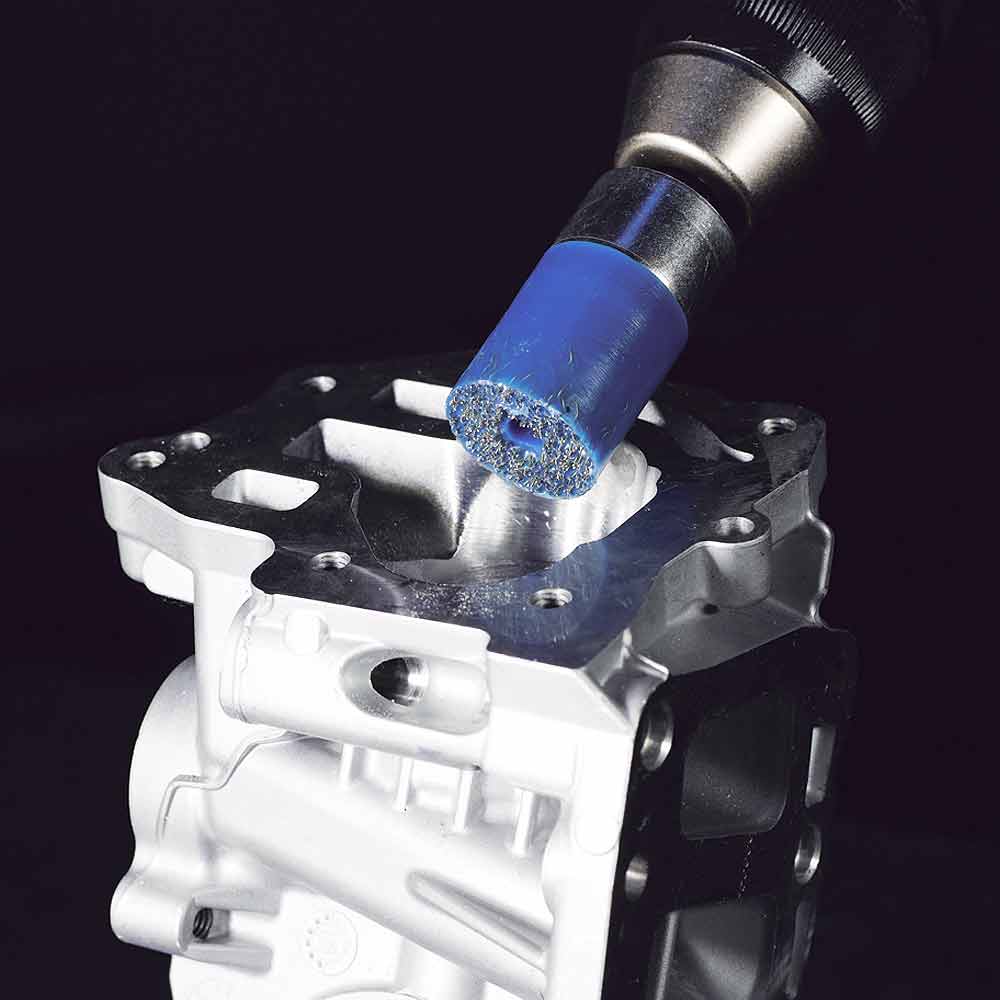

Ideal to remove welding scales and for pipeline Oil&Gas Industry. Suitable for working in marine environments.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Ø Diameter (d) Trim Lenght (s) Shank Steel R.P.M.
    .014” Max.
    3/4" 7/8" 1/4" 14270 25,000
    1" 7/8" 1/4" 14370
    1.3/16" 7/8" 1/4" 17470

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order example

    14270
