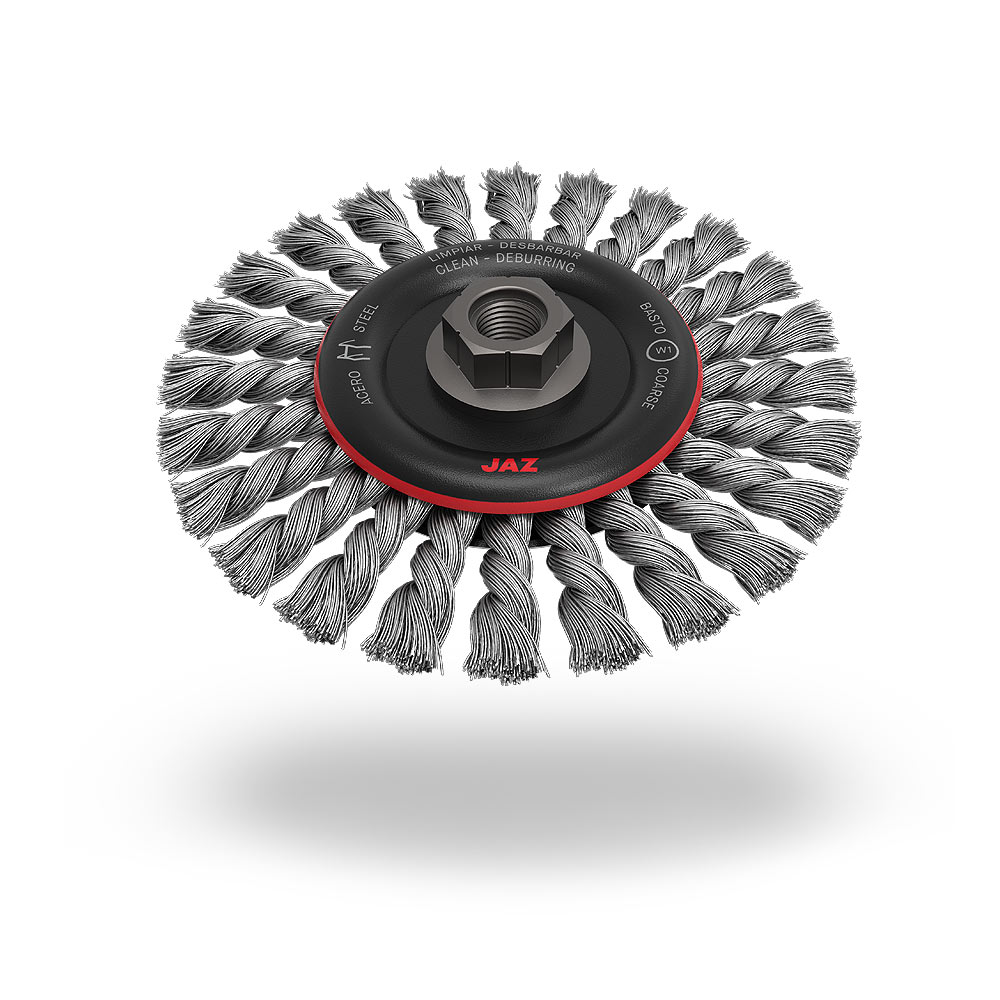

Standard twisted knot wheels

Standard Twist Knot Wheel Brushes offer long working life, high removal capacity and the possibility of working at high speed.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Diameter
    (d)
    No. of
    Knots
    Face Width
    (a)
    Trim Length
    (s)
    Arbor Hole
    (e)
    Steel Stainless Steel 316 Stainless R.P.M.
    Max.
    .012" .015" .016" .020" .015" .020" .020"
    3" 20 3/8" 5/8" 1/2" - 3/8" A.H. 39069 * 39059 * 39099 * 39089 * 20,000
    4" 20 1/2" 3/4" 1/2" - 3/8" A.H. 31069 * 31058 * 31099 * 31088 * 20,000
    4" 20 1/2" 3/4" 5/8"-11 & M14 31050 31080 20,000
    4" 20 1/2" 3/4" 5/8"-11 31062 * 31052 * 31092 * 31082 * 20,000
    4-1/2" 20 1/2" 1" 5/8"11 78062 * 78052 * 78092 * 78082 * 78316 * 20,000
    4-1/2" 20 1/2" 1" 5/8"-11 & M14 78050 78080 20,000
    5" 22 1/2" 1" 5/8"-11 32052 * 32082 * 12,500
    6" 24 1/2" 1-3/8" 5/8" - 1/2" A.H. 33066 33056 33096 33086 12,500
    6" 24 1/2" 1-3/8" 5/8"-11 33062 33052 * 33092 33082 33316 * 12,500
    7" 24 1/2" 1-3/4" 5/8"11 34052 8,500
    7" 24 1/2" 1-3/4" 5/8" A.H. 34057 8,500
    8" 40 1/2" 1-1/8" 5/8" - 1/2" A.H. 35056 4,500
    8" 40 1/2" 1-1/8" 5/8" A.H. 35057 35087 4,500
    8" 40 3/4" 1-1/8" 1-1/4" A.H. 35089 ** 4,500
    8" 42 1/2" 1-1/8" 5/8" A.H. 35157 4,500
    10" 52 1/2" 1-1/2" 1-1/4" A.H. 37169 ** 37159 ** 4,500
    10" 70 1/2" 1-1/2" 1-1/4" A.H. 37859 ** 4,500
    12" 56 1/2" 2-1/2" 2" A.H. 38159 *** 4,500
    14" 80 1/2" 2-1/2" 1-1/4" A.H. 30179 ** 30169 ** 4,500

    * Available in Bulk Packaging. Add "B" to the end of the Part No. when placing order.
    ** 5/16" x 5/32" Double Keyway.
    *** 1/2" x 1/4" Double Keyway.

    Two Section

    Diameter
    (d)
    No. of
    Knots
    Face Width
    (a)
    Trim Length
    (s)
    Arbor Hole
    (e)
    Steel R.P.M.
    Max.
    .016" .020"
    8" 80 1" 1-1/8" 2" A.H. 35269 4.500
    10" 104 1-1/4" 1-1/2" 2" A.H. 37259 4.500
    12" 112 1-1/4" 2-1/2" 2" A.H. 38269 4.500

    Four Section

    Diameter
    (d)
    No. of
    Knots
    Face Width
    (a)
    Trim Length
    (s)
    Arbor Hole
    (e)
    Steel R.P.M.
    Max.
    .020"
    10" 208 1-3/4" 1-1/2" 2" A.H. 37459 4.500
    JAZ ZUBIAURRE: Gráfica
    (2) PLAIN BORE
    Diameter (B)
    3/4"
    7/8"
    1"
    1.3/16"
    1.3/8"
    1.5/8"
    2"
    4"
    4.11/32"
    (3) INSIDE DIAMETER WITH KEYWAYS
    Diameter (B) Key way (A) Key way (C)
    1,25" 1/3" 1/6"
    2" 1/2" 9/32"
    2.3/32" 1/2" 1/4"
    2" 1/2" 1/4"
    3.1/8" 1/2" 9/32"
    3.1/4" 1/2" 1/4"

    Technical Specifications

    Finishing grade

    Removal rate

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers

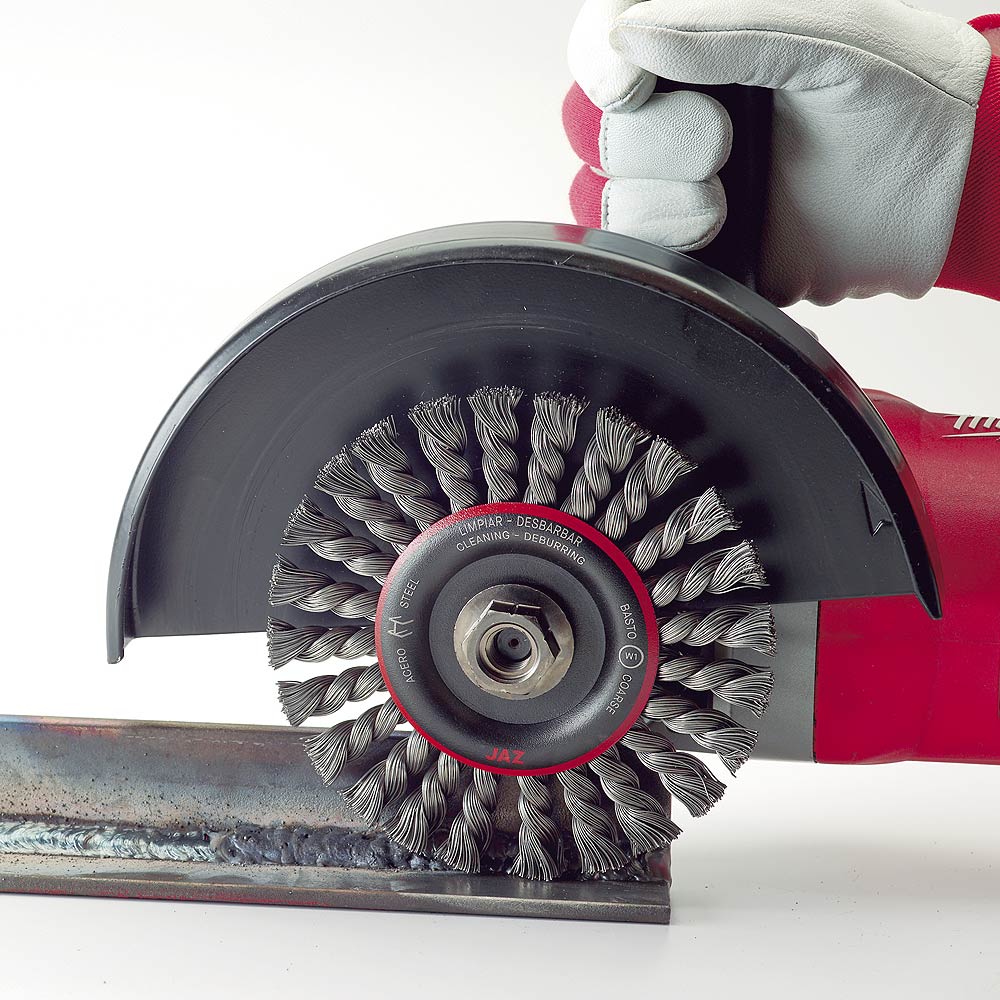

    • Action: Cleaning, Deburring
    • Tool: Bench-Grinder, Grinder
    • Surface: Non-sparking, Stainless, Steel

    • The twist knot wire allows:
      • Long working life.
      • High removal capacity.
      • Possibility of working at high speed.
    • Exclusive design and patented multifitting thread in two different versions; one is valid for M14 and 5/8-11 attachments (Code R88); the other is valid for M10 x 1,5 and M10 x 1,25 systems (Code R77).
    • The new design is also extended to single threads. It allows an easier attachment and increases resistance resulting in more safety for the user.

    Applications

    • Removal of welding and forge scale. Weld cleaning at the tube joints in
    • Tyre-rubber recovering and glass bottle recovering.

    Order Example

    JAZ ZUBIAURRE: Gráfica

    Order example

    35157

    Available in different types of rows and diameters.
