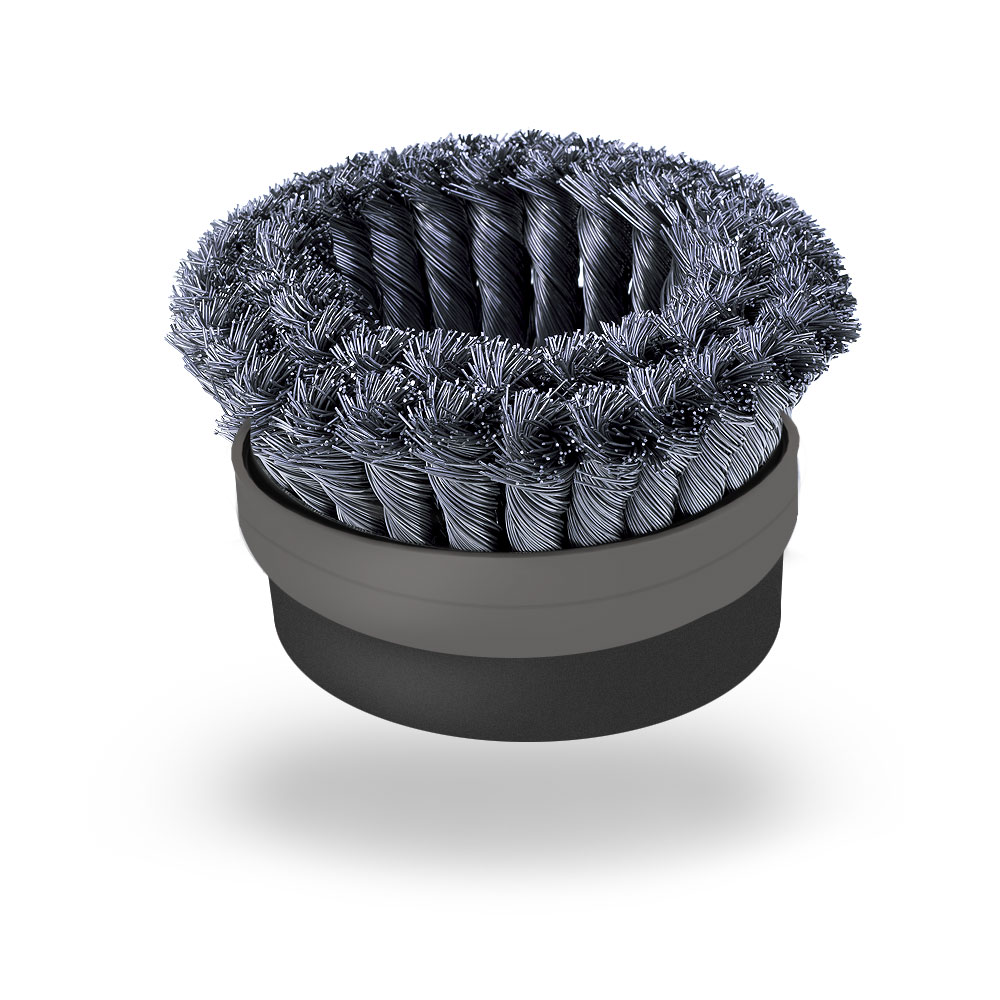

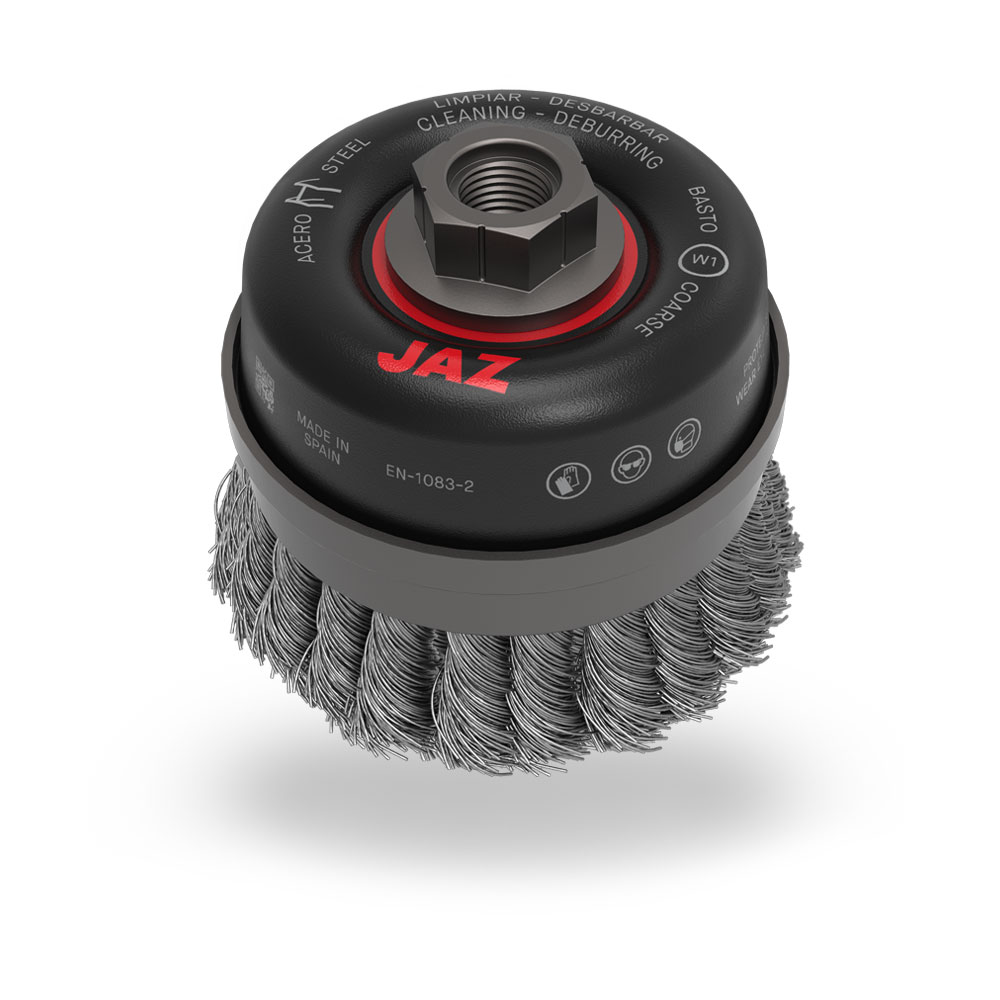

Twist Knot Cup Brushes with 2 rows offer longer life, higher removal capacity and the possibility to work at high speed.
Measures
| Diameter (d) | No. of Rows | Trim Length (s) | Arbor Hole (e) | Steel | Stainless Steel | R.P.M. Max. | |
|---|---|---|---|---|---|---|---|
| .014" | .020" | .020" | |||||
| 4" | 2 | 1-1/16" | 5/8"-11 | 54262 | 54252 | 54282 | 8,500 |
| 5" | 2 | 1-5/32" | 5/8"-11 | 55262 | 55252 | 55282 | 6,500 |
| 6" | 2 | 1-3/8" | 5/8"-11 | 56262 | 56252 | 56282 | 6,000 |
Technical Specifications
Finishing grade
Removal rate
Flexibility
| DLZ, FLAP, Encapsulated brushes | |
| Twist knots, Control brushes | |
| Crimped wire .020 to .012 | |
| Crimped wire .010 to .004 | |
| Crimpe wire .003 to .002 Nylon & synthetic fibers | |
The twisted wire gives these models:
Designed for use in portable machines.
Suitable for brushing over large areas with a higher removal capacity.
Exclusively designed threaded M14 x 2 and W5 / 8 "-11 (Code R-88) or M10 x 1.25 and M10 x 1.50 (Code R-77). Also valid to single thread. It allows an easier attachment and increases resistance.
