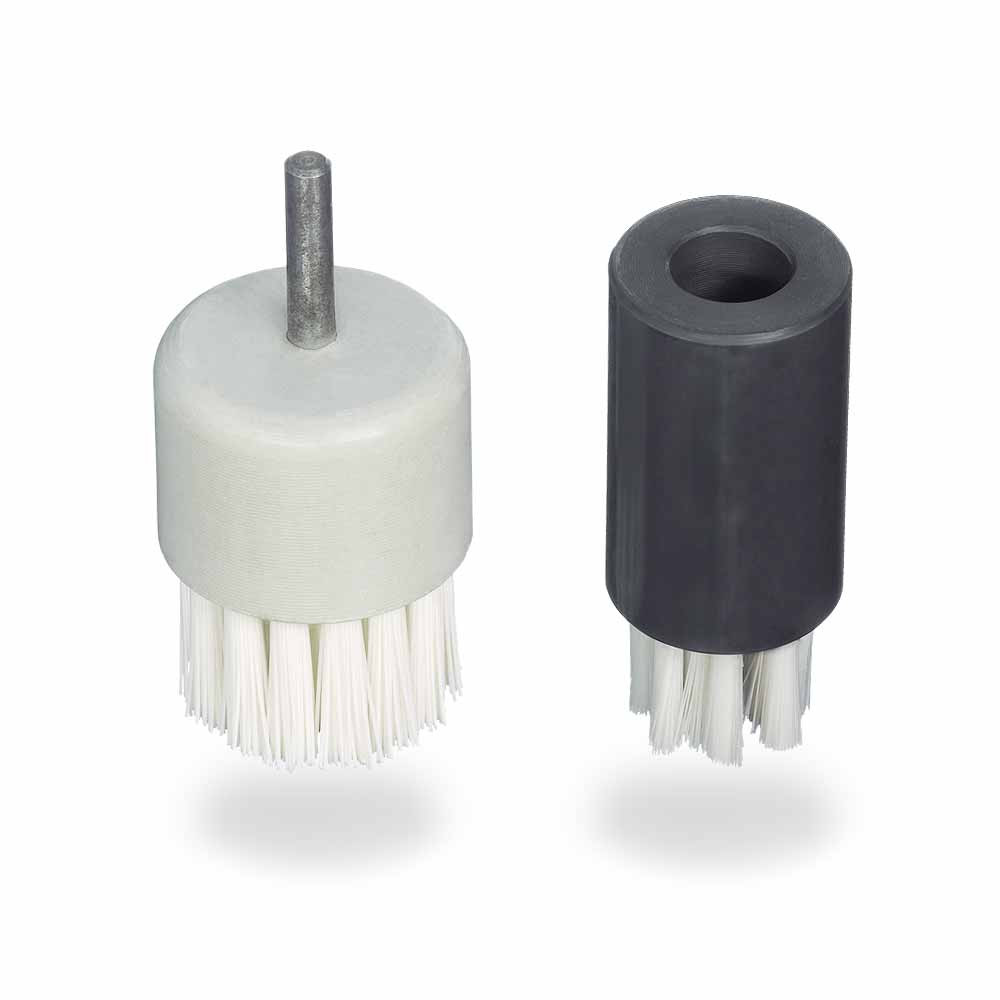

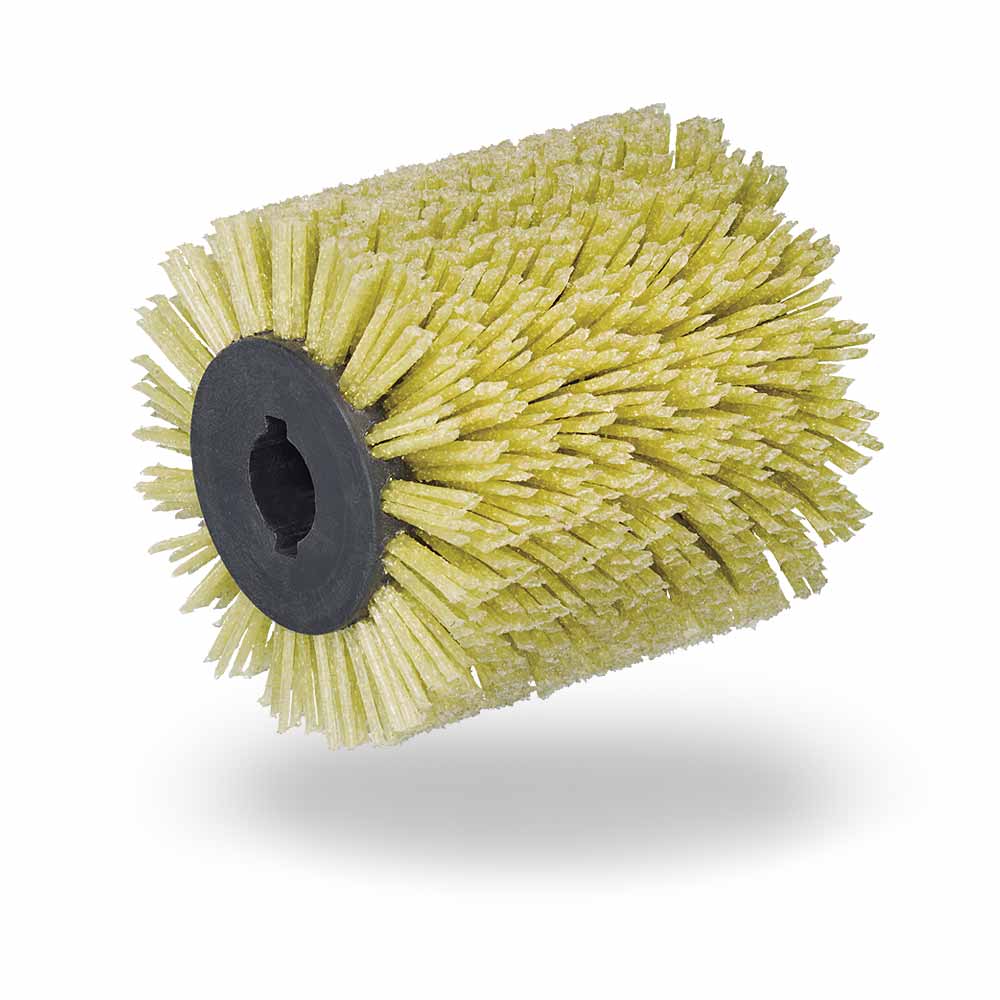

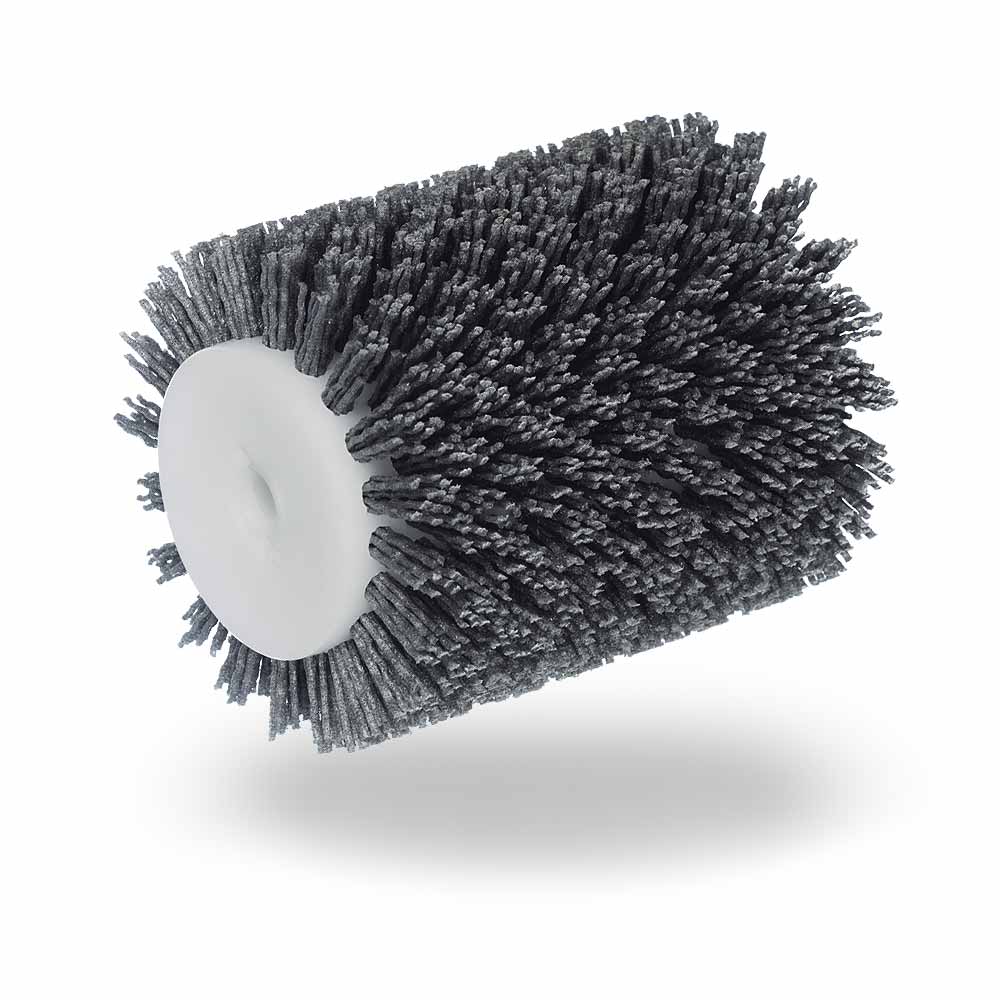

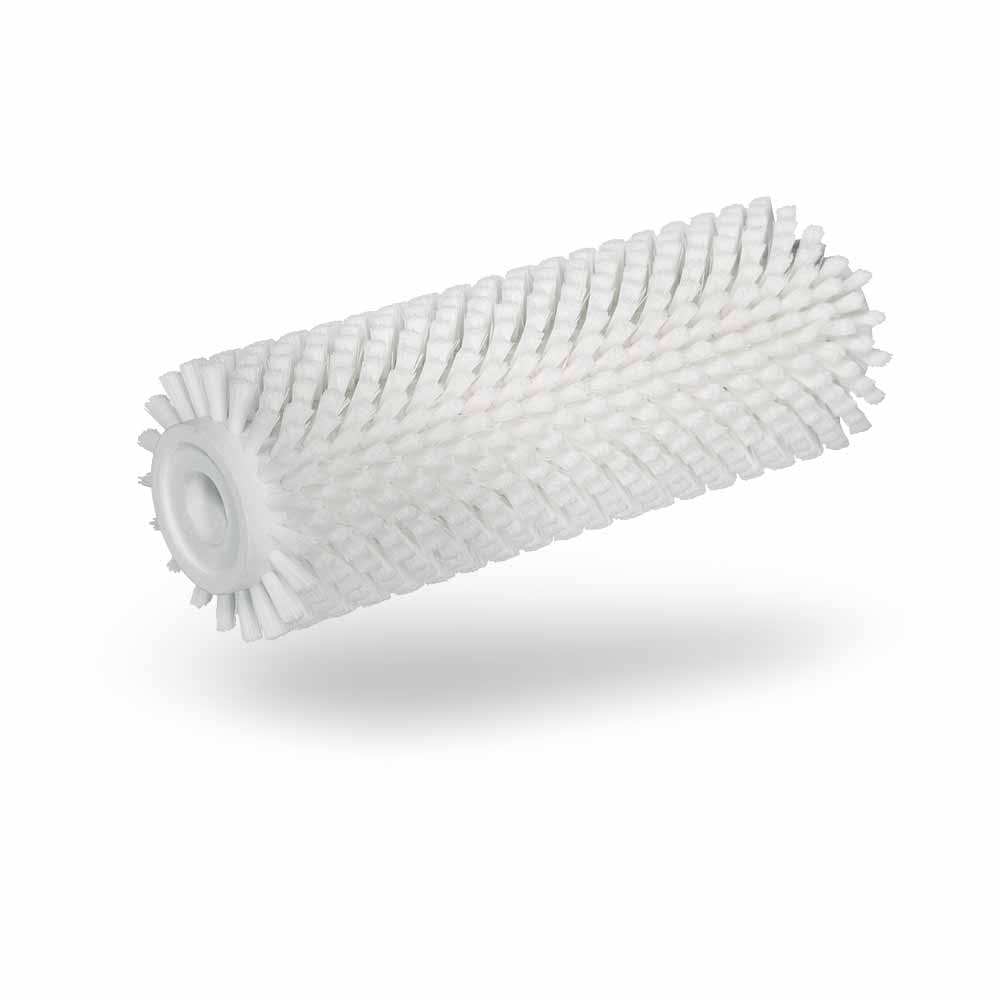

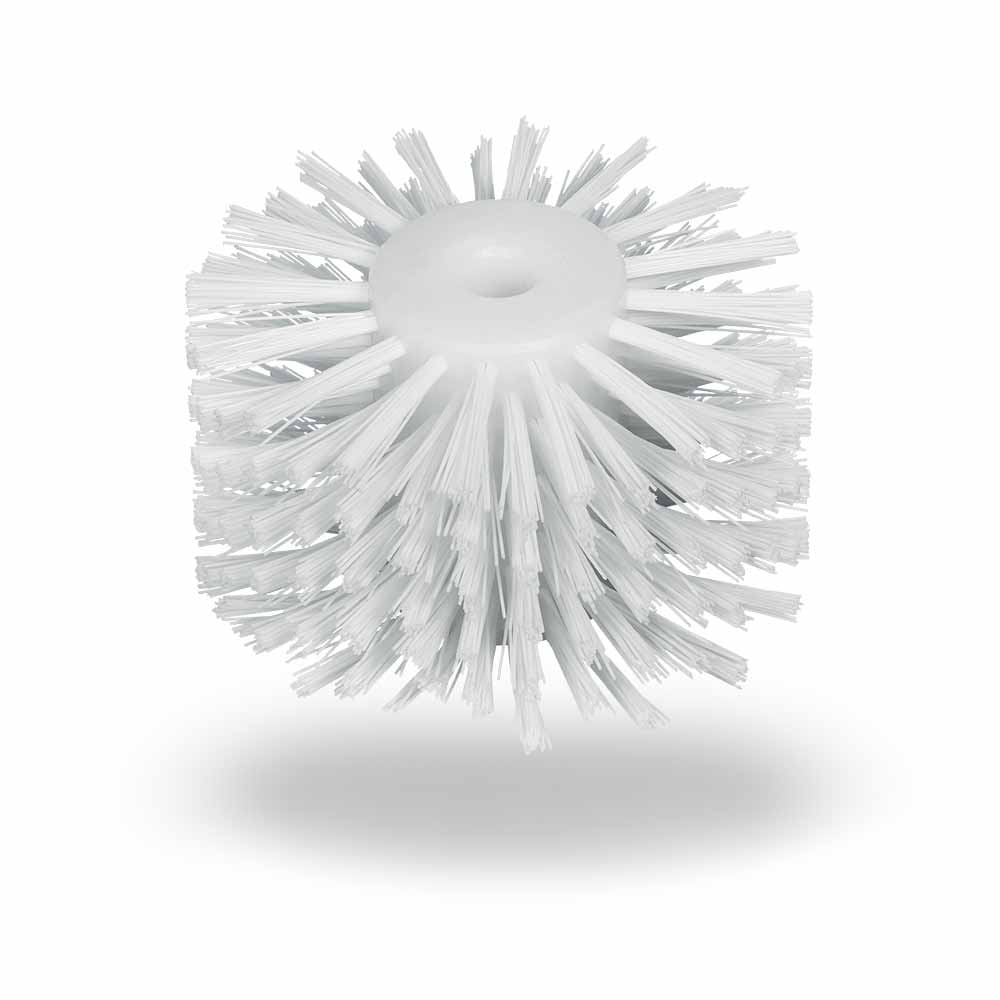

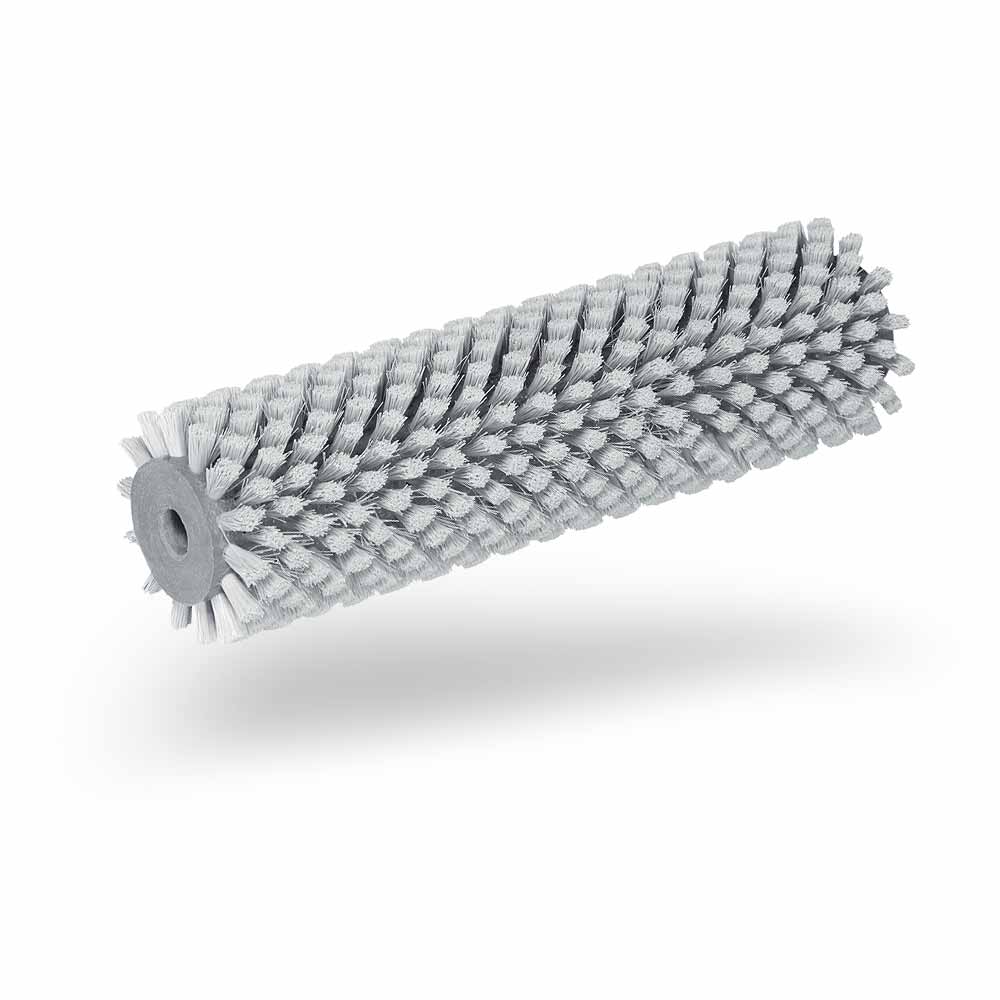

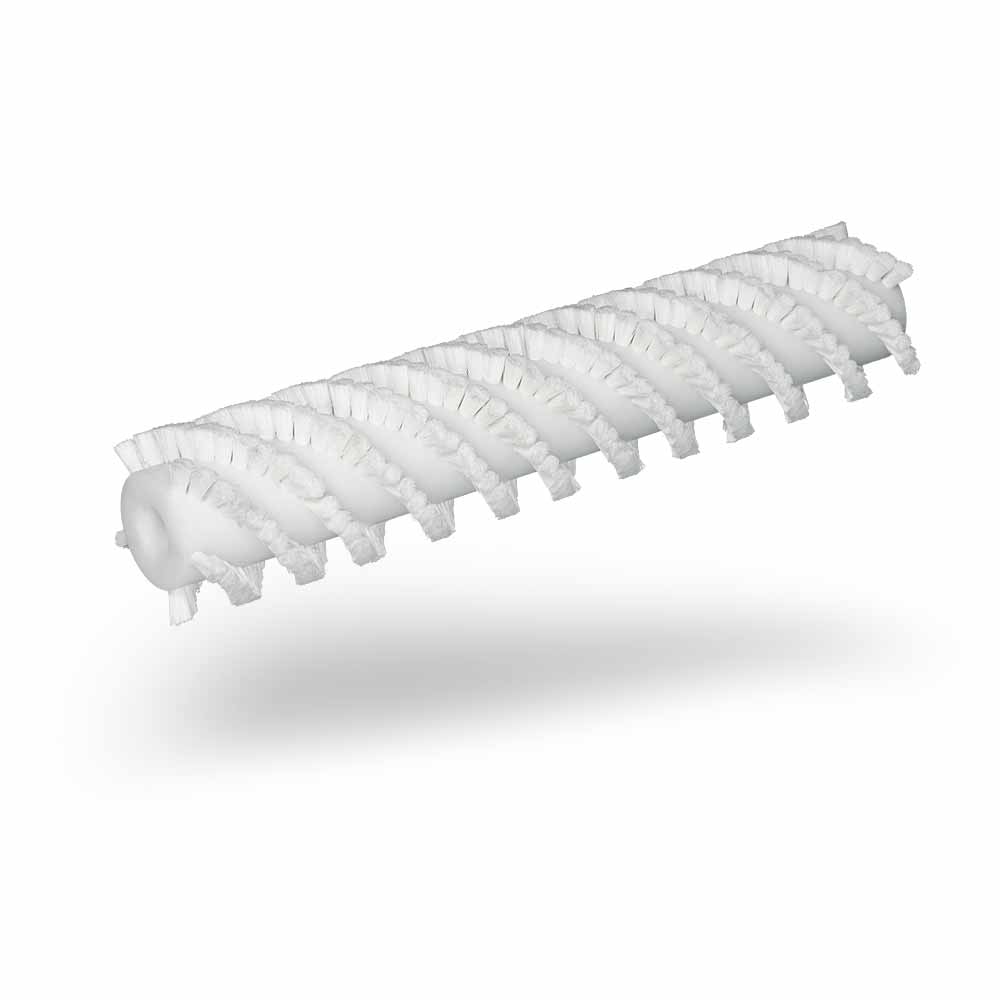

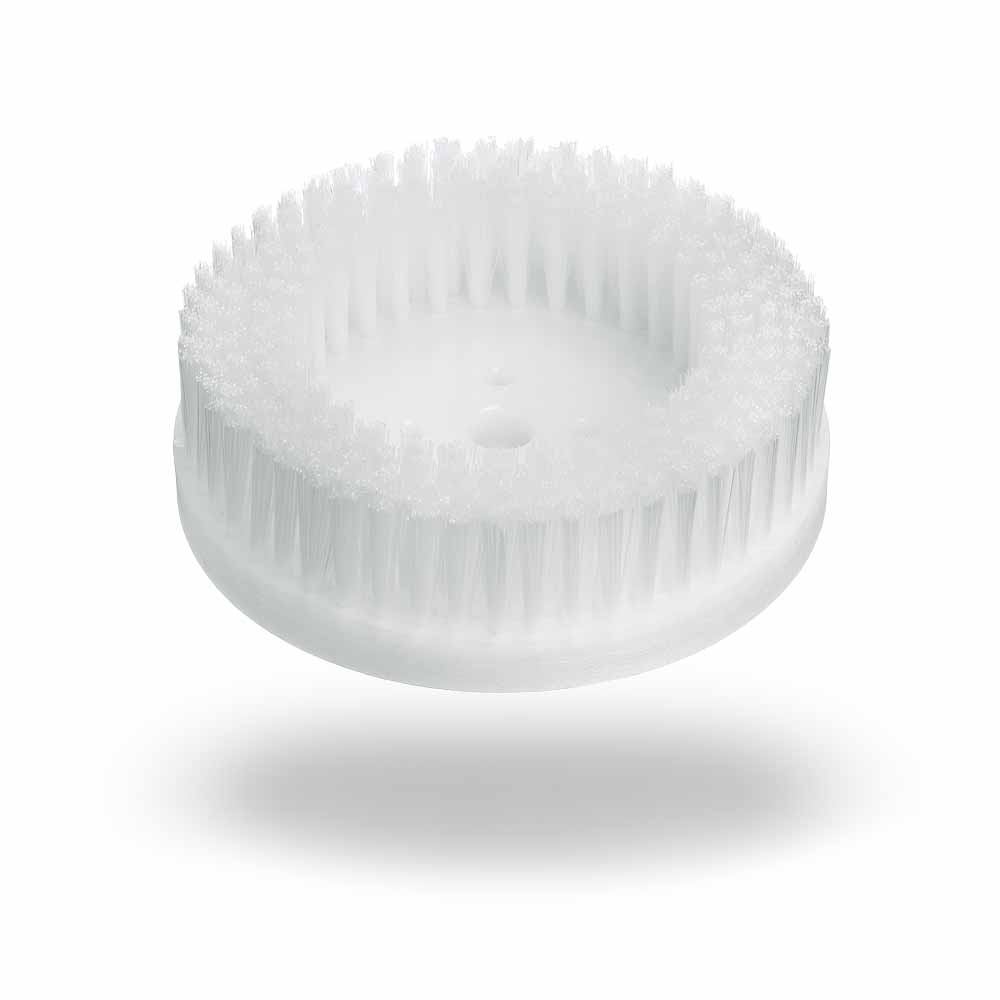

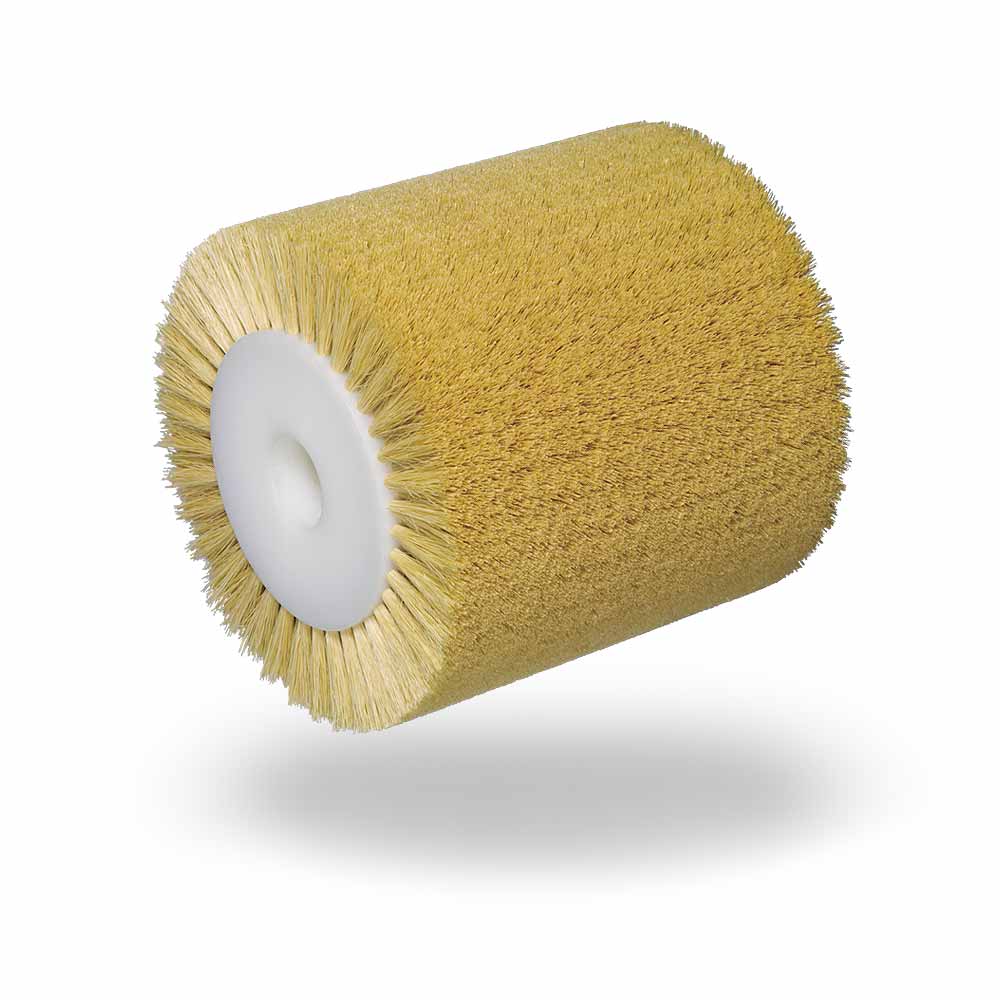

Insertion Technical Brushes

JAZ-ZUBIAURRE technical brushes like the other products are designed for optimum performance.

Our technical department can advise the customer in everything he needs.

We can work on drawings or by supplying us any sample of the requested brush.

Do not hesitate to contact us.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

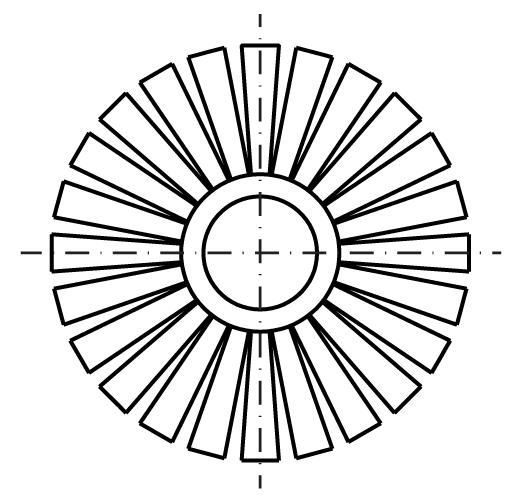

    Circulares

    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica

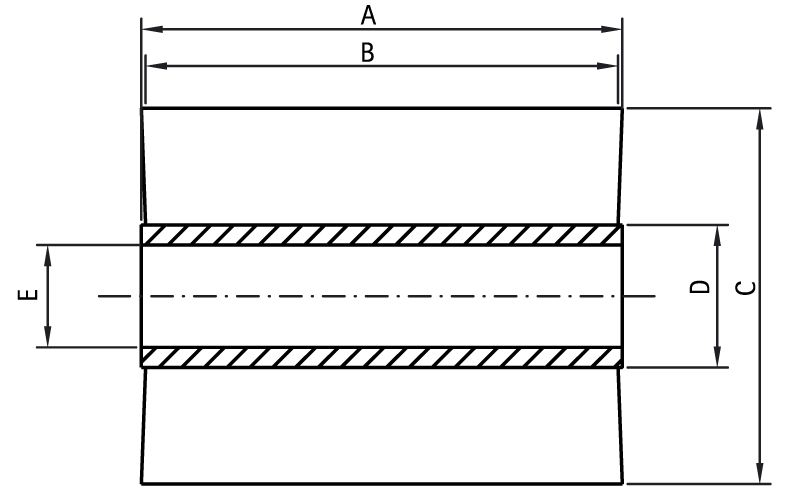

    A: Core width
    B: Useful width
    C: Outside diameter
    D: Core diameter
    E: Tube Inside Diameter

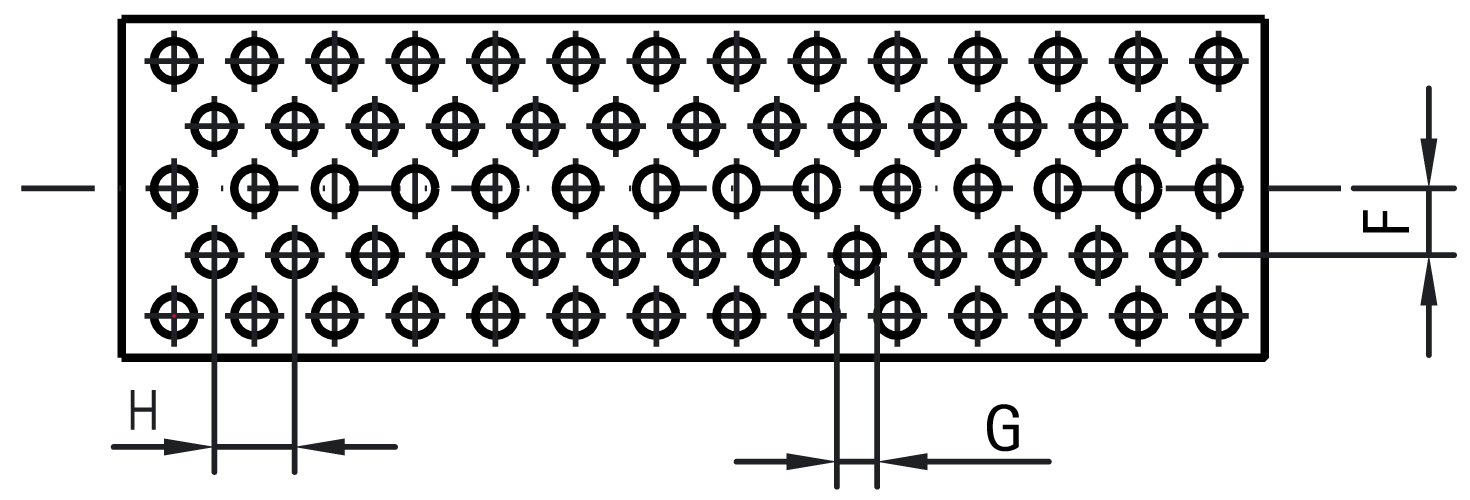

    F: Horizontal distance to Holes
    G: Hole diameter
    H: Vertical distance to Holes

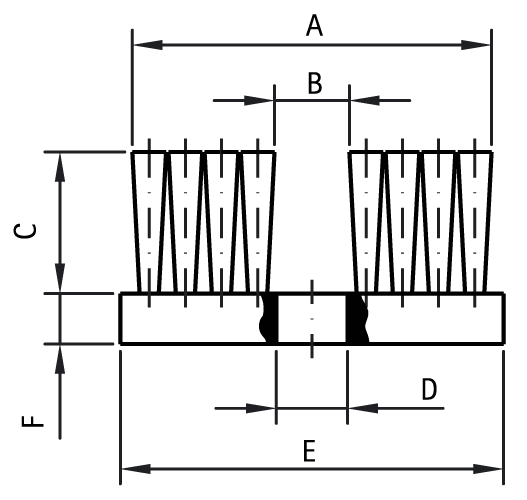

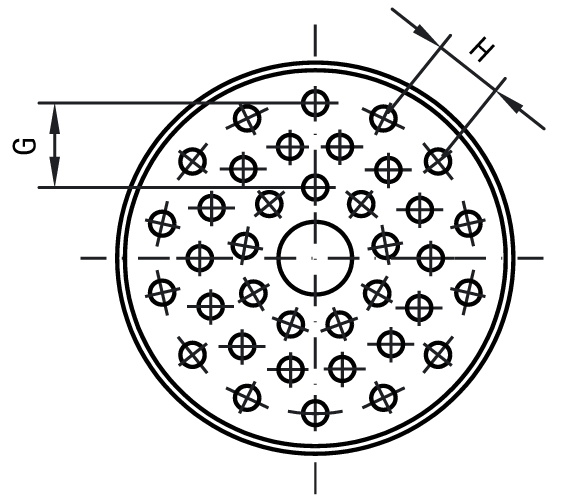

    Disco

    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica

    A: Useful outside diameter
    B: Useful inside diameter
    C: Trim length
    D: Central Core Hole diameter
    E: Outside Core diameter
    F: Core Width
    G: Distance between Rows
    H: Distance between holes

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5
    Abrasive Nylon Finishing Grade
    Grit 20|40|60 Coarse NA1
    Grit 80|100|120 Medium NA2
    Grit 180|200|300 Fine NA3
    Grit 400|800|2000 S. Fine NA4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06
    Nylon & Flap brushes
    Grit 20|40|60
    Grit 80|100|120
    Grit 180|200|300
    Grit 400|800|2000
    Non-abrasive Nylon

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring, Finishing, Grinding, Surface preparation, Sweeping
    • Tool: Industrial machines
    • Surface: Non-sparking, Stainless, Steel, Wood

    Applications

    • Machine Tool.
    • Foundry.
    • Conveyors.
    • Automotive.
    • Construction.
    • Food industry.
    • Steel industry.
    • Cleaning Tasks.
    • Soundproofing.
    • Derivation of voltages.

    Additional information

    Materials

    • Steel.
    • Brass coated steel.
    • Stainless Steel.
    • Brass.
    • Polypropylene.
    • Polyamide.
    • Fiber.
