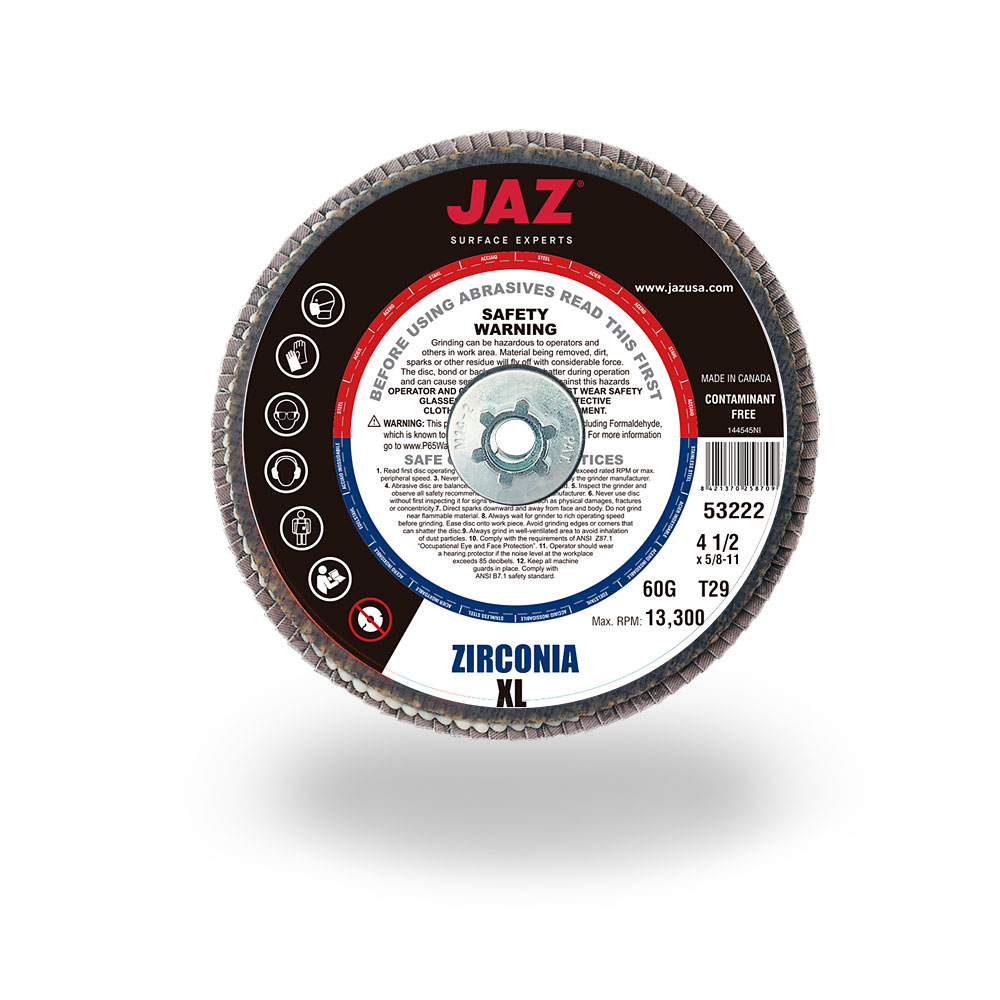

Flap Disc

Flap Discs with Threaded Nut result in an easier attachment to the machine and increase safety and convenience at work.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Abrasive clothing Type Diameter Arbor Hole Grits R.P.M. Max.
    36 40 60 80 120
    Zirconia 29 4-1/2" 7/8" 53201 53211 53221 53231 53241 13,000
    4-1/2" 5/8"-11 53202 53212 53222 53232 53242 13,000
    7" 7/8" 53501 53511 53521 53531 53541 8,600
    7" 5/8"-11 53502 53512 53522 53532 53542 8,600
    27 4-1/2" 7/8" 51201 51211 51221 51231 51241 13,000
    4-1/2" 5/8"-11 51202 51212 51222 51232 51242 13,000
    7" 7/8" 51501 51511 51521 51531 51541 8,600
    7" 5/8"-11 51502 51512 51522 51532 51542 8,600
    Zirconia
    (High Density)
    29 4-1/2" 7/8" 54201 54211 54221 54231 54241 13,000
    4-1/2" 5/8"-11 54202 54212 54222 54232 54242 13,000
    7" 7/8" 54501 54511 54521 54531 54541 8,600
    7" 5/8"-11 54502 54512 54522 54532 54542 8,600
    27 4-1/2" 7/8" 52201 52211 52221 52231 52241 13,000
    4-1/2" 5/8"-11 52202 52212 52222 52232 52242 13,000
    7" 7/8" 52501 52511 52521 52531 52541 8,600
    7" 5/8"-11 52502 52512 52522 52532 52542 8,600
    XTREME Zirconia with TRIM BACK 29 4-1/2" 7/8" 57711 57721 57731 13,000
    4-1/2" 5/8"-11 57712 57722 57732 13,000
    27 4-1/2" 7/8" 55711 55721 55731 13,000
    4-1/2" 5/8"-11 55712 55722 55732 13,000
    Ceramic with TRIM BACK 29 4-1/2" 7/8" 13,000
    4-1/2" 5/8"-11 57812 57822 57832 13,000
    7" 7/8" 8,600
    7" 5/8"-11 8,600
    27 4-1/2" 7/8" 13,000
    4-1/2" 5/8"-11 55812 55822 55832 13,000
    7" 7/8" 8,600
    7" 5/8"-11 8,600

    Technical Specifications

    Finishing grade

    Lijas y Abanicos Finishing Grade
    Grit 20|40|60 Coarse SP1
    Grit 80|100|120 Medium SP2
    Grit 180|200|300 Fine SP3
    Grit 400|800|2000 S. Fine SP4
    Polishing pastes PO

    Removal rate

    Nylon & Flap brushes
    Grit 20|40|60
    Grit 80|100|120
    Grit 180|200|300
    Grit 400|800|2000
    Non-abrasive Nylon

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers

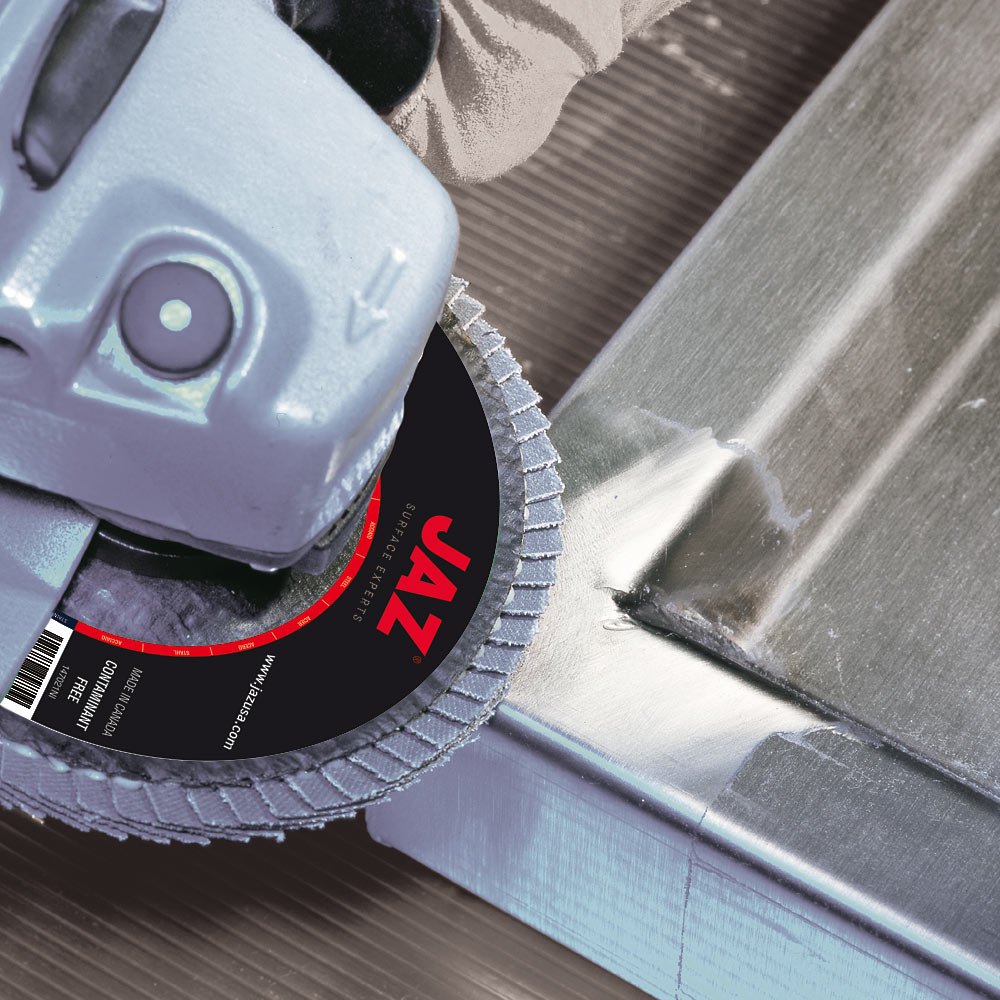

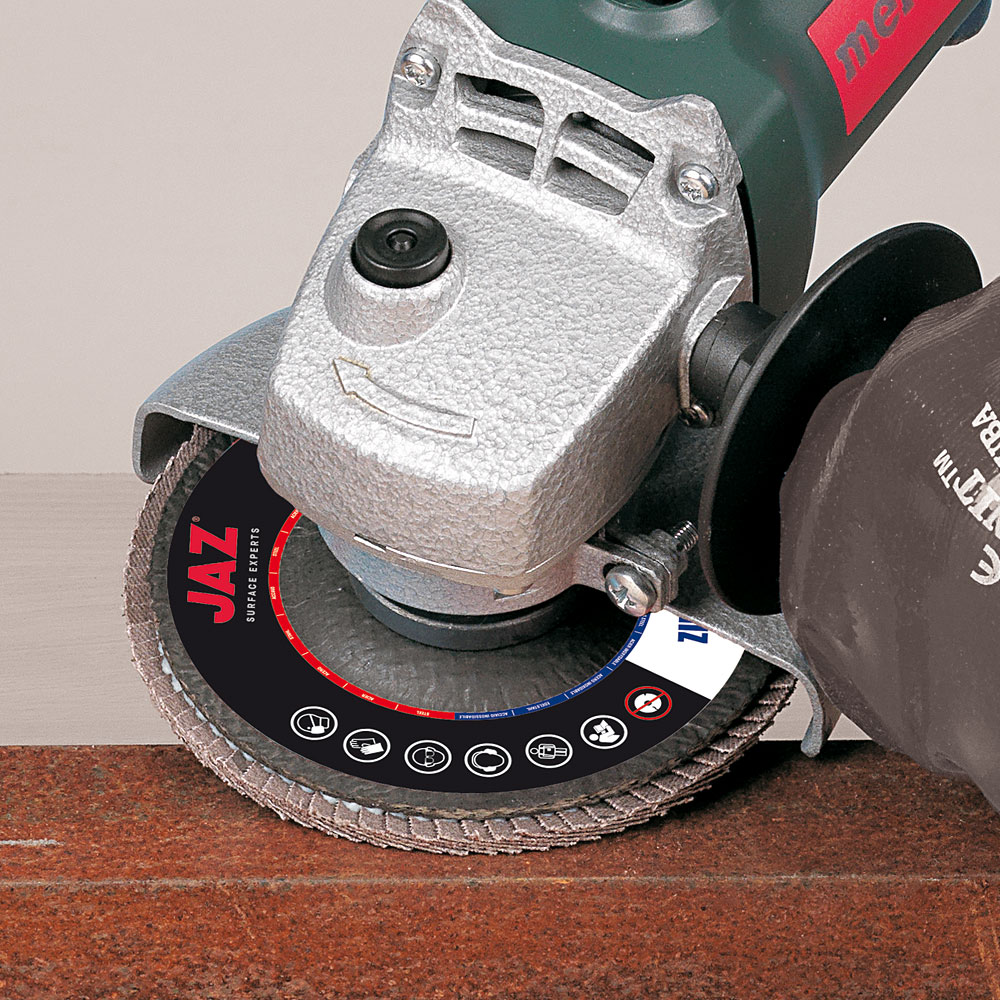

    • Action: Grinding
    • Tool: Grinder
    • Surface: Stainless, Steel

    • Grinding and polishing in one operation.
    • The fiber glass backing allows the disc to fit into corners, without deteriorating the piece of work.
    • The threaded nut results in an easier attachment to the machine, and increased safety and convenience at work.

    Applications

    • Grinding and sanding on metal: zirconium for hard metals (i.e. stainless steel), aluminium oxide or zirconium for other metals (carbon steel, aluminium...).
    • Cleaning and removal of welding scale, corners and edges.
      Users: shipbuilding, boiler manufacturers, sheet metal shops, automotive, foundries, welding, aluminium fabricators.

    Order Example

    Order example:

    53201
