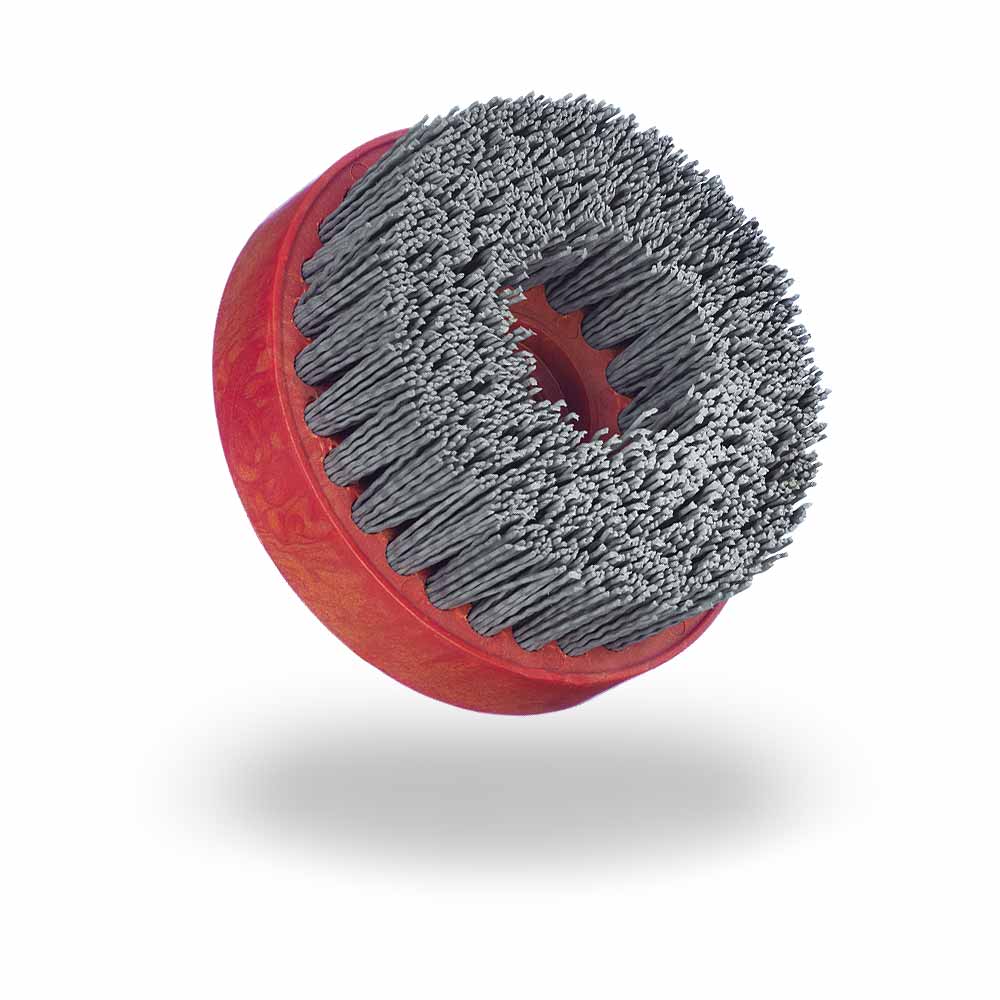

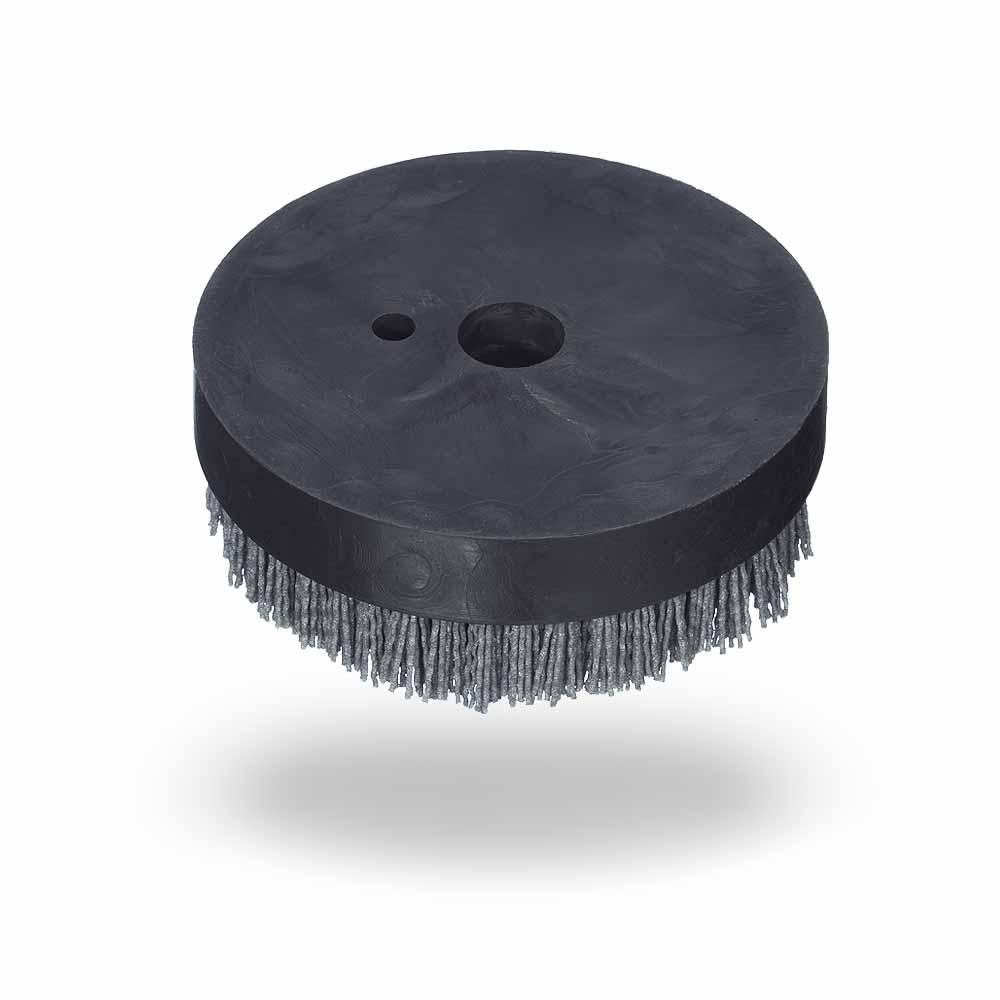

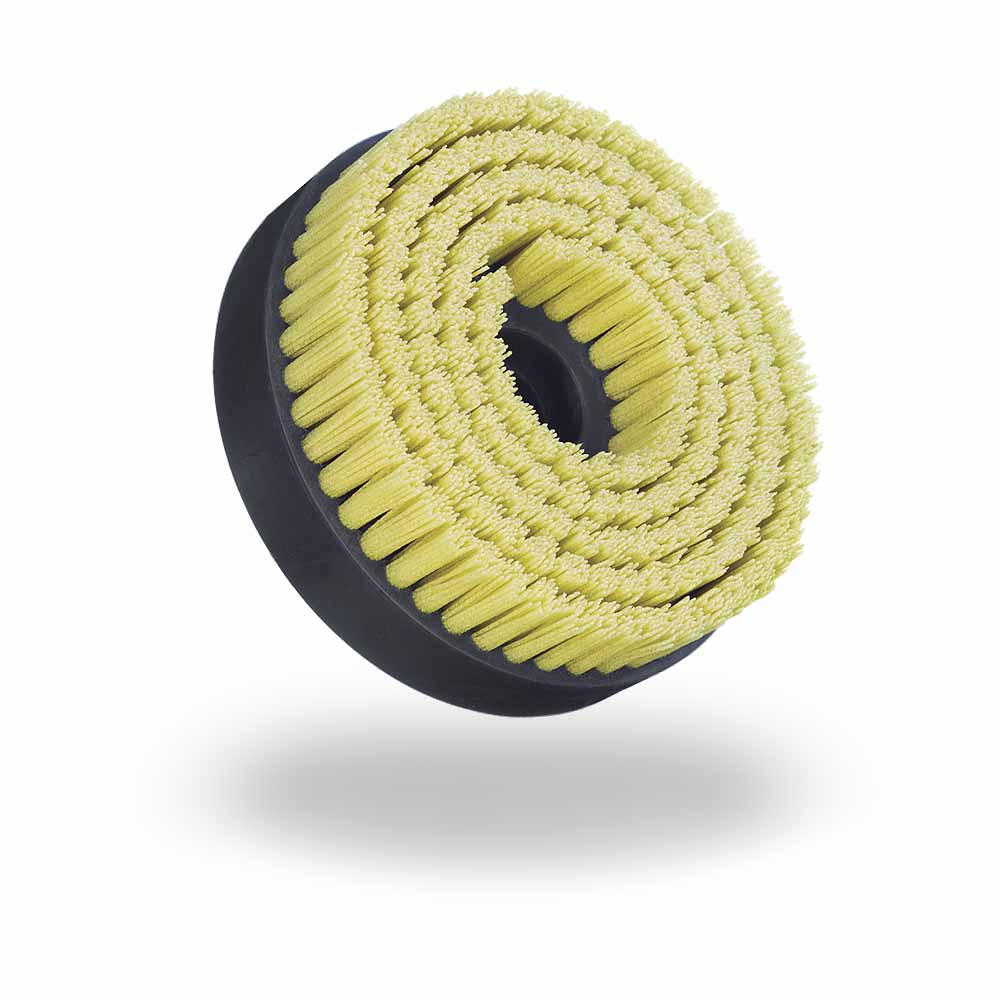

TUFT

Se utiliza para infinidad de desbarbados, son cepillos con menor densidad. Los filamentos tienen más movilidad al existir espacio entre ellos por lo que es más flexible y se adapta a geometrías complejas.

JAZ “CCM” brushes are mainly composed of nylon filaments impregnated with: Silicon carbide, aluminum oxide, diamond, ceramic coating, etc.

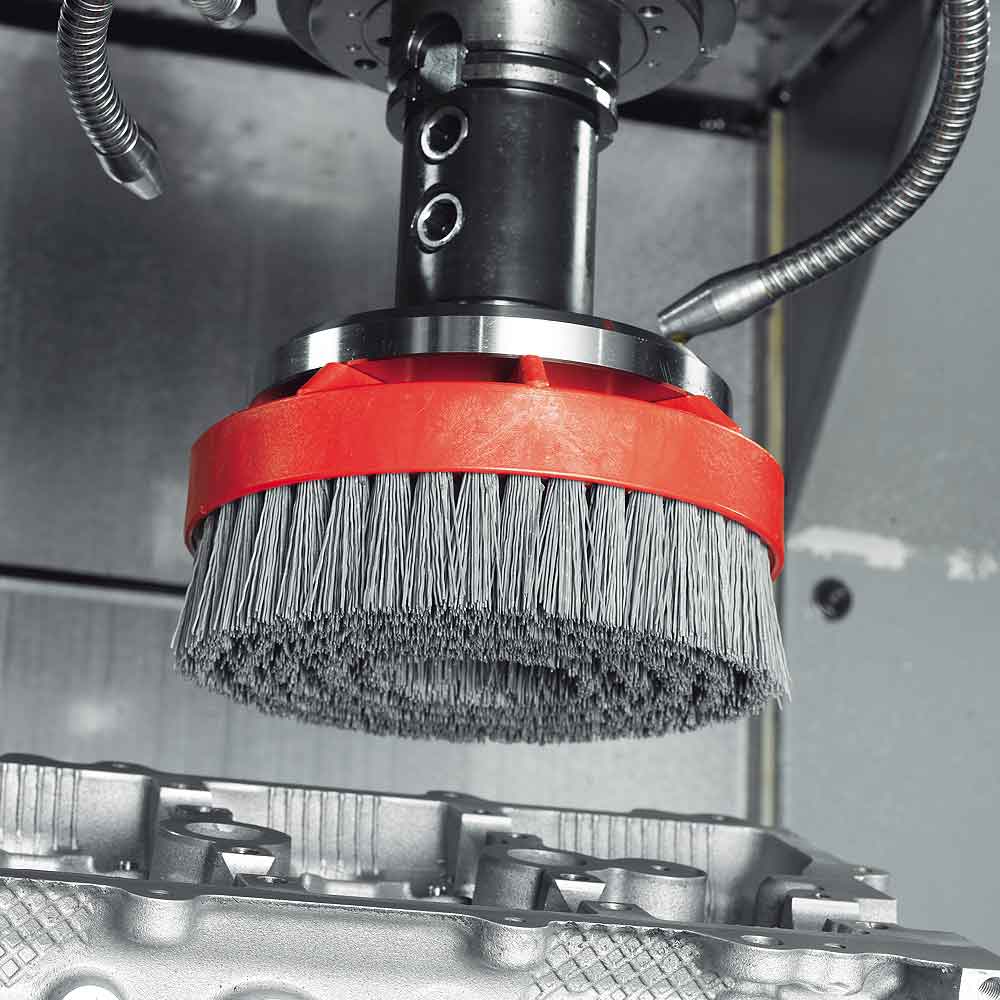

The “CCM” line is designed to be mounted as a tool for use in machining centers, robots, flexible cells, etc.

The “CCM” brushes provide a variety of solutions such as deburring, blending and finishing, rounding of edges, contouring of edges and refinement of surfaces.

Our abrasive filament brushes can be run dry (without a coolant), however applying a “coolant” to the abrasive filaments will improve the finish and performance of the tool.

Industries such as Automotive, Aeronautics, Sintered Metals, etc., where surface finishing is important, can find a solution to many surface finishing problems with JAZ “CCM” brushes.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Outside Ø Arbor Hole Ø Trim Length Silicium Carbide Diamond
    Grit Grit
    mm " mm " mm " 80 120 320 80 120 320
    115 .4.1/2” 14 9/16” 25 1" CCM11580CSTF CCM11512CSTF CCM11532CSTF CCM11580DTF CCM11512DTF CCM11532DTF
    150 6” 20 3/4” 30 1.3/16” CCM15080CSTF CCM15012CSTF CCM15032CSTF CCM15080DTF CCM15012DTF CCM15032DTF



    Outside Ø Arbor Hole Ø Trim Length Ceramic Aluminium Ox.
    Grit Grit
    mm " mm " mm " 80 120 320 80 120 320
    115 .4.1/2” 14 9/16” 25 1" CCM11580CRTF CCM11512CRTF CCM11532CRTF CCM11580OATF CCM11512OATF CCM11532OATF
    150 6” 20 3/4” 30 1.3/16” CCM15080CRTF CCM15012CRTF CCM15032CRTF CCM15080OATF CCM15012OATF CCM15032OATF

    Technical Specifications

    Finishing grade

    Abrasive Nylon Finishing Grade
    Grit 20|40|60 Coarse NA1
    Grit 80|100|120 Medium NA2
    Grit 180|200|300 Fine NA3
    Grit 400|800|2000 S. Fine NA4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Nylon & Flap brushes
    Grit 20|40|60
    Grit 80|100|120
    Grit 180|200|300
    Grit 400|800|2000
    Non-abrasive Nylon

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Finishing
    • Tool: Industrial machines
    • Surface: Stainless, Steel

    • The TUFT model is used for a wide range of deburring degrees. Brushes with less density than other model types. There is more space between the abrasive filaments providing more flexibility when brushing.
    • This characteristic provides more flexibility to adapt to complex surface geometries.
    • Highly recommended for planetary machine, ideal for deburring flat parts.

    Sectores_ingl

    • Industry: Engineering, Aeronautics, Automotive, Sintered Metals.
