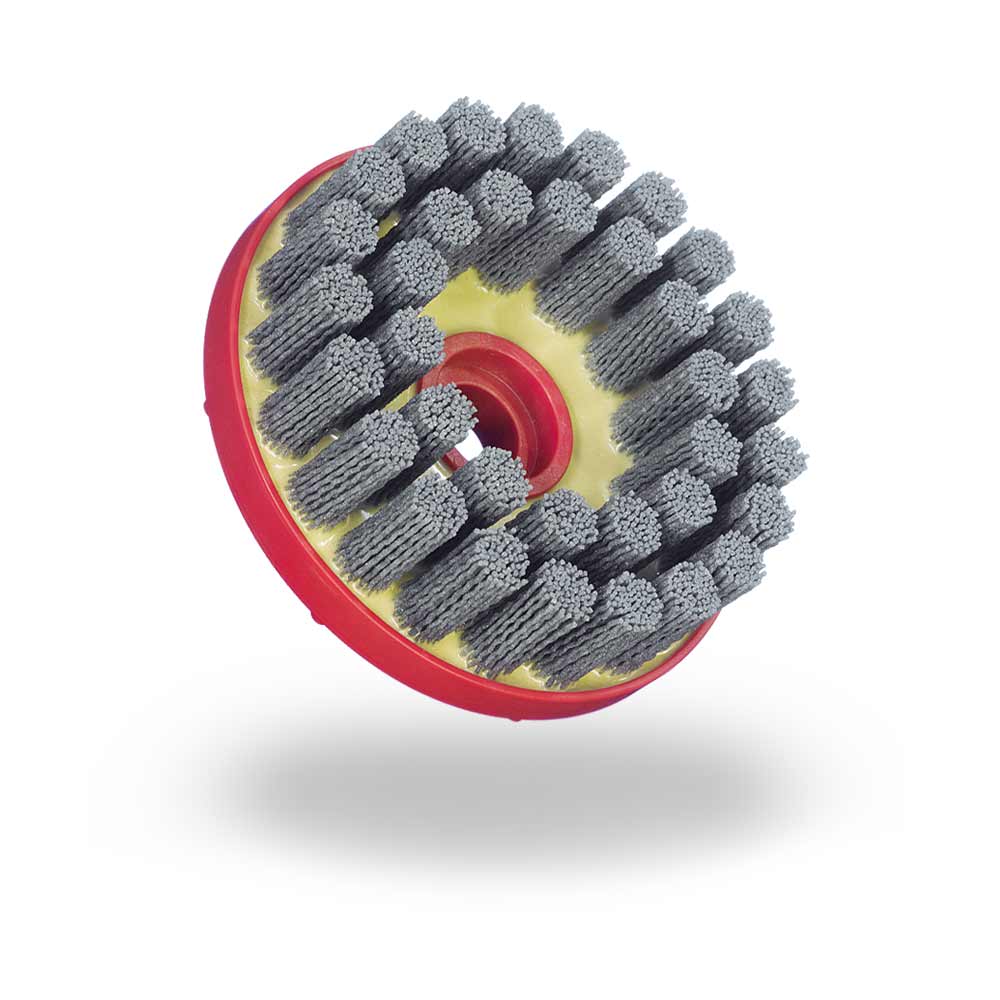

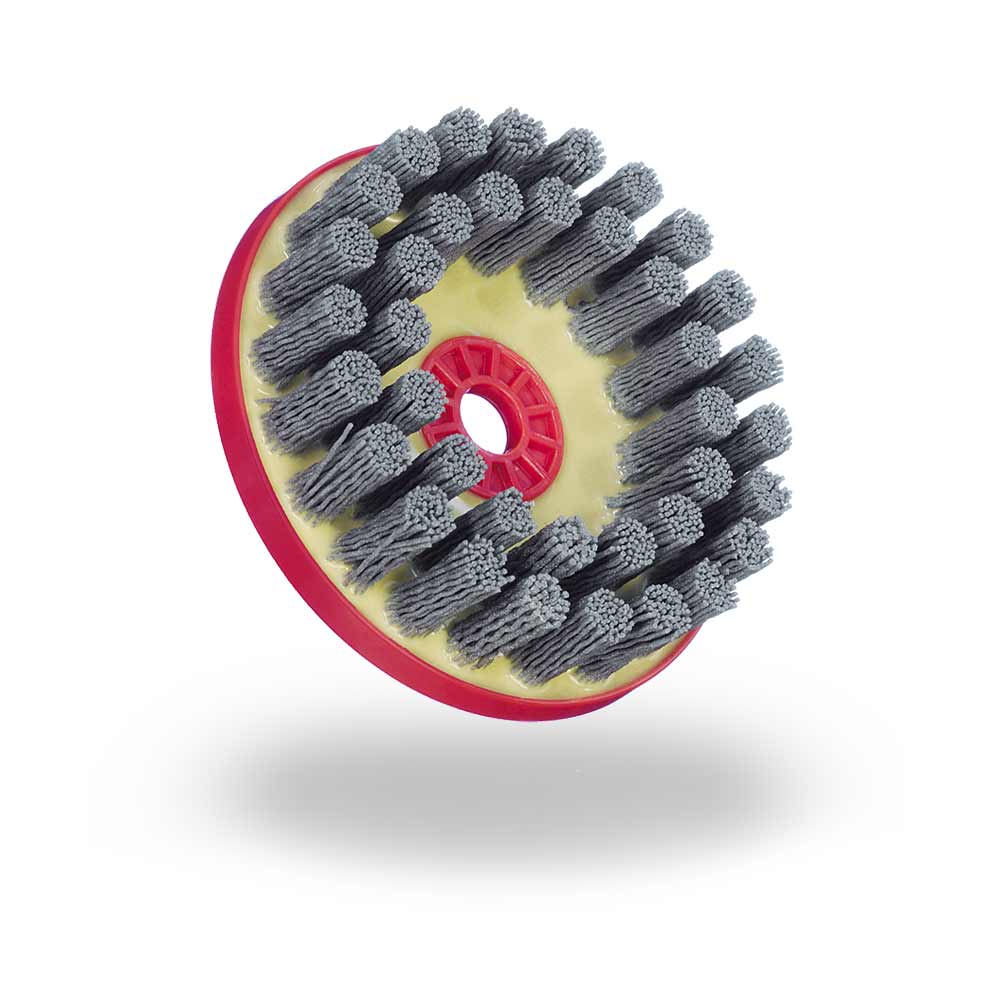

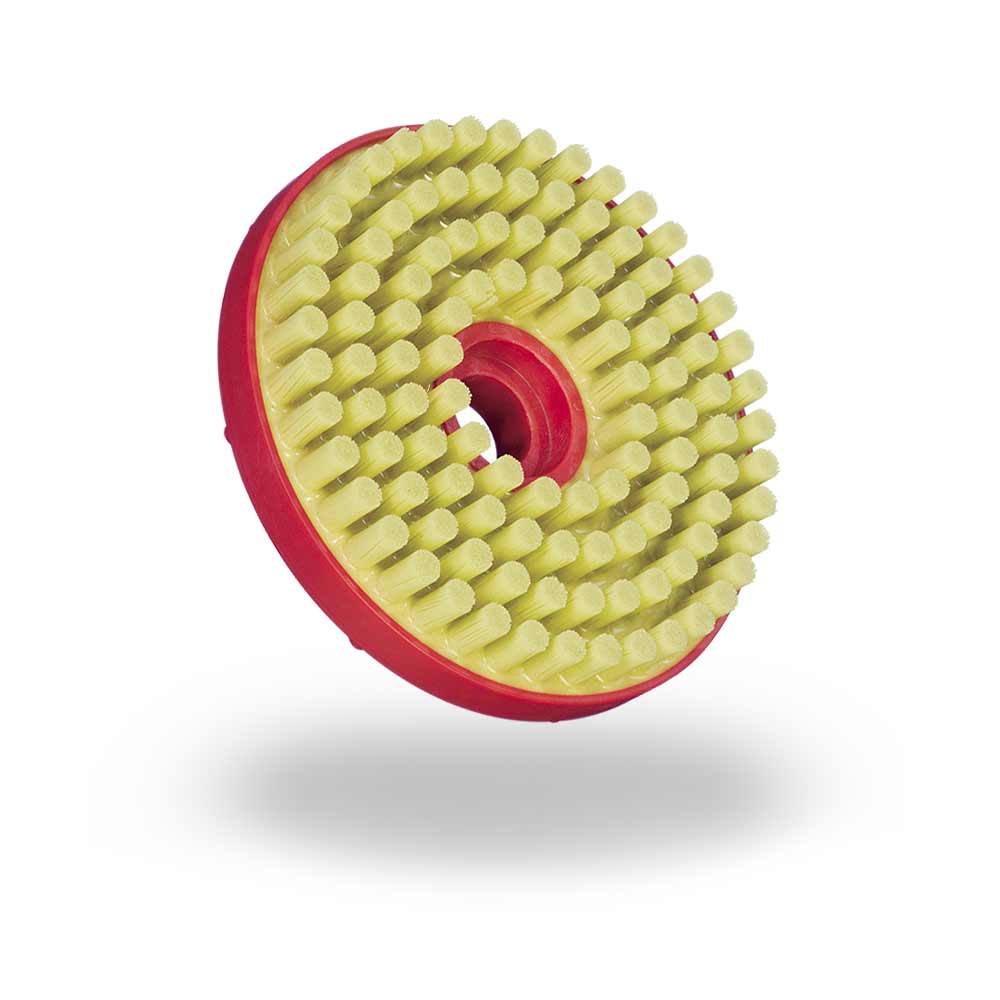

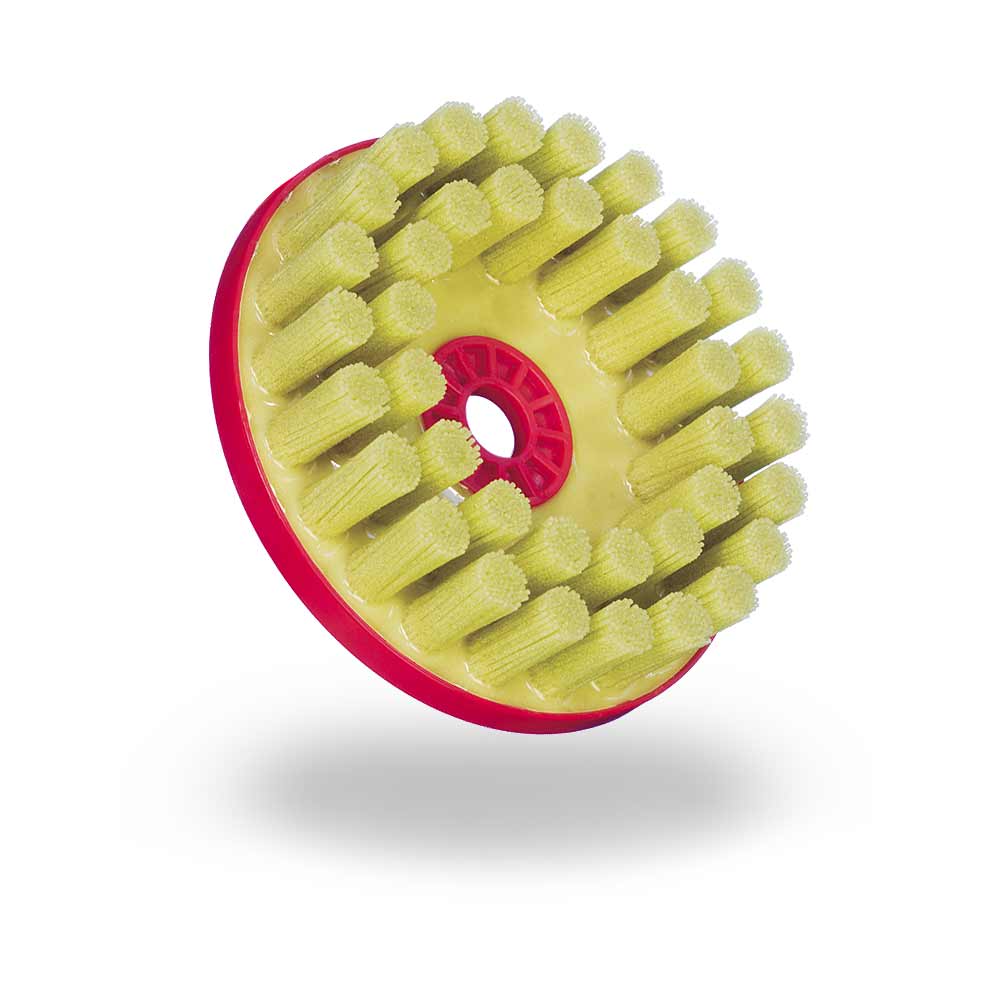

Bundle

Designed for edge deburring and surface finishing. The position of the filaments allows to enter in small bores or difficult areas access. Suitable for Class I and II burrs. Recommended for deburring
surfaces where all burrs are on the same level.

JAZ “CCM” brushes are mainly composed of nylon filaments impregnated with: Silicon carbide, aluminum oxide, diamond, ceramic coating, etc.

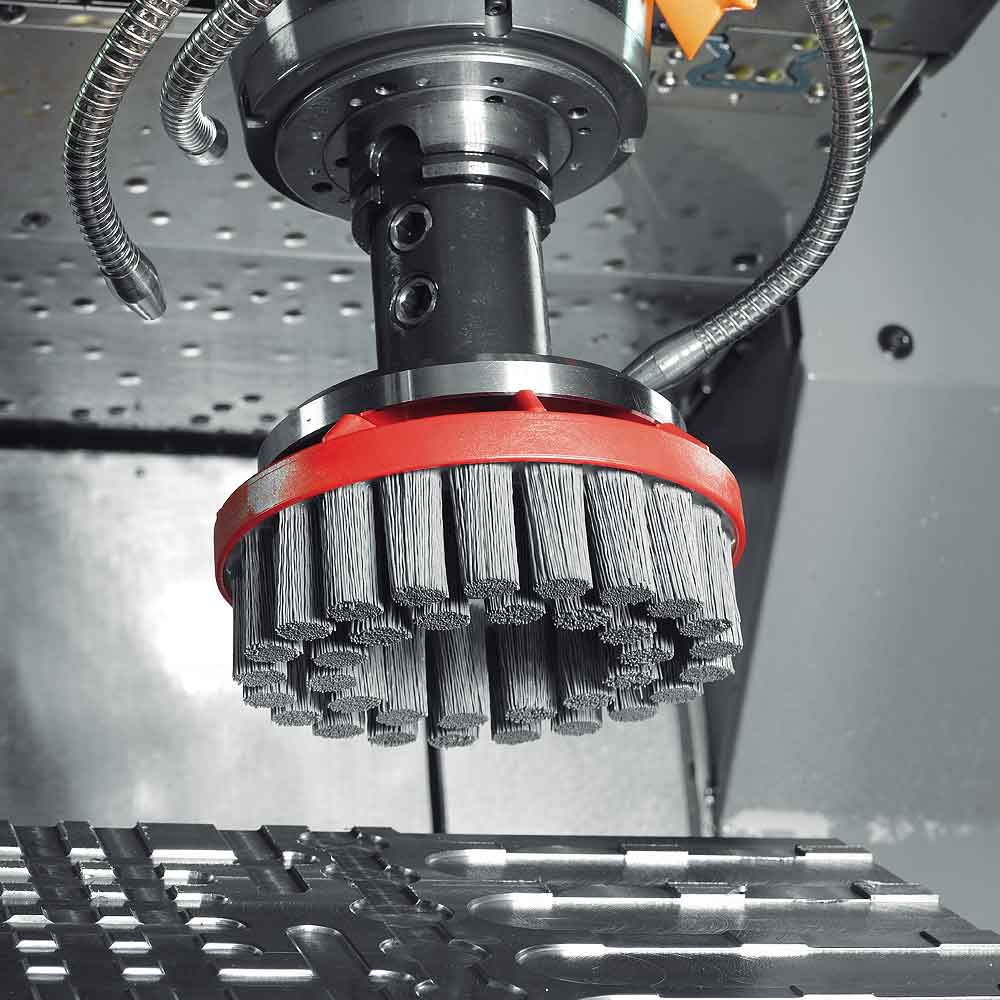

The “CCM” line is designed to be mounted as a tool for use in machining centers, robots, flexible cells, etc.

The “CCM” brushes provide a variety of solutions such as deburring, blending and finishing, rounding of edges, contouring of edges and refinement of surfaces.

Our abrasive filament brushes can be run dry (without a coolant), however applying a “coolant” to the abrasive filaments will improve the finish and performance of the tool.

Industries such as Automotive, Aeronautics, Sintered Metals, etc., where surface finishing is important, can find a solution to many surface finishing problems with JAZ “CCM” brushes.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Outside Ø Ø Arbor Hole Trim Lenght Silicium Carbide Diamond
    Grit Grit
    mm " mm " mm " 80 120 320 80 120 320
    115 .4.1/2” 14 9/16” 25 1" CCM11580CSBU CCM11512CSBU CCM11532CSBU CCM11580DBU CCM11512DBU CCM11532DBU
    150 6” 20 3/4” 30 1.3/16” CCM15080CSBU CCM15012CSBU CCM15032CSBU CCM15080DBU CCM15012DBU CCM15032DBU



    Outside Ø Ø Arbor Hole Trim Length Ceramic Aluminium Ox.
    Grit Grit
    mm " mm " mm " 80 120 320 80 120 320
    115 .4.1/2” 14 9/16” 25 1" CCM11580CRBU CCM11512CRBU CCM11532CRBU CCM11580OABU CCM11512OABU CCM11532OABU
    150 6” 20 3/4” 30 1.3/16” CCM15080CRBU CCM15012CRBU CCM15032CRBU CCM15080OABU CCM15012OABU CCM15032OABU

    Technical Specifications

    Finishing grade

    Abrasive Nylon Finishing Grade
    Grit 20|40|60 Coarse NA1
    Grit 80|100|120 Medium NA2
    Grit 180|200|300 Fine NA3
    Grit 400|800|2000 S. Fine NA4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Nylon & Flap brushes
    Grit 20|40|60
    Grit 80|100|120
    Grit 180|200|300
    Grit 400|800|2000
    Non-abrasive Nylon

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Finishing
    • Tool: Industrial machines
    • Surface: Stainless, Steel

    • Designed for edge deburring and surface finishing.
    • The position of the filaments allows to enter in small bores or difficult areas access.

    Applications

    • Suitable for Class I and II burrs.
    • Recommended for deburring surfaces where all burrs are on the same level.

    Sectores_ingl

    • Industry: Engineering, Aeronautics, Automotive, Sintered Metals and many more.

    Additional information

    Tool Holder for CCM Brushes

    • For the correct mounting of CCM brushes in CNC machines, we recommend to use the Tool Holder.
    • The Tool Holder is designed to provide the best performance of CCM brushes.
    • Manufactured in one solid piece to improve the balancing and the life of the tool.
    • The design allows the coolant to flow through the Tool Holder, reducing the heating and also avoiding rust corrosion.

    Class of Burr

    • CLASS I
      Micro Burrs can only be seen with magnification.
    • CLASS II
      Feather Burrs can be seen without magnification. They can be removed with your fingernail.
    • CLASS III
      Well attached small burrs are small in nature, but require a lot of force to be removed.
    • CLASS IV
      Well attached large burrs are large in nature and have a larger attachment point than a CLASS 111 burr.
    • CLASS V
      Extruded burrs are very large burrs that extrude from the base material. These burrs need to be preconditioned before brushing.
