Abrasive Nylon Discs

Abrasive Nylon Discs produce a consistent finish witout affecting surface measures. Suitable for wet and dry applications.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Diameter Trim Length Arbor Hole Black Color Red Color Yellow Color Blue Color R.P.M. Max
    80 Grit 120 Grit 180 Grit 320 Grit
    4" 1" 5/8"-11 CON 1010 CON 1011 CON 1012 CON 1013 3,000
    5" 5/8"-11 CON 1210 CON 1211 CON 1212 CON 1213
    6" 5/8"-11 CON 1410 CON 1411 CON 1412 CON 1413
    10" 2" CON 2510 CON 2511 CON 2512 CON 2513

    Technical Specifications

    Finishing grade

    Abrasive Nylon Finishing Grade
    Grit 20|40|60 Coarse NA1
    Grit 80|100|120 Medium NA2
    Grit 180|200|300 Fine NA3
    Grit 400|800|2000 S. Fine NA4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Nylon & Flap brushes
    Grit 20|40|60
    Grit 80|100|120
    Grit 180|200|300
    Grit 400|800|2000
    Non-abrasive Nylon

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Deburring, Finishing
    • Tool: Bench-Grinder
    • Surface: Stainless, Steel

    • Filaments impregnated with Silicon Carbide abrasive grains allow the brush to maintain a high cut rate while producing a consistent finish throughout the life of the brush.
    • Filaments flex to all angles, and permits them to deburr and finish highly contoured parts.
    • Nylon brushes are ideal when it is important that surface measures are not affected by the brushing process. Suitable for wet and dry applications.
    • Although coolants and lubrication may allow the use of higher speeds than initially recommended, these R.P.M. must never be exceeded.

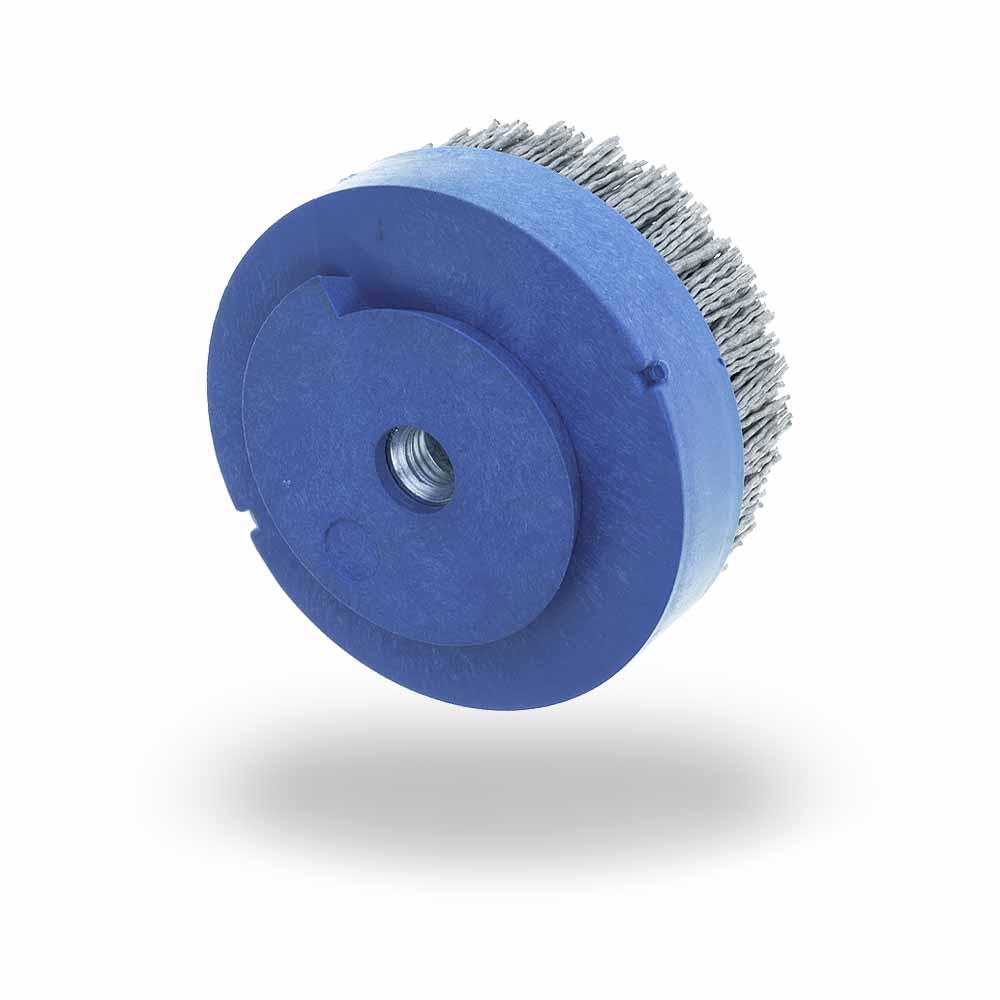

    • Exclusive design and patented multifitting thread in two different versions; one is valid for M14 and 5/8-11 attachments; the other is valid for M10 x 1,5 and M10 x 1,25 systems.The new design is also extended to single threads. It allows an easier attachment and increases resistance resulting in more safety for the user.

    Applications

    No rayan la superficie, por lo que están especialmente indicados para limpieza y pulido de:

    • Deburring of turbine blades and removing carbon encrustation from engines.
      Cleaning of dies, steel and cast iron pieces.

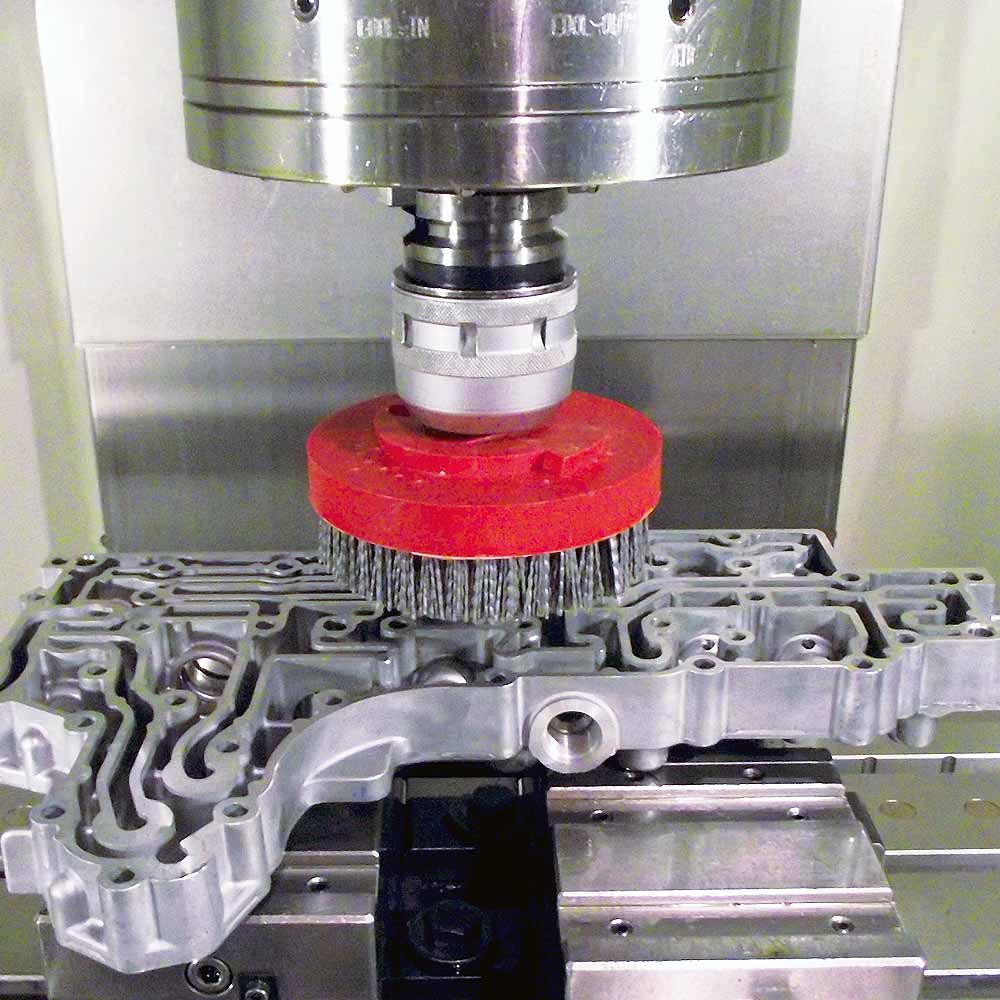

    • Deburring of cylindrical parts, steering gear cases and control pistons in the automotive industry.
    • Deburring of edges on aluminium extrusions, fabricated metals, powdered metals…

    Order Example

    Order example:

    1211
