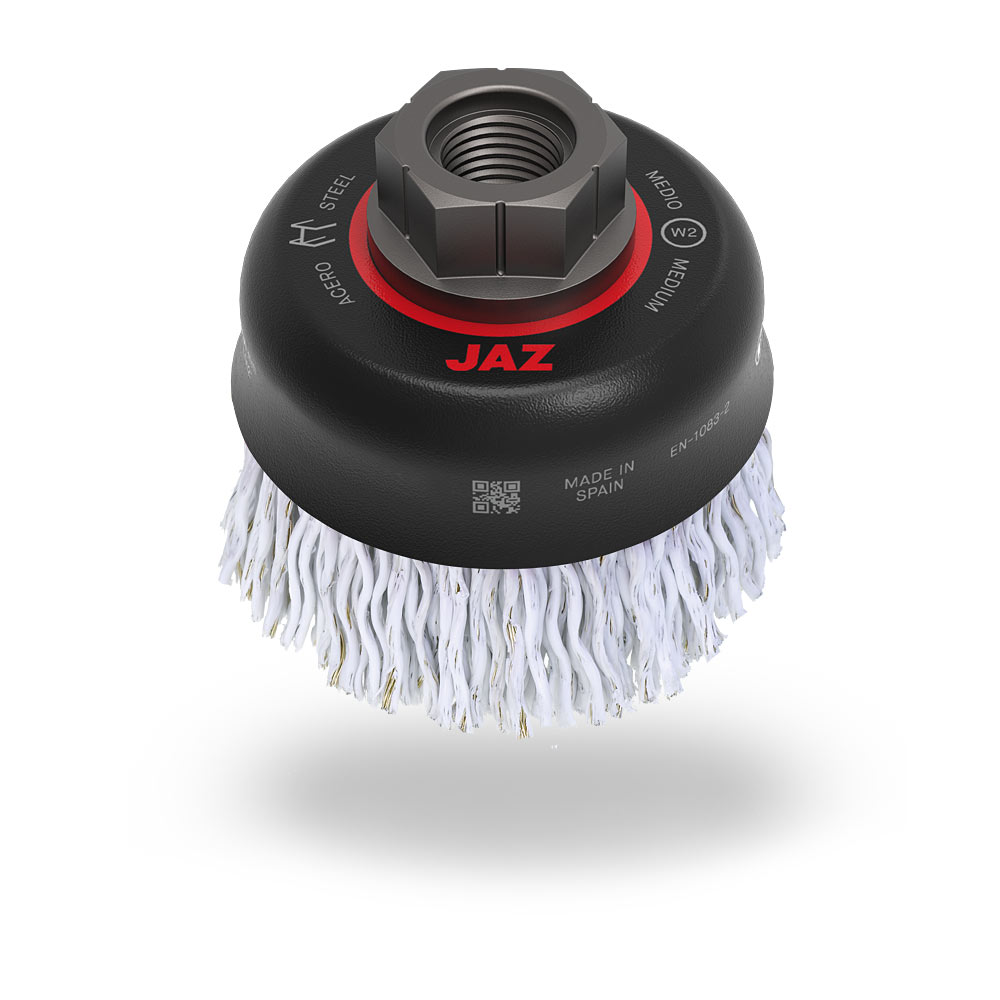

High speed line brushes with laminated wire

High Speed Laminated wire Brushes have a higher performance due to less wire fractures compared to traditional wire brushes without plastic cover.

Inquire with us about this product

I have read and agree the privacy policy

Measures

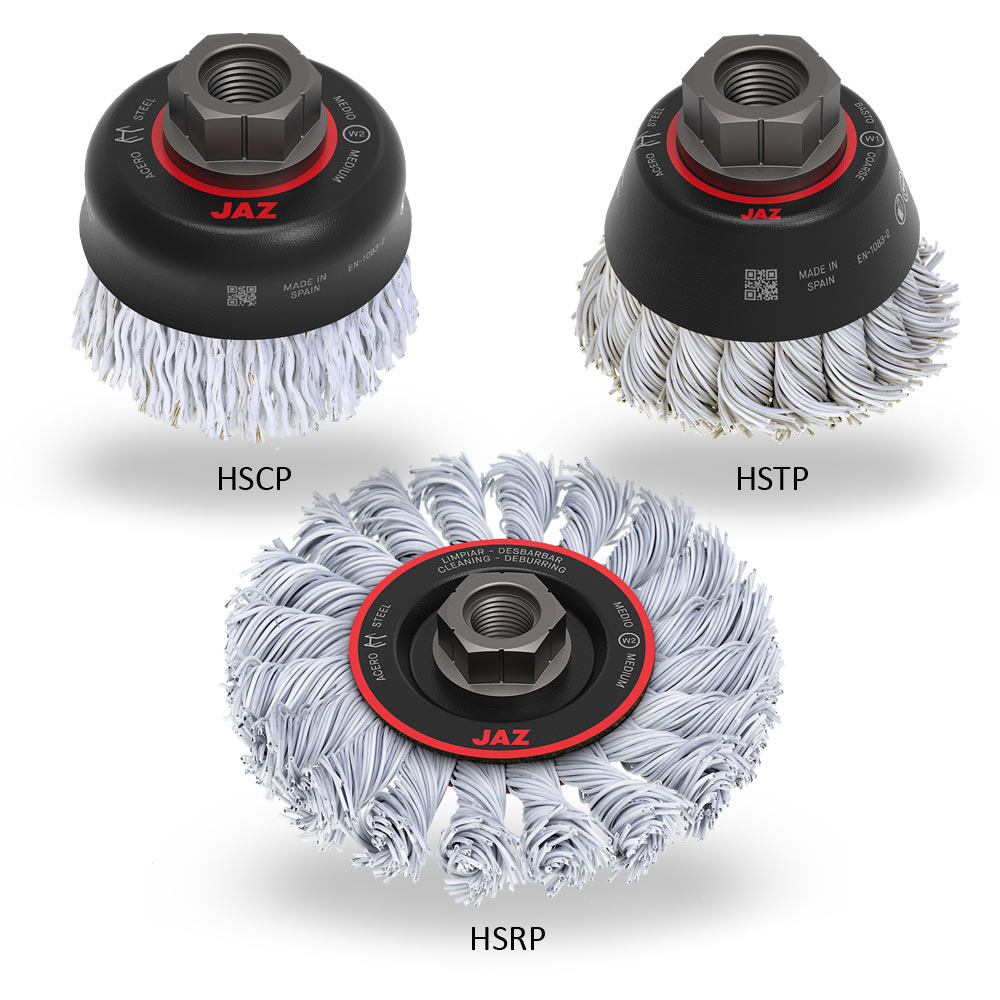

Model Type of wire Diameter (d) Trim Length (s) Arbor Hole (e) JAZ PLUS Wire R.P.M.
(3x.008") + (6x.014") .020" Max.
HSCP Crimped 3" 7/8" 5/8"-11 73022 15,000

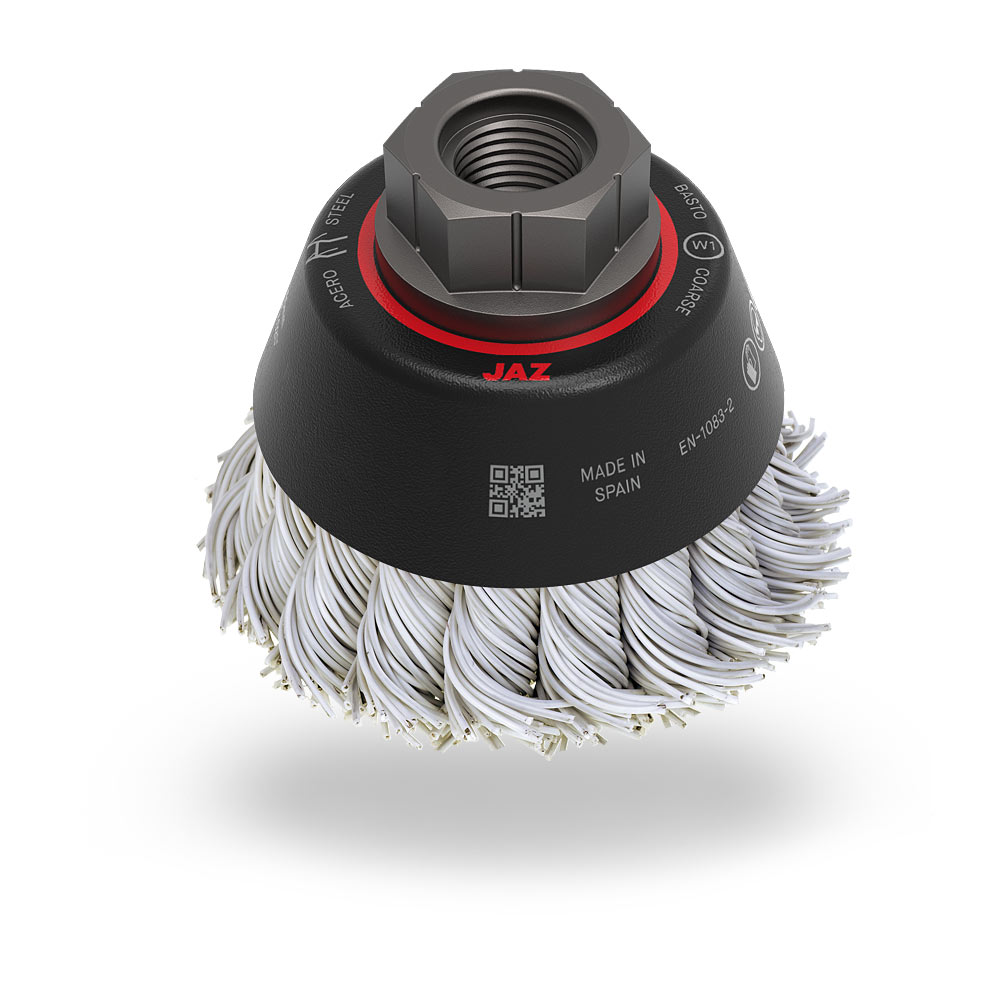

HSTP Knotted 2-3/4" 3/4" 5/8"-11 72022 15,000

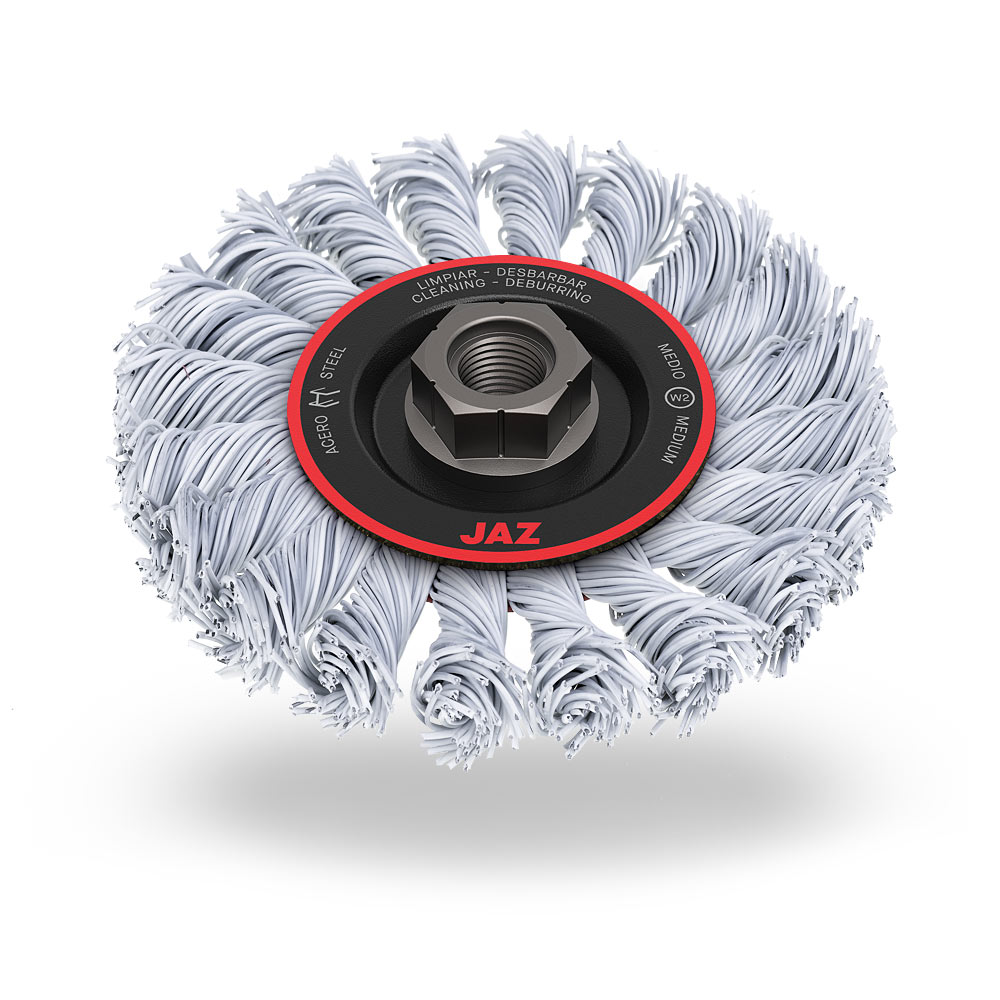

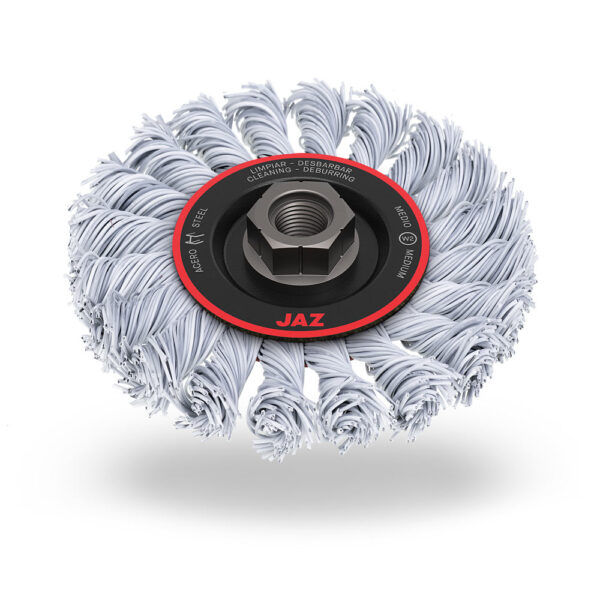

HSRP Knotted 4-1/2" 1" 5/8"-11 78022 15,000

Technical Specifications

Finishing grade

Ø Wire Finishing Grade
0,8-0,6-0,5 Coarse W1
0,4-0,37-0,35-0,30 Medium W2
0,20-0,15-0,12-0,10 Fine W3
0,08-0,06 S. Fine W4
Non-Abrasive Fibers Neutral SW5

Removal rate

Ø Wire
0,8-0,6-0,5
0,4-0,37-0,35-0,30
0,20-0,15-0,12-0,10
0,08-0,06

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers

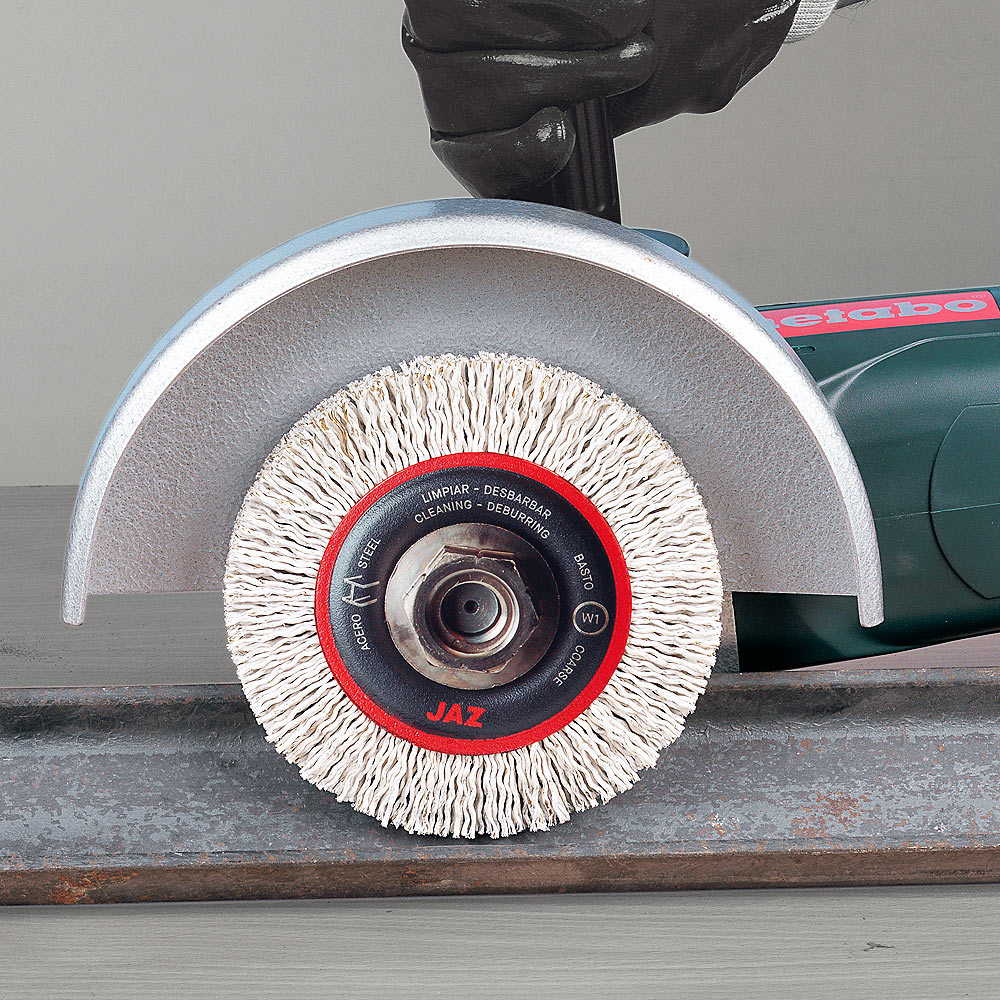

  • Action: Cleaning, Deburring
  • Tool: Grinder
  • Surface: Steel

Order Example

JAZ ZUBIAURRE: Gráfica
JAZ ZUBIAURRE: Gráfica

Order Example

73022

Additional information

Easy Handling

This sort of brushes have their wires laminated. By this way they become more comfortable and safer in its handling and it avoids all kind of pricks to the user.

High Performance

Laminated wire brushes have a higher performance due to less wire fractures compared to traditional wire brushes without plastic cover.

Distinctive appearance

The plastic cover can be presented in several colours giving a customized nd distinctive appearance comparing to traditional wire brushes.
