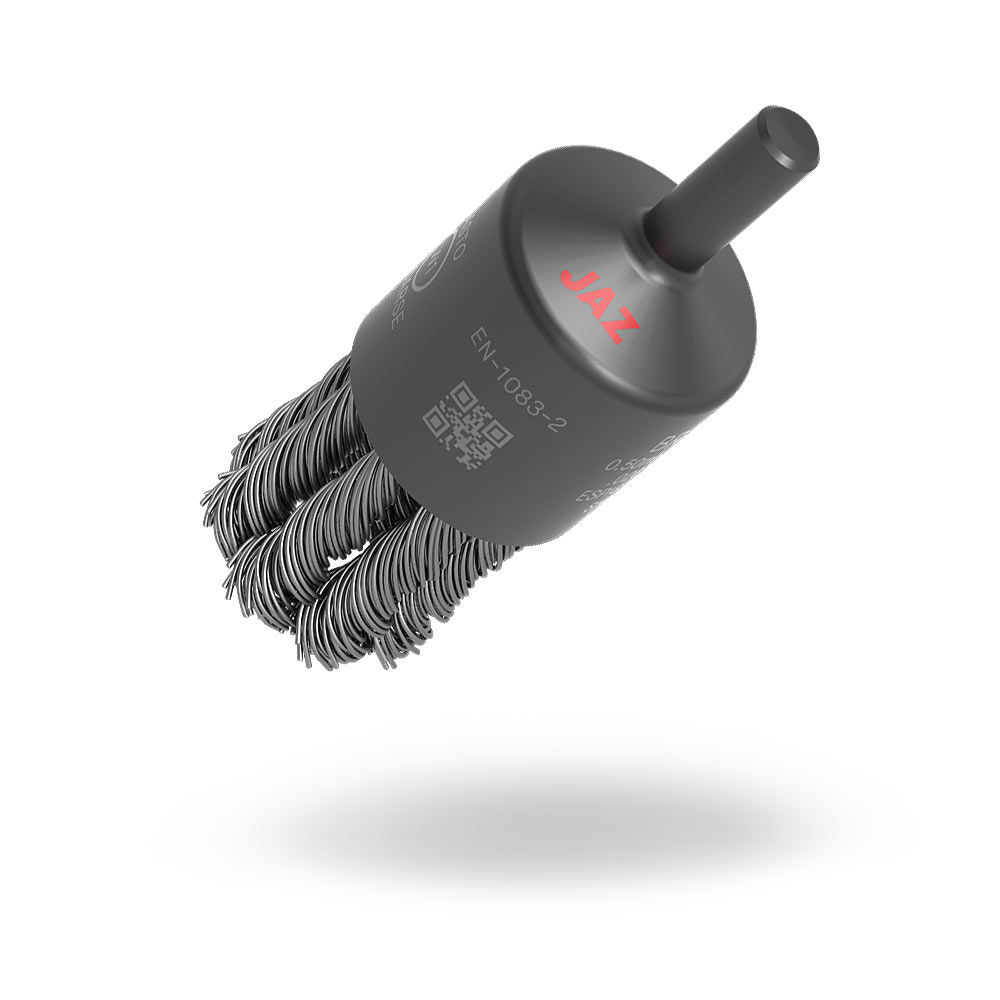

Twist knot end brushes

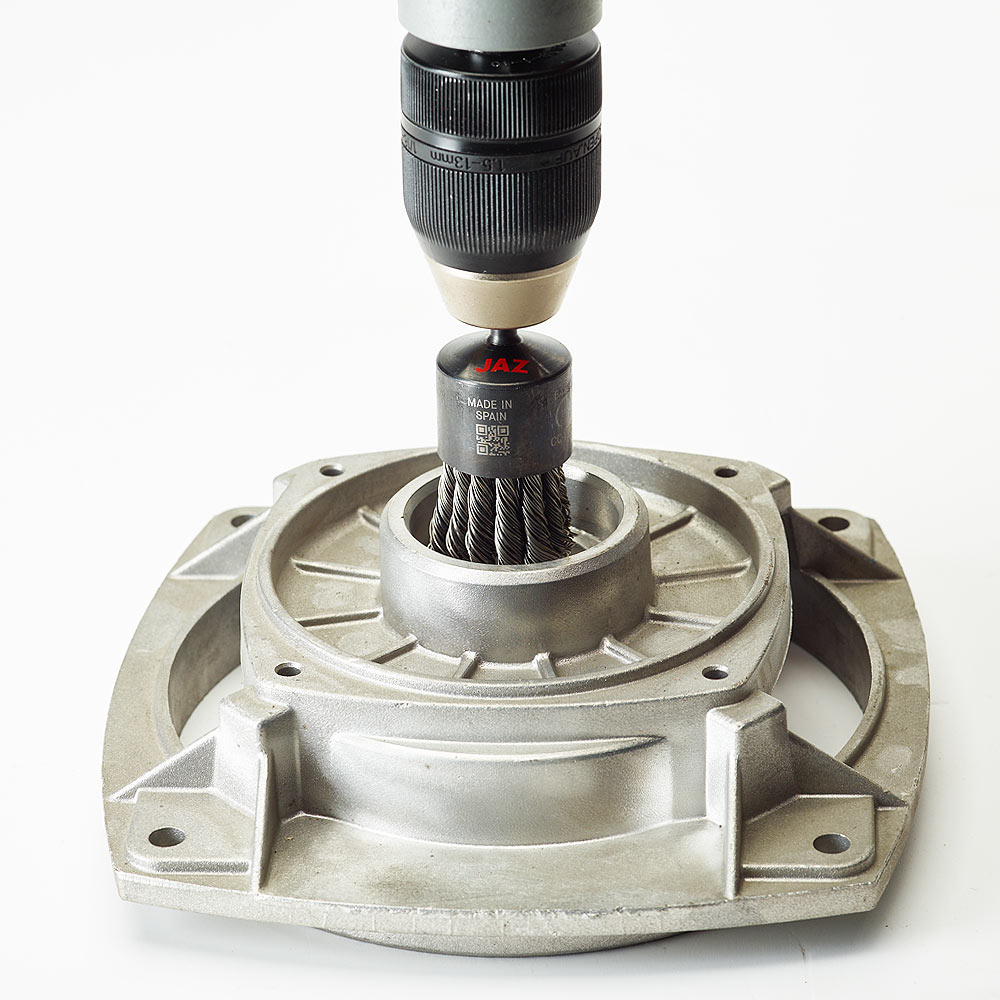

End Brushes of Knotted wire are used in difficult places to access, holes, corners. Used on portable or fixed drills with chuck.

Inquire with us about this product

    I have read and agree the privacy policy

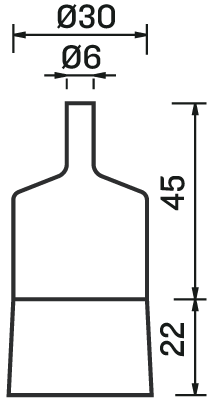

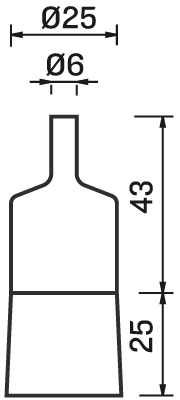

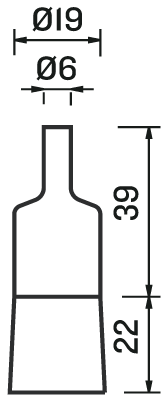

    Measures

    Model Diam. Trim Length Steel Stainless Steel Max RPM
    .015" .020" .015" .020"
    BR 1/2" 1-1/4" 12050 4,500
    3/4" 7/8" 12260 12250 12290 12280 25,000
    1" 1" 12360 12350 12590 12580 25,000
    1-1/4" 1" 12460 12450 12490 12480 25,000

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: Die-grinder
    • Surface: Stainless, Steel

    Order Example

    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica
    JAZ ZUBIAURRE: Gráfica

    Order Example

    12290

    Additional information

    Posibilidad de plastificar la cazoleta exterior para evitar chispas.
