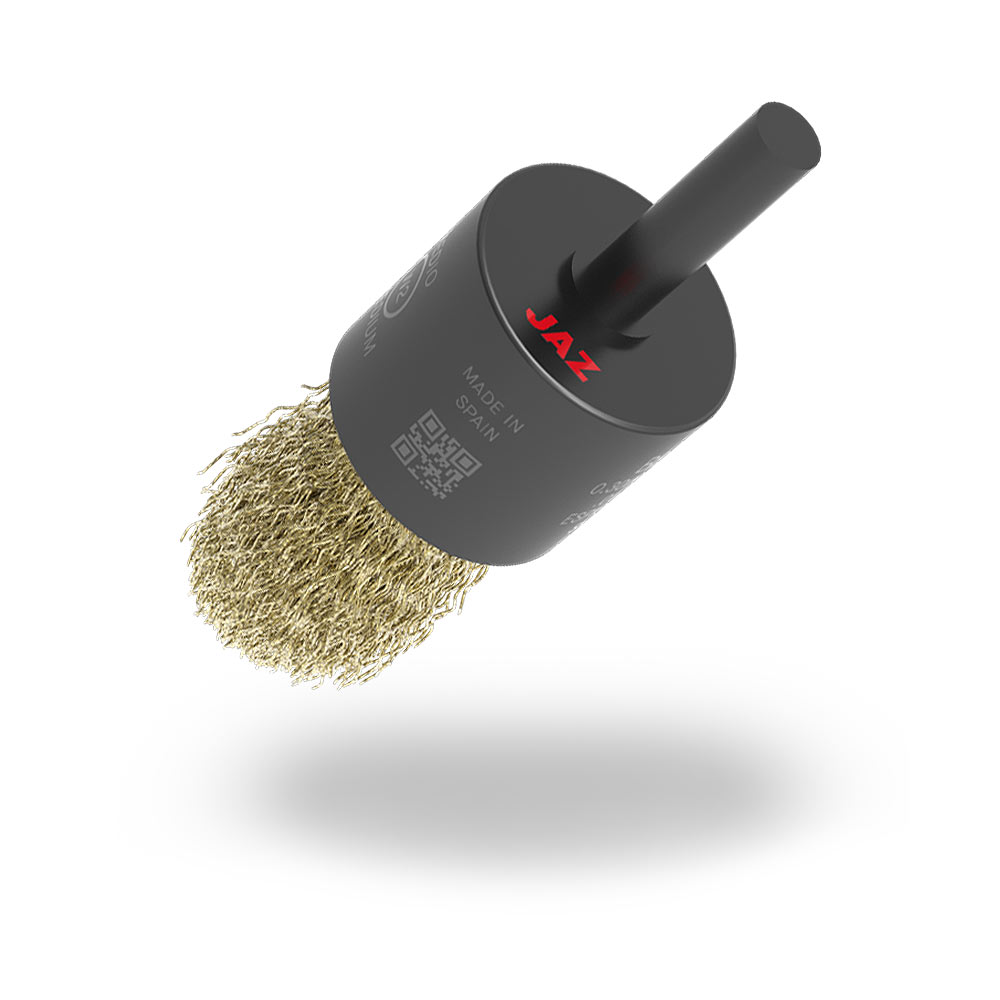

Round cut end brushes

End Brushes of Round Cut are used in difficult places to access, holes, corners. Used on portable or fixed drills with chuck.

Inquire with us about this product

    I have read and agree the privacy policy

    Measures

    Model Diam. Trim Length Steel Stainless Steel Brass Max RPM
    .006" .012" .020" .006" .012" .020" .012"
    BE 1" 1-3/16" 16320 16300 16310 16340 16330 16380 15290 20,000

    Technical Specifications

    Finishing grade

    Ø Wire Finishing Grade
    0,8-0,6-0,5 Coarse W1
    0,4-0,37-0,35-0,30 Medium W2
    0,20-0,15-0,12-0,10 Fine W3
    0,08-0,06 S. Fine W4
    Non-Abrasive Fibers Neutral SW5

    Removal rate

    Ø Wire
    0,8-0,6-0,5
    0,4-0,37-0,35-0,30
    0,20-0,15-0,12-0,10
    0,08-0,06

    Flexibility

    DLZ, FLAP, Encapsulated brushes
    Twist knots, Control brushes
    Crimped wire .020 to .012
    Crimped wire .010 to .004
    Crimpe wire .003 to .002 Nylon & synthetic fibers
    • Action: Cleaning, Deburring
    • Tool: Die-grinder
    • Surface: Non-sparking, Stainless, Steel

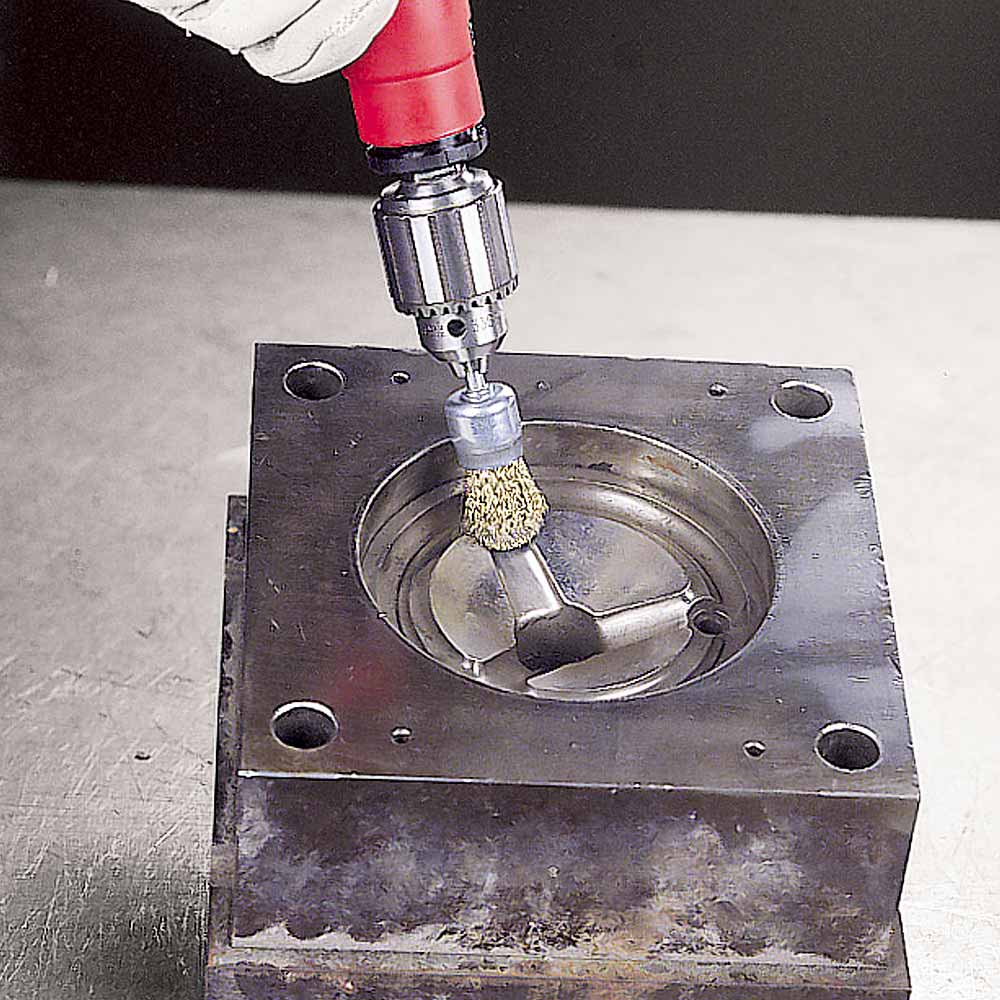

    • Shape and dimensions for use in difficult places to access, holes, corners, etc.
    • Used on portable or fixed drills with chuck.

    Applications

    • Removal of edges, scale, paint, rust, rubber-metal pieces etc. Dies, tubes, engines, pistons, etc.

    Order Example

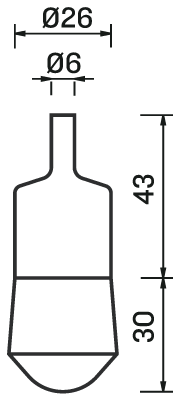

    JAZ ZUBIAURRE: Gráfica

    Order example

    16300
