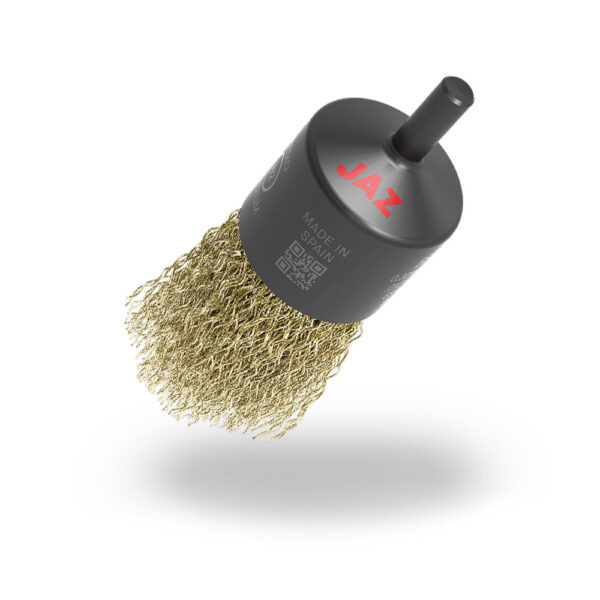

Plain cut end brushes

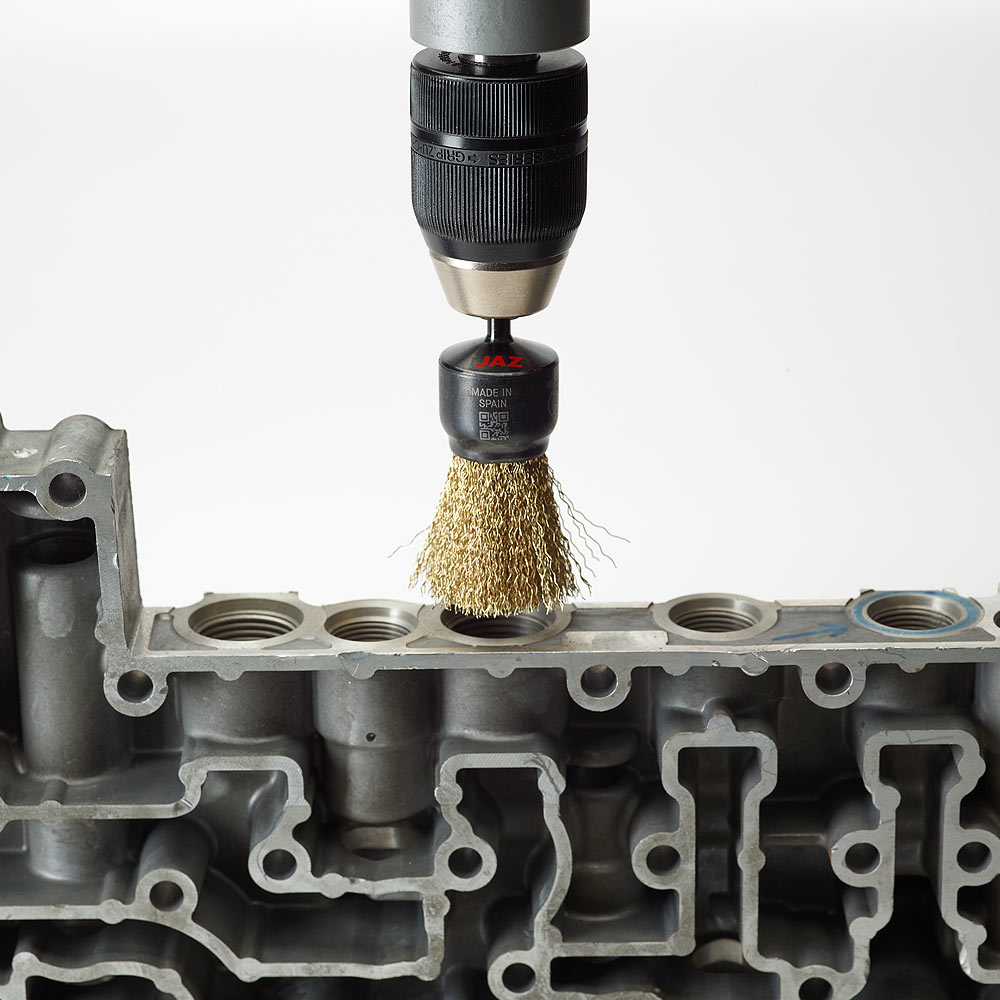

End Brushes of Plain Cut are used in difficult places to access, holes, corners. Used on portable or fixed drills with chuck.

Inquire with us about this product

I have read and agree the privacy policy

Measures

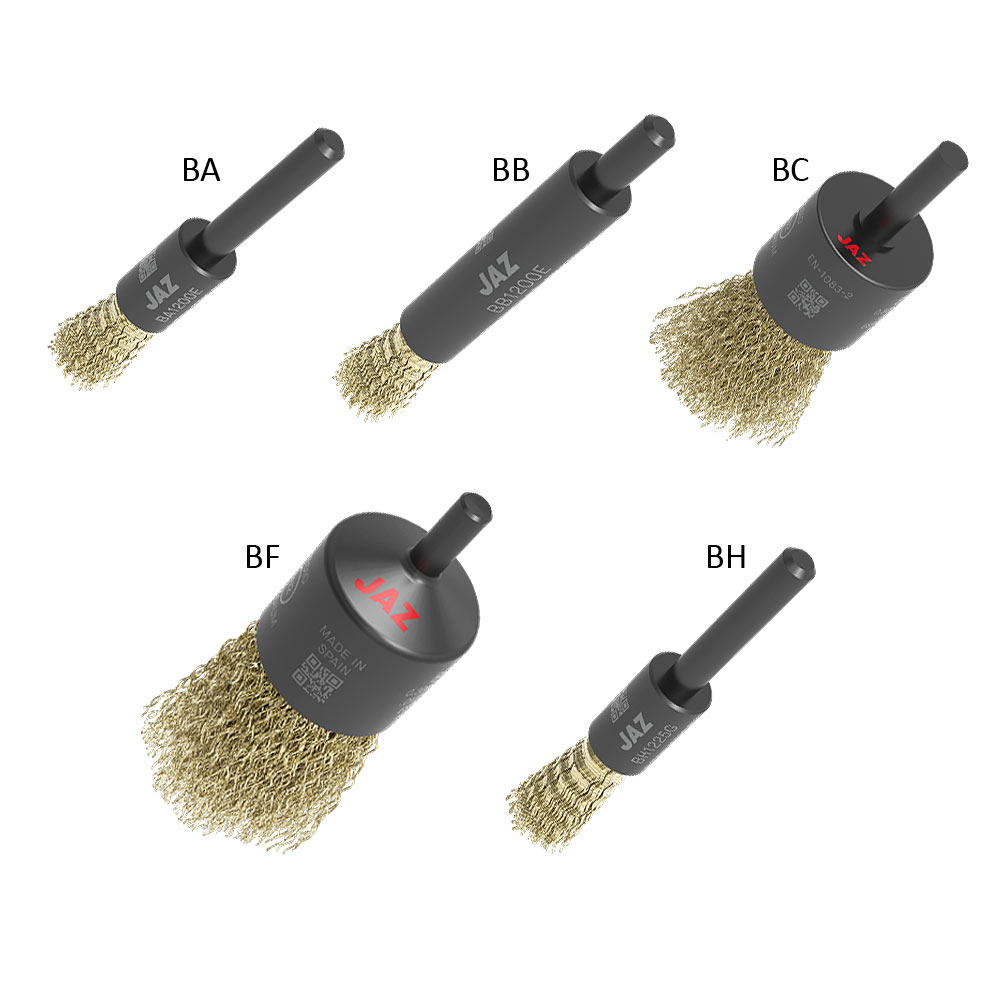

Model Diam. Trim Length Steel Cable Crimped Stainless Steel Cable Crimped Brass Max RPM
.006" .012" .020" 12x.009" .006" .012" .020" 12x.009" .012"
BA 1/2" 3/4" 13120 13100 13110 13140 13130 13180 13190 20,000
BB 1/2" 3/4" 14120 14100 14110 14140 14130 14180 14190 20,000
BC 3/4" 1" 14220 14200 14210 19200 14240 14230 14280 19230 14290 20,000
BC 1" 1-3/16" 14320 14300 14310 19300 14340 14330 14380 19330 14390 20,000
BF 1-3/16" 1-5/8" 17420 17400 17410 17440 17430 17480 17490 20,000
BH 1/2" 1" 18120 18100 18110 18140 18130 18180 18190 20,000

Technical Specifications

Finishing grade

Ø Wire Finishing Grade
0,8-0,6-0,5 Coarse W1
0,4-0,37-0,35-0,30 Medium W2
0,20-0,15-0,12-0,10 Fine W3
0,08-0,06 S. Fine W4
Non-Abrasive Fibers Neutral SW5

Removal rate

Ø Wire
0,8-0,6-0,5
0,4-0,37-0,35-0,30
0,20-0,15-0,12-0,10
0,08-0,06

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers
  • Action: Cleaning, Deburring
  • Tool: Die-grinder
  • Surface: Non-sparking, Stainless, Steel

  • Shape and dimensions for use in difficult places to access, holes, corners, etc.

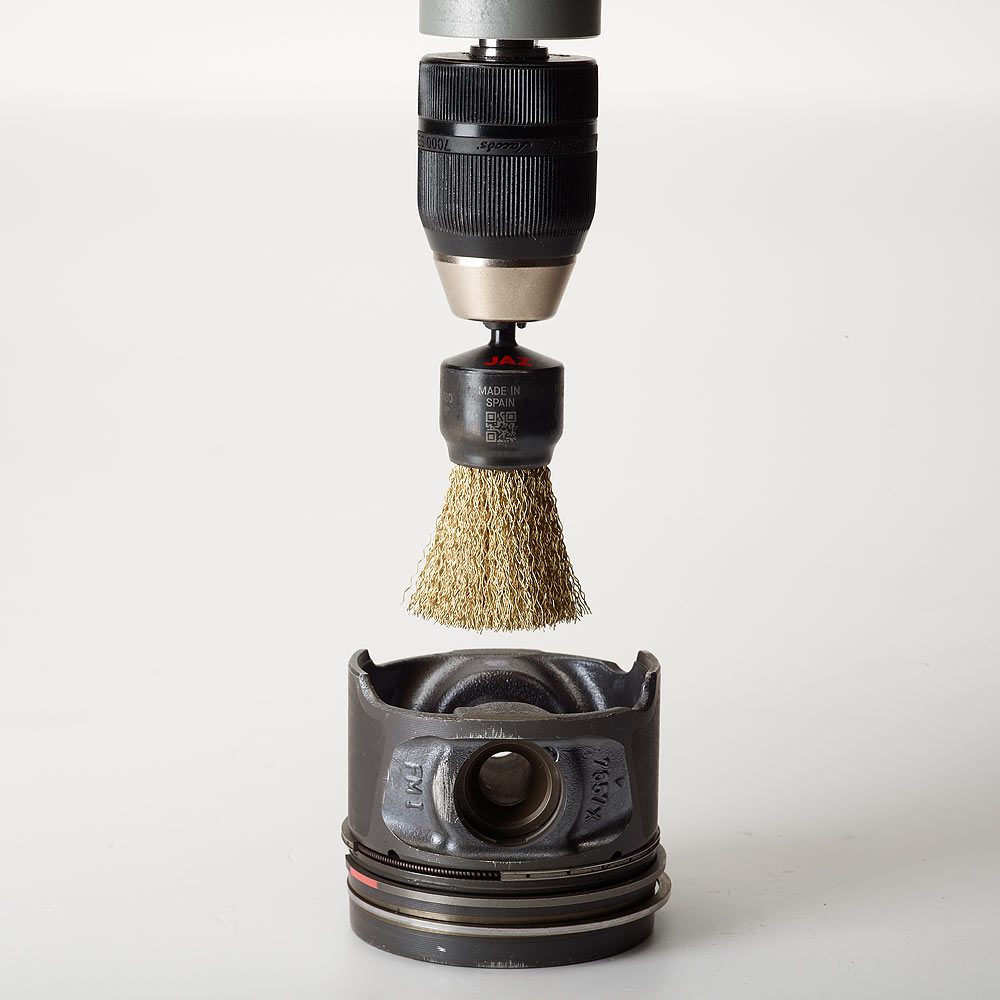

  • Used on portable or fixed drills with chuck.

Applications

  • Removal of edges, scale, paint, rust, rubber-metal pieces etc. Dies, tubes, engines, pistons, etc.

Order Example

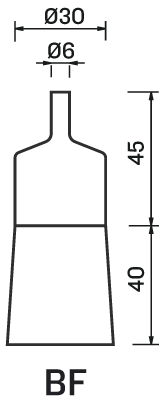

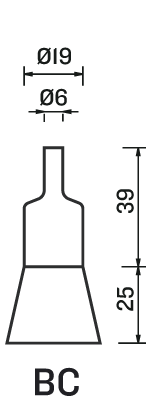

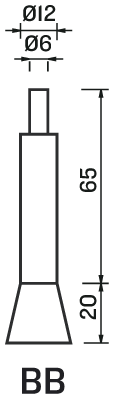

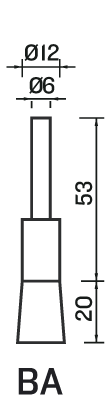

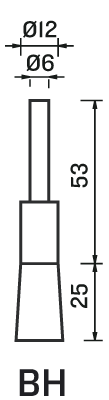

JAZ ZUBIAURRE: Gráfica
JAZ ZUBIAURRE: Gráfica
JAZ ZUBIAURRE: Gráfica
JAZ ZUBIAURRE: Gráfica
JAZ ZUBIAURRE: Gráfica

Order example

14300
