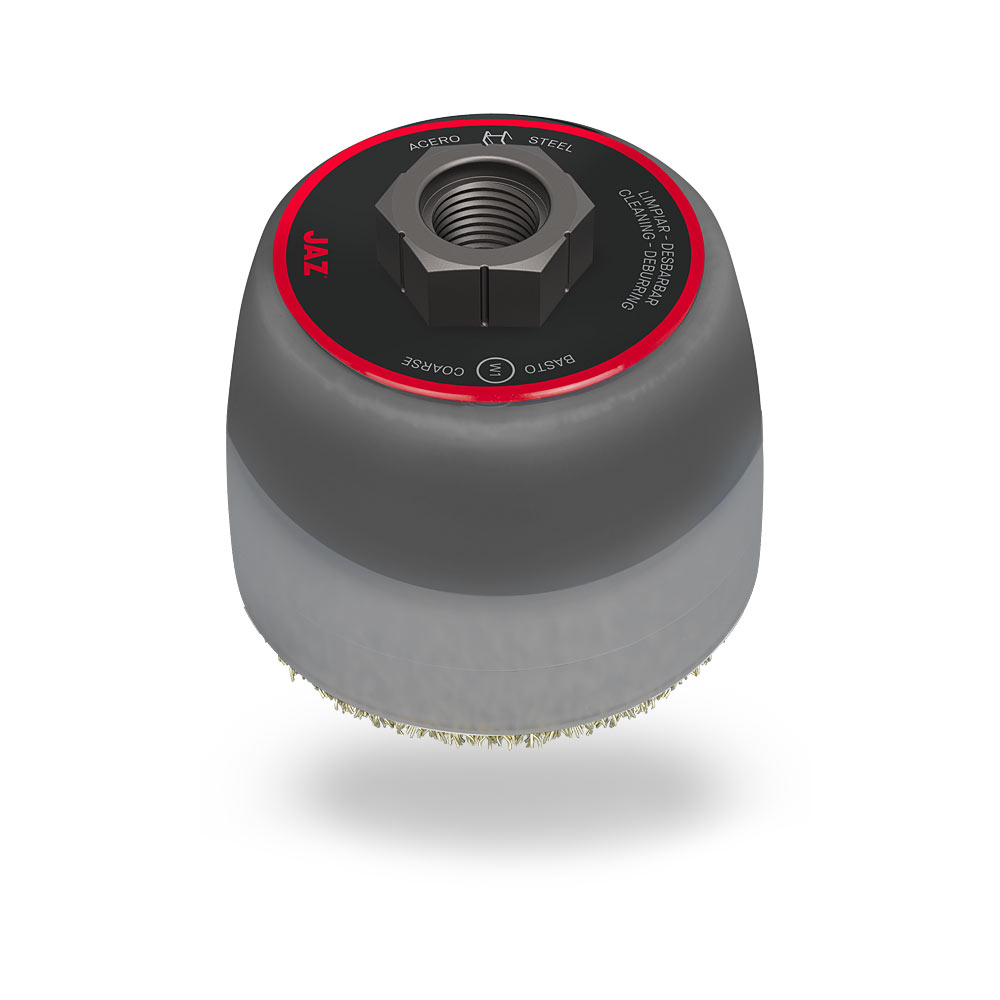

Crimped Control Brush

JAZ Crimped Control Brushes incorporate a rigid degradable material which holds the wire preventing its opening.

Inquire with us about this product

I have read and agree the privacy policy

Measures

Item Wire Brushing Diameter (d) Trim Length (s) Arbor Hole (e) Steel Thread R.P.M.
.020" Max.
CCO 0800H Crimped Light Removal 3.1/4" 1.3/16" 5/8"-11 67592 M10-M14 W5/8" 5/8" UNC, Multi R (1) 8,500
CCO 1250H Crimped Light Removal 5" 1.3/16" 5/8"-11 65592 6,500

(1) Exclusive design for M14 x 2 and W 5/8" - 11 (Code R88) or for M10 x 1.25 and M10 x 1.50 (Code R77).

Technical Specifications

Finishing grade

Ø Wire Finishing Grade
0,8-0,6-0,5 Coarse W1
0,4-0,37-0,35-0,30 Medium W2
0,20-0,15-0,12-0,10 Fine W3
0,08-0,06 S. Fine W4
Non-Abrasive Fibers Neutral SW5

Removal rate

Ø Wire
0,8-0,6-0,5
0,4-0,37-0,35-0,30
0,20-0,15-0,12-0,10
0,08-0,06

Flexibility

DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers
  • Action: Cleaning, Deburring
  • Tool: Grinder
  • Surface: Steel

Applications

  • Removal of rust, paint, welding scale, edges, etc.
  • Specially designed for getting a fine finishing.
  • Surface processing in metal, wood, rubber, etc.

Order Example

JAZ ZUBIAURRE: Gráfica

Order Example

67592

Additional information

Control and Ergonomics over the brushing

The new JAZ Control Brushes incorporate a rigid degradable material which holds the wire preventing its opening and getting by that a much better control of the brushing surface and a higher level of ergonomics over the work.

Total Safety

These new JAZ wire brushes avoid wire breakage therefore they offer an outstanding safety improvement over the brushing work. They also provide for a more friendly handling of the brush, protecting end users against potential pricking caused by the wire.

Higher Performance

The new JAZ Control Brushes provide an excellent performance improvement comparing to the traditional wire brushes due to the avoidance of wire breakage and the resulting extension of the working life of the wires.
