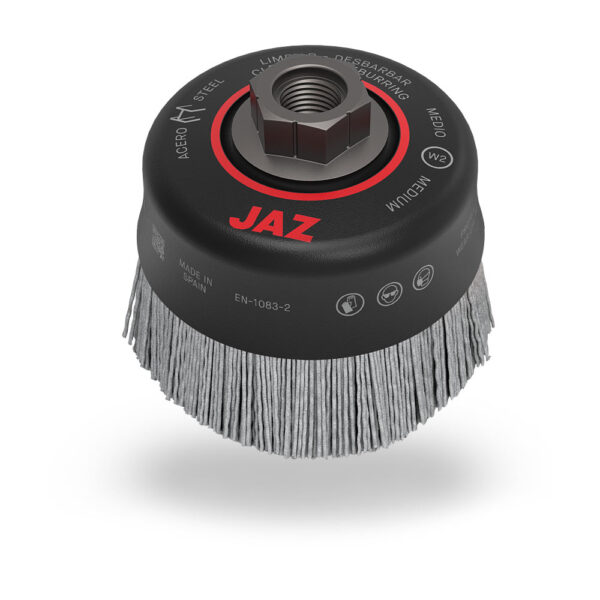

Abrasive Nylon Cups

Abrasive Nylon Cups produce a consistent finish witout affecting surface measures. Suitable for wet and dry applications.

Inquire with us about this product

I have read and agree the privacy policy


Diameter Trim Length Arbor Hole Grits R.P.M. Max
120 · Coarse 180 · Medium 320 · Fine
4-1/2" 1-3/8" 5/8"-11 68052 68072 68082 8,500
6" 1-3/16" 5/8"-11 69052 69072 69082 6,000

Technical Specifications

Finishing grade

Abrasive Nylon Finishing Grade
Grit 20|40|60 Coarse NA1
Grit 80|100|120 Medium NA2
Grit 180|200|300 Fine NA3
Grit 400|800|2000 S. Fine NA4
Non-Abrasive Fibers Neutral SW5

Removal rate

Nylon & Flap brushes
Grit 20|40|60
Grit 80|100|120
Grit 180|200|300
Grit 400|800|2000
Non-abrasive Nylon


DLZ, FLAP, Encapsulated brushes
Twist knots, Control brushes
Crimped wire .020 to .012
Crimped wire .010 to .004
Crimpe wire .003 to .002 Nylon & synthetic fibers
  • Action: Deburring, Finishing
  • Tool: Grinder
  • Surface: Stainless, Steel

  • Filaments impregnated with Silicon Carbide abrasive grains allow the brush to maintain a high cut rate while producing a consistent finish throughout the life of the brush.
  • Filaments flex to all angles, and permits them to deburr and finish highly contoured parts.
  • Nylon brushes are ideal when it is important that surface measures are not affected by the brushing process. Suitable for wet and dry applications.
  • Although coolants and lubrication may allow the use of higher speeds than initially recommended, these R.P.M. must never be exceeded.
  • Exclusive design and patented multifitting thread in two different versions; one is valid for M14 and 5/8-11 attachments; the other is valid for M10 x 1,5 and M10 x 1,25 systems.The new design is also extended to single threads. It allows an easier attachment and increases resistance resulting in more safety for the user.

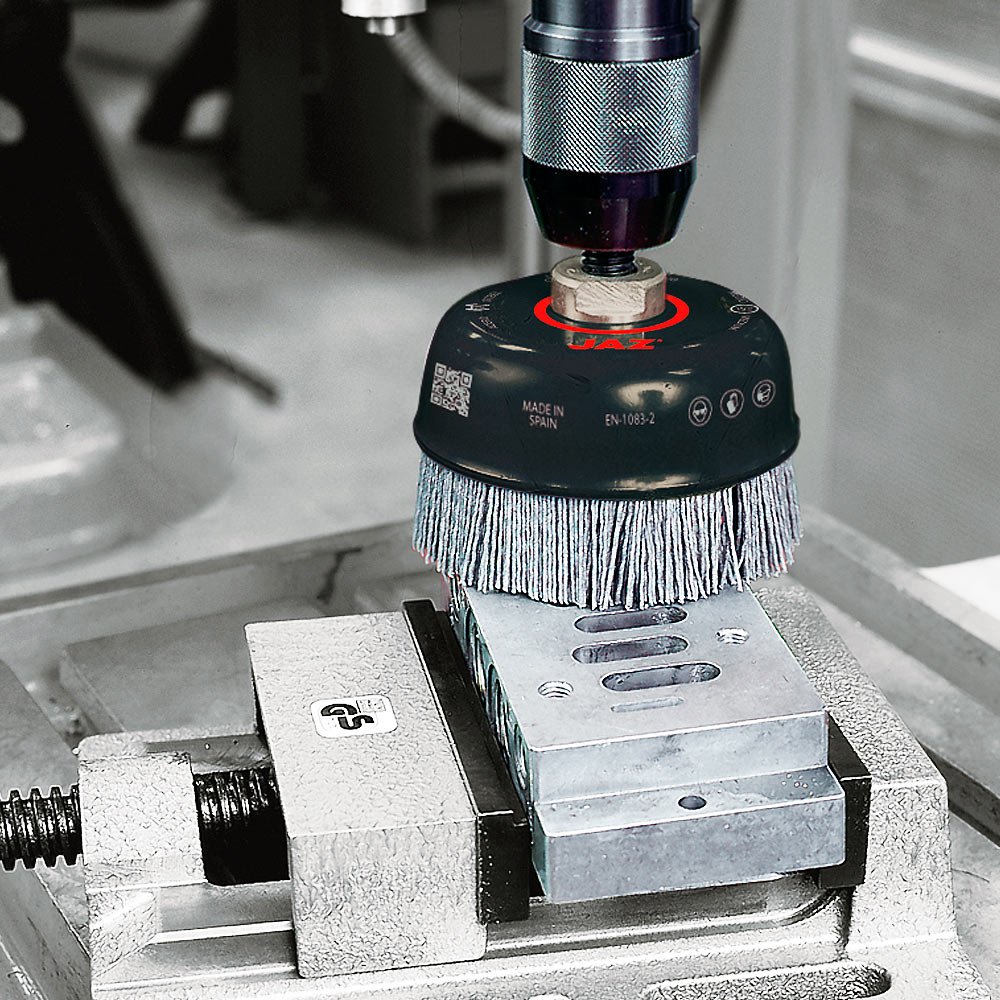

Do not scratch and therefore they are appropriate for cleaning and polishing of:

  • Deburring of turbine blades and removing carbon encrustation from engines.
  • Cleaning of dies, steel and cast iron pieces.
  • Deburring of cylindrical parts, steering gear cases and control pistons in the automotive industry.
  • Deburring of edges on aluminium extrusions, fabricated metals, powdered metals…

Order Example


Order example:
